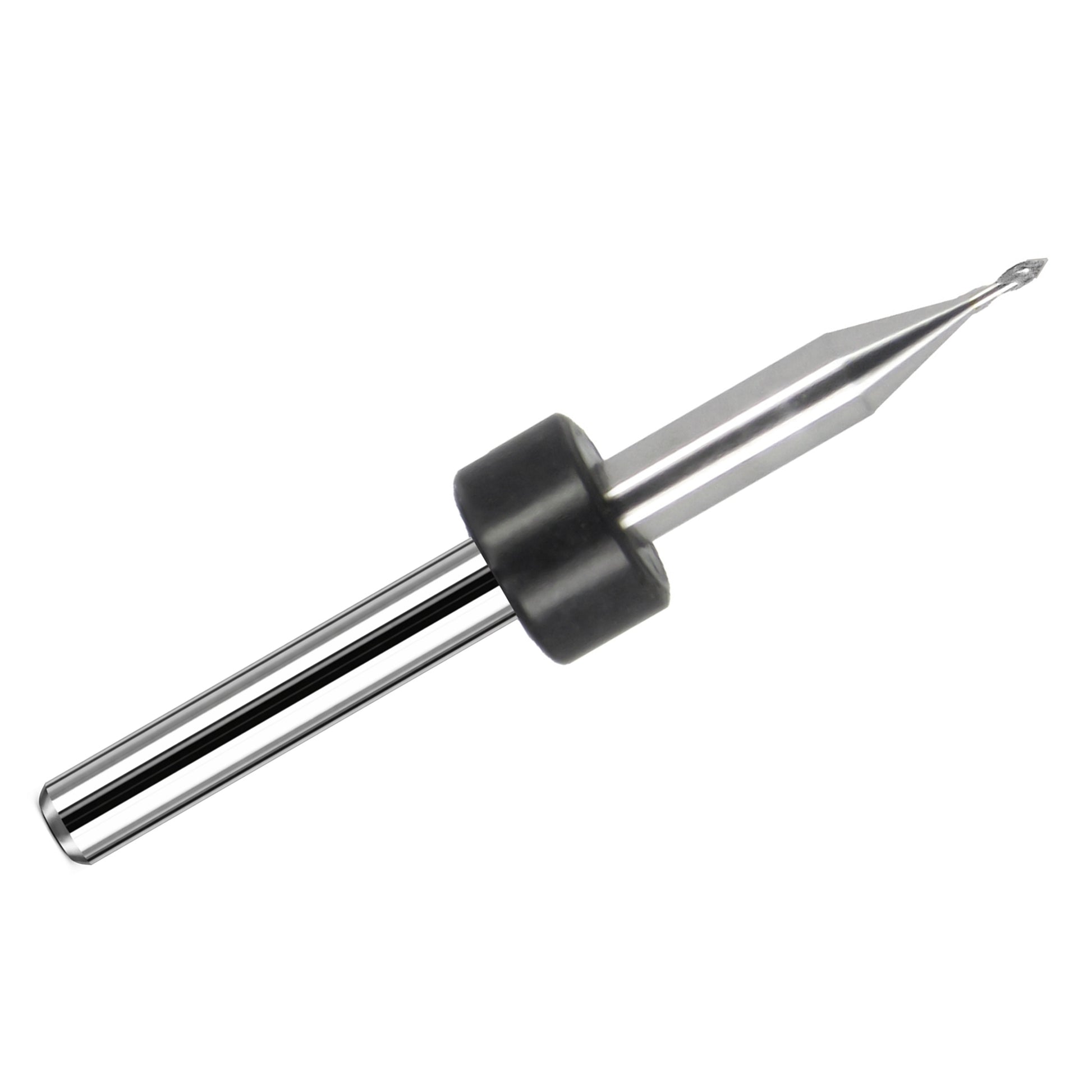

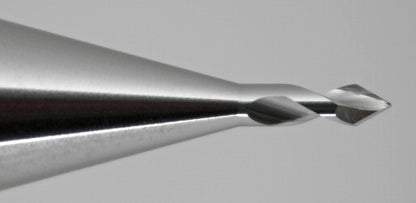

0.030" 60° 2-Flute Spiral V-Bit Engraver, 1/8" Shank, 0.102" Reach, Solid Carbide - Kyocera Made in USA E102

High precision 2-flute spiral V-bit engraver manufactured by Kyocera in the USA, designed for PCB isolation routing, fine detail engraving, and smooth cutting performance.

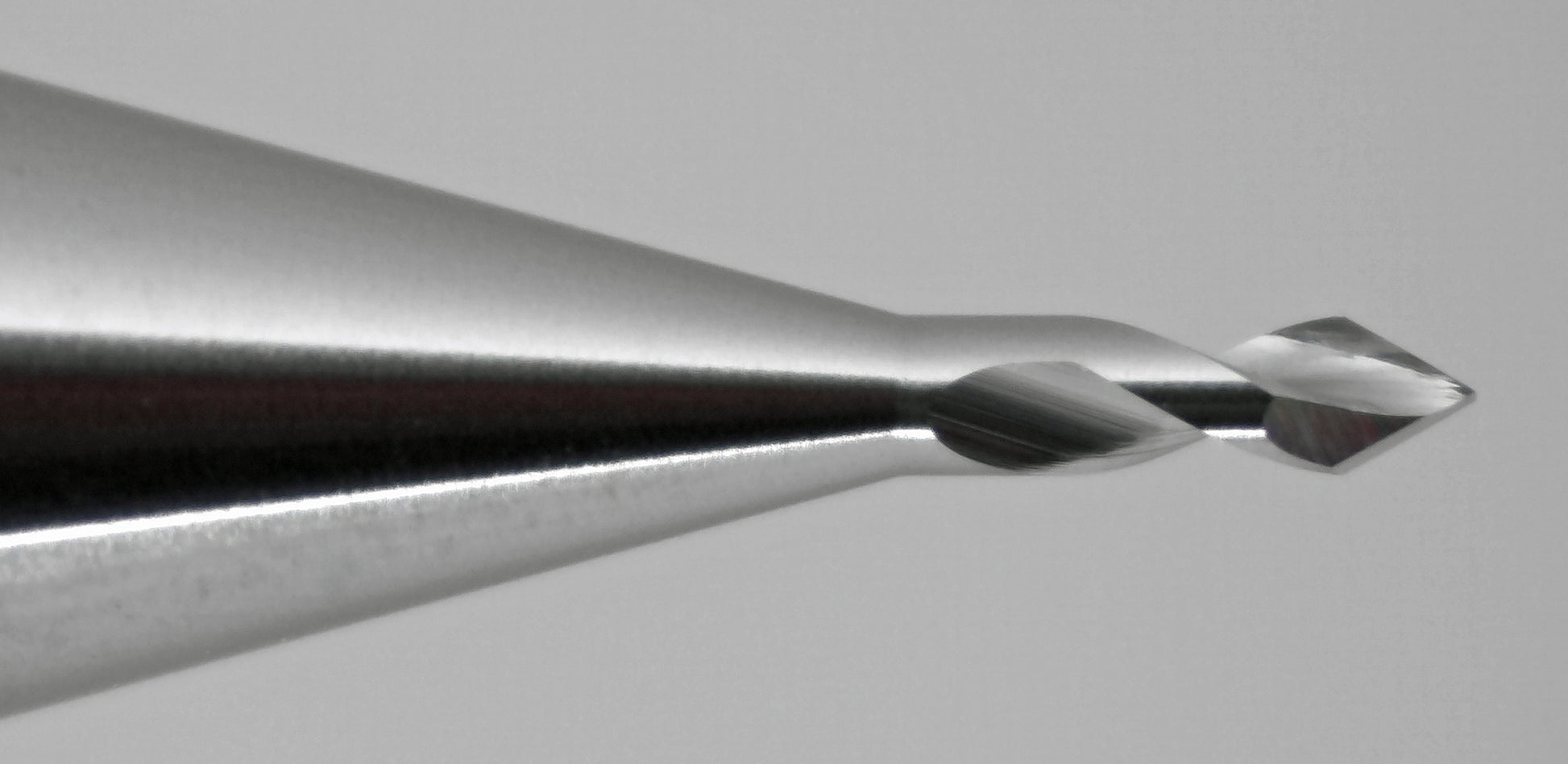

This tool features a true spiral flute geometry, providing superior chip evacuation and reduced chatter compared to standard straight-edge V-bits. The 60° angle offers an excellent balance between fine detail capability and tip strength, making it ideal for both PCB work and precision engraving applications.

Key Features

• Manufactured by Kyocera (USA) for exceptional precision and consistency
• 2-flute spiral design for smoother cutting and improved chip evacuation
• 60° tip angle balances fine detail and durability
• 0.030" cutting diameter (tip) for precise engraving and trace isolation
• 0.102" reach allows controlled access before shoulder interference
• Solid carbide construction for long tool life and wear resistance
• 1/8" shank fits most CNC routers and PCB milling machines

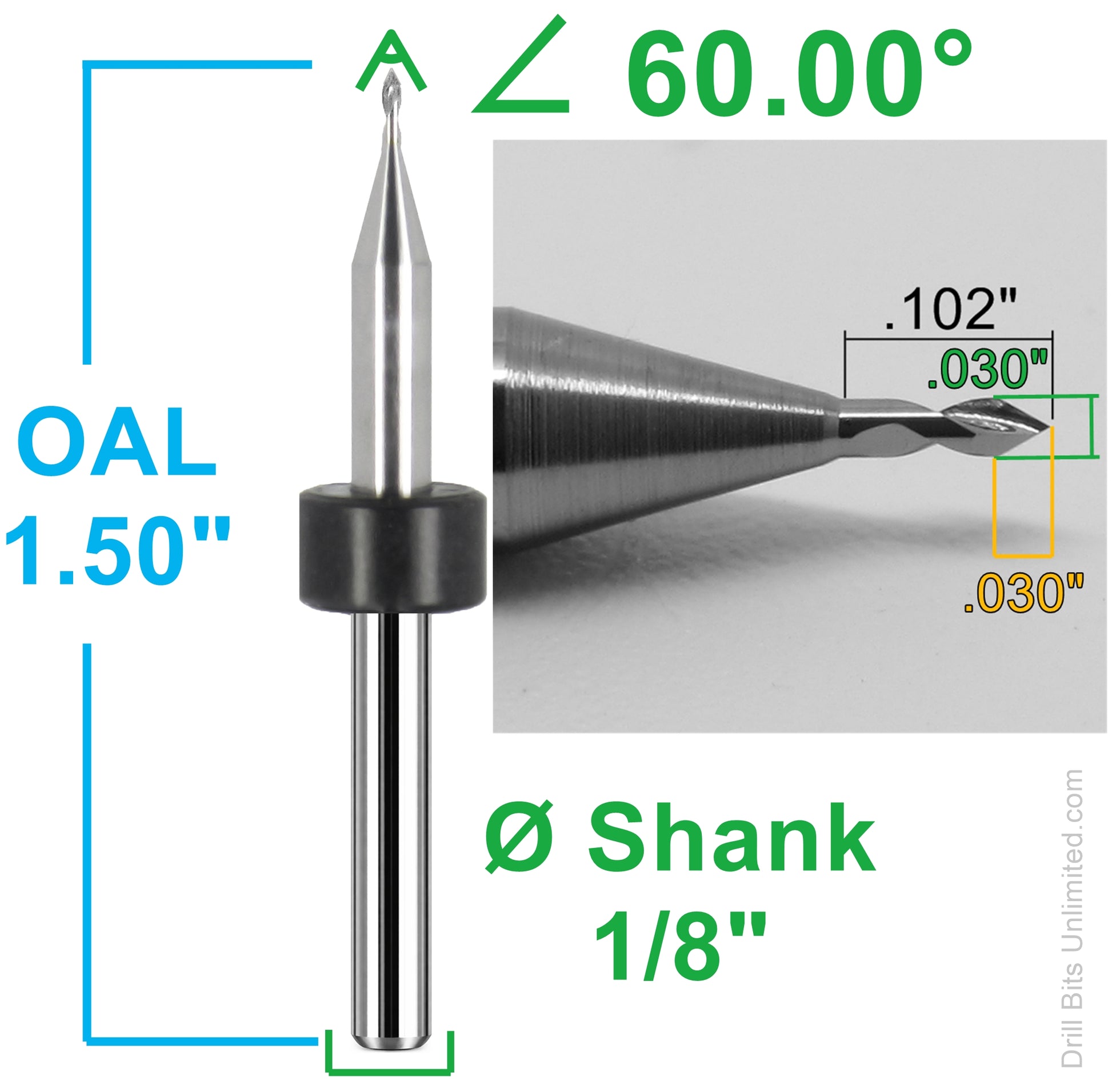

Specifications

• Tool Type: Spiral V-Bit Engraver
• Tip Angle: 60°
• Flutes: 2 (Spiral)
• Cutting Diameter (Tip): 0.030"
• Reach: 0.102"
• Shank Diameter: 1/8" (3.175 mm)
• Overall Length (OAL): 1.50"
• Material: Solid Carbide
• Cut Direction: Right Hand (Upcut)
• Flute Type: Spiral
• Manufactured By: Kyocera
• Made In: USA

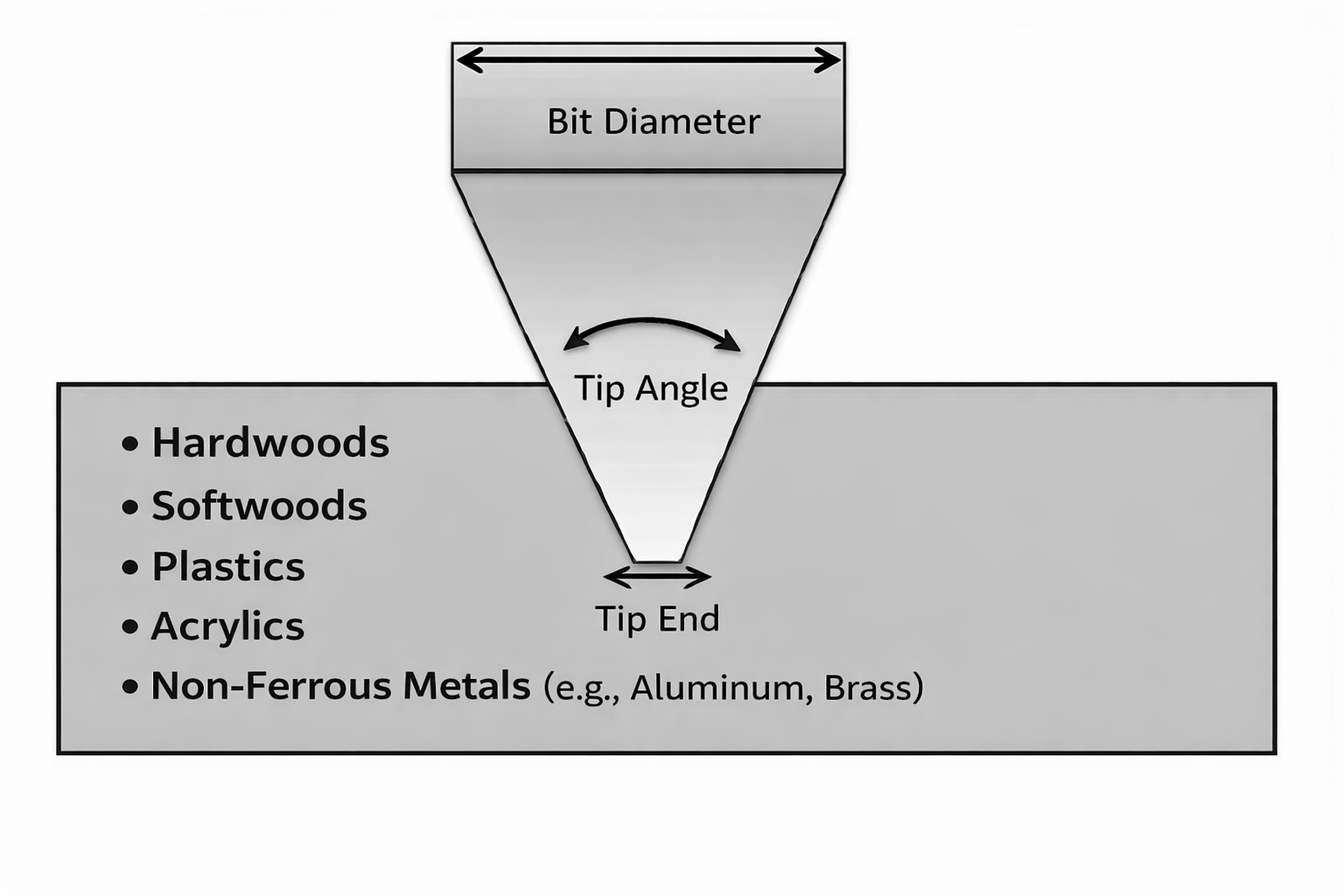

Typical Applications

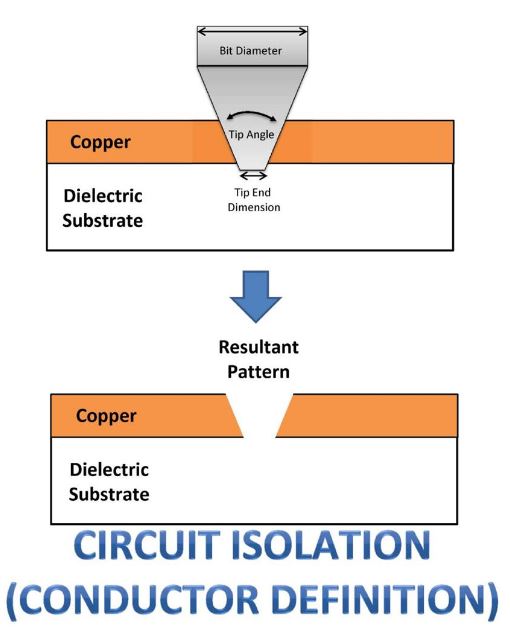

• PCB circuit trace isolation (conductor definition)
• Fine engraving and micro lettering
• Plastics, acrylics, and composite materials
• Wood engraving and sign making
• Light-duty engraving in non-ferrous metals (aluminum, brass)
