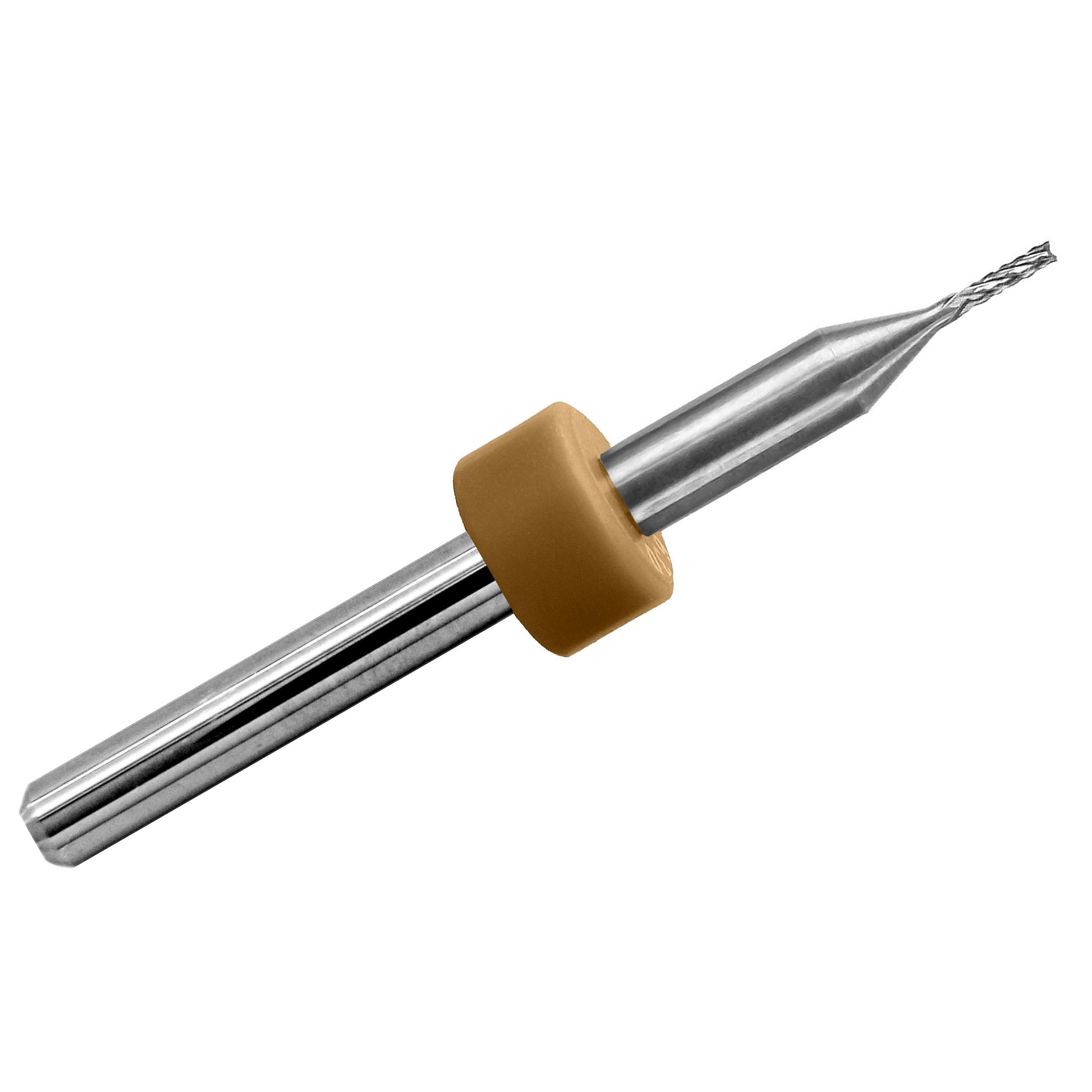

0.0312" (1/32") x .158" LOC Diamond Flute Carbide Router, Fish Tail Tip, 1/8" Shank | R106A

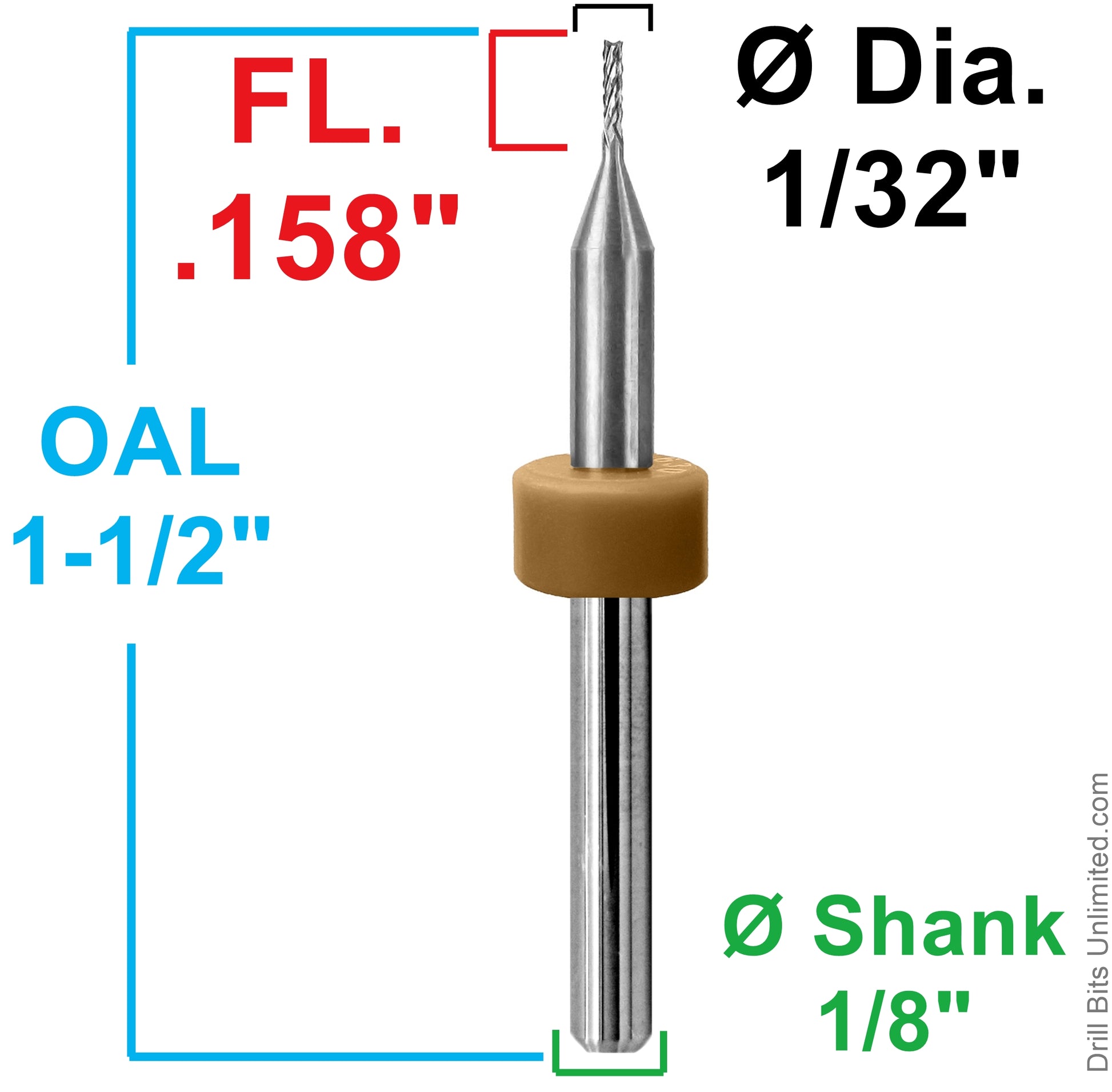

This diamond flute carbide router features a 0.0312" (1/32") cutting diameter, .158" LOC, 1-1/2" overall length, and a 1/8" shank.

The diamond flute geometry uses a fine, multi-edge cutting pattern that is gentler on brittle and fracture-prone materials, helping reduce chipping, delamination, and edge damage during cutting.

This router is best suited for FR-4, G10, fiberglass, phenolic laminates, carbon fiber, and other abrasive composites, where maintaining clean edges and consistent performance is critical. For highly abrasive materials, diamond-coated (PCD) routers are recommended for extended tool life.

The up-cut design helps evacuate chips efficiently and improves bottom-edge cut quality, making it a strong choice for through-cutting operations.

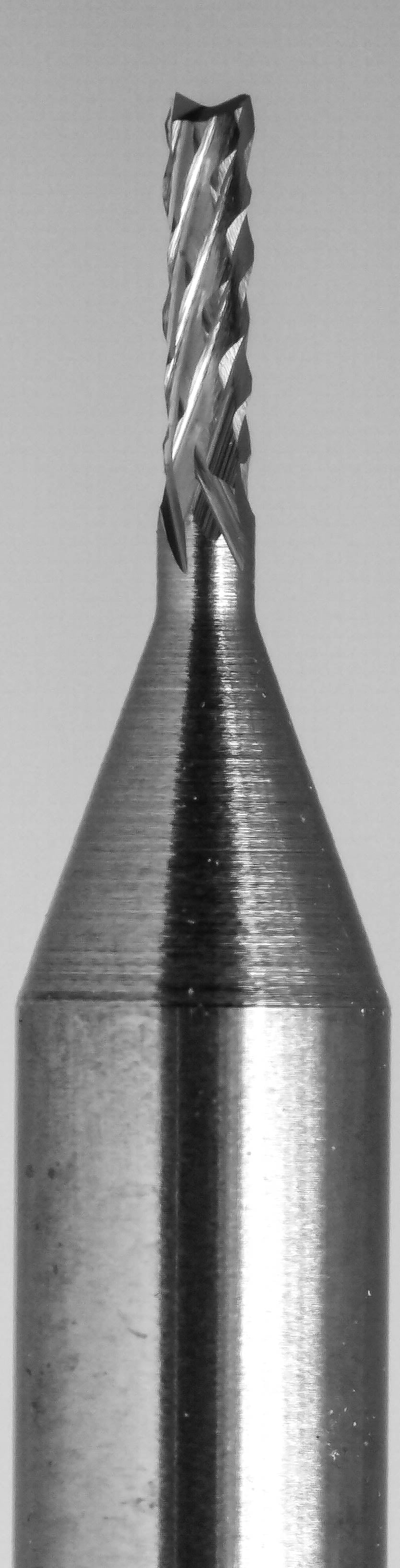

This tool features a fish tail tip, ideal for controlled entry into brittle or layered materials, helping reduce chipping and delamination at the surface.

👉 View Diamond Flute Router Feed & Speed Chart

Typical Applications

• PCB routing (FR-4, G10)
• Fiberglass and phenolic laminate cutting
• Carbon fiber routing (non-PCD applications)
• Abrasive composite machining
• Through-cutting operations requiring clean bottom edges

Benefits

• Diamond flute geometry helps reduce chipping and delamination
• Up-cut design improves chip evacuation and bottom-edge finish
• Fine cutting pattern supports clean edges in composites
• Fish tail tip allows controlled entry into brittle materials
• Compact .158" LOC improves rigidity and control
• Solid carbide construction ensures durability

Specifications

Tip style: Fish Tail — gentle entry to reduce delamination in brittle or layered materials.
