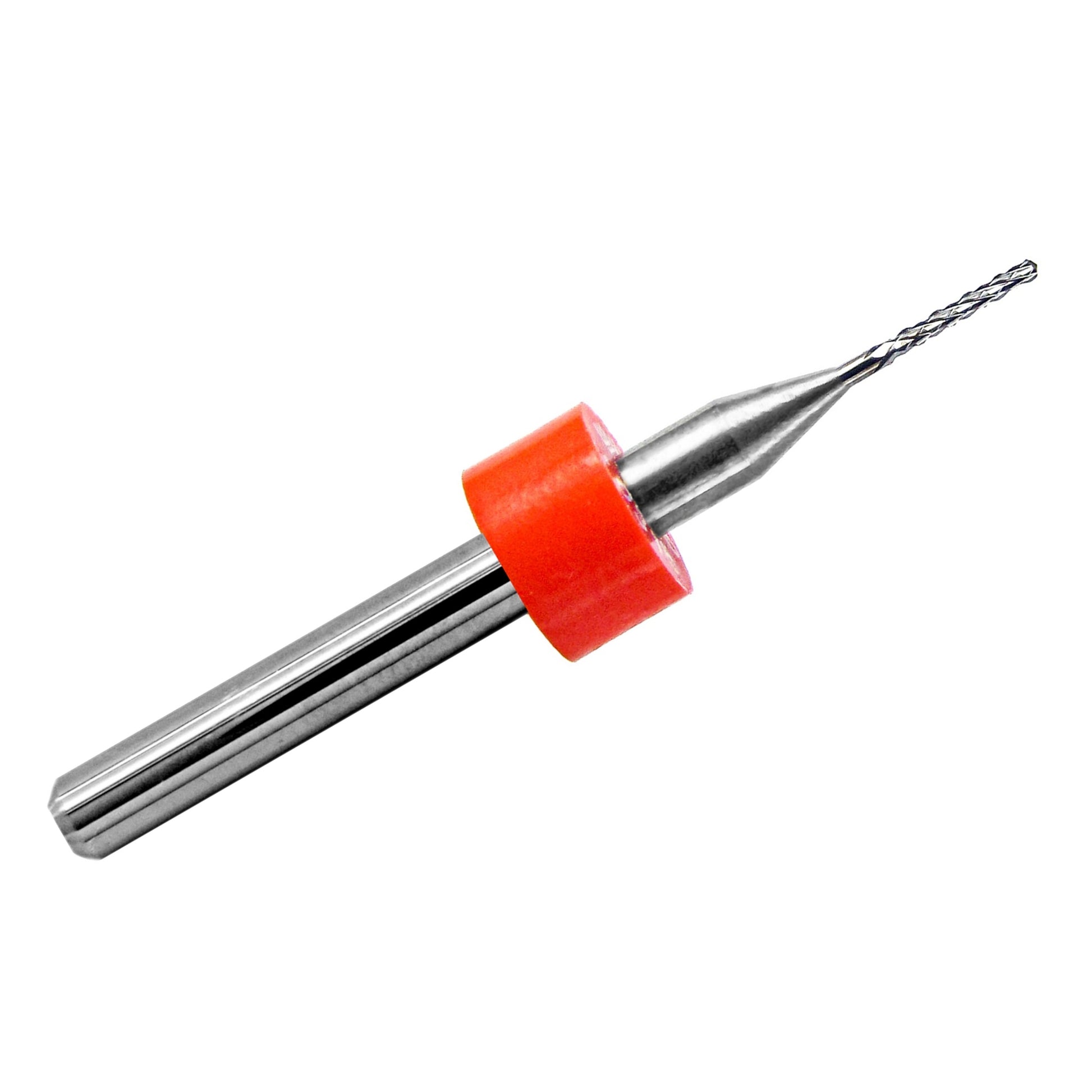

0.0315" (1/32) Diamond Flute Carbide Router, .240" LOC, Up Cut, Drill Point, 1/8" Shank R107

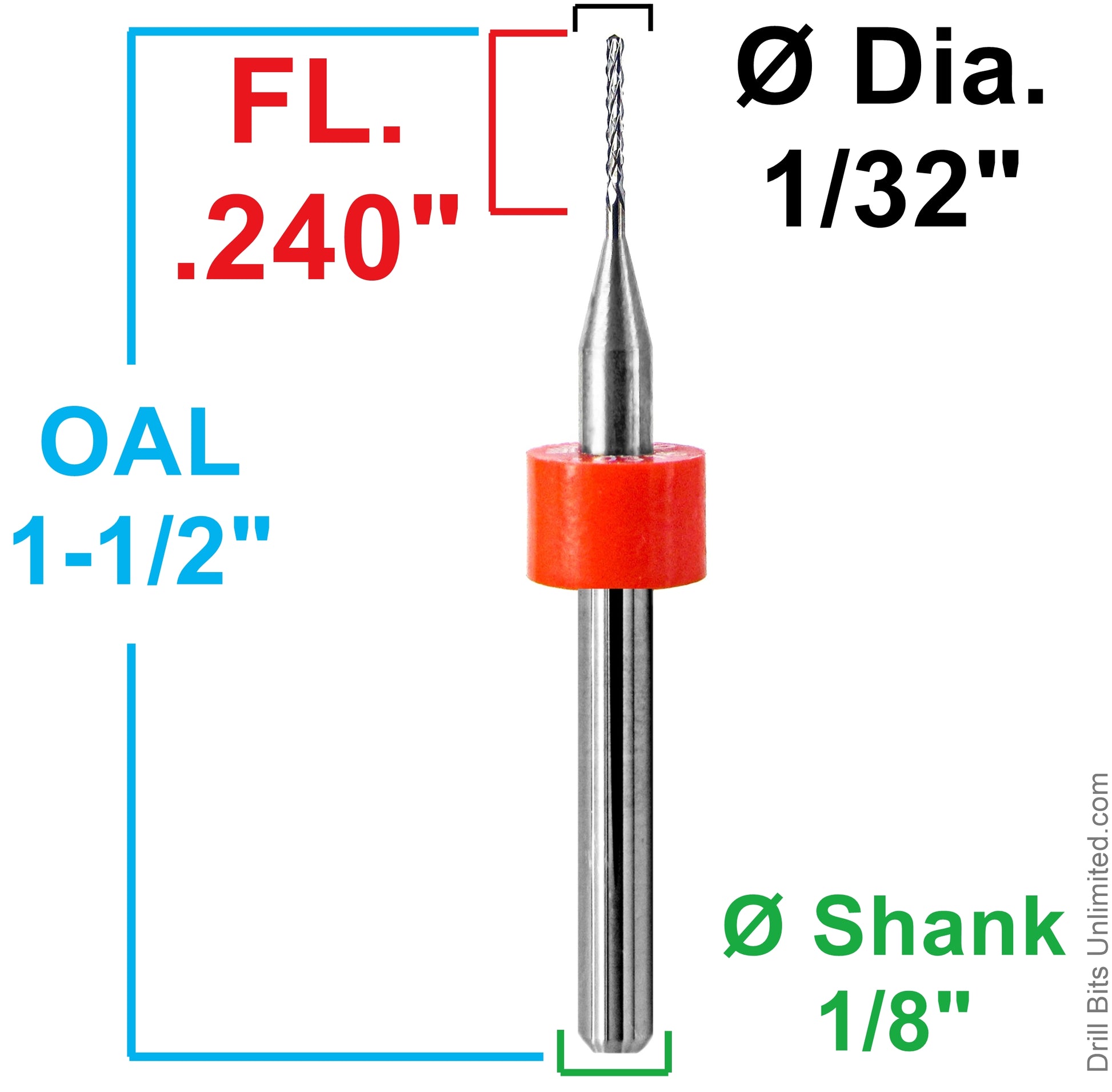

This diamond flute carbide router features a 0.0315" (1/32") cutting diameter, .240" LOC, 1-1/2" overall length, and a 1/8" shank. Manufactured by Kyocera, this tool delivers consistent performance for precision routing in abrasive materials.

The diamond flute geometry uses a fine, multi-edge cutting pattern that is gentler on brittle and fracture-prone materials, helping reduce chipping, delamination, and edge damage.

This router is optimized for FR-4, G10, fiberglass, phenolic laminates, carbon fiber, and other abrasive composites, where maintaining clean edges and consistent performance is critical.

For extended tool life in highly abrasive materials, consider upgrading to our diamond-coated (PCD) routers →

The up-cut design promotes efficient chip evacuation and improves bottom-edge cut quality, making it well-suited for through-cutting operations.

The drill point tip provides added strength and durability, making it ideal for repeated plunging and cutting in denser or more demanding materials.

👉 View Diamond Flute Router Feed & Speed Chart

Typical Applications

• PCB routing (FR-4, G10)
• Fiberglass and phenolic laminate cutting
• Carbon fiber routing
• Abrasive composite machining
• Repeated plunge cutting operations

Benefits

• Diamond flute geometry reduces chipping and delamination
• Up-cut design improves chip evacuation and bottom-edge finish
• Drill point tip increases strength for plunging and tougher materials
• Extended .240" LOC allows deeper cutting reach
• Solid carbide construction ensures durability
• Kyocera manufacturing provides consistent quality

Specifications

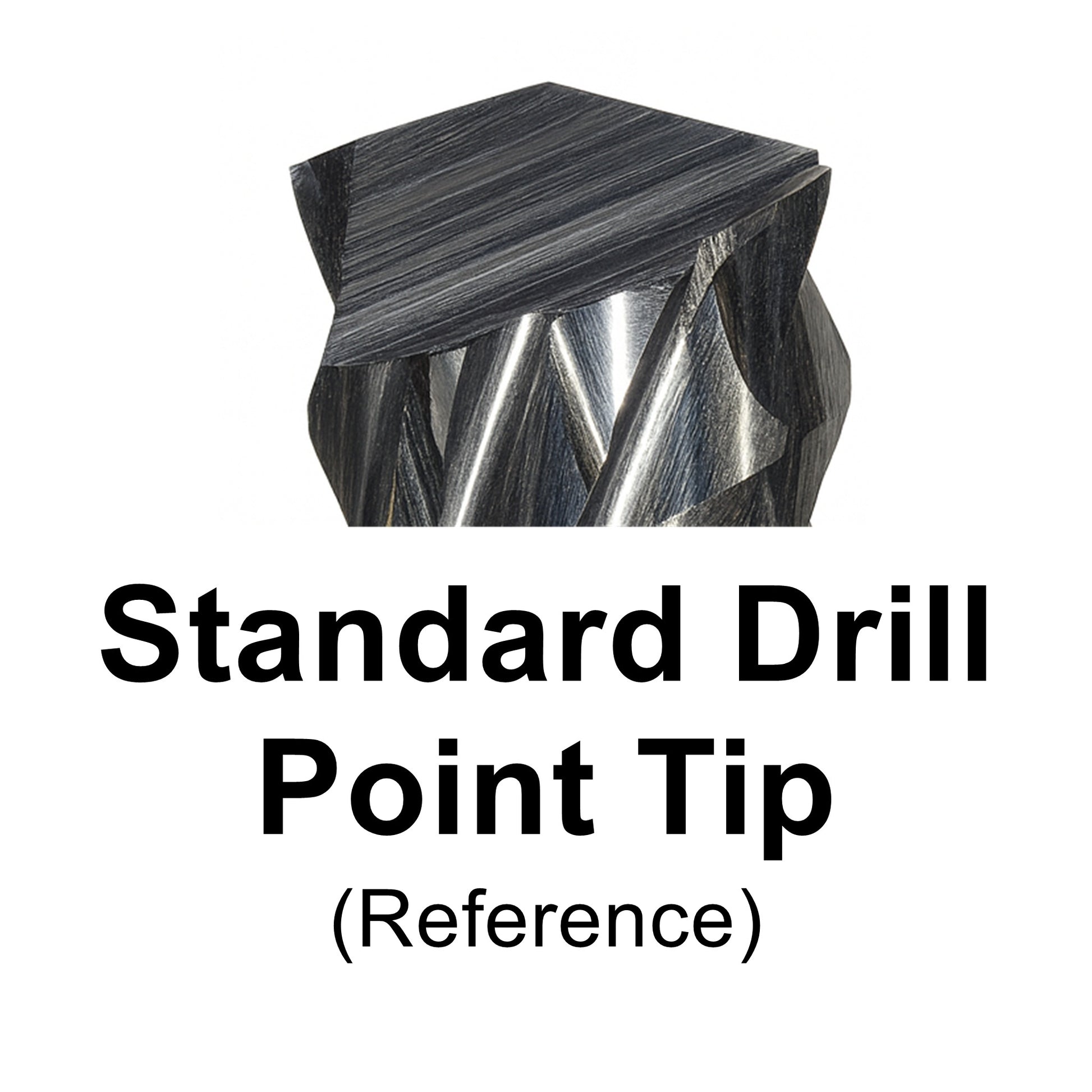

Tip style: Drill Point — stronger tip for repeated plunging and denser materials.
