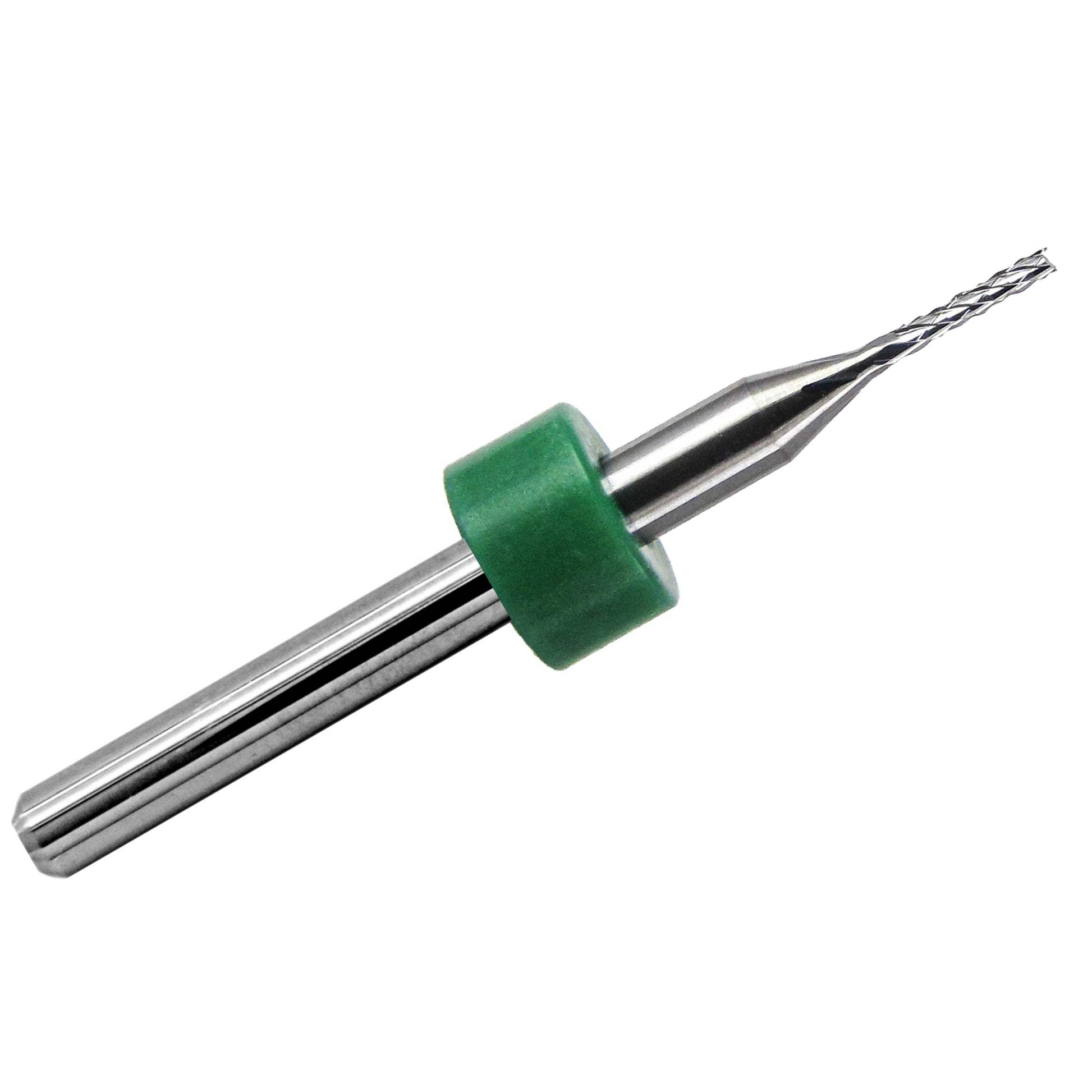

0.0394" (1.00mm) x .197" LOC Diamond Flute Carbide Router, Fish Tail Tip, 1/8" Shank | R114

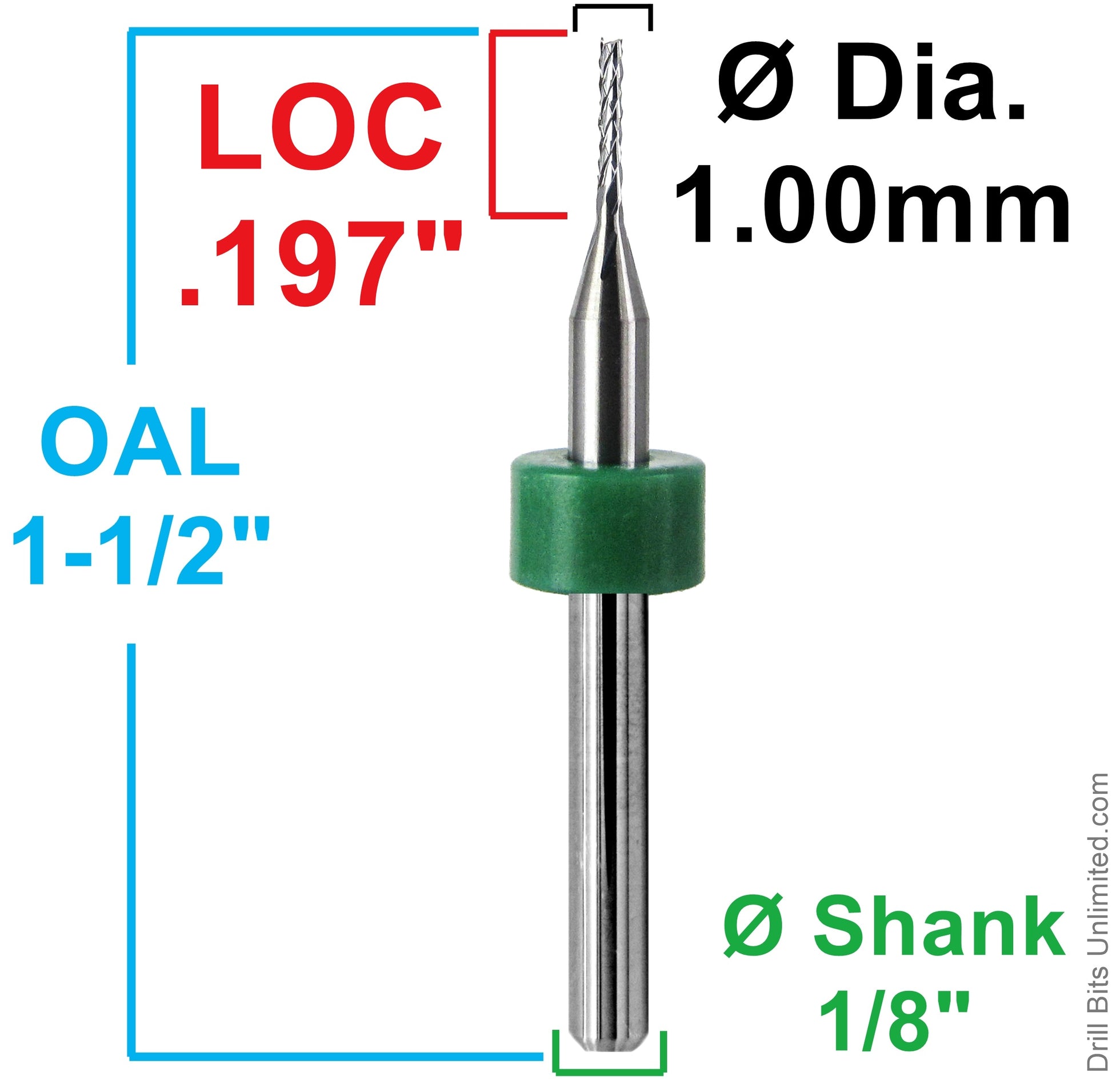

This Kyocera diamond flute carbide router features a 0.0394" (1.00mm) cutting diameter, .197" LOC, 1-1/2" overall length, and a 1/8" shank, making it ideal for high-precision routing in abrasive composite materials.

The diamond flute geometry uses a fine, multi-edge cutting structure that is gentler on brittle and fracture-prone materials, helping reduce chipping, delamination, and edge damage.

Designed for FR-4, G10, fiberglass, phenolic laminates, carbon fiber, and other abrasive composites, this tool delivers clean edges and consistent performance where accuracy is critical.

For extended tool life in highly abrasive materials, explore our diamond-coated (PCD) routers →

The up-cut design improves chip evacuation and enhances bottom-edge cut quality, making it well-suited for shallow cuts and precision routing.

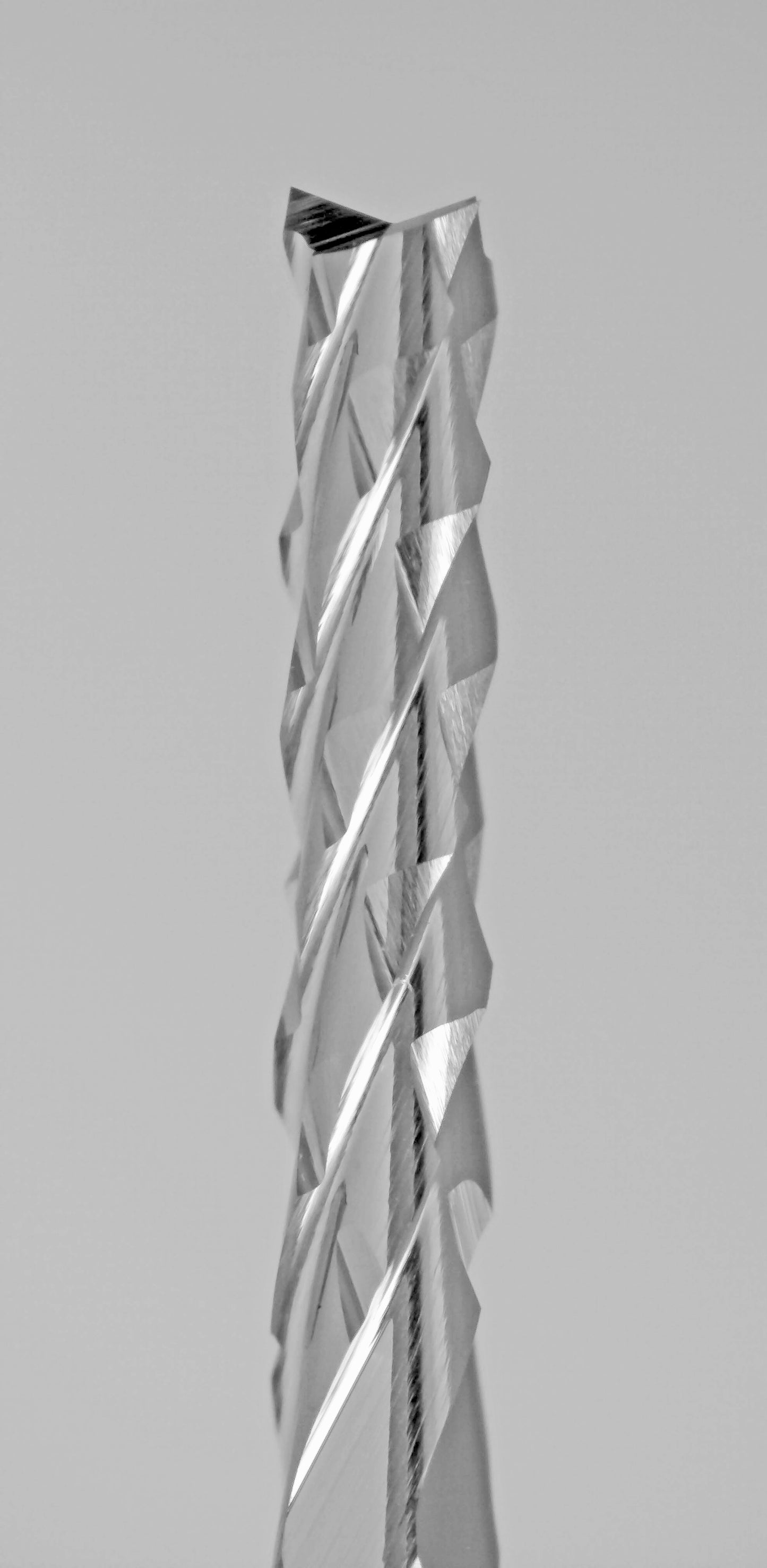

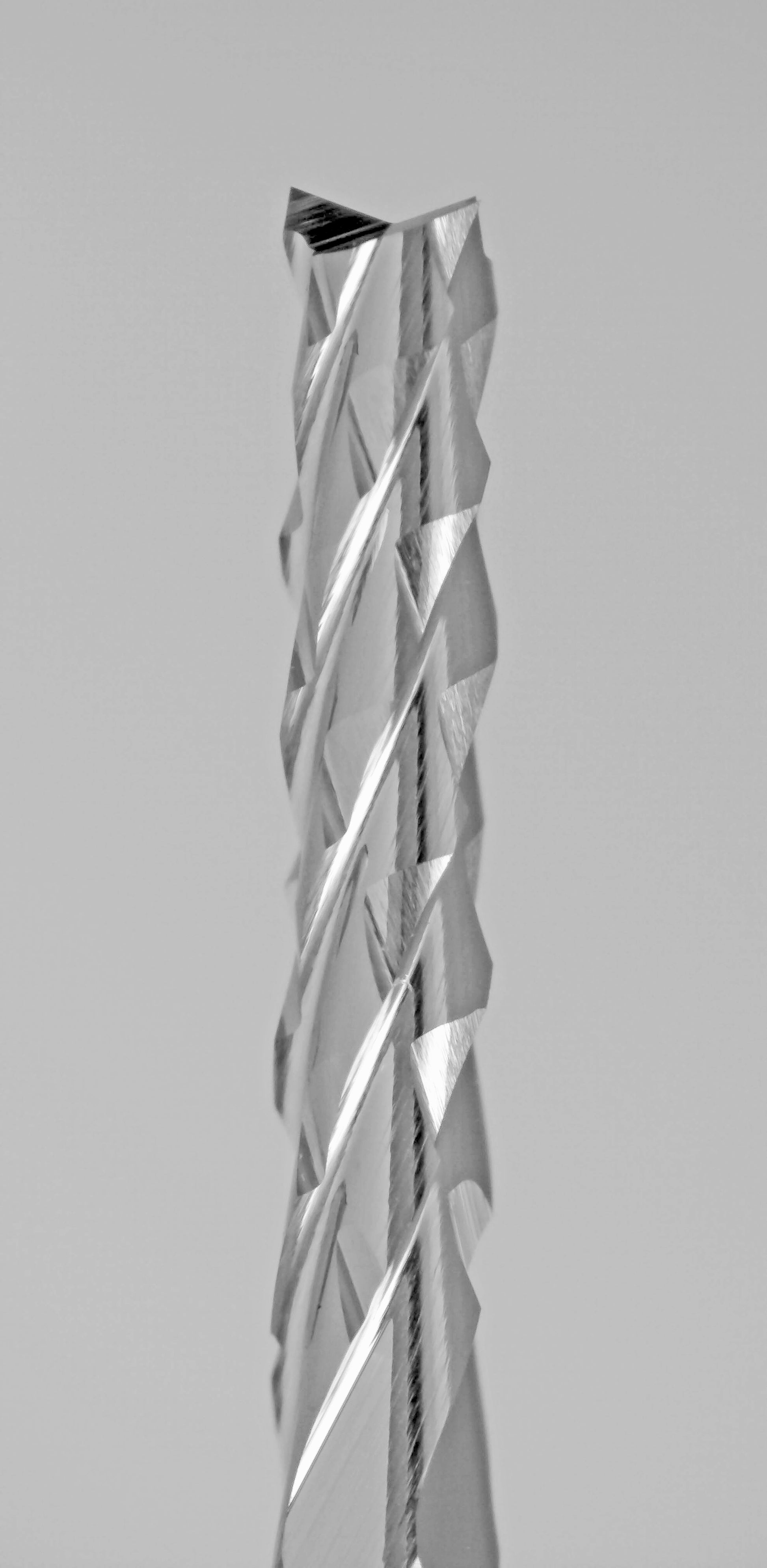

This tool features a fish tail tip, providing a gentle entry that helps reduce delamination in brittle or layered materials.

👉 View Diamond Flute Router Feed & Speed Chart

Typical Applications

• PCB routing (FR-4, G10)
• Fiberglass and phenolic laminate cutting
• Carbon fiber routing
• Abrasive composite machining
• Shallow, high-precision routing

Benefits

• Diamond flute geometry reduces chipping and delamination
• Short .197" LOC increases rigidity and reduces deflection
• Up-cut design improves chip evacuation and bottom-edge finish
• Fish tail tip reduces entry damage in brittle materials
• Solid carbide construction ensures durability

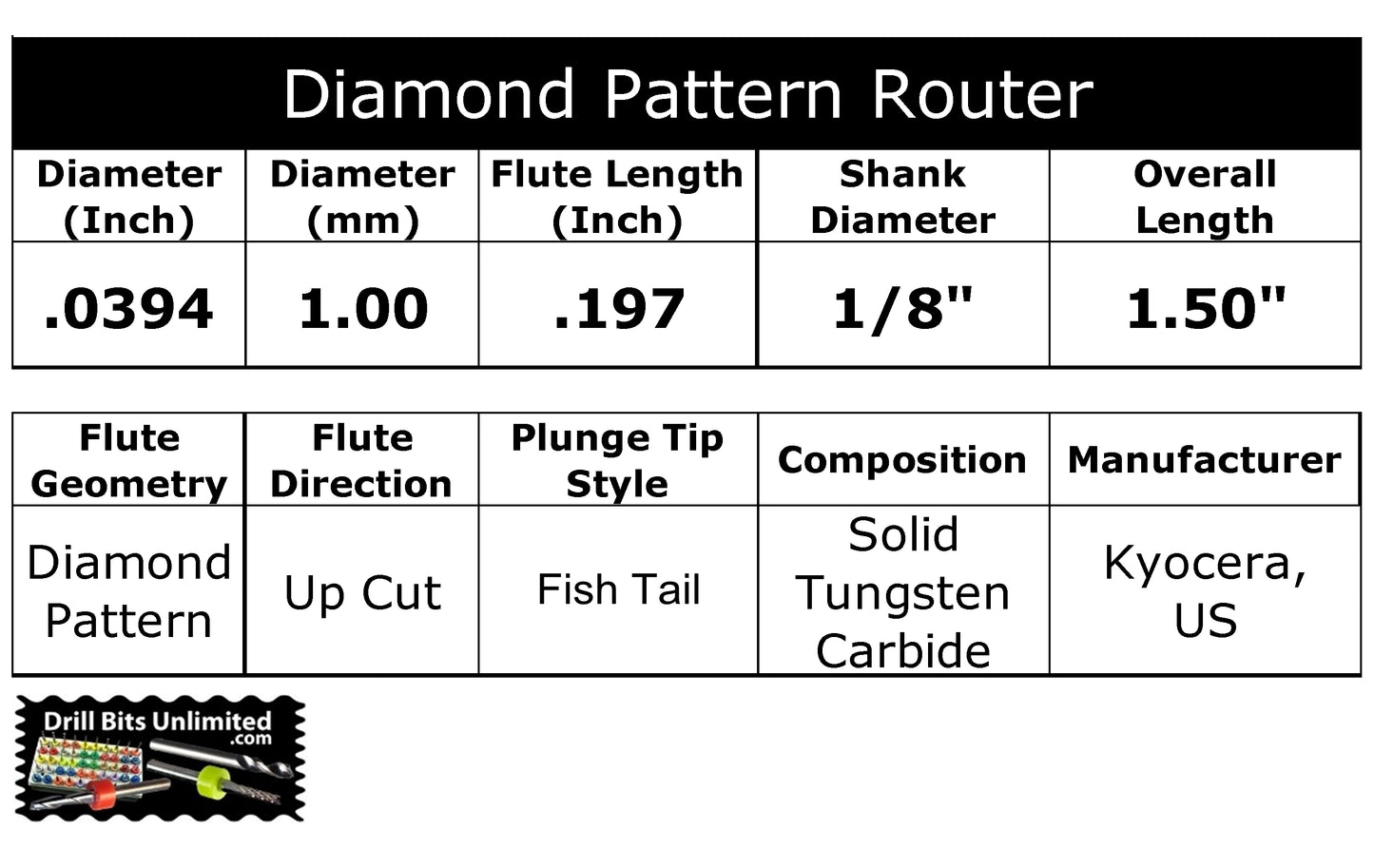

Specifications

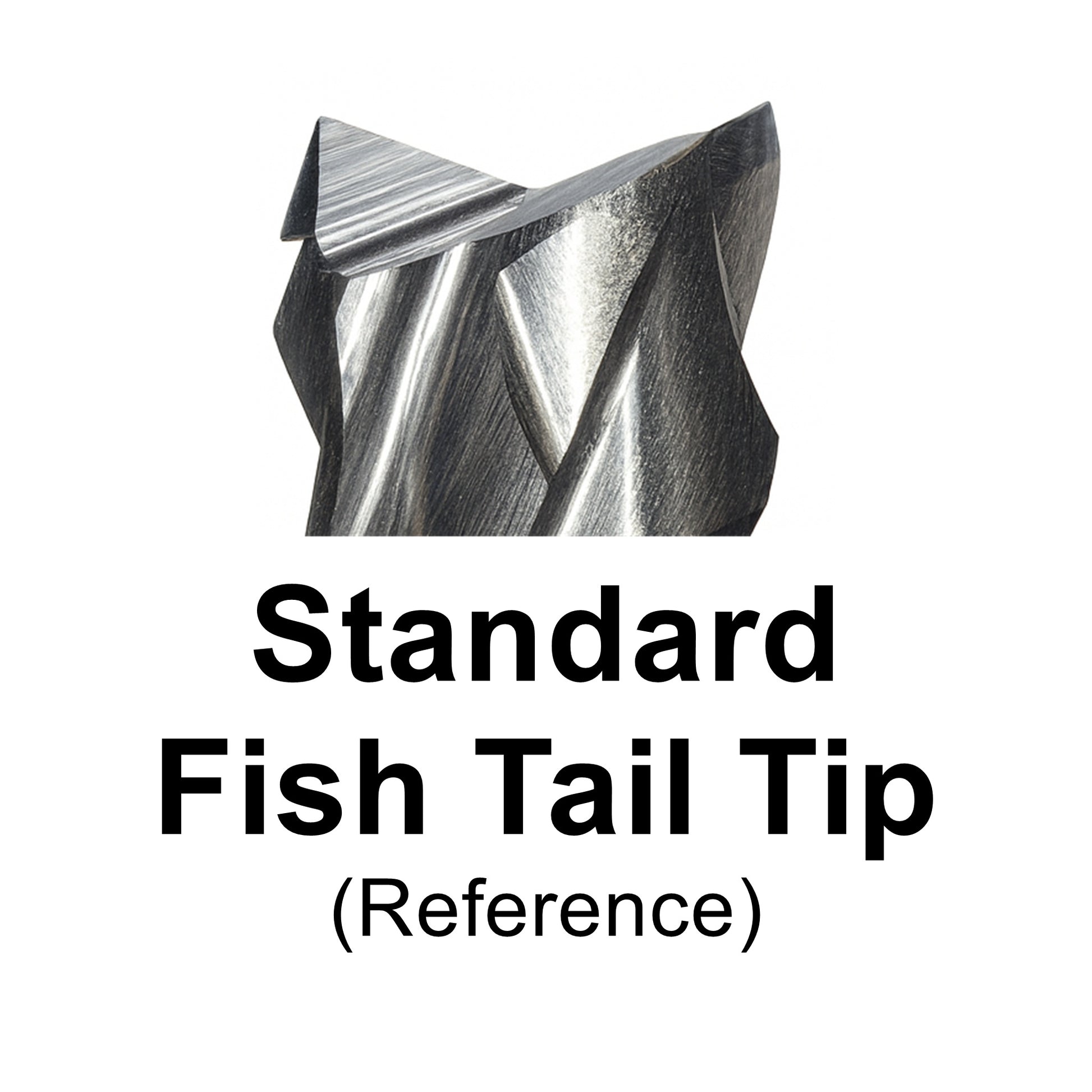

Tip style: Fish Tail — gentle entry to reduce delamination in brittle or layered materials.
