0.0394" (1.00mm) × .315" LOC Diamond Flute PCB Router, Drill Point, 1/8" Shank | R112

Kyocera 1.00mm Diamond-Flute PCB Router | .315" LOC | Drill Point | Up-Cut

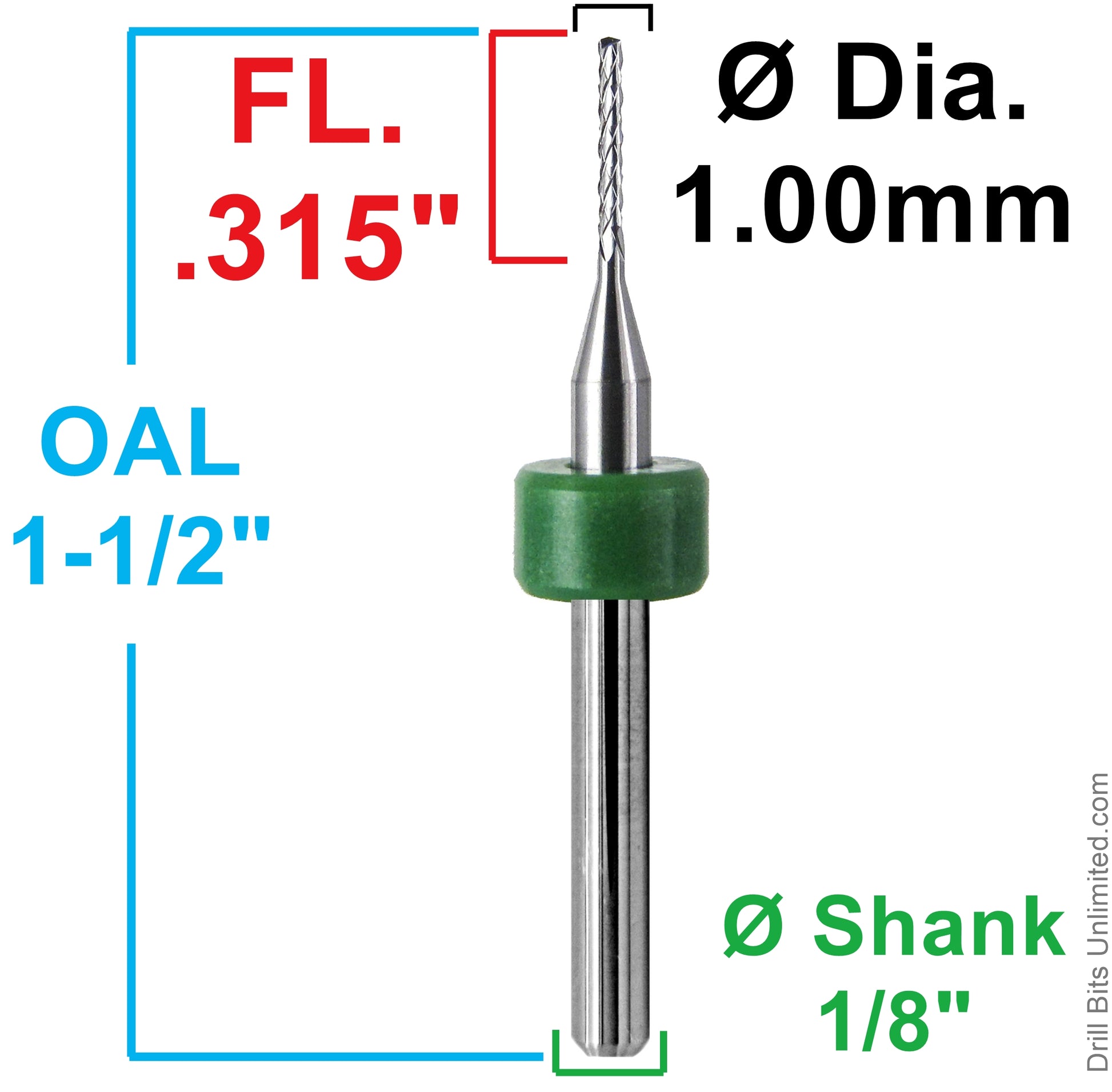

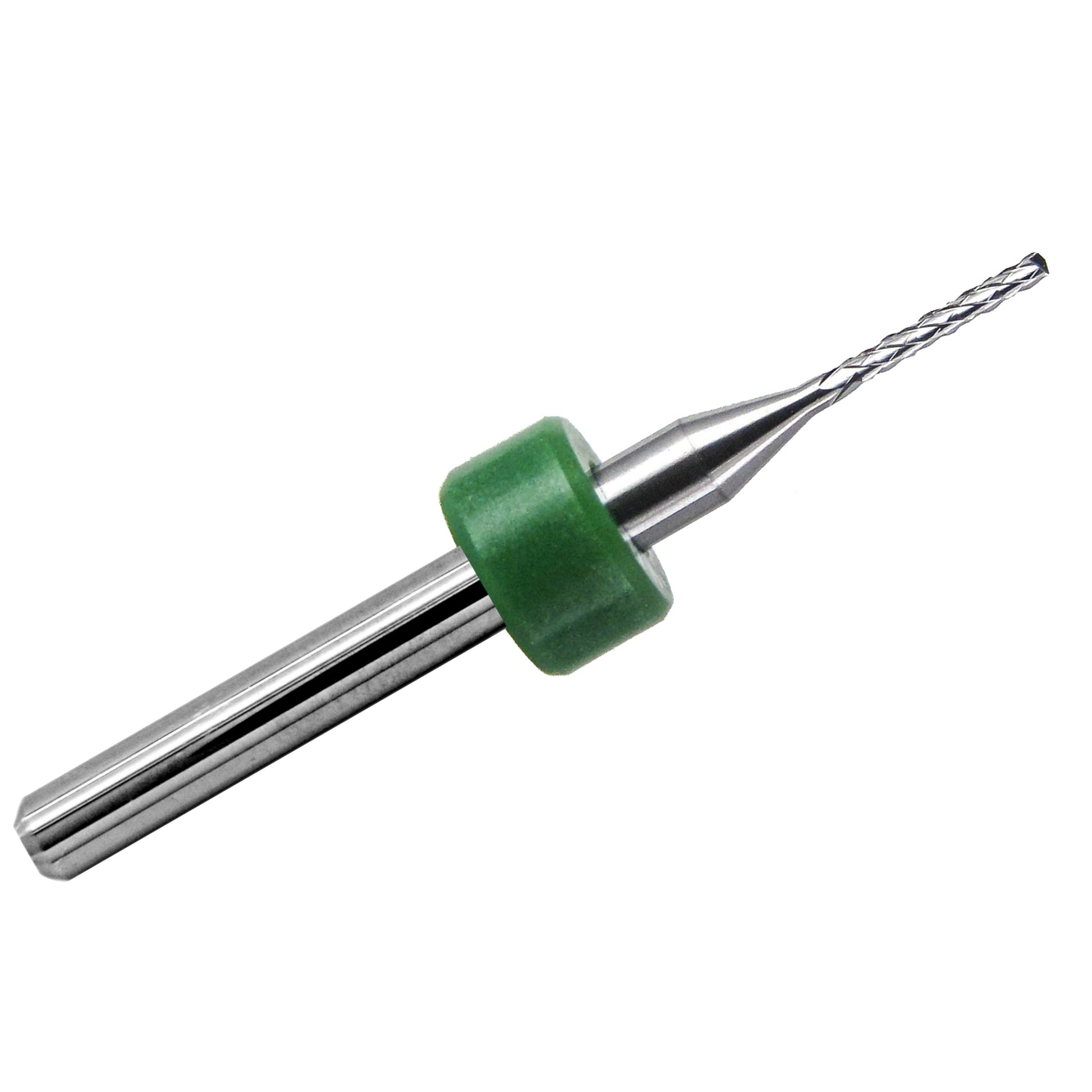

The R112 diamond-flute carbide router features a 0.0394" (1.00mm) cutting diameter, 0.315" (8.00mm) length of cut, and standard 1/8" (3.175mm) shank. Manufactured by Kyocera, this precision CNC router is designed for machining PCB laminates, FR4/G10 fiberglass, phenolic materials, and other abrasive composites.

Its extended 0.315" cutting length provides additional reach for routing and profiling suitable thicker workpieces. The diamond-pattern cutting geometry features numerous small, intersecting cutting edges, while the drill-point tip facilitates direct plunge entry under appropriate cutting conditions.

Key Features

• 0.0394" (1.00mm) cutting diameter: Precision cutting width for PCB profiles, narrow slots, and detailed contours
• 0.315" (8.00mm) LOC: Extended cutting reach for suitable thicker laminates and composite materials
• Diamond-flute geometry: Fine, intersecting cutting edges help control chipping, fraying, and fiber pull-out under appropriate conditions
• Drill-point tip: Supports direct plunge entry for internal cutouts and slots in suitable materials
• Up-cut configuration: Helps move chips and routing debris upward
• Solid tungsten carbide: Provides rigidity and resistance to abrasive wear
• 1/8" shank: Fits compatible precision CNC collets and tool holders

Extended Cutting Length & Drill-Point Tip

Compared with shorter routers of the same diameter, R112 provides additional usable cutting length for routing thicker PCB laminates and composite workpieces. The longer cutting section also requires careful feed-rate selection, secure workholding, and control of cutting forces to reduce the risk of tool deflection or breakage.

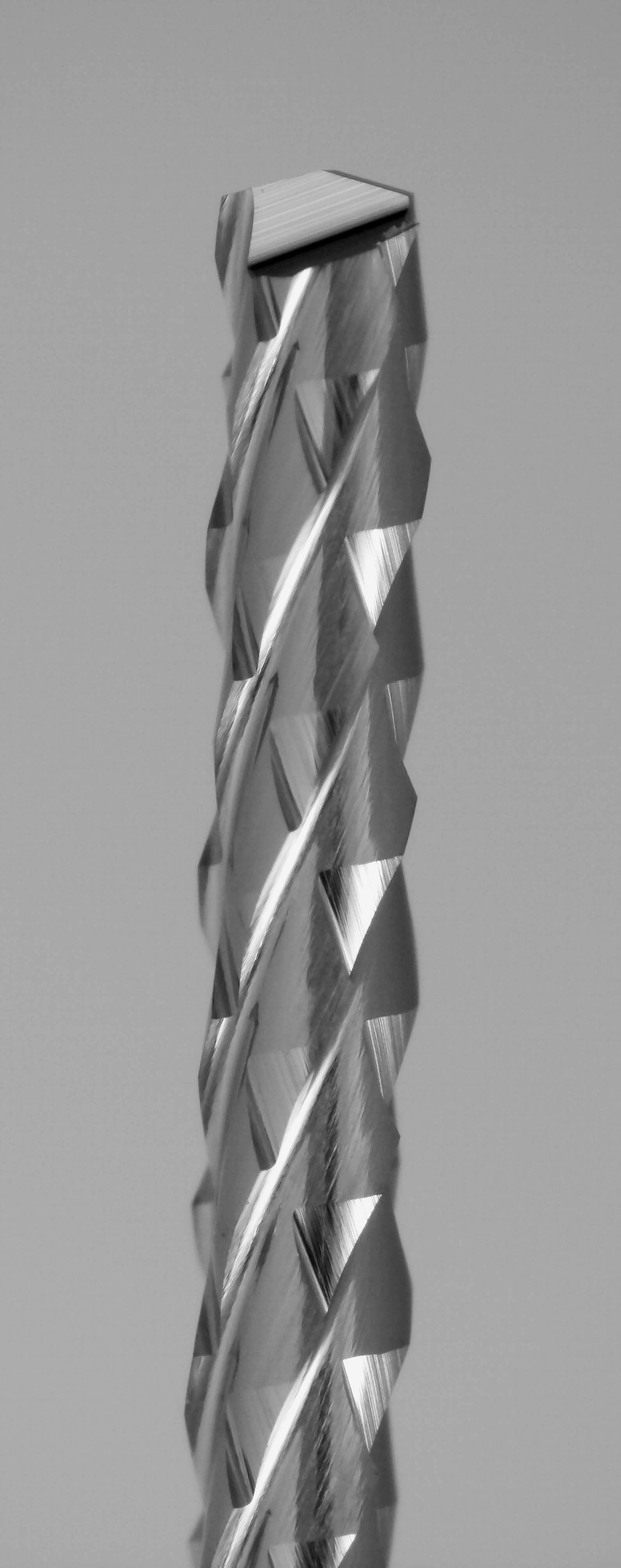

The drill-point tip is designed to facilitate entry into the workpiece when starting slots, internal contours, and other routing operations. Plunge performance depends on the material, machine rigidity, and selected cutting conditions.

Diamond-flute routers, also known as diamond-cut or diamond-pattern routers, use numerous intersecting cutting edges for controlled material removal in abrasive and layered materials.

Important: Diamond-flute describes the cutting geometry. This is uncoated solid carbide tooling, not a diamond-coated or PCD router.

Typical Applications

• PCB board outlines, slots, and internal cutouts
• FR4 and G10 fiberglass laminate routing
• Thicker PCB laminates and composite sheets requiring additional cutting reach
• Phenolic and epoxy laminate machining
• Fiberglass-reinforced composite trimming
• Carbon fiber composites where uncoated carbide tooling is suitable
• Precision CNC profiling and prototype fabrication

Technical Specifications

Feeds & Speeds

Proper spindle speed, feed rate, depth of cut, and secure workholding are particularly important when using small-diameter carbide routers with extended cutting lengths.

View Diamond-Flute Router Feed & Speed Chart for general starting recommendations for FR4, G10, fiberglass, and PCB laminates.

These values are starting points only. Because R112 has a relatively long cutting section for its 1.00mm diameter, use conservative cutting loads, test on scrap material, and adjust for machine rigidity, spindle speed, workholding, and material thickness. Use appropriate dust extraction when machining fiberglass and carbon fiber.

Related Router Bits & Guides

Shop Diamond-Flute PCB Router Bits
Browse additional cutting diameters, flute lengths, and plunge-tip configurations.

Diamond-Flute Router Guide
Learn about diamond-pattern cutting geometry and selecting the appropriate router for PCB laminates and composites.

Need a shorter cutting length? Our R110 diamond-flute drill-point router has the same 1.00mm cutting diameter with a shorter 0.197" LOC, making it an alternative when the extended reach of R112 is unnecessary.
