0.0433" (1.10mm) × .300" LOC Diamond Flute PCB Router, Fish Tail, 1/8" Shank | R117A

Kyocera 1.10mm Diamond-Flute PCB Router | .300" LOC | Fish Tail | Up-Cut

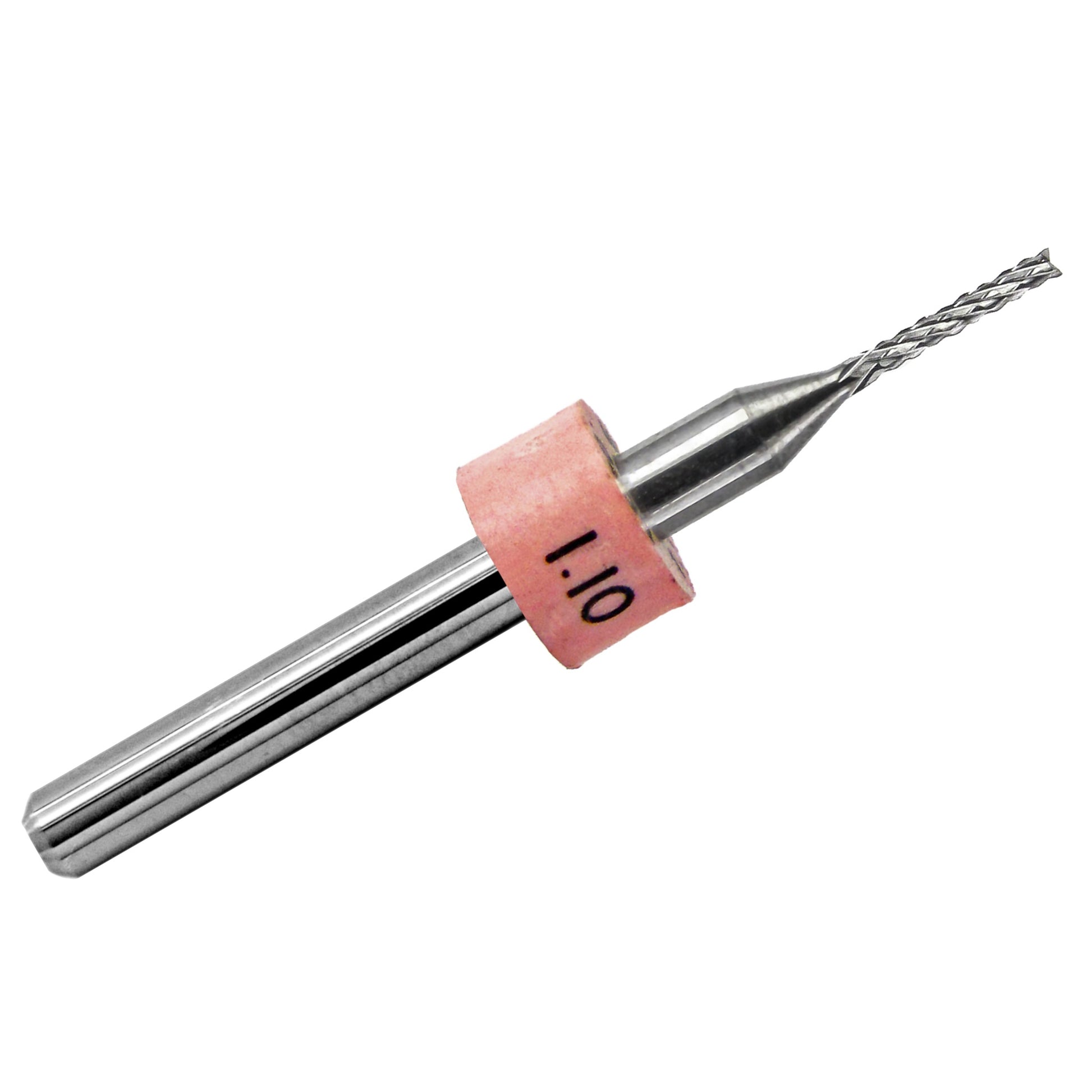

The R117A solid carbide diamond-flute router features a 0.0433" (1.10mm nominal) cutting diameter, 0.300" (7.62mm) length of cut, and standard 1/8" (3.175mm) shank. Manufactured by Kyocera, this precision CNC router is designed for routing FR4/G10 circuit board laminates, fiberglass, phenolics, and other abrasive composites.

Compared with our shorter R117 router, R117A provides 20% additional cutting length at the same diameter. Its diamond-pattern cutting geometry uses numerous small, intersecting cutting edges, while the fishtail tip supports entry and through-routing in suitable sheet materials.

Key Features

• 0.0433" (1.10mm) cutting diameter: Narrow cutting width for precision PCB outlines, slots, and contours
• 0.300" (7.62mm) LOC: Extended cutting reach for suitable thicker laminates and composite sheets
• Diamond-flute geometry: Fine, intersecting cutting edges help control chipping, fraying, and fiber pull-out under appropriate machining conditions
• Fish tail tip: End-cutting geometry supports entry into suitable sheet materials and through-routing operations
• Up-cut configuration: Helps direct routing debris upward during machining
• Solid tungsten carbide: Provides rigidity and resistance to abrasive wear
• 1/8" shank: Fits compatible precision CNC spindle collets and tool holders

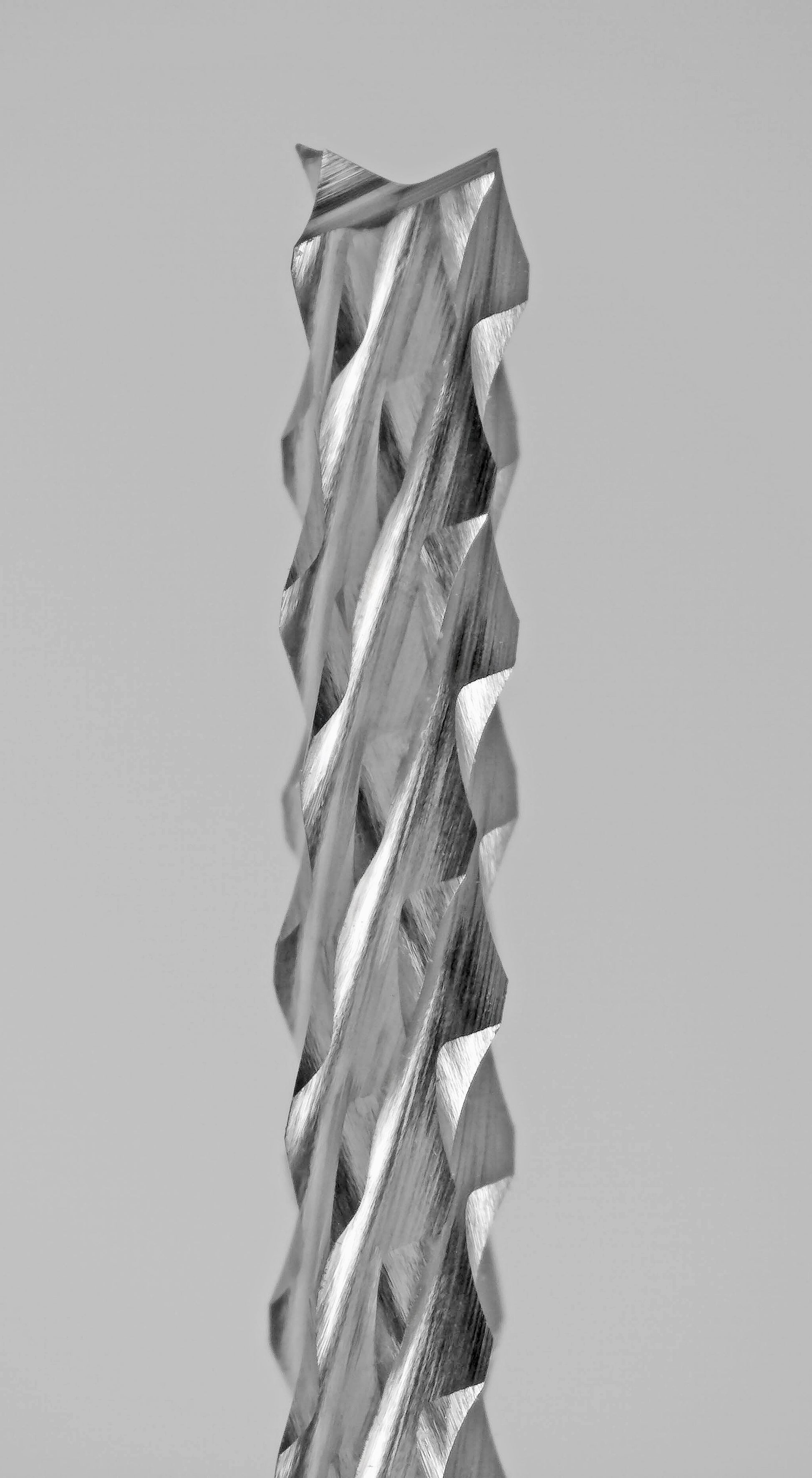

Diamond-Flute Geometry & Fish Tail Tip

Diamond-flute routers, also called diamond-cut or diamond-pattern routers, use numerous intersecting cutting edges rather than conventional continuous spiral flutes. This geometry is commonly used in PCB manufacturing and composite routing, especially for abrasive and layered materials.

The fishtail tip provides end-cutting edges for entry into suitable workpieces. Under appropriate cutting conditions, this geometry can help control fiber pull-out, chipping, and edge damage during routing and through-cutting.

Extended .300" Cutting Length

R117A provides 0.300" (7.62mm) of cutting length, compared with 0.250" (6.35mm) on our R117 fishtail router. Both tools have the same 1.10mm cutting diameter.

The longer cutting section provides additional reach but also increases susceptibility to deflection and breakage under excessive cutting loads. Select the shortest practical cutting length for the workpiece and use appropriate cutting parameters.

Important: Diamond-flute refers to the cutting-edge geometry. This router is uncoated solid carbide, not diamond-coated or PCD tooling.

Typical Applications

• PCB board outlines, slots, and cutouts
• FR4 and G10 fiberglass laminate routing
• Thicker PCB laminates and composite sheets requiring additional cutting reach
• Phenolic and epoxy laminate machining
• Fiberglass-reinforced composite trimming
• Carbon-fiber composites where uncoated carbide tooling is suitable
• Precision CNC profiling and prototype fabrication

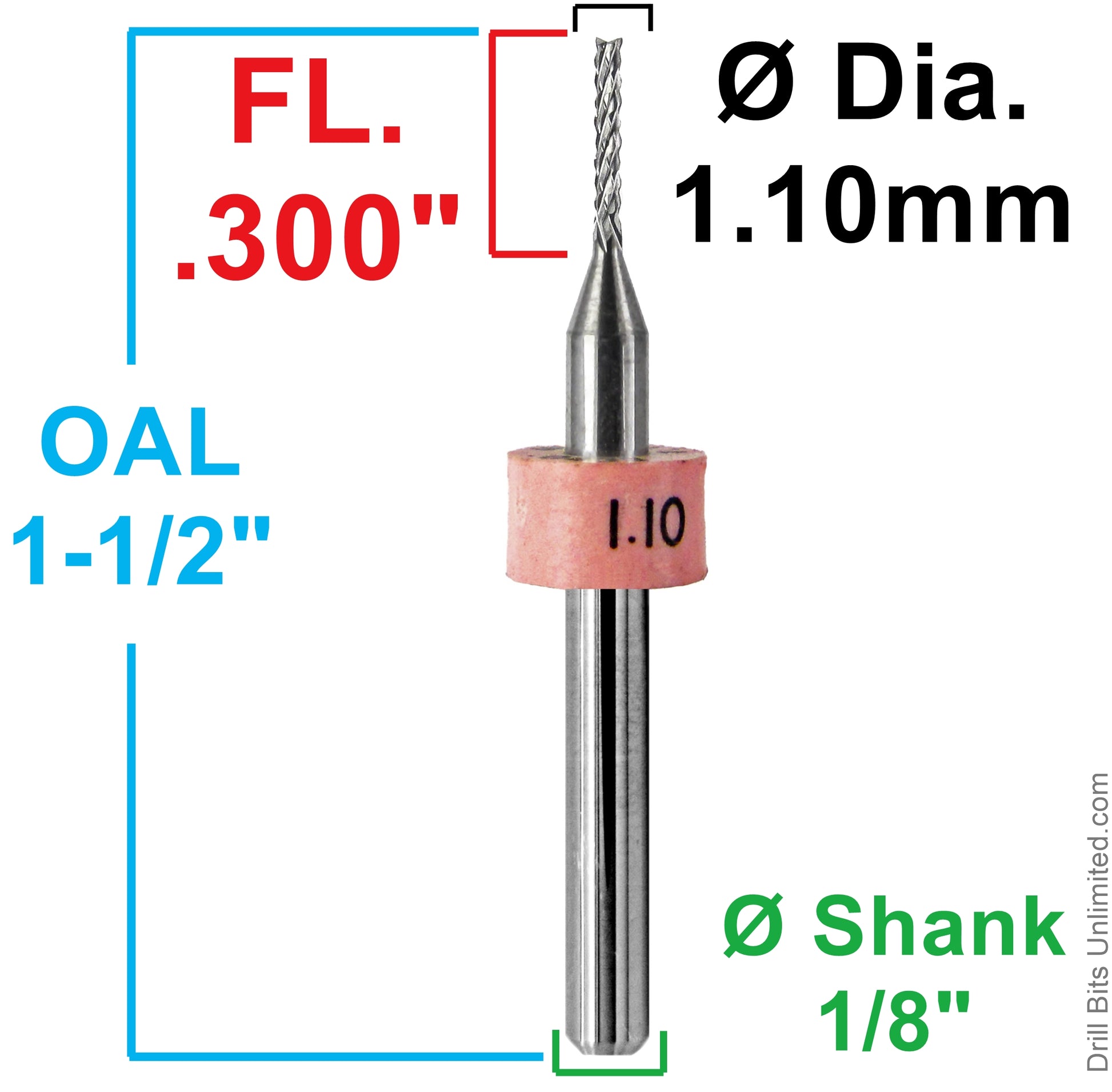

Technical Specifications

Feeds & Speeds

Proper spindle speed, feed rate, cutting depth, and secure workholding are particularly important when routing abrasive laminates with small-diameter carbide tools having extended cutting lengths.

View Diamond-Flute Router Feed & Speed Chart for general starting recommendations for FR4, G10, fiberglass, and PCB laminates.

Recommended cutting parameters are starting points only. Because R117A has a relatively long cutting section for its 1.10mm diameter, control cutting loads carefully to reduce tool deflection and breakage. Test on scrap material, adjust for machine rigidity and workholding, and use appropriate dust extraction when machining fiberglass or carbon fiber.

Related Router Bits & Guides

Shop Diamond-Flute PCB Router Bits
Browse additional cutting diameters, flute lengths, and tip configurations for PCB and composite routing.

Diamond-Flute Router Guide
Learn about diamond-cut geometry, fishtail and drill-point tips, and choosing the appropriate router for abrasive laminates.

Need a shorter cutting length? Our R117 diamond-flute fishtail router has the same 1.10mm cutting diameter with a shorter 0.250" LOC for applications that do not require R117A's extended reach.
