0.0625" (1/16") x .350" LOC TiN Coated Diamond Flute Carbide Router, Fish Tail Tip, 1/8" Shank | RS-130

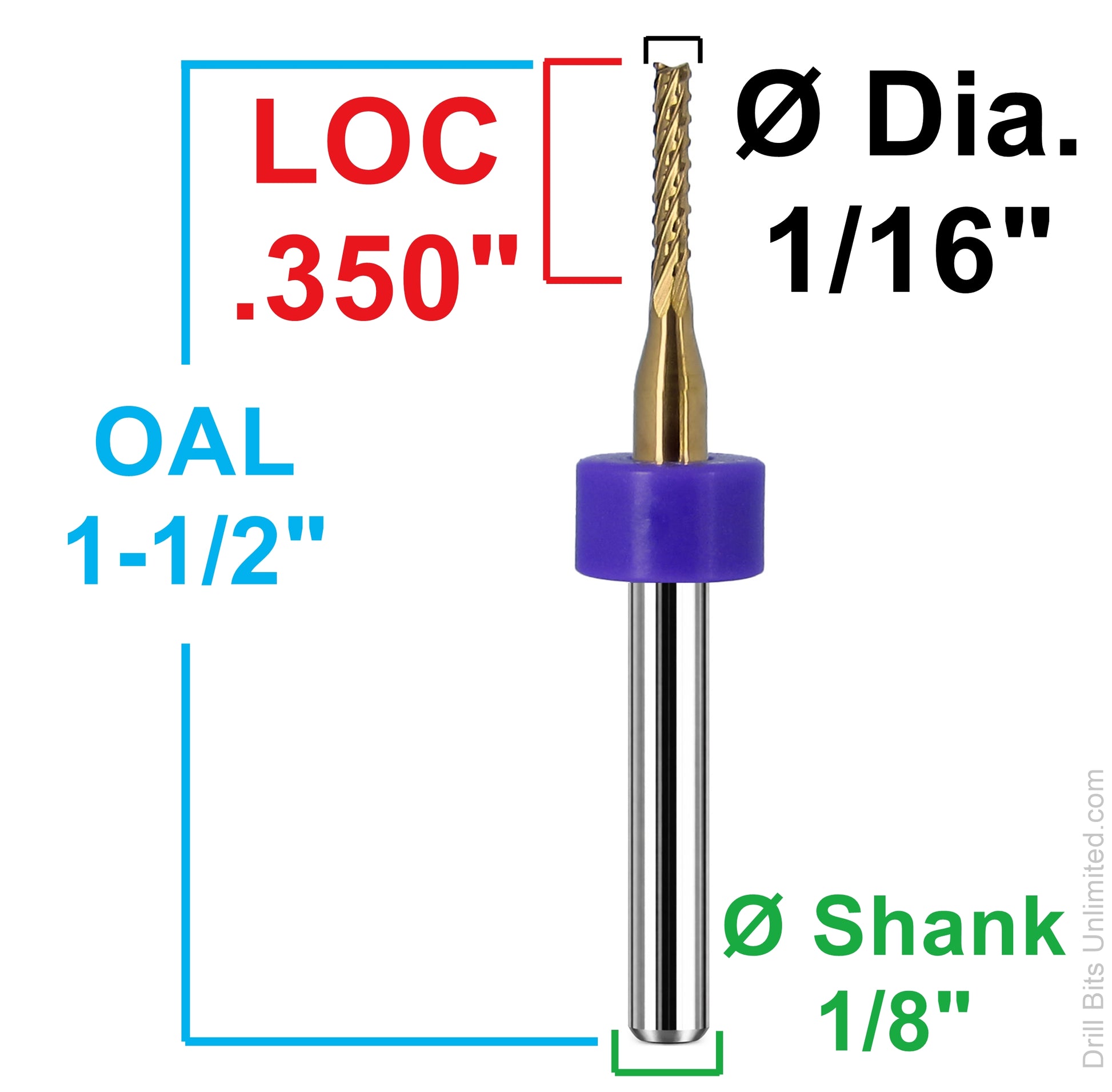

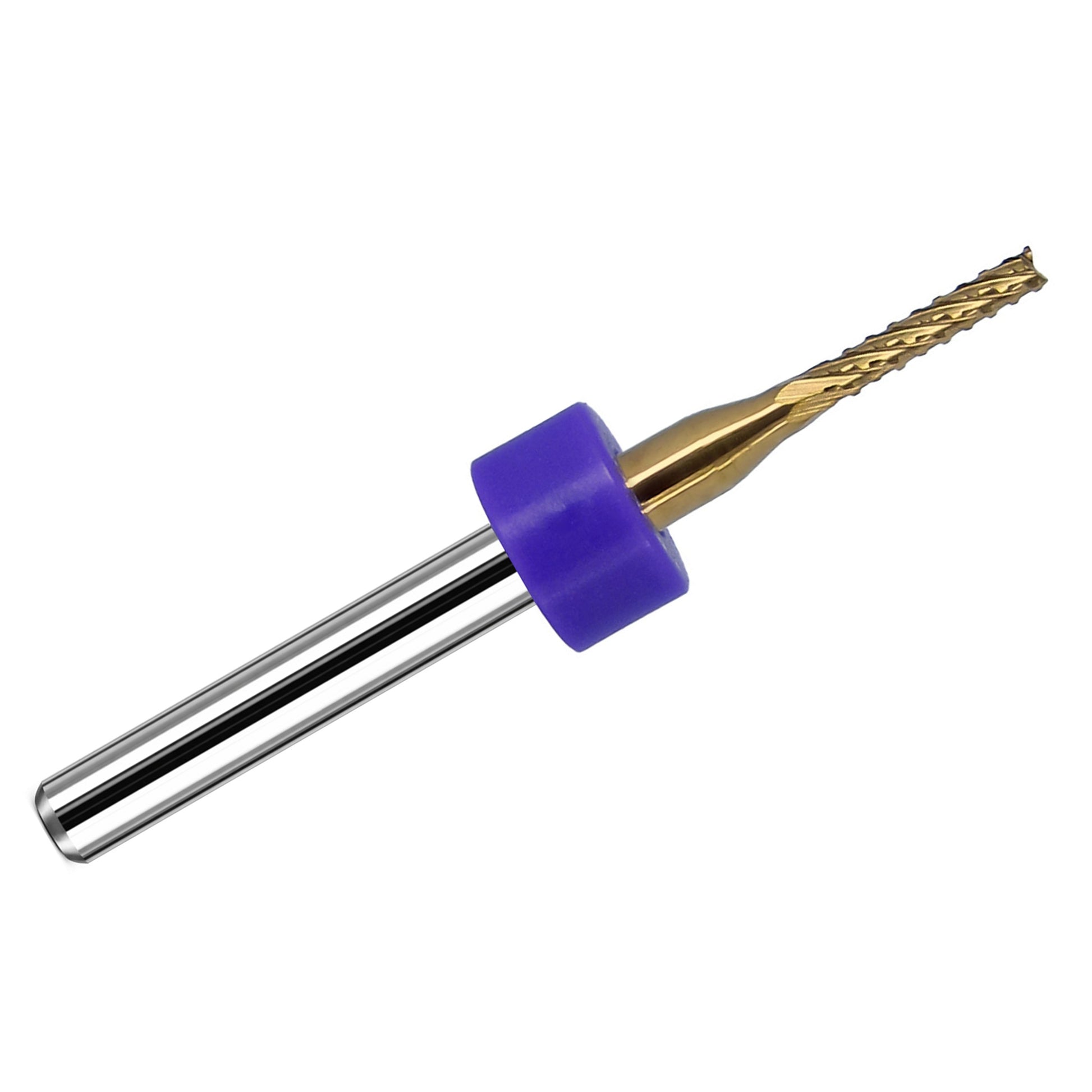

This 0.0625" (1/16") diamond pattern carbide router bit features a titanium nitride (TiN) coating, a .350" length of cut, 1/8" shank, and 1.50" overall length. Sold individually, this solid carbide router is designed for precision routing in abrasive laminates, PCB materials, and composite sheet goods.

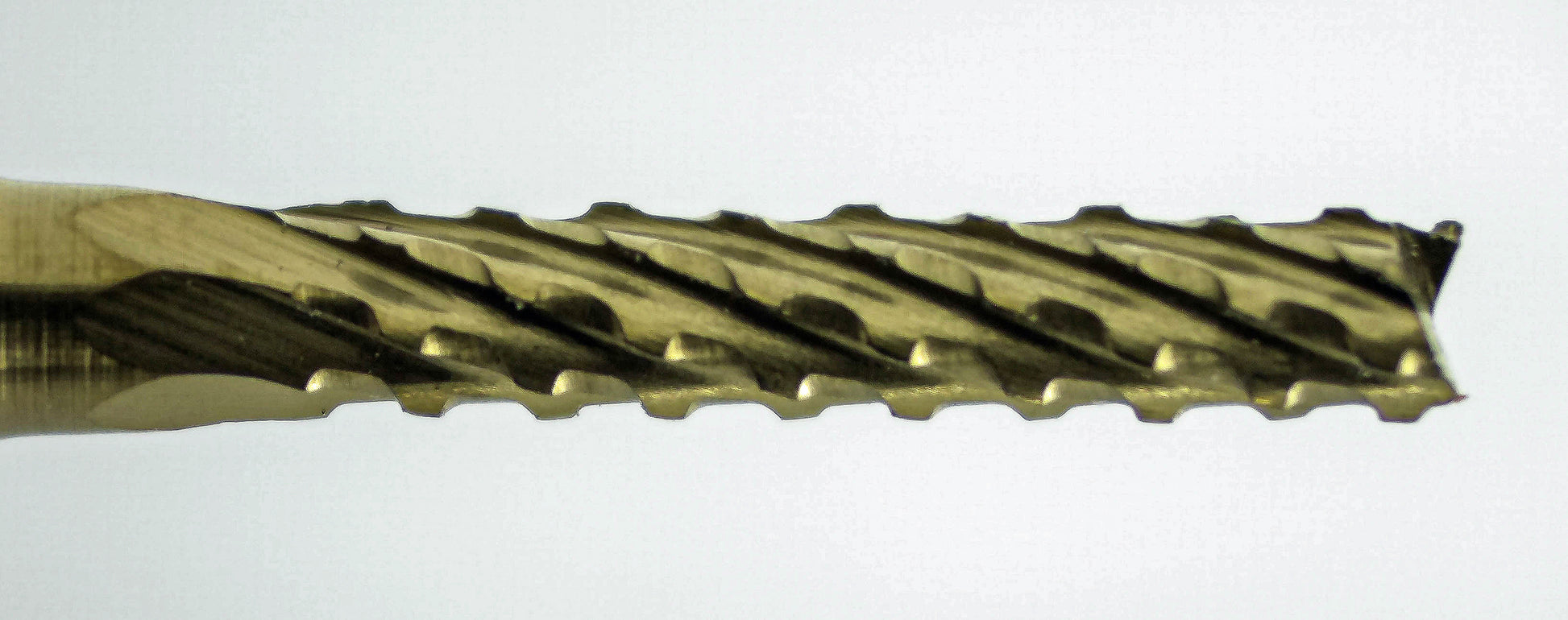

The diamond pattern up-cut flute geometry is well suited for routing materials such as FR-4, G-10, fiberglass, carbon fiber, phenolic, laminates, and similar abrasive composites. Its fish tail tip helps provide cleaner entry in brittle or layered materials and can help reduce fraying, splintering, or breakout at plunge.

The TiN coating helps reduce friction and improve wear resistance, making this router a strong choice when consistent performance and longer edge life are important in demanding routing applications.

Part Number: M142

Typical Applications

• PCB routing and depaneling
• Contour cutting in FR-4 and G-10
• Routing fiberglass and phenolic laminates
• Profiling carbon fiber sheet and similar composites
• Slotting, trimming, and edge finishing in abrasive sheet materials

Benefits

• Diamond pattern flute geometry for effective routing in abrasive materials
• Up-cut design supports chip evacuation during routing
• Fish tail tip helps reduce entry damage in brittle or layered workpieces
• TiN coating helps reduce friction and improve wear resistance
• Solid carbide construction for rigidity and precision in CNC routing applications

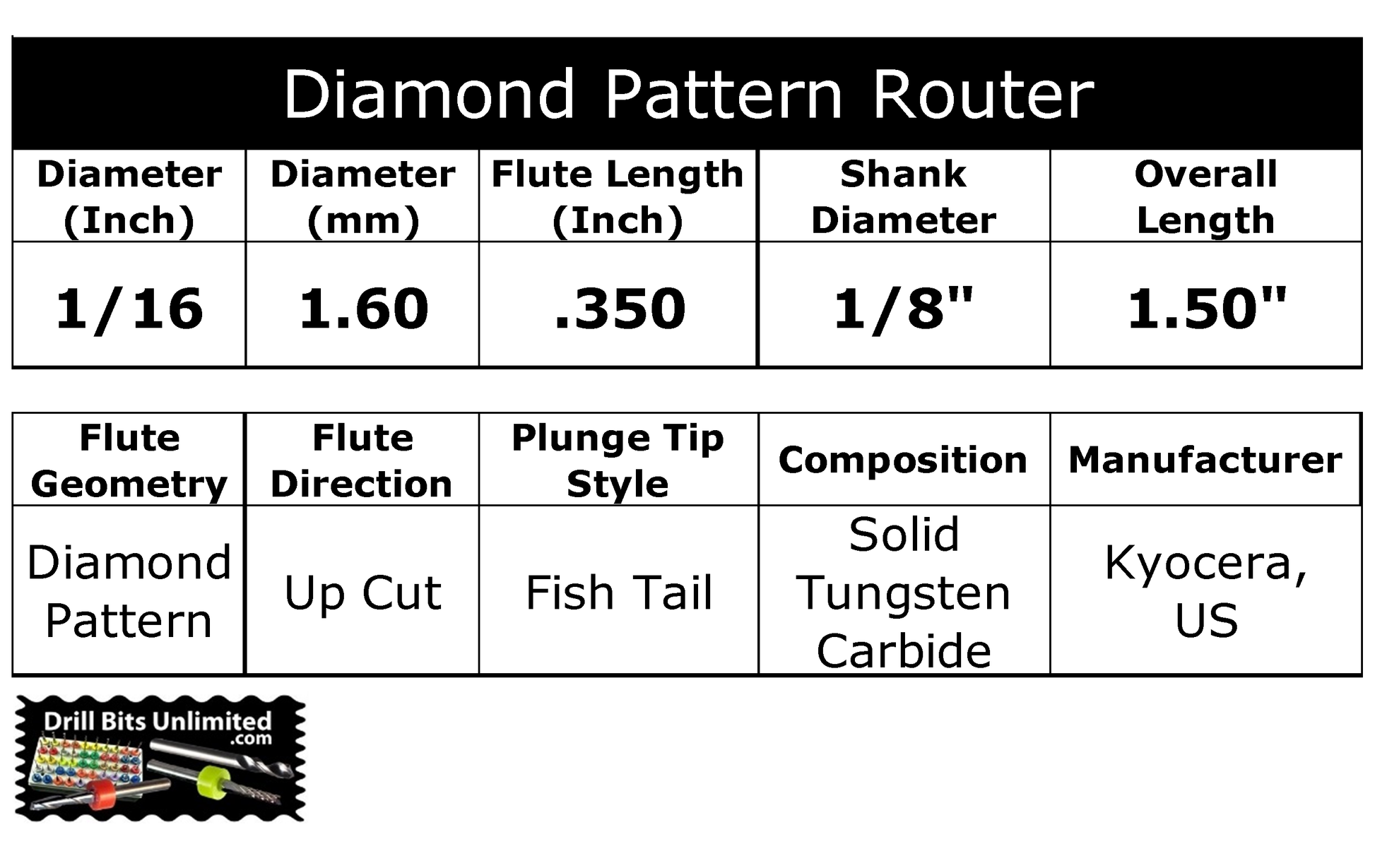

Specifications

👉 View Diamond Flute Router Feed & Speed Chart

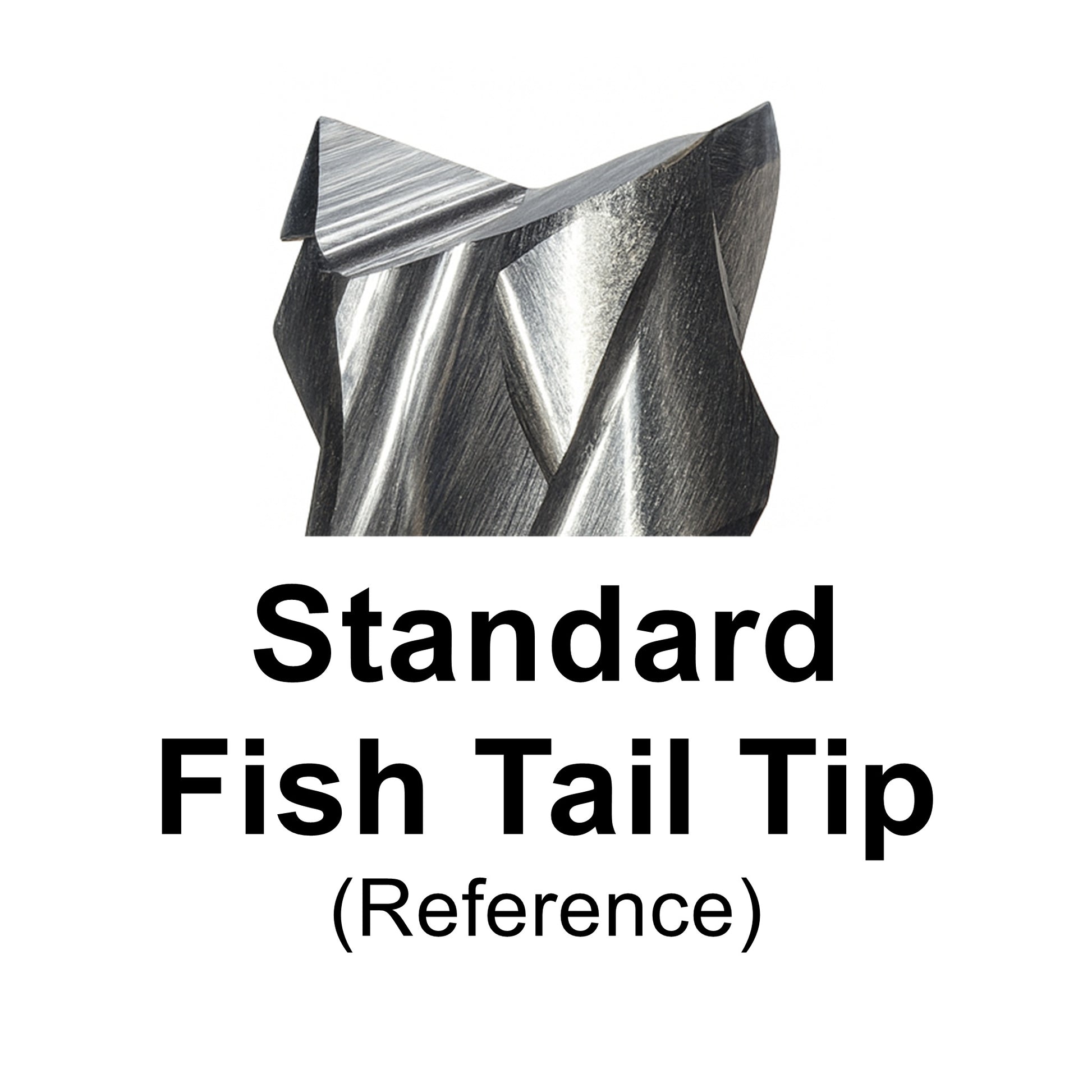

Tip style: Fish Tail — gentle entry to reduce delamination in brittle or layered materials.

Former SKU / item number: M142
