0.0625" / 1/16" Diamond Flute Router, Fish Tail, .275" LOC, 1/8" Shank L10
0.0625" / 1/16" Diamond Flute Router, Fish Tail, .275" LOC, 1/8" Shank L10
Couldn't load pickup availability

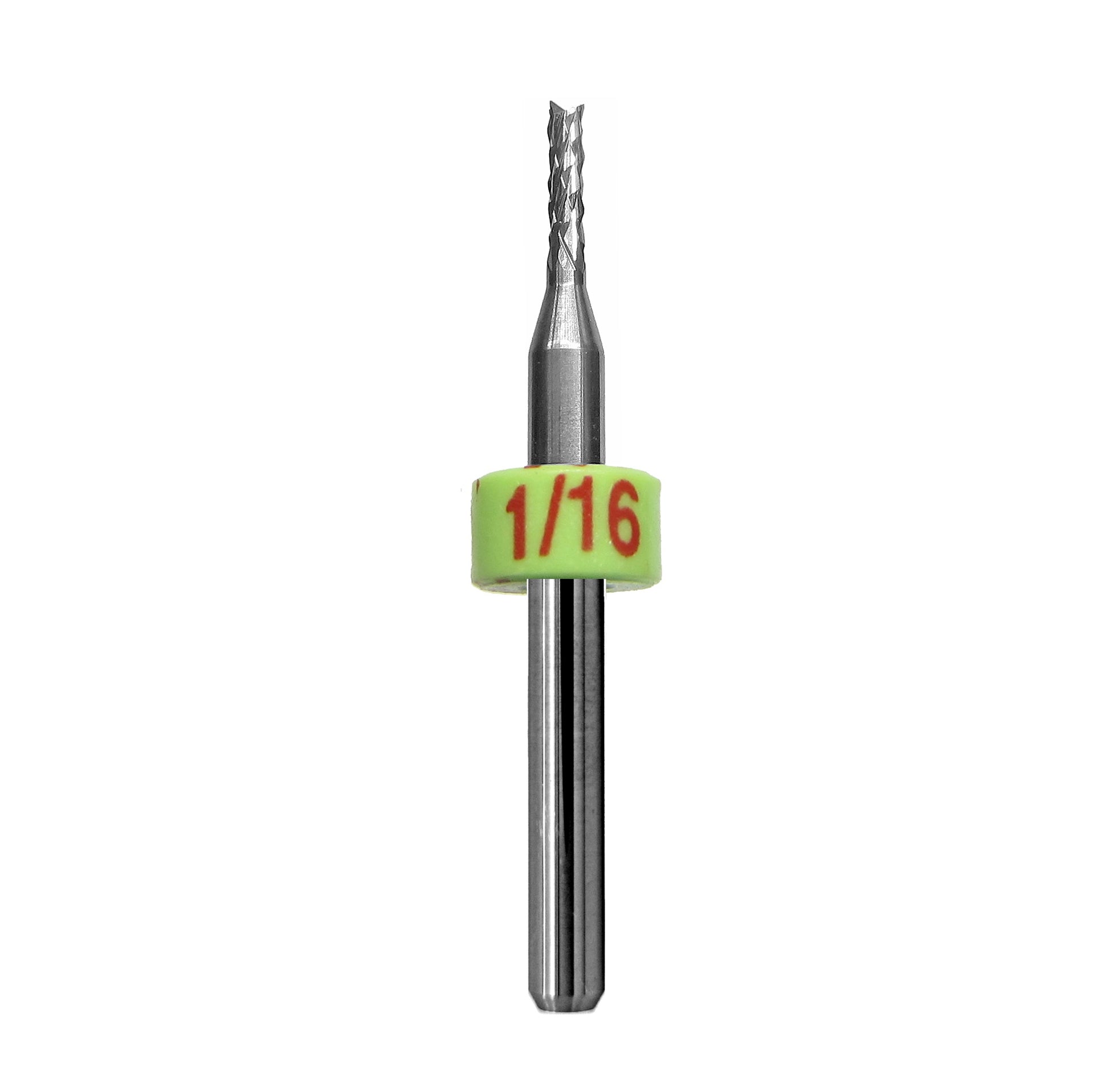

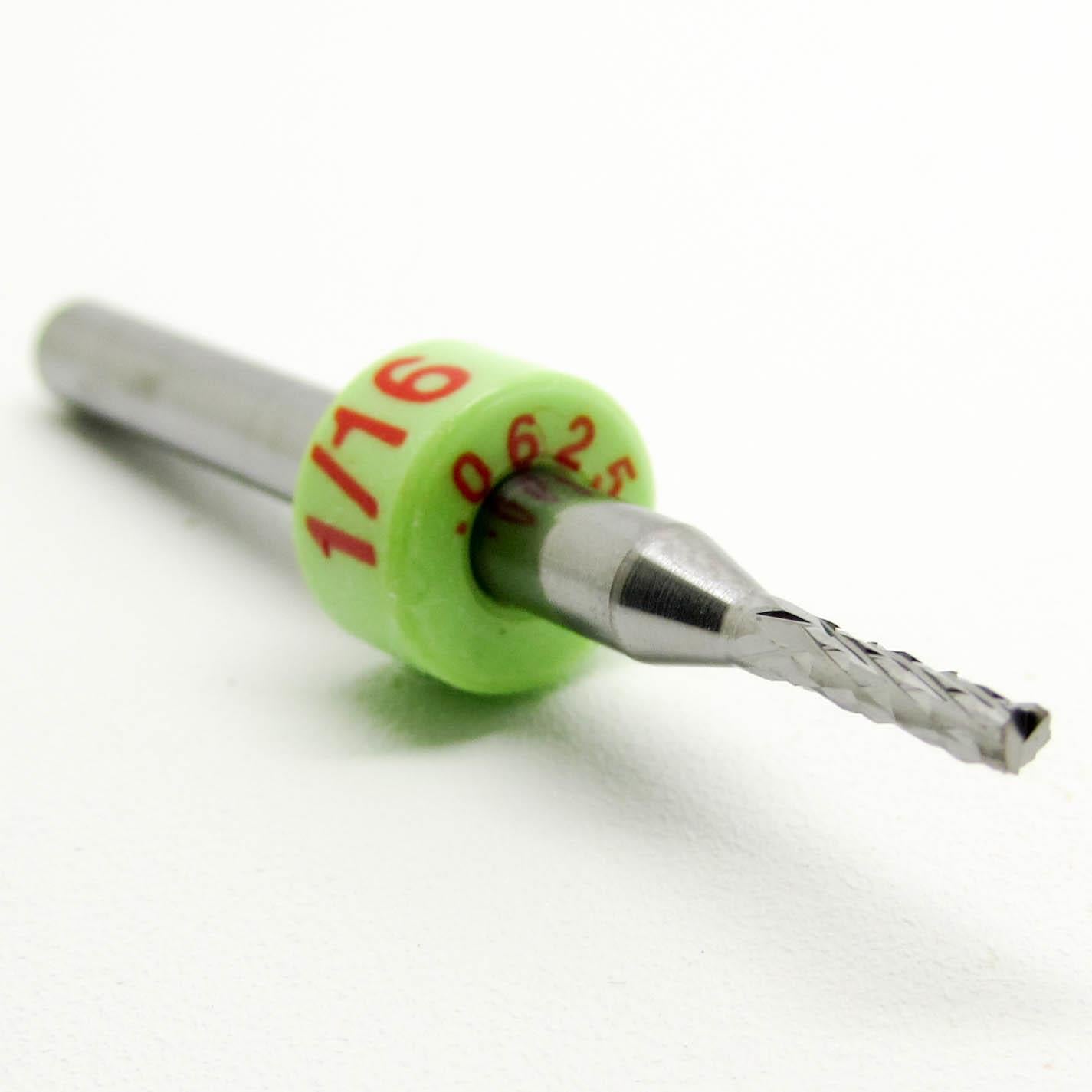

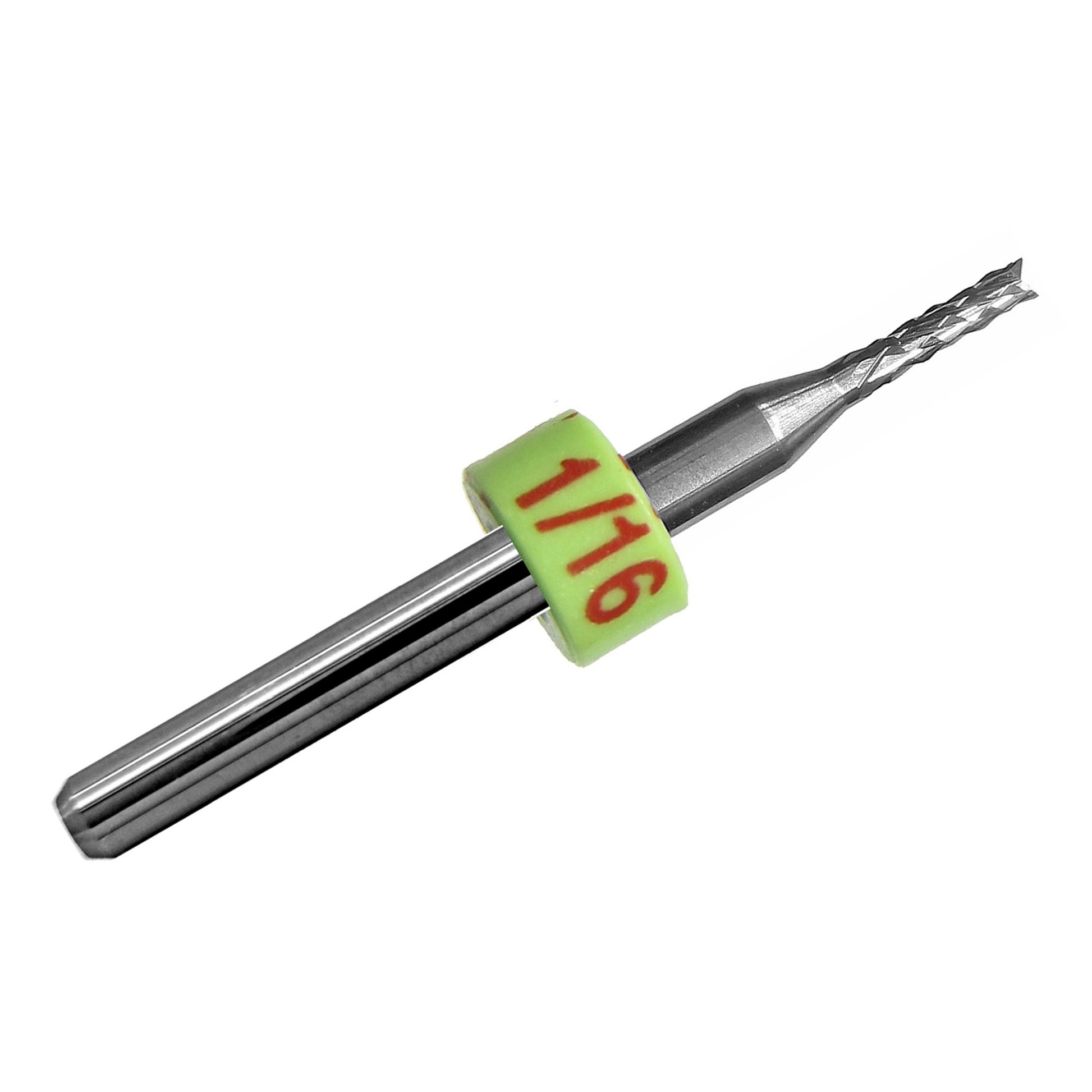

New 0.0625" / 1/16" diamond-flute solid carbide router bit with fish tail tip, .275" LOC, and standard 1/8" shank.
This new Kyocera diamond-pattern router is designed for precision CNC routing in PCB and composite-style materials. The diamond-flute geometry helps abrade and shear tough laminated materials, while the fish tail tip supports controlled entry into flat stock.
Use this router for small precision routing, slotting, profiling, and cutout work where a 1/16" diameter tool and standard 1/8" shank are required.
Tool Details

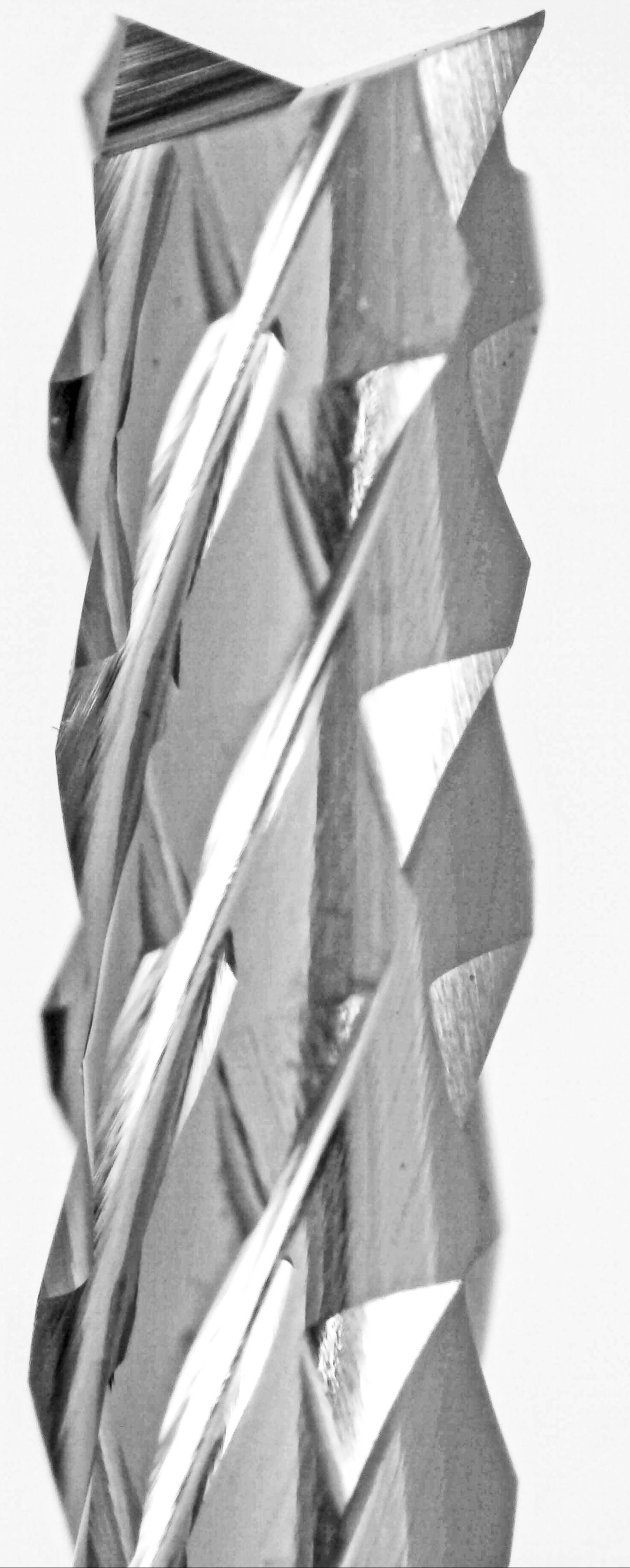

- Geometry: Diamond Flute / Diamond Pattern
- Tip style: Fish Tail
- Cut direction: Up Cut / Right Hand
- Common material use: PCB laminate, FR-4, G-10, fiberglass, and similar abrasive sheet materials
Common Uses
- PCB and circuit board routing
- FR-4, G-10, fiberglass laminate, and composite-style sheet material
- Small CNC cutouts, slots, and profiles
- Precision hobby, prototype, and light production routing
Benefits
- New Kyocera solid carbide router bit
- Diamond-pattern flute geometry for abrasive laminate materials
- Fish tail tip for controlled entry into flat stock
- Standard 1/8" shank fits common PCB router holders and CNC collets
- Useful value tooling for shops, hobby CNC users, prototyping, and backup inventory

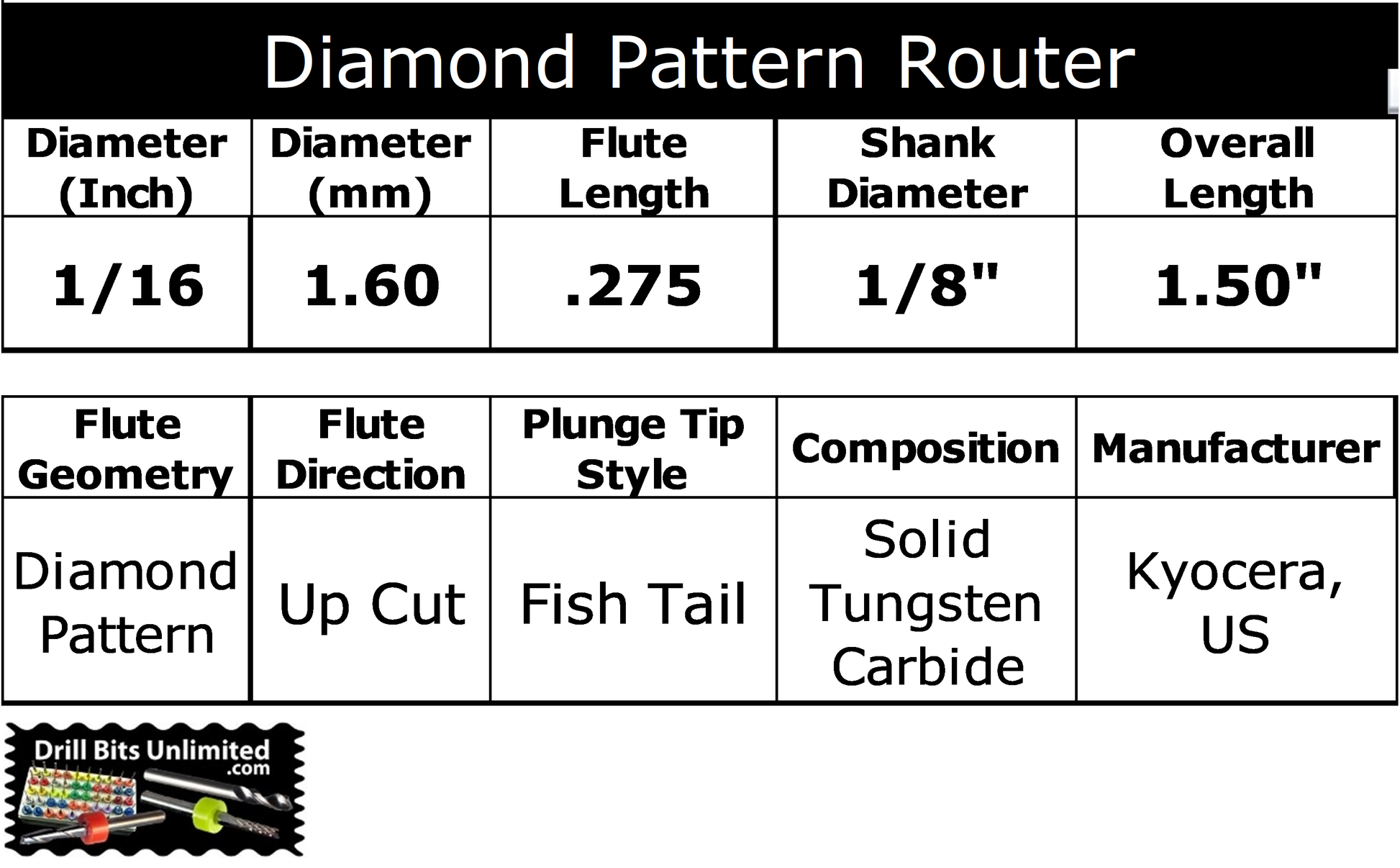

Specifications
| Manufacturer | Kyocera |
|---|---|
| Country of Origin | US |
| Tool Type | Diamond Flute Router Bit |
| Condition | New |

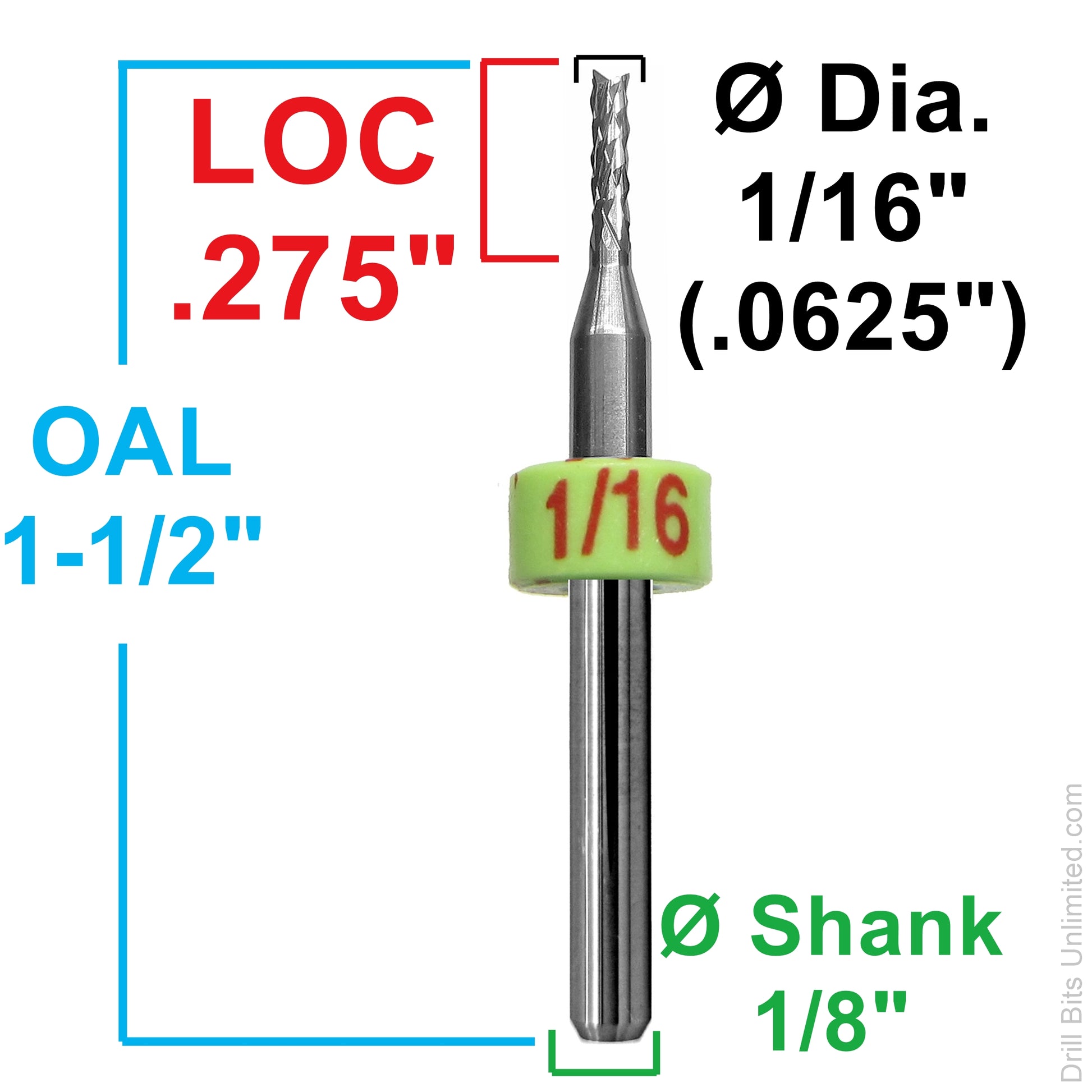

| Cutting Diameter | 0.0625" / 1/16" / 1.60 mm |
| LOC | 0.275" |
| Shank Diameter | 1/8" |
| Overall Length | 1.50" |
| Flute Geometry | Diamond Pattern / Diamond Flute |
| Tip Style | Fish Tail |
| Cut Direction | Right Hand / Up Cut |
| Material | Solid Tungsten Carbide |
| Coating | Uncoated |
| Center Cutting | Yes |
| Package Quantity | 1 Piece |

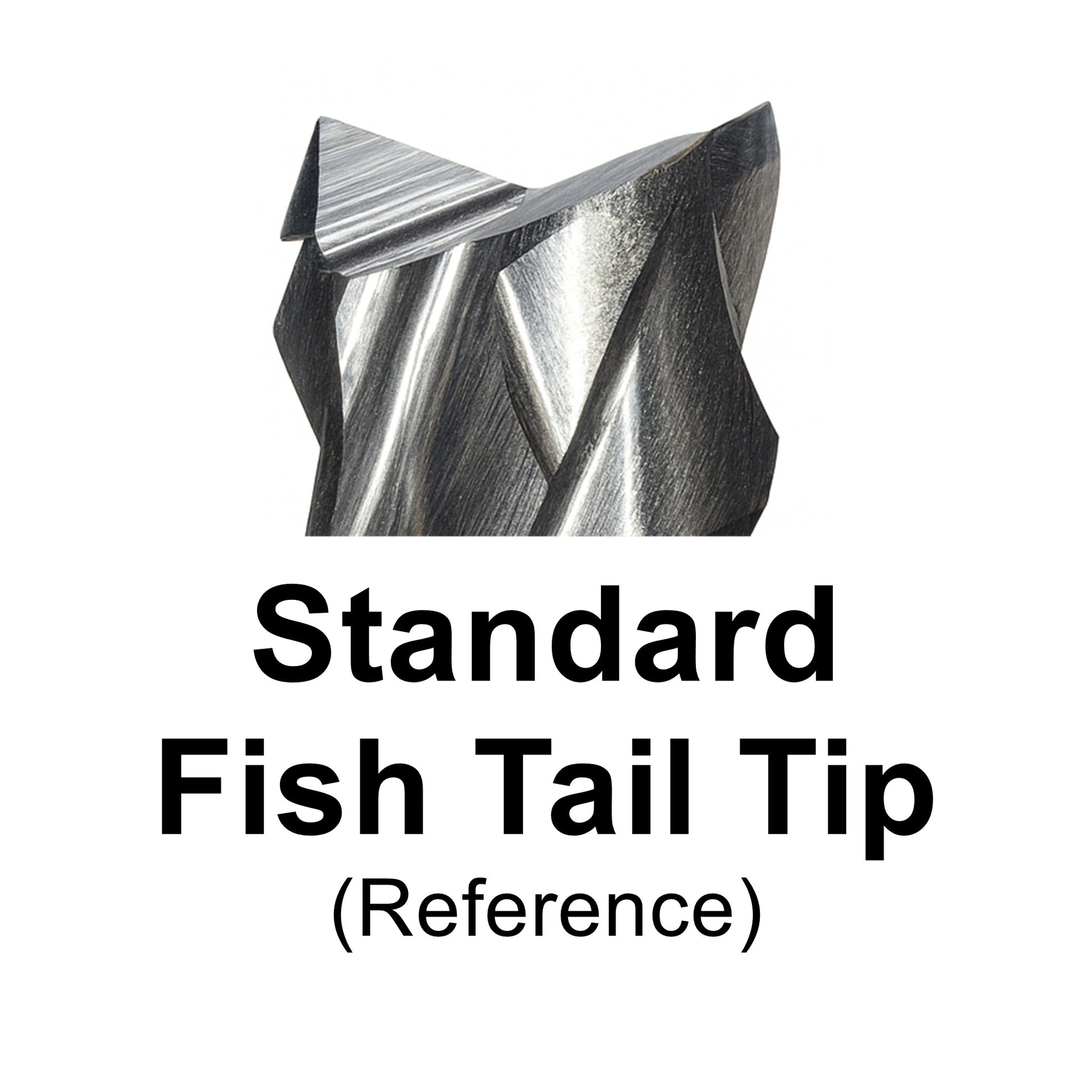

Tip style note: Fish tail router tips are commonly used for routing and cutout work in flat sheet materials. For best results, use proper fixturing and conservative starting feeds and speeds for your machine and material.
See our diamond flute router feed and speed chart →
