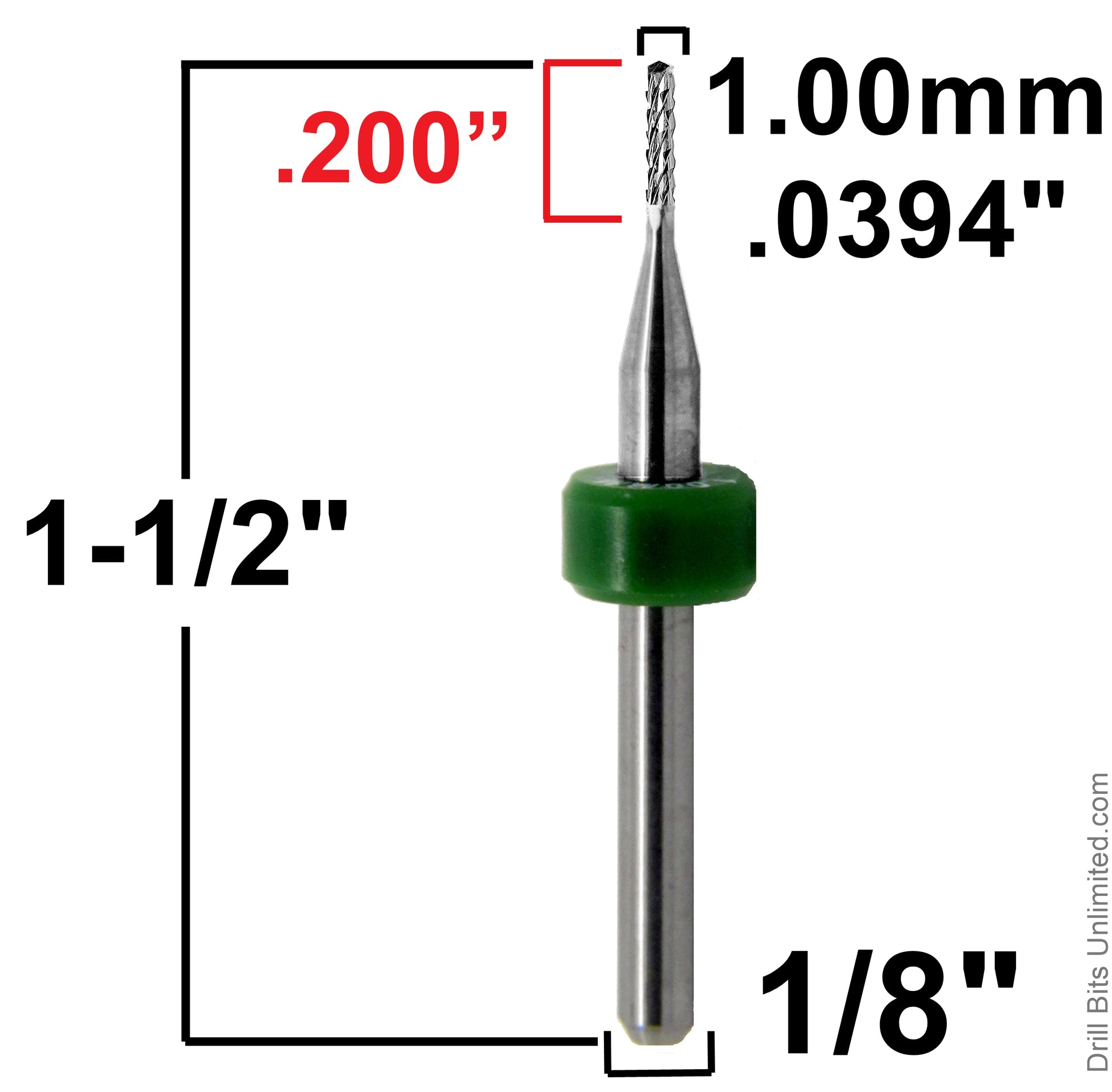

0.0394" / 1.00mm Diamond Flute Router, Drill Point, .200" LOC, 1/8" Shank

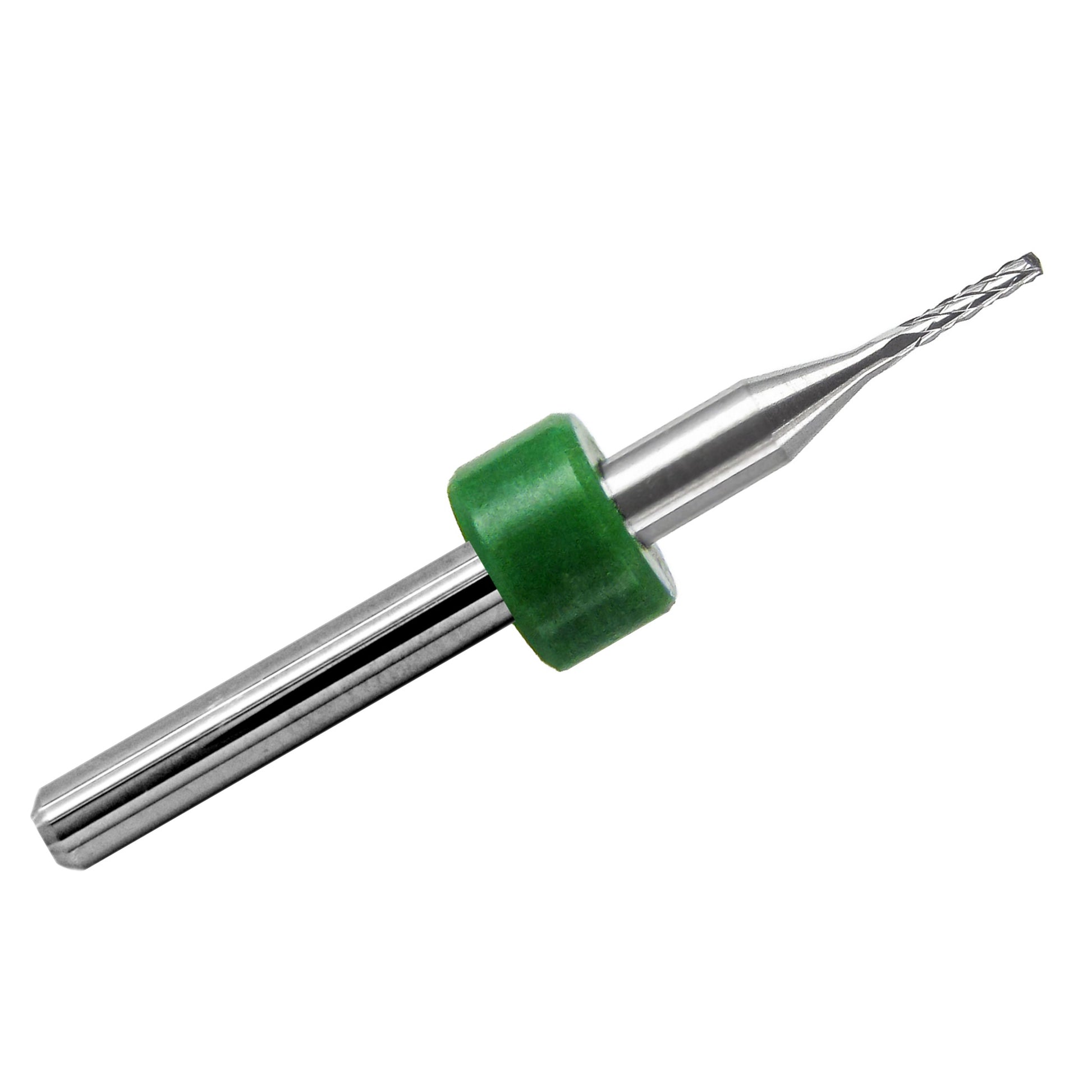

New 0.0394" / 1.00mm diamond-flute solid carbide router bit with drill-point tip, .200" LOC, and standard 1/8" shank.

This new diamond-pattern carbide router is designed for precision CNC routing and small-detail cutting in PCB and composite-style materials. The diamond-flute geometry helps abrade and shear tough laminated materials, while the drill-point tip provides a stronger pointed entry style than a fish-tail tip.

Use this router for small precision routing, profiling, slotting, and fine-detail cutout work where a 1.00mm diameter tool and standard 1/8" shank are required.

Tool Details

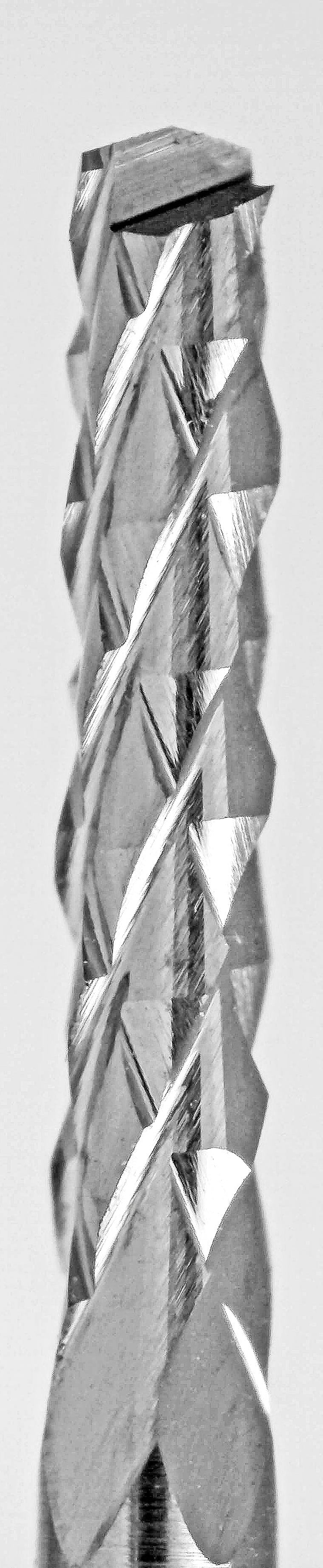

• Geometry: Diamond Flute / Diamond Pattern

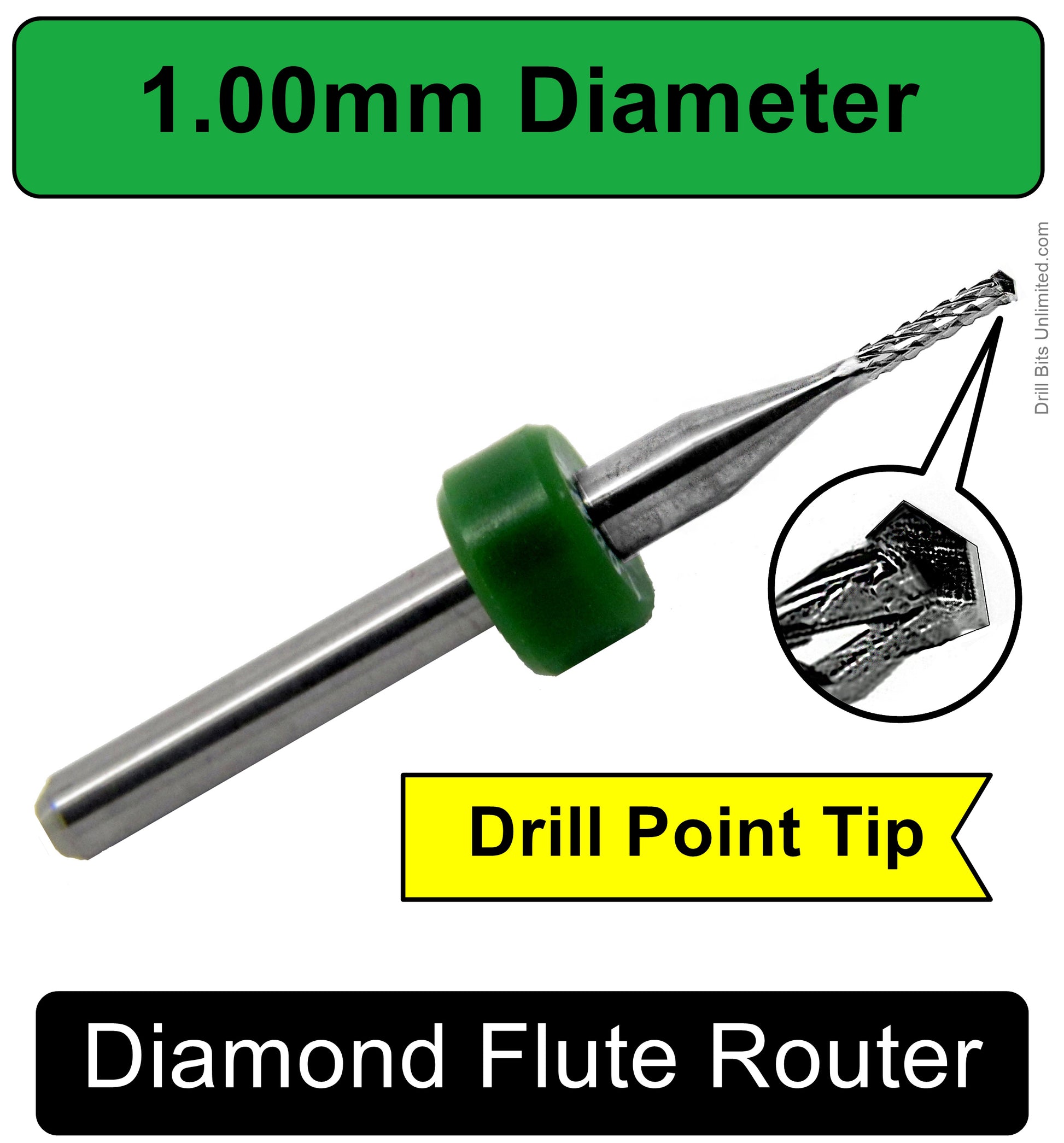

• Tip style: Drill Point
• Cut direction: Up Cut / Right Hand
• Common material use: PCB laminate, FR-4, G-10, fiberglass, carbon fiber composites, and fine-detail machining applications

Common Uses

• PCB and circuit board routing
• FR-4, G-10, fiberglass laminate, and composite-style sheet material
• Small CNC cutouts, slots, and profiles
• Fine-detail routing and light-duty CNC work
• Prototype, hobby, and backup tooling applications

Benefits

• New solid carbide router bit
• Diamond-pattern flute geometry for abrasive laminate materials
• Drill-point tip provides a pointed entry style for controlled starts
• Small 1.00mm diameter is useful for fine-detail routing and compact cutouts
• Standard 1/8" shank fits common PCB router holders and CNC collets
• Useful value tooling for shops, hobby CNC users, prototyping, and backup inventory

Specifications

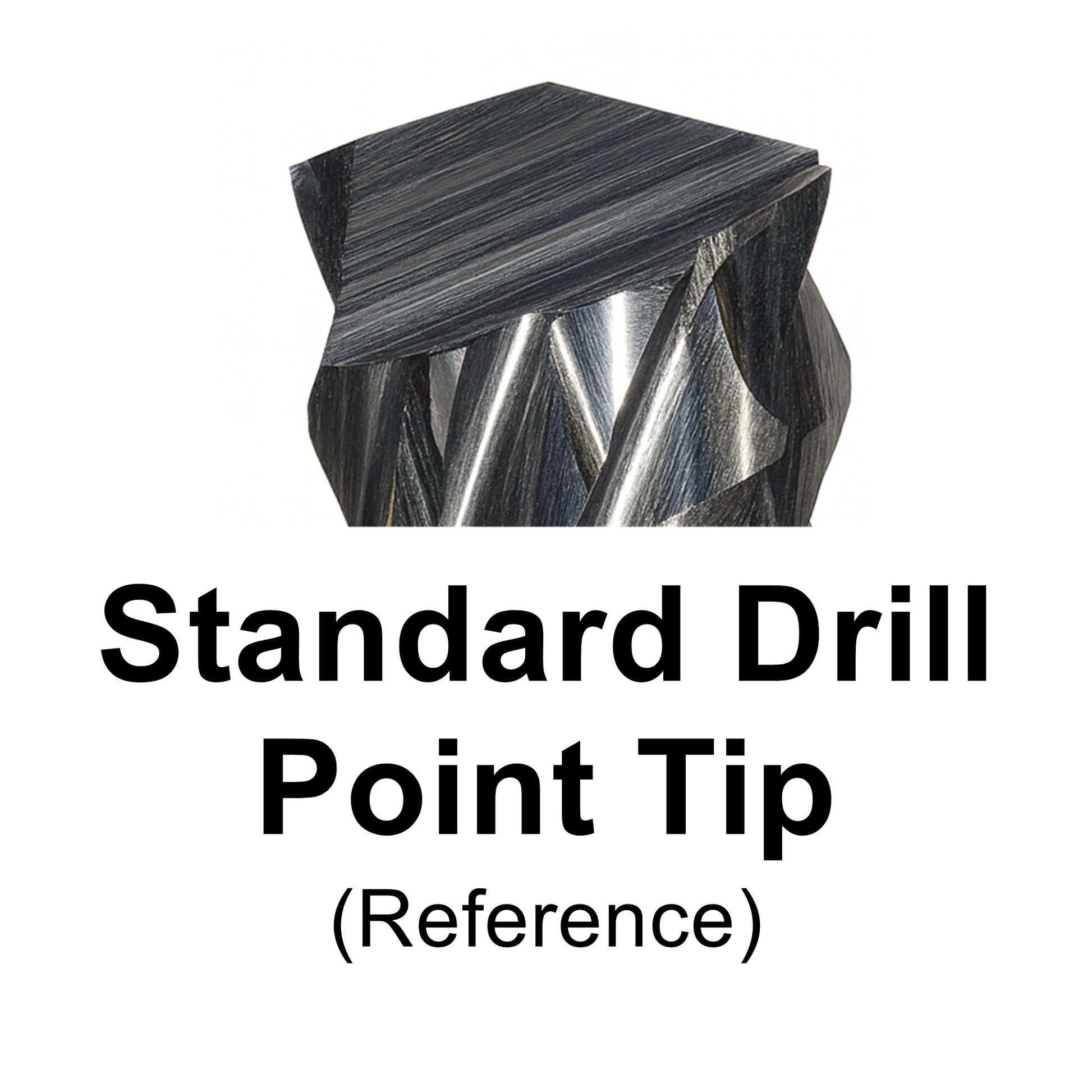

Tip style note: Drill-point router tips are useful where a pointed entry style is preferred. For brittle laminates or applications where gentler surface entry is the main priority, a fish-tail tip may be preferred.
