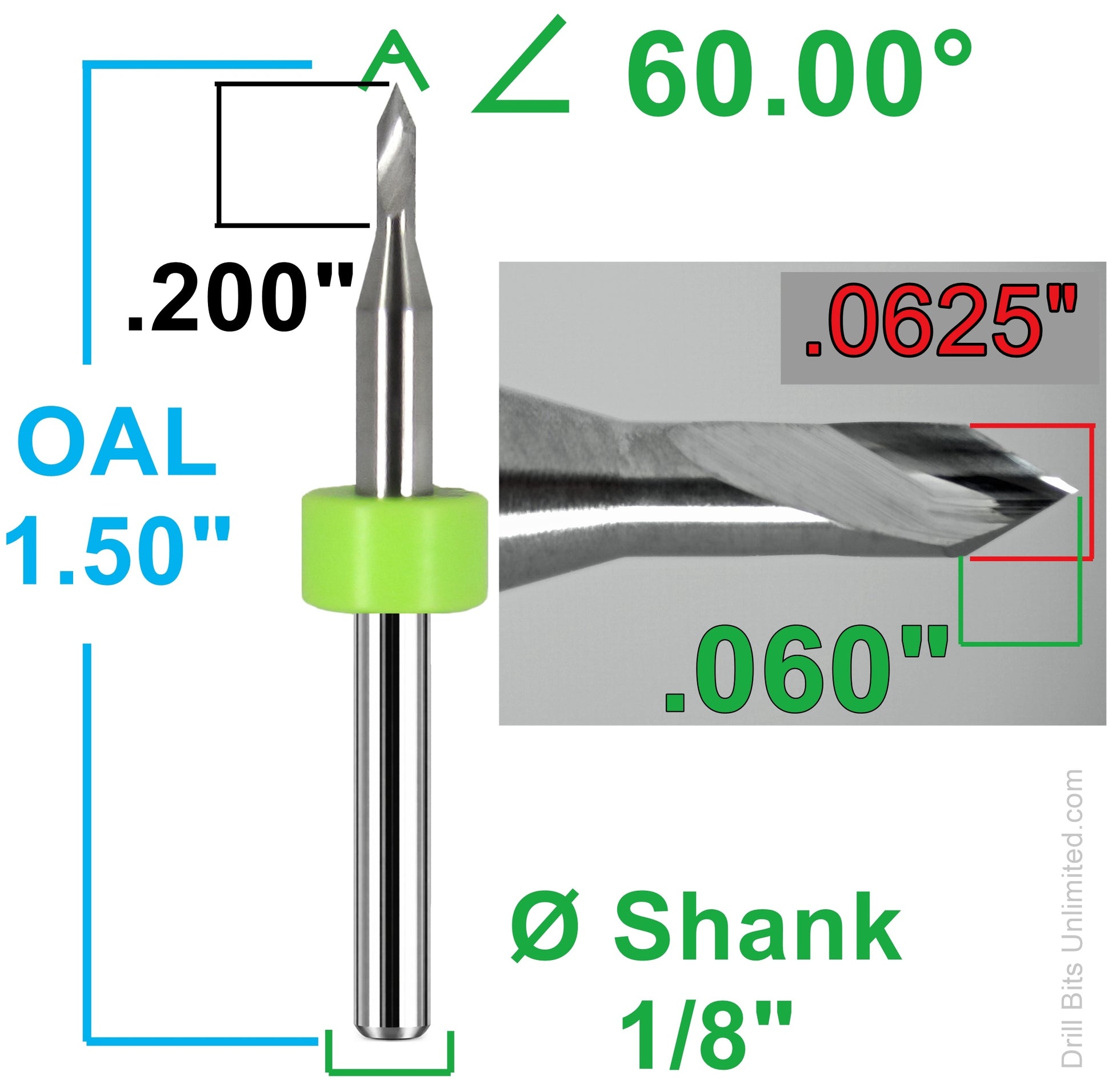

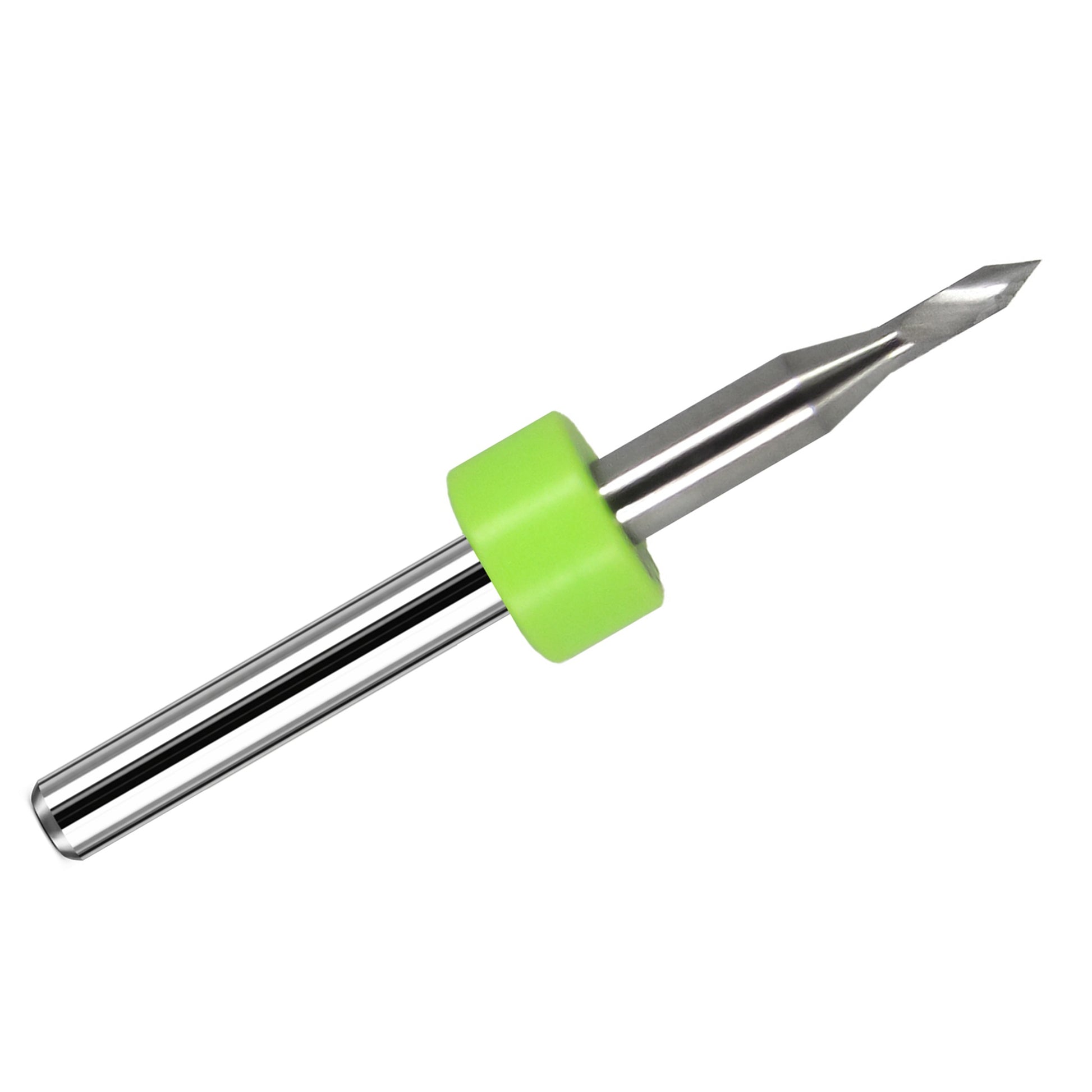

1/16" (.0625") 60° 2-Flute Spiral V-Bit Engraver, 1/8" Shank, 0.200" Reach, Kyocera Made in USA E104

High precision 2-flute spiral V-bit engraver manufactured by Kyocera in the USA for clean engraving, PCB isolation routing, and smooth cutting performance.

This premium engraver features a true 2-flute spiral cutting geometry, providing improved chip evacuation and reduced chatter compared to standard straight-edge V-bits. The 60° angle offers an ideal balance of fine detail capability and tip strength.

Why choose a spiral V-bit?
Unlike standard V-bits, spiral engravers actively lift chips away from the cutting zone. This results in cleaner engraving, reduced tool loading, and more consistent results—especially in PCB materials and plastics.

Why 60°?
A 60° angle is one of the most versatile engraving geometries. It allows for both fine detail work and durable cutting performance across a wide range of materials.

Key Features

• Manufactured by Kyocera – Made in USA

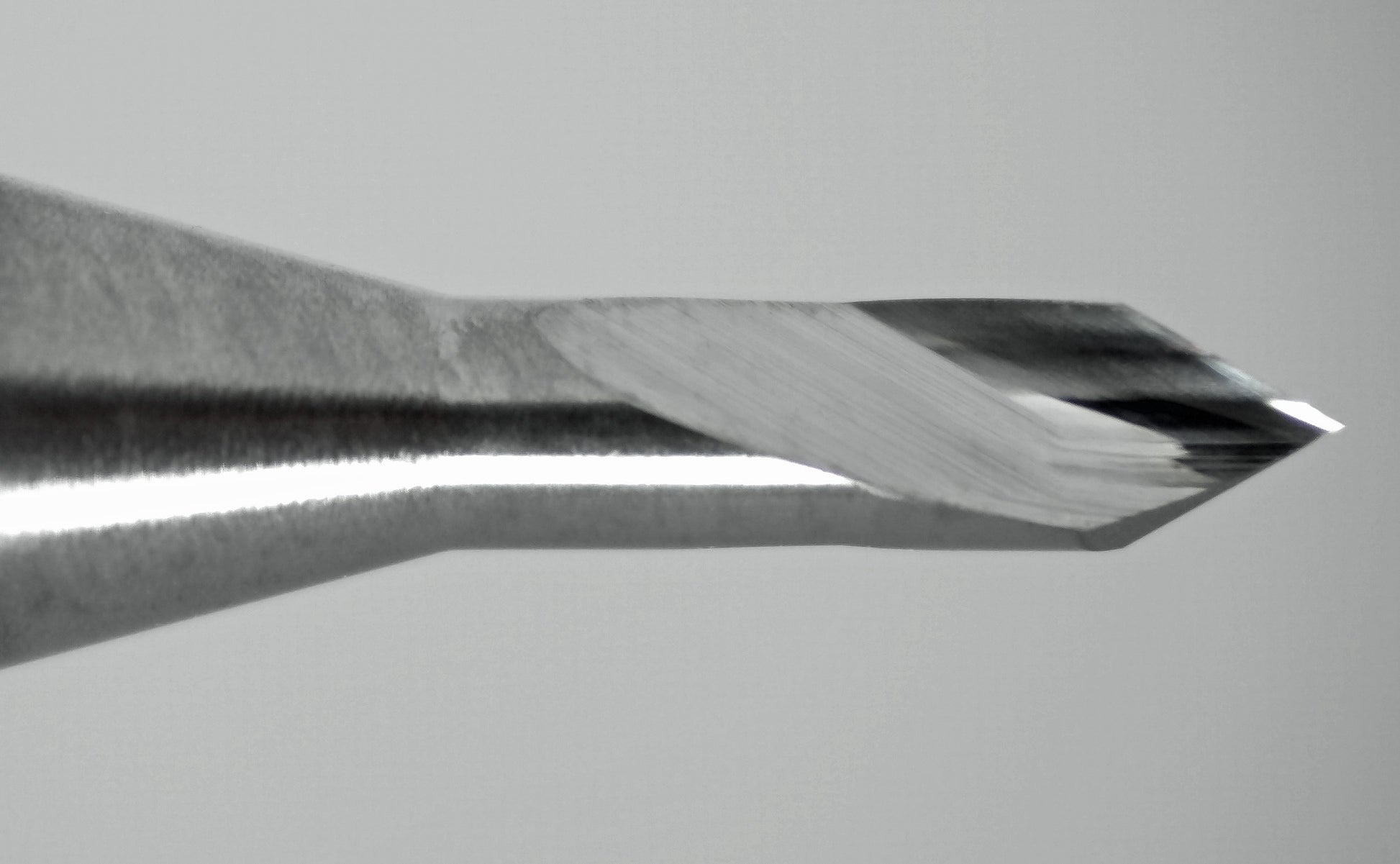

• 2-flute spiral geometry for smooth cutting and chip evacuation
• 60° tip angle for balanced detail and durability
• 1/16" (0.0625") cutting diameter
• 0.200" reach for improved access before shoulder interference
• Solid carbide construction for long tool life
• 1/8" shank fits most CNC routers and PCB milling machines

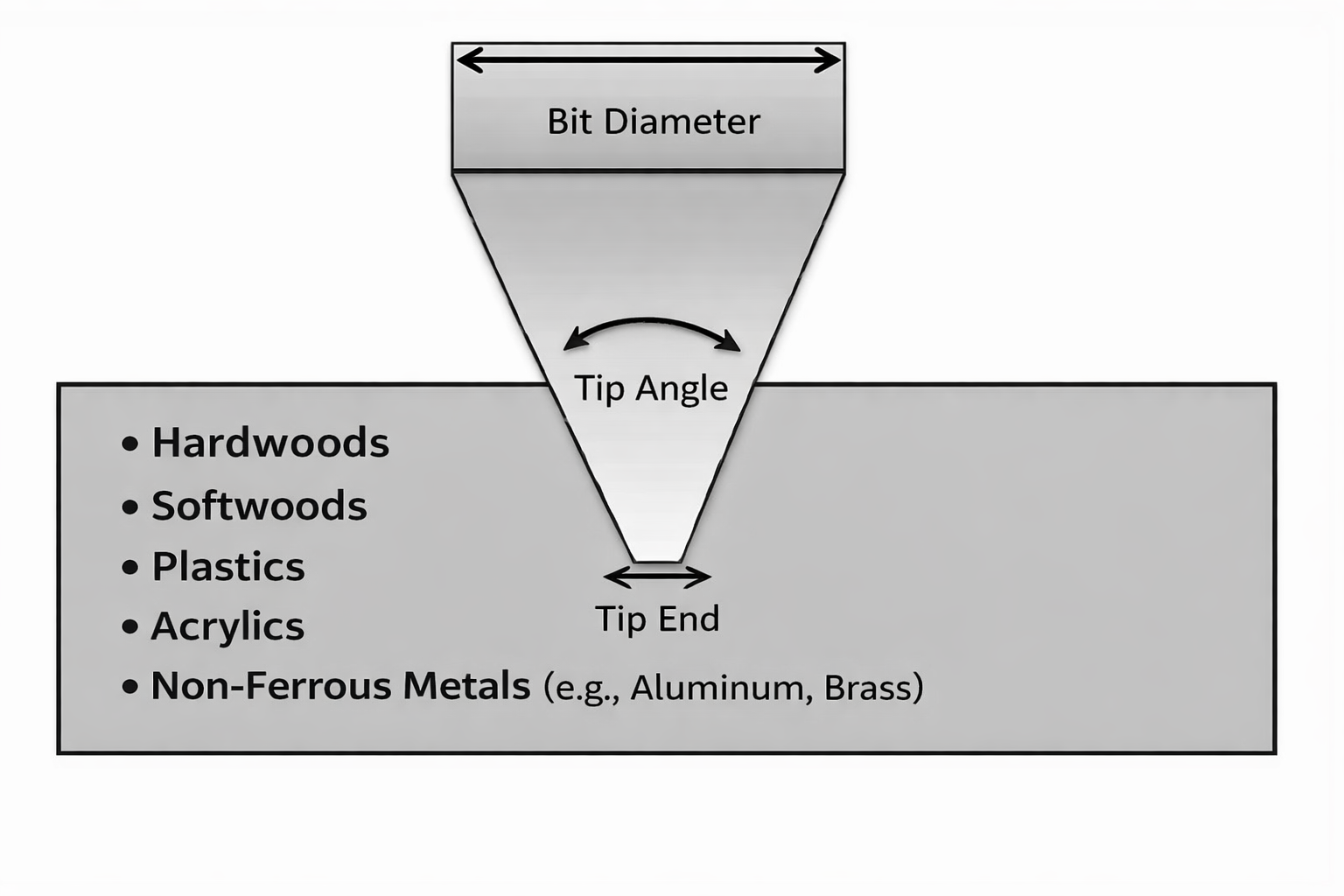

Typical Applications

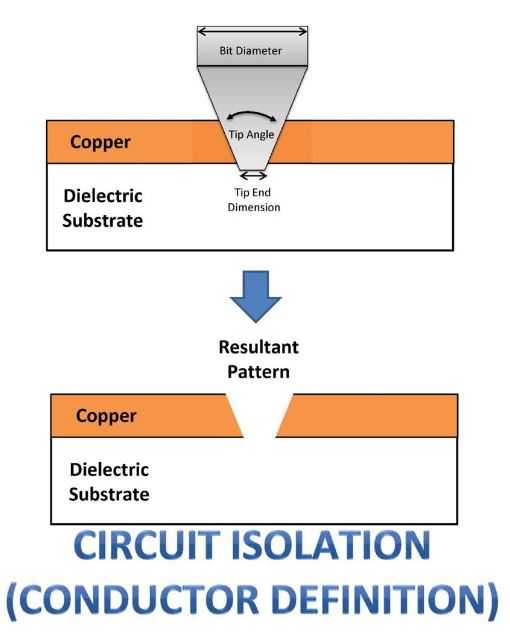

• PCB trace isolation routing
• Fine engraving and lettering
• Plaques, tags, and labels
• Plastic and acrylic engraving
• Wood engraving and sign making
• Light-duty engraving in aluminum and brass

Specifications
