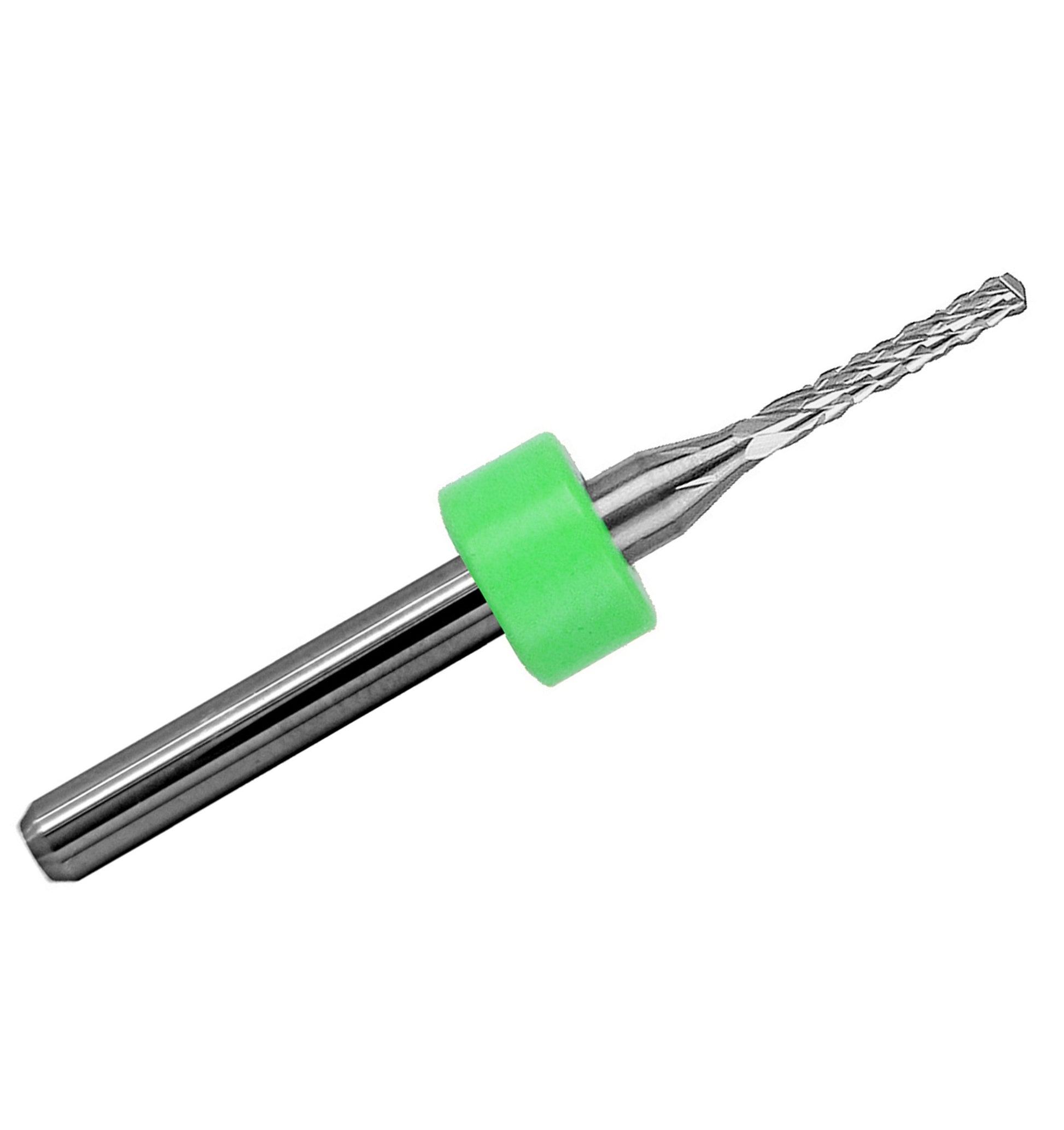

0.0625" (1/16") x .256" LOC Diamond Flute Carbide Router, Drill Point Tip, 1/8" Shank | R134

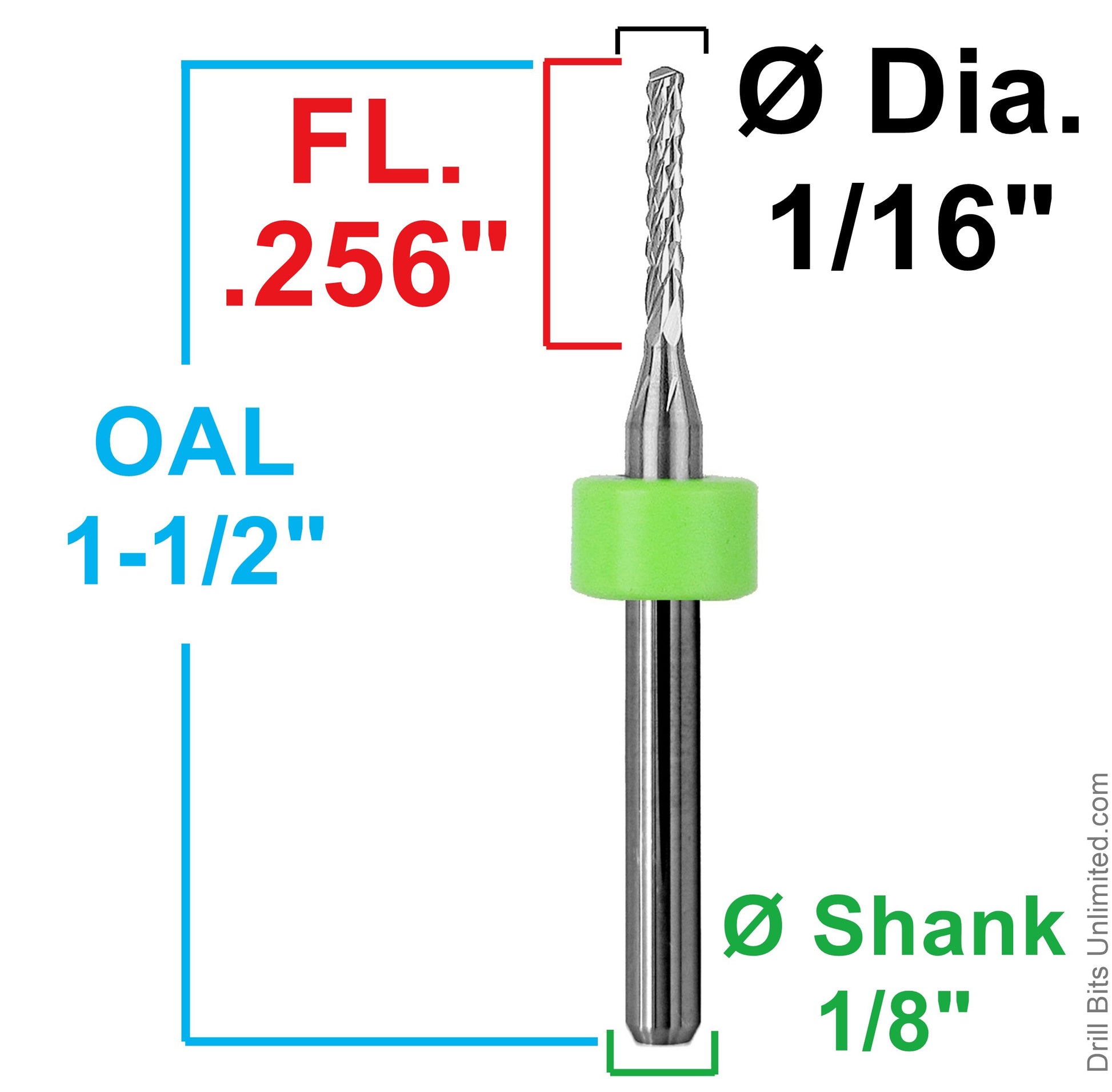

This 1/16" (0.0625") diamond flute carbide router features a .256" length of cut, 1-1/2" overall length, and a 1/8" shank, offering an excellent balance of strength and cutting precision.

The diamond flute geometry uses a fine, multi-edge cutting structure that is gentler on brittle and layered materials, helping reduce chipping and edge damage.

Optimized for PCB materials (FR-4, G10), fiberglass, phenolic laminates, carbon fiber, and other abrasive composites, this tool delivers clean edges and consistent performance in demanding applications.

For extended tool life in highly abrasive materials, explore our diamond-coated (PCD) routers →

The up-cut design improves chip evacuation and enhances bottom-edge cut quality, making it ideal for through-cuts and general routing operations.

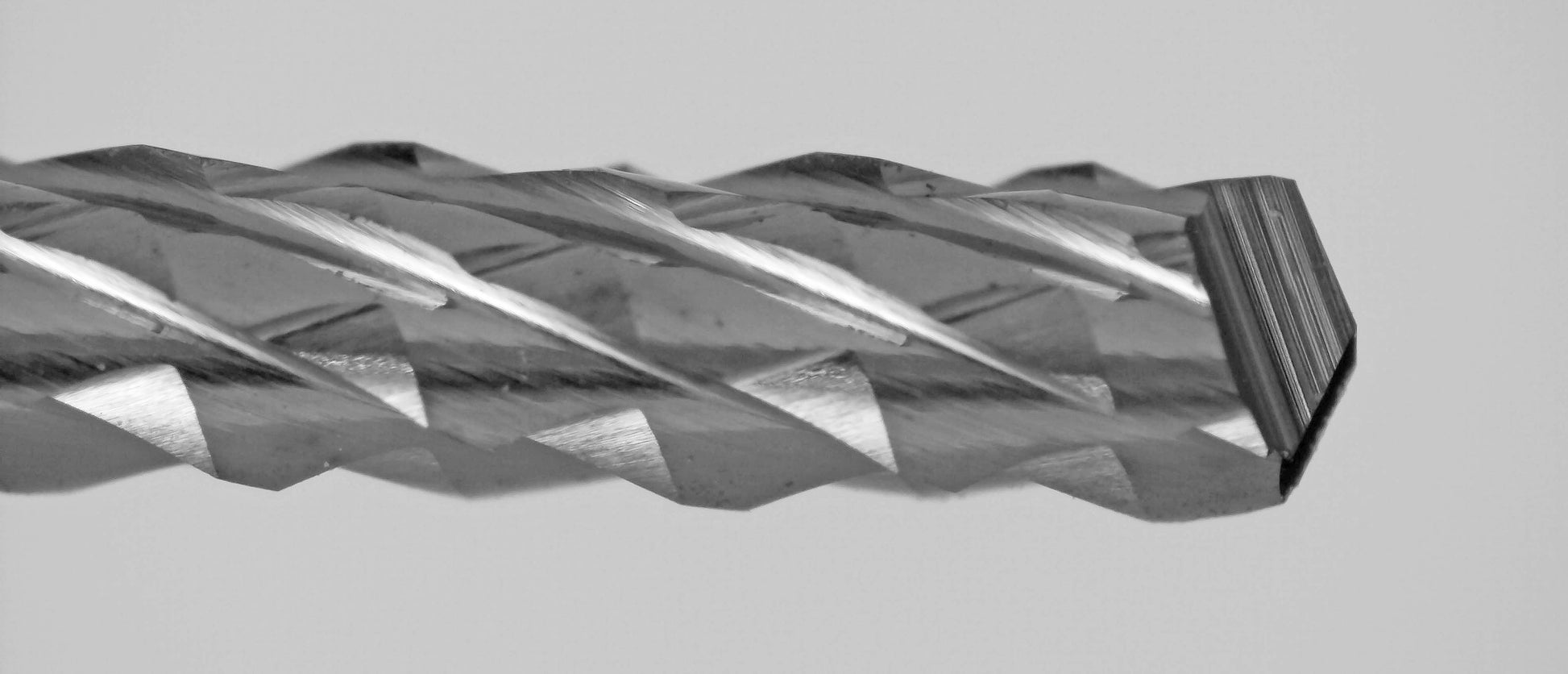

This tool features a drill point tip, designed for stronger entry and repeated plunging, making it ideal for CNC operations requiring durability and consistent performance.

👉 View Diamond Flute Router Feed & Speed Chart

Typical Applications

• PCB routing (1/16" tool size)
• Fiberglass and laminate cutting
• Carbon fiber machining
• Abrasive composite routing
• General CNC routing operations

Benefits

• Diamond flute geometry reduces chipping and edge damage
• Drill point tip improves plunge durability
• Up-cut design improves chip evacuation and bottom-edge finish
• Balanced LOC provides strength and control
• Solid carbide construction ensures long tool life

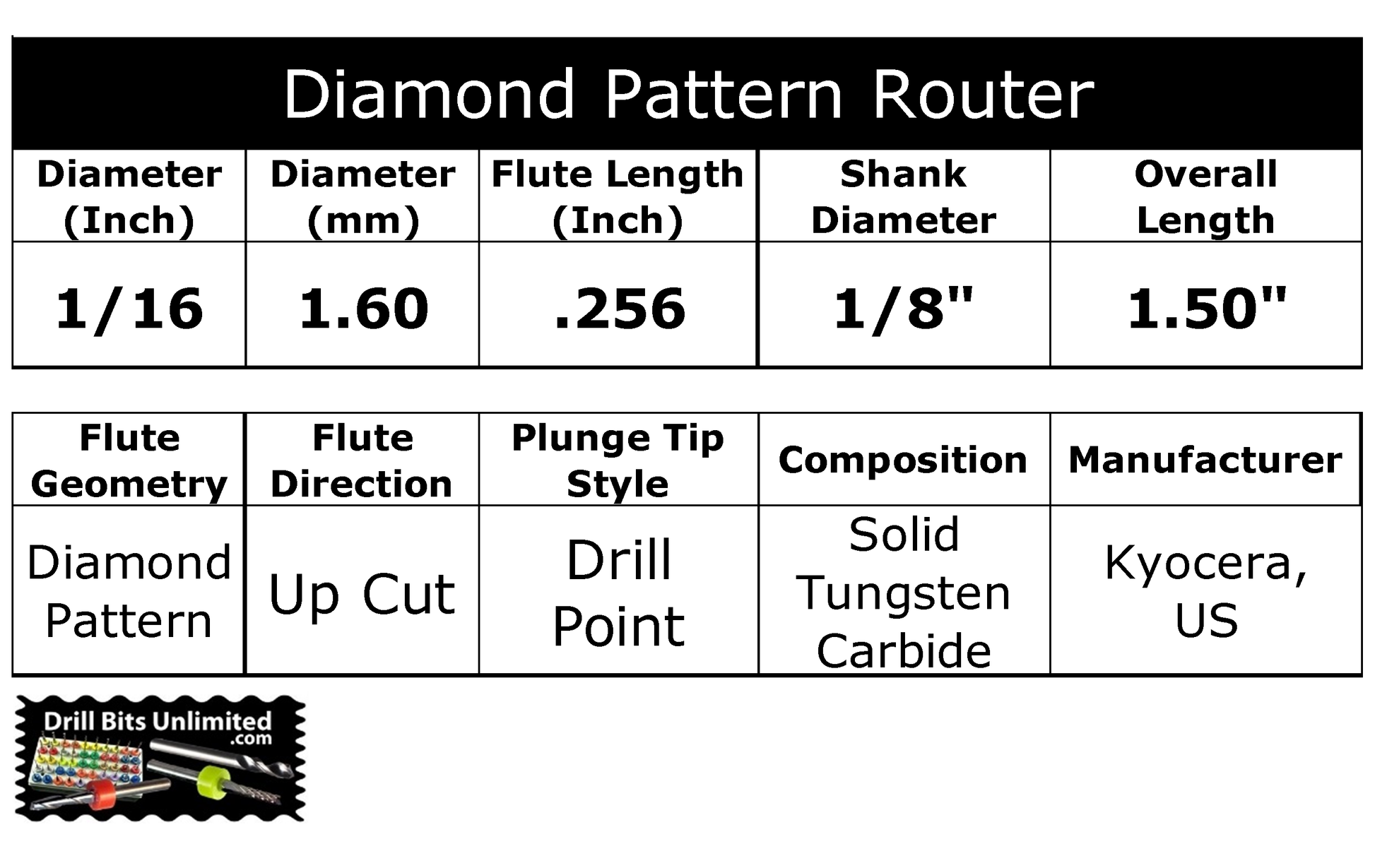

Specifications

Tip style: Drill Point — reinforced tip for repeated plunging in denser materials.
