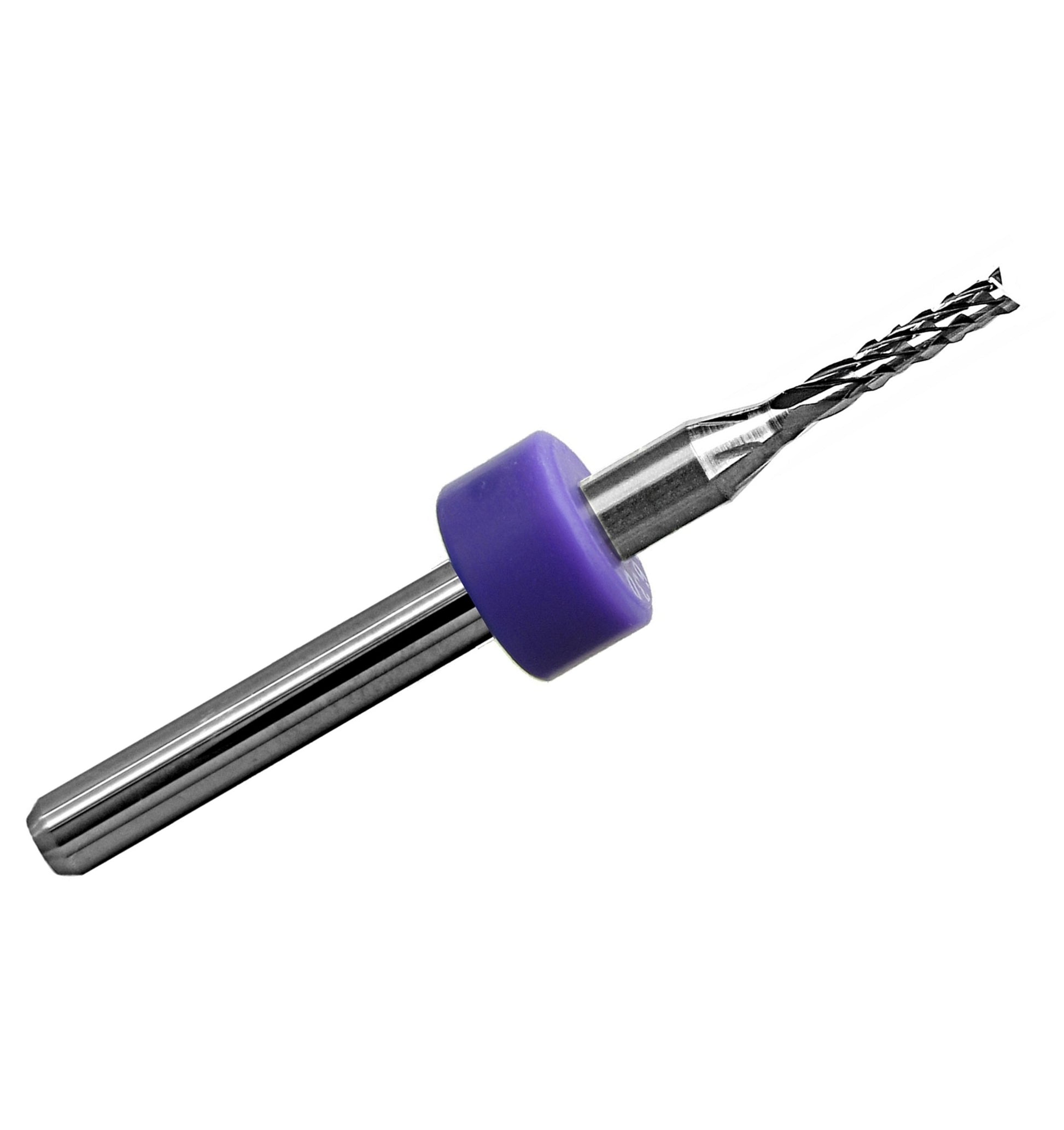

0.0625" (1/16") x .256" LOC Diamond Flute Carbide Router, Fish Tail Tip, 1/8" Shank | R133

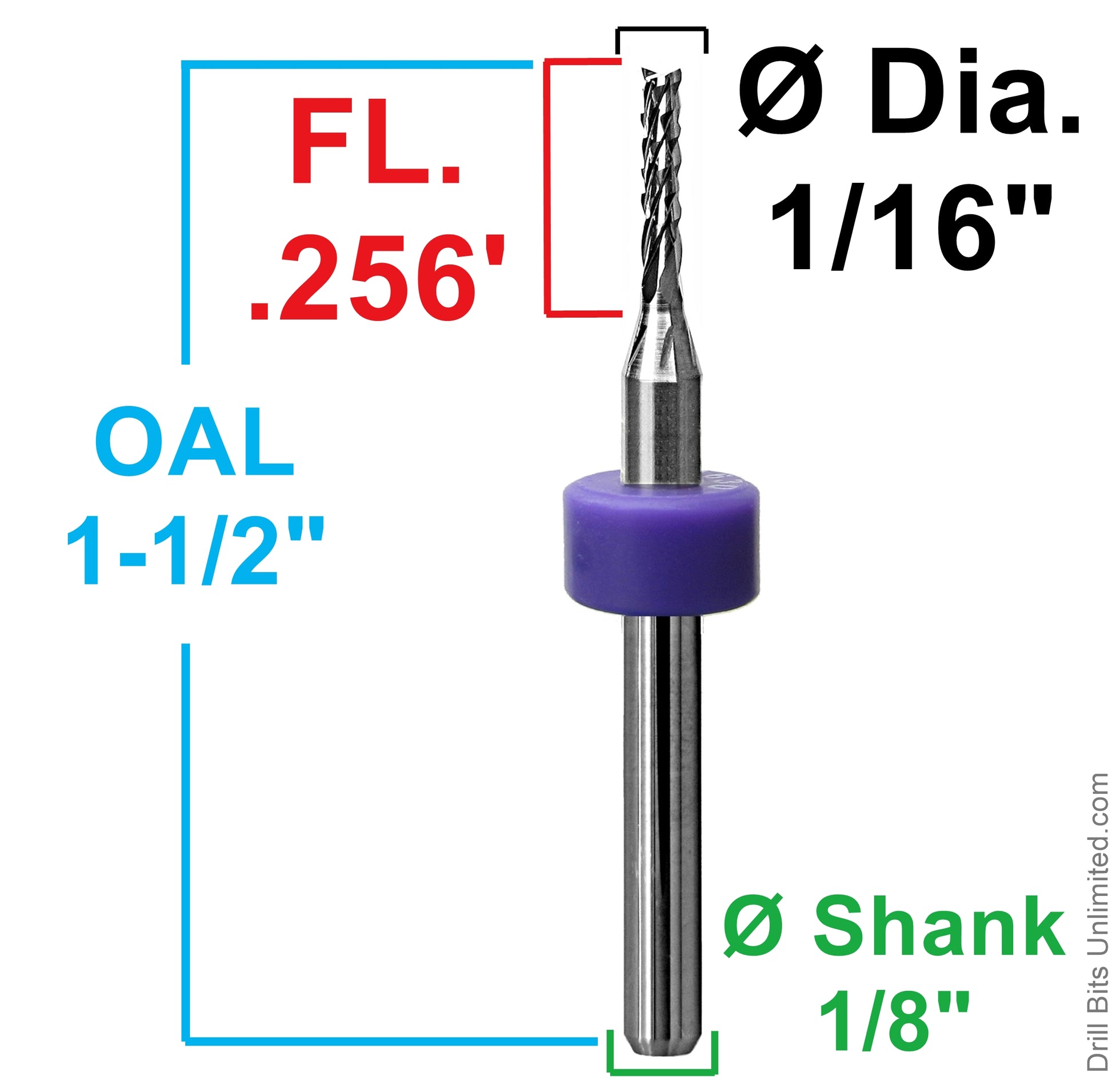

This 1/16" (0.0625") diamond flute carbide router features a .256" length of cut, 1-1/2" overall length, and a 1/8" shank, offering an excellent balance of strength and cutting precision.

The diamond flute geometry uses a fine, multi-edge cutting structure that is gentler on brittle and layered materials, helping reduce chipping and delamination.

Optimized for PCB materials (FR-4, G10), fiberglass, phenolic laminates, carbon fiber, and other abrasive composites, this tool delivers clean edges and consistent performance in demanding applications.

For extended tool life in highly abrasive materials, explore our diamond-coated (PCD) routers →

The up-cut design improves chip evacuation and enhances bottom-edge cut quality, making it ideal for through-cuts and general routing operations.

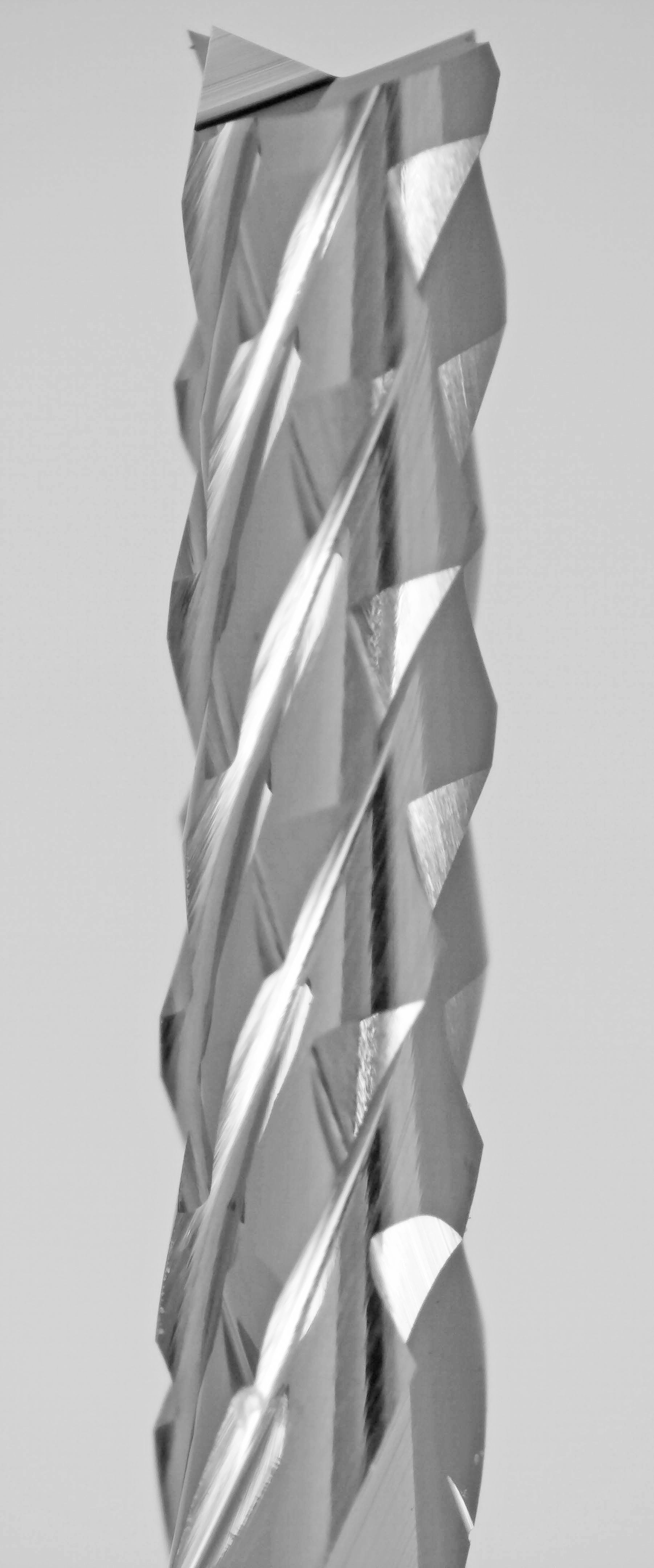

This tool features a fish tail tip, designed for gentle entry and reduced delamination in brittle or layered materials, making it ideal where edge quality is critical.

👉 View Diamond Flute Router Feed & Speed Chart

Typical Applications

• PCB routing (1/16" tool size)
• Fiberglass and laminate cutting
• Carbon fiber machining
• Abrasive composite routing
• Applications requiring clean entry and edge quality

Benefits

• Diamond flute geometry reduces chipping and delamination
• Fish tail tip improves entry quality in brittle materials
• Up-cut design improves chip evacuation and bottom-edge finish
• Balanced LOC provides strength and control
• Solid carbide construction ensures long tool life

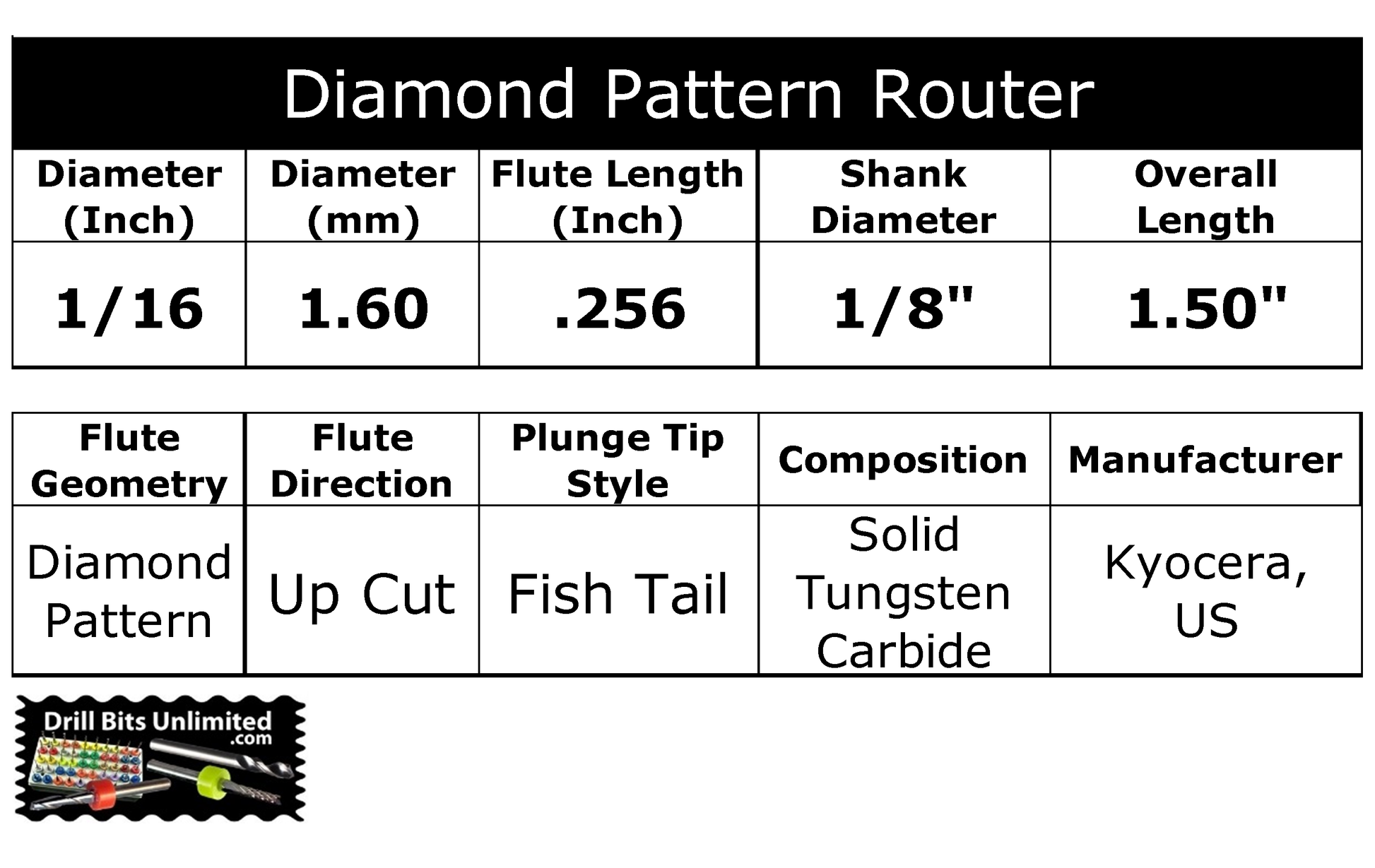

Specifications

Tip style: Fish Tail — gentle entry to reduce delamination in brittle or layered materials.
