0.0625" (1/16) Diamond Flute Carbide Router, .315" LOC, Up Cut, Drill Point, 1/8" Shank R135

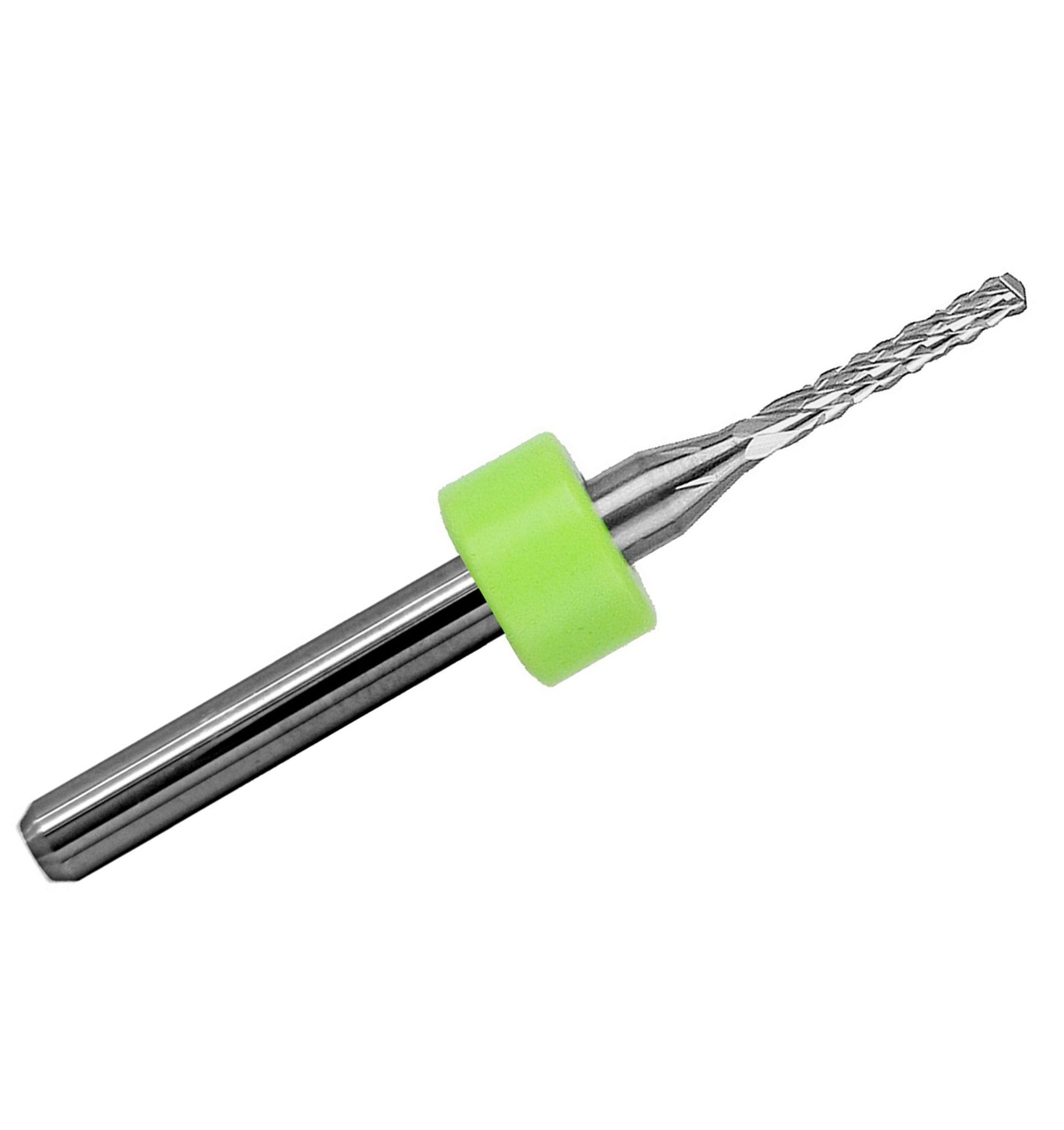

This 1/16" (0.0625") diamond flute carbide router features a .315" length of cut, 1-1/2" overall length, and a 1/8" shank, making it ideal for deeper routing applications requiring strength and durability.

The diamond flute geometry uses a fine, multi-edge cutting structure that is gentler on brittle and layered materials, helping reduce chipping and edge damage while maintaining consistent performance.

Optimized for PCB materials (FR-4, G10), fiberglass, phenolic laminates, carbon fiber, and other abrasive composites, this tool delivers clean cuts and reliable performance in demanding CNC environments.

For extended tool life in highly abrasive materials, explore our diamond-coated (PCD) routers →

The up-cut design improves chip evacuation and enhances bottom-edge cut quality, making it ideal for through-cuts and deeper routing operations.

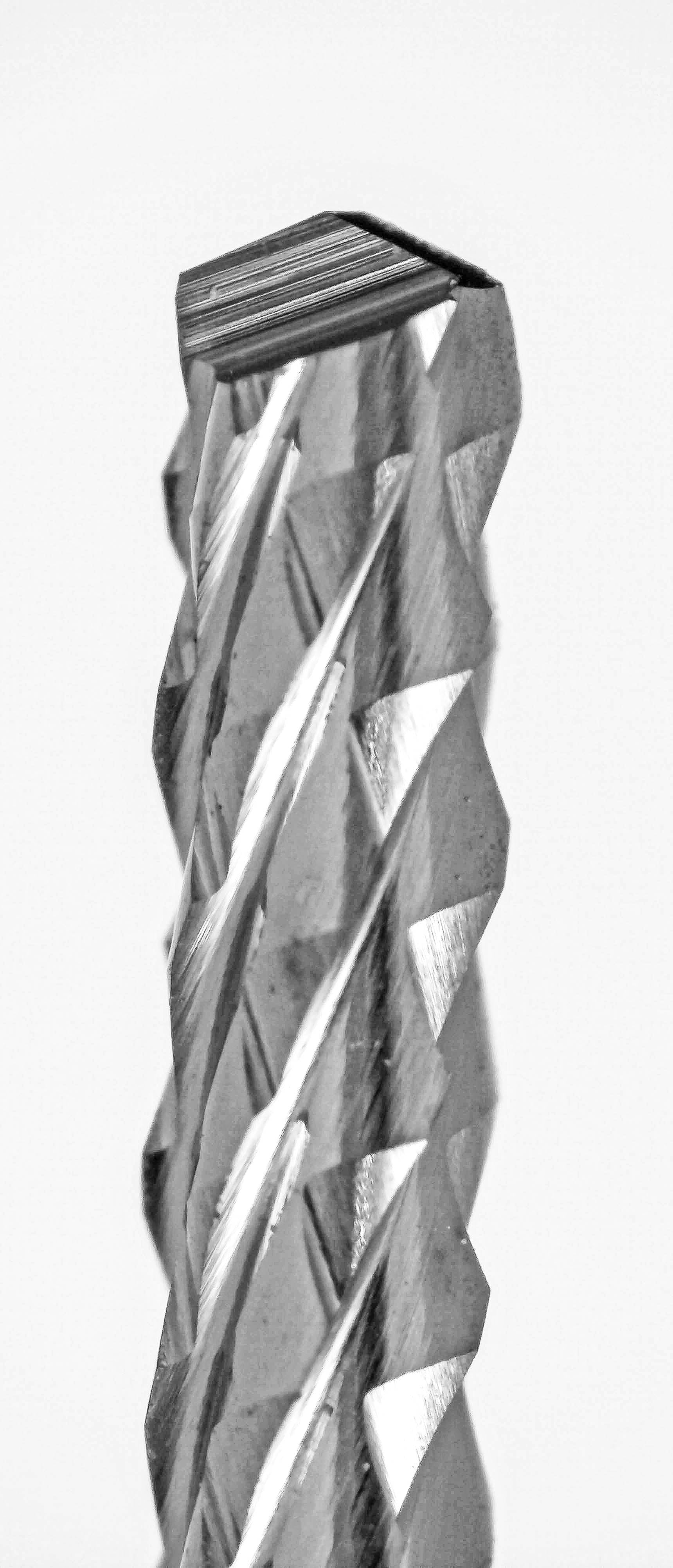

This tool features a drill point tip, designed for stronger entry and repeated plunging, making it ideal for CNC operations where durability and plunge performance are critical.

The extended .315" LOC allows for deeper cutting capability while maintaining stability and control.

👉 View Diamond Flute Router Feed & Speed Chart

Typical Applications

• PCB routing (1/16" tool size)
• Fiberglass and laminate cutting
• Carbon fiber machining
• Abrasive composite routing
• Deeper CNC routing operations

Benefits

• Diamond flute geometry reduces chipping and edge damage
• Drill point tip improves plunge strength and durability
• Up-cut design improves chip evacuation and bottom-edge finish
• Extended LOC allows deeper cuts in a single pass
• Solid carbide construction ensures long tool life

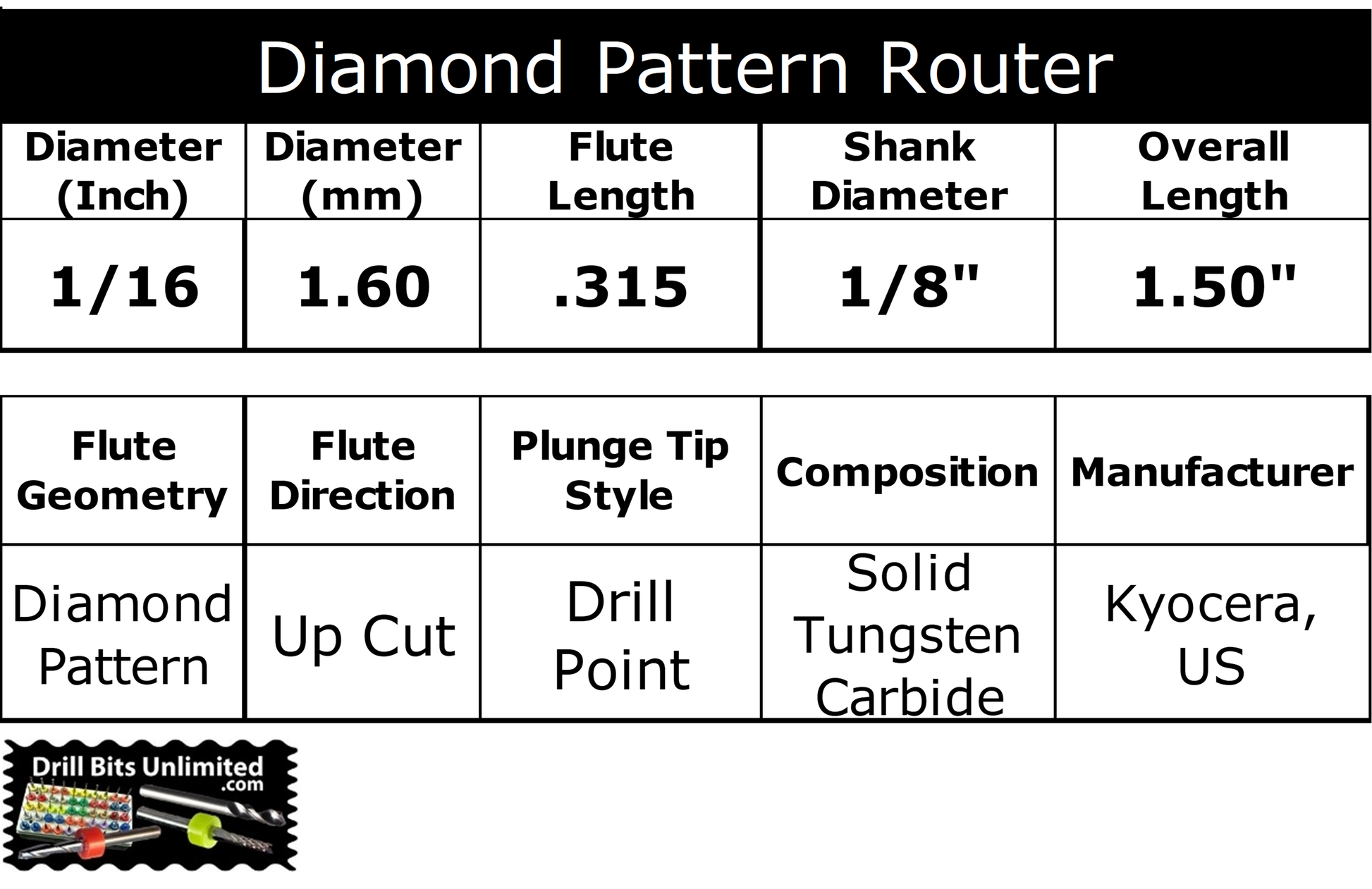

Specifications

Tip style: Drill Point — reinforced tip for repeated plunging in denser materials.
