0.1250" (1/8") × .472" LOC Diamond Flute PCB Router, Drill Point, 1/8" Shank | R146

0.1250" (1/8") × .472" LOC Diamond Flute PCB Router, Drill Point, 1/8" Shank | R146

Regular price $4.99 USD
Regular price Sale price $4.99 USD
Sale Sold out
Sold individually — price is per bit
Shipping calculated at checkout.
Quantity

Buy more and Save!

Minimum Qty Discount
10 + 5% off
25 + 7% off
50 + 9% off
100 + 10% off

Kyocera 1/8" Diamond-Flute PCB Router | .472" LOC | Drill Point | Up-Cut

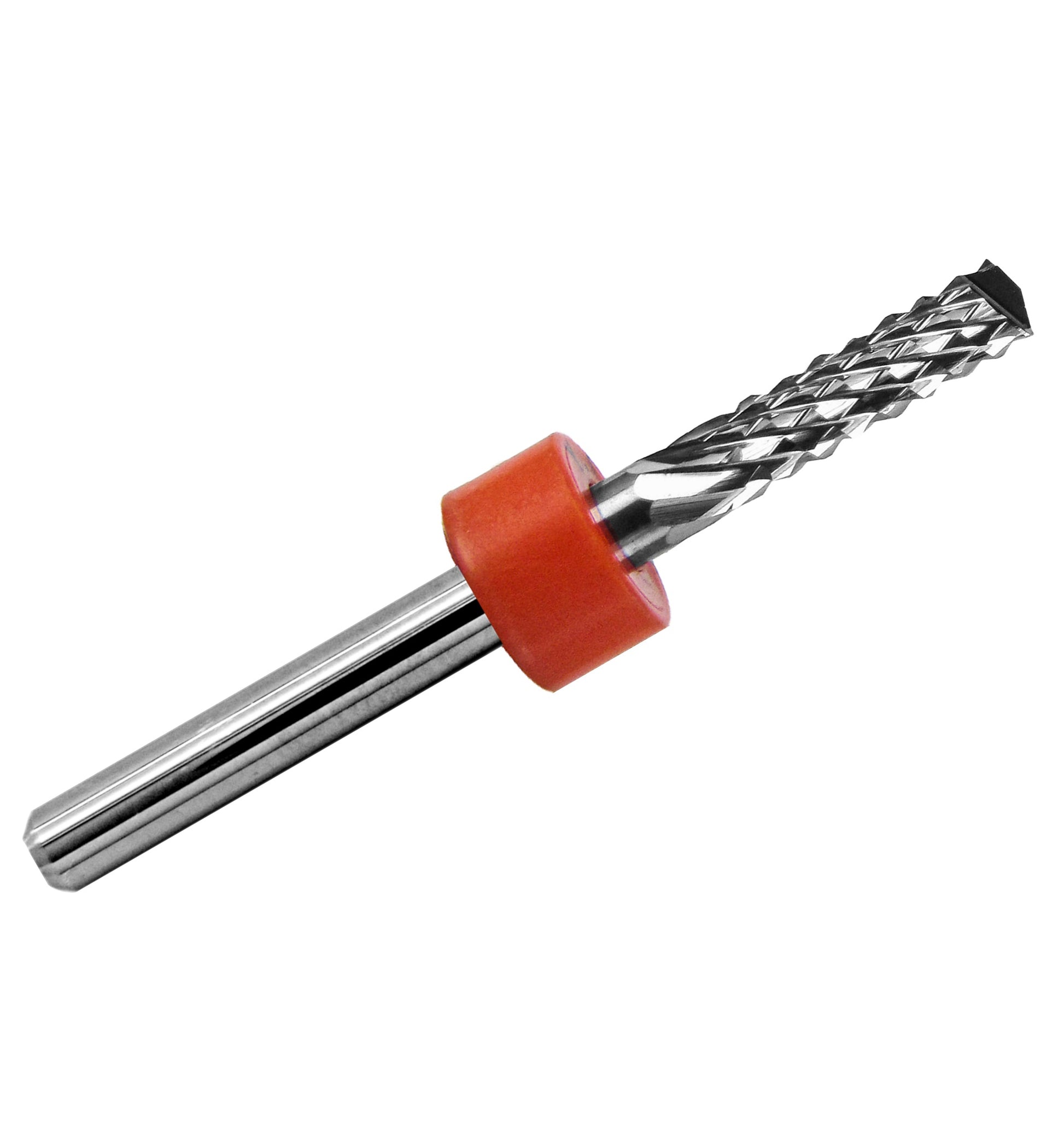

The R146 solid carbide diamond-flute router features a 0.1250" (1/8", 3.175mm) cutting diameter, 0.472" (approximately 12mm) length of cut, 1.500" overall length, and 1/8" shank. This precision router is designed for machining FR4/G10 printed circuit board laminates, fiberglass, phenolic materials, carbon fiber, and other abrasive composites.

Its diamond-pattern cutting geometry uses numerous small, intersecting cutting edges for controlled material removal. The drill-point tip supports entry into suitable sheet materials, while the up-cut configuration helps move routing debris upward during cutting.

Key Features

  • 0.1250" (1/8") cutting diameter: Common fractional size for PCB profiles, slots, board outlines, and composite cutouts
  • 0.472" LOC: Approximately 12mm of cutting reach for suitable laminates and composite panels
  • Diamond-flute geometry: Intersecting cutting edges help control fiber pull-out, fraying, and chipping under appropriate machining conditions
  • Drill-point tip: Pointed end-cutting geometry facilitates controlled entry into suitable workpieces
  • Up-cut configuration: Helps direct chips and routing debris upward
  • Solid tungsten carbide: Provides rigidity and resistance to abrasive wear
  • 1/8" shank: Fits compatible precision CNC spindle collets and tool holders

Diamond-Flute Geometry & Drill-Point Tip

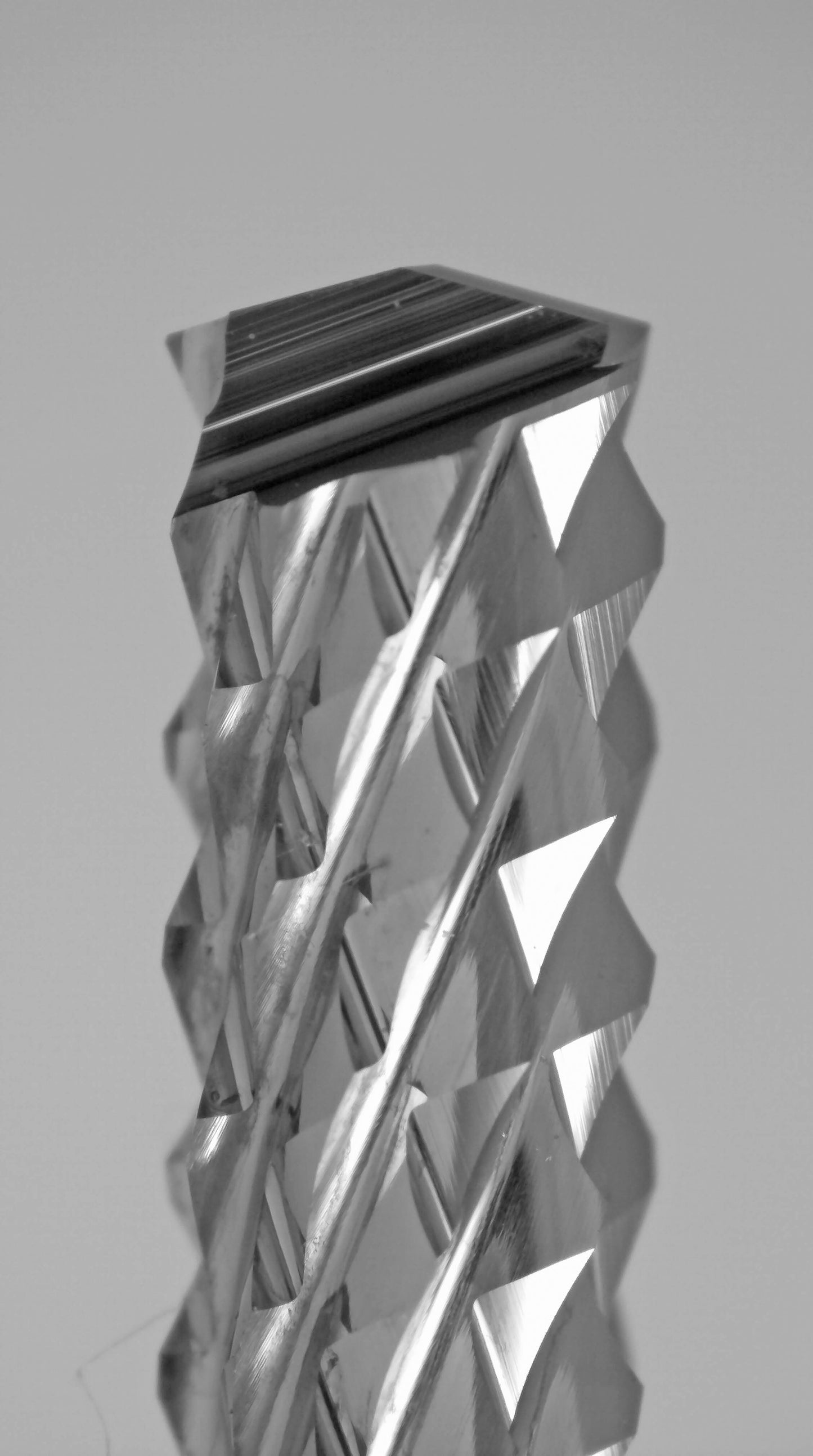

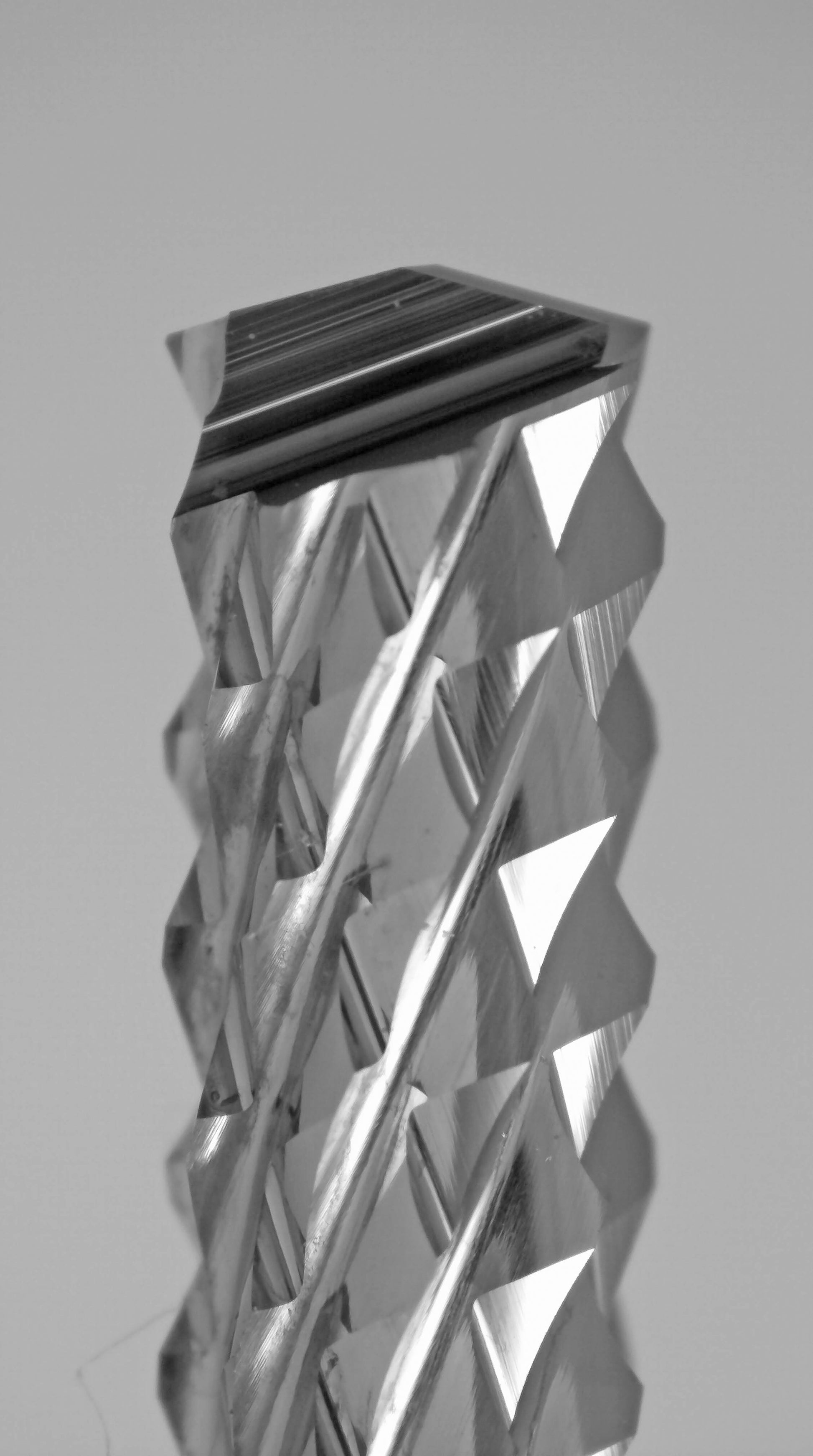

Diamond-flute routers, also called diamond-cut or diamond-pattern routers, use numerous fine, intersecting cutting edges rather than conventional continuous spiral flutes. This geometry is commonly used for routing abrasive and layered materials such as FR4 printed circuit boards, G10 fiberglass laminates, and carbon-fiber-reinforced composites.

The drill-point tip provides a pointed end-cutting profile for starting slots, internal contours, and cutouts in suitable materials. Use appropriately controlled plunge feeds and cutting depths rather than assuming the tool can withstand aggressive entry cuts.

The up-cut configuration helps carry routing debris toward the upper surface of the workpiece. Actual edge quality depends on the material, spindle speed, feed rate, tool condition, and workholding.

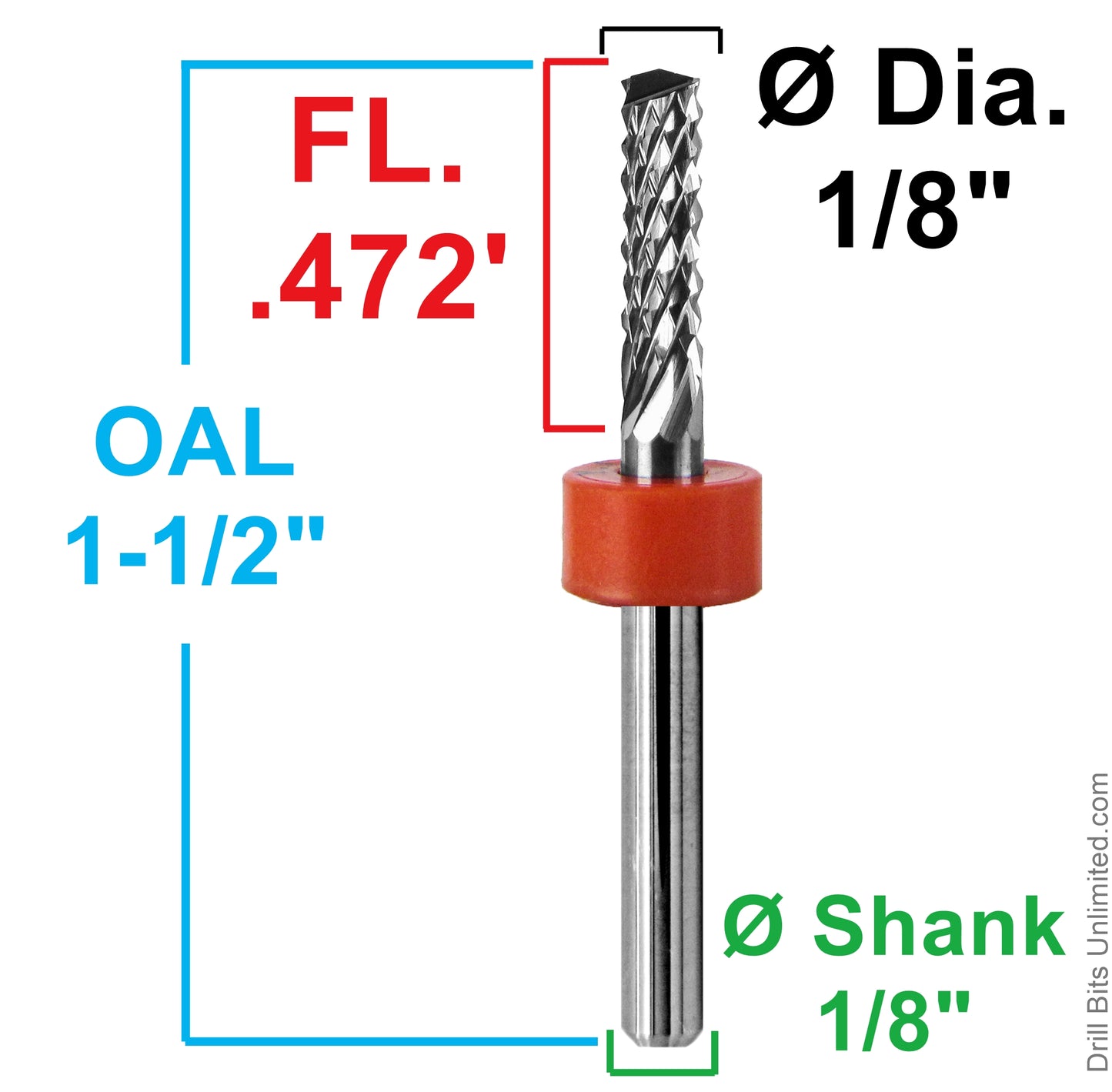

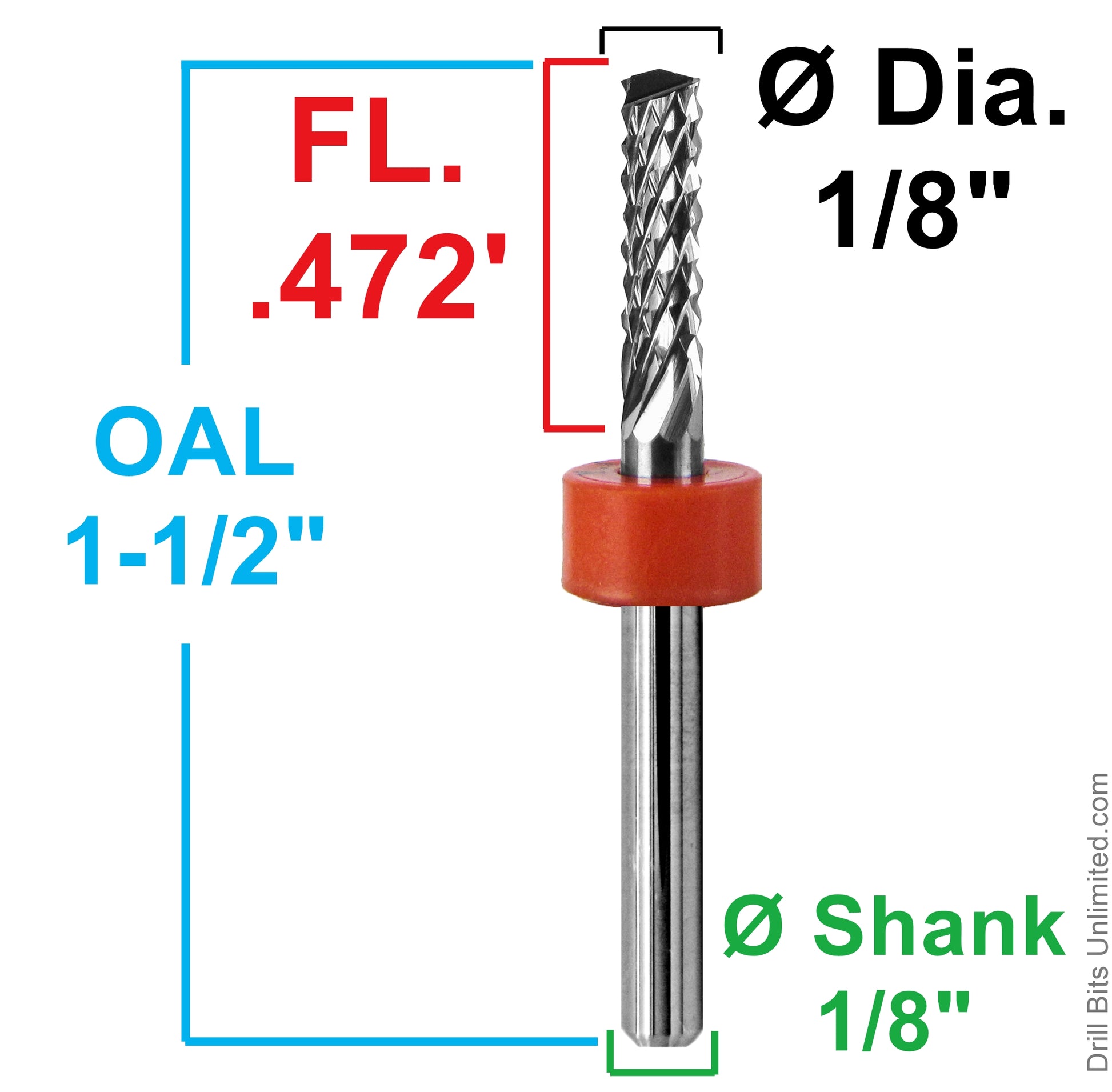

0.472" Cutting Length

R146 provides 0.472" (approximately 12mm) of cutting length, offering reach for thicker fiberglass laminates and composite sheets.

Select a cutting length appropriate for the workpiece thickness and provide clearance beneath the material when through-cutting. Use suitable cutting loads and avoid excessive side pressure to help limit deflection and premature tool breakage.

Material note: Diamond-flute describes the cutting-edge geometry. This is uncoated solid carbide, not diamond-coated or PCD tooling.

Typical Applications

  • PCB board outlines, depaneling, slots, and internal cutouts
  • FR4 and G10 fiberglass laminate routing
  • Carbon fiber sheet and CFRP composite profiling
  • Fiberglass-reinforced composite trimming
  • Phenolic and epoxy laminate machining
  • Precision CNC routing and prototype fabrication

Technical Specifications

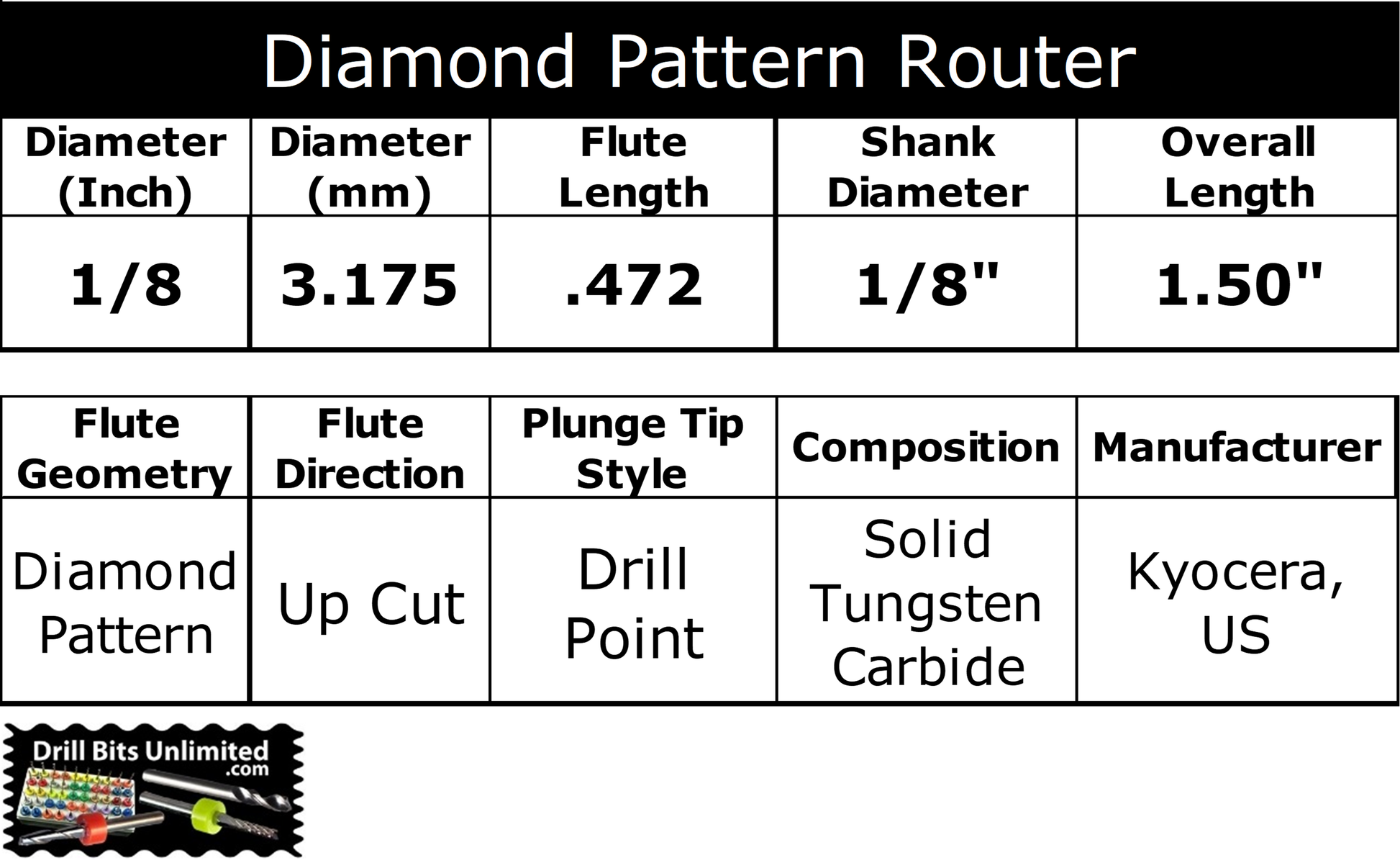

DBU SKU R146
Manufacturer Kyocera (catalog configuration match)
Tool Type Diamond-Flute PCB Router
Cutting Diameter 0.1250" (1/8", 3.175mm)
Length of Cut (LOC) 0.472" (approximately 12mm)
Shank Diameter 1/8" (3.175mm)
Overall Length 1.500" (38.10mm)
Flute Geometry Diamond Flute / Diamond Cut
Cut Direction Up-Cut / Updraft
Tip Style Drill Point
Tool Material Solid Tungsten Carbide
Coating Uncoated

Feeds & Speeds

Proper spindle speed, feed rate, plunge feed, cutting depth, and secure workholding are important when routing abrasive fiberglass and composite laminates.

View Diamond-Flute Router Feed & Speed Chart for starting recommendations for FR4, G10, fiberglass, and similar abrasive composite materials.

Cutting recommendations are starting points only. Adjust for material, spindle capability, machine rigidity, tool condition, and cutting depth. Use suitable dust extraction when machining fiberglass or carbon fiber.

Related Router Bits & Guides

Shop Diamond-Flute PCB Router Bits
Compare additional cutting diameters, lengths of cut, and tip configurations.

Diamond-Flute Router Guide
Learn about diamond-pattern cutting geometry and choosing between fishtail and drill-point tips.
