0.0709" (1.80mm) × .300" LOC Diamond Flute PCB Router, Fish Tail, 1/8" Shank | R137

0.0709" (1.80mm) × .300" LOC Diamond Flute PCB Router, Fish Tail, 1/8" Shank | R137

Regular price $4.99 USD
Regular price Sale price $4.99 USD
Sale Sold out
Sold individually — price is per bit
Shipping calculated at checkout.
Quantity

Buy more and Save!

Minimum Qty Discount
10 + 5% off
25 + 7% off
50 + 9% off
100 + 10% off

Kyocera 1.80mm Diamond-Flute PCB Router | .300" LOC | Fish Tail | Up-Cut

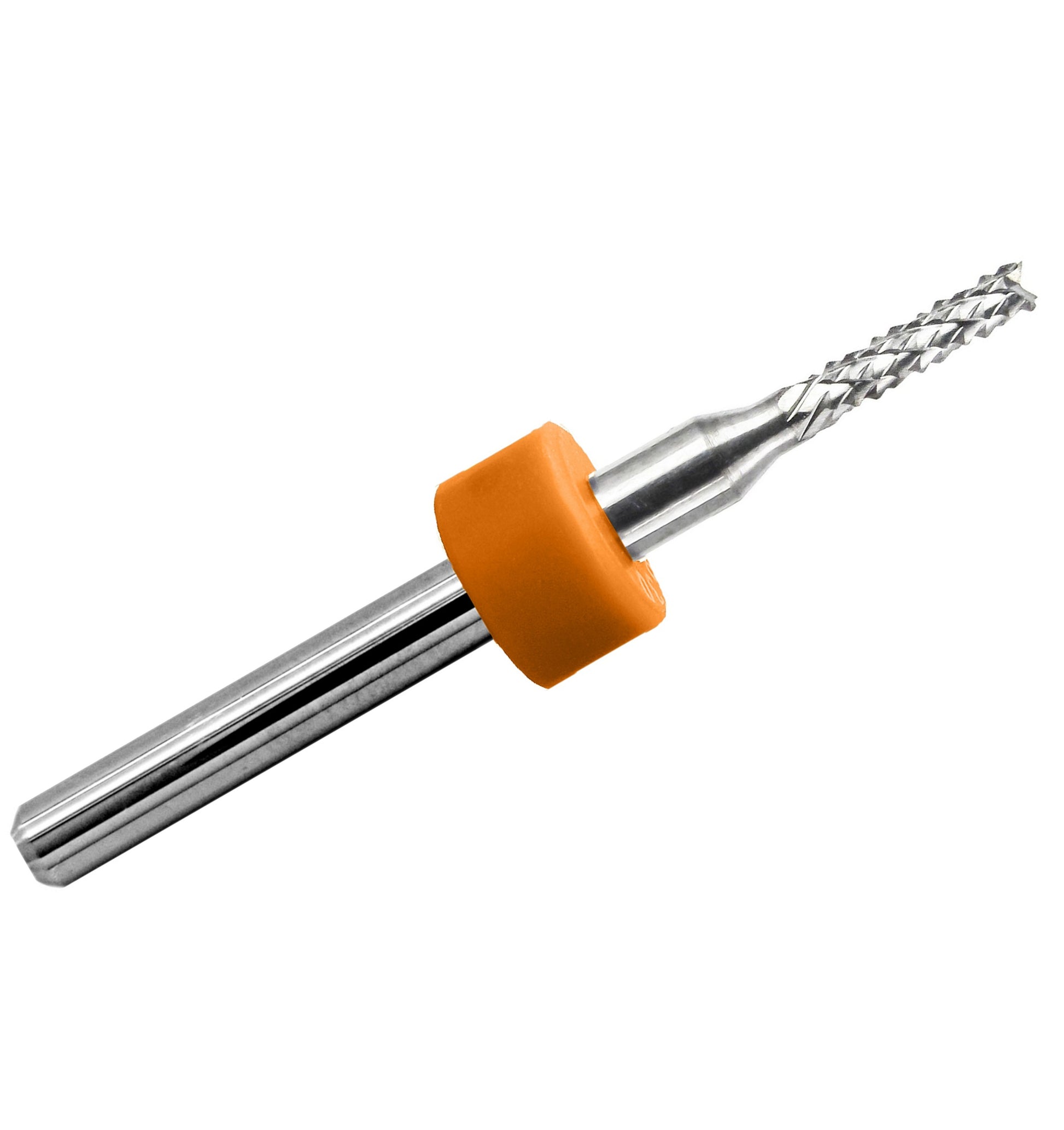

The R137 Kyocera solid carbide diamond-flute router features a 0.0709" (1.80mm nominal) cutting diameter, 0.300" (7.62mm) length of cut, 1.500" overall length, and 1/8" (3.175mm) shank. Designed for precision PCB routing, this tool is suitable for FR4, G10 fiberglass laminates, phenolic materials, and other abrasive composites.

Its diamond-pattern cutting geometry uses numerous small, intersecting cutting edges for controlled material removal. The fishtail tip provides end-cutting capability, while the up-cut configuration helps move chips and debris upward during routing.

Key Features

  • 0.0709" (1.80mm) cutting diameter: Suitable for PCB board outlines, slots, contours, and internal cutouts
  • 0.300" LOC: Provides 7.62mm of cutting reach for suitable laminates and composite sheets
  • Diamond-flute geometry: Numerous intersecting cutting edges help control fraying, chipping, and fiber pull-out under appropriate cutting conditions

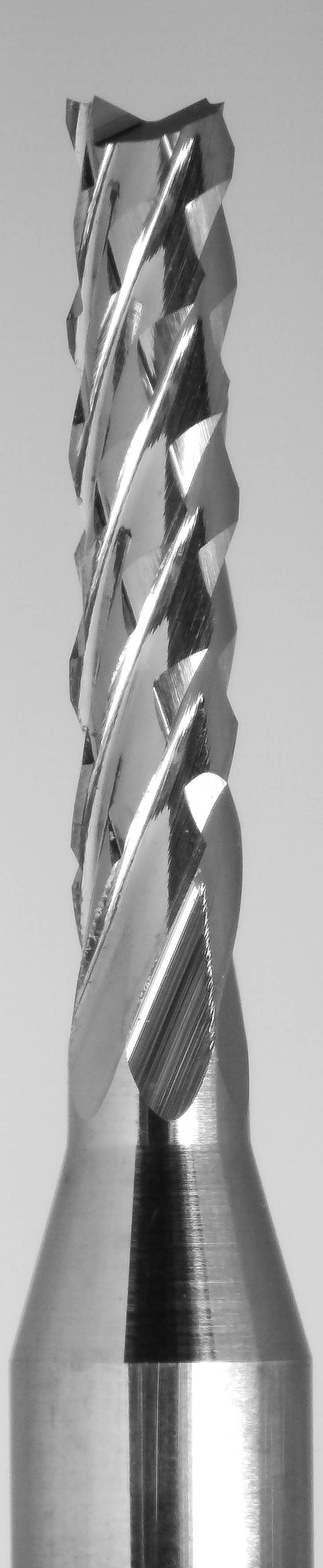

  • Fish tail tip: End-cutting geometry supports entry and through-routing in suitable sheet materials
  • Up-cut configuration: Helps evacuate routing debris upward
  • Solid tungsten carbide: Provides rigidity and resistance to abrasive wear
  • 1/8" shank: Fits compatible precision CNC spindle collets and tool holders

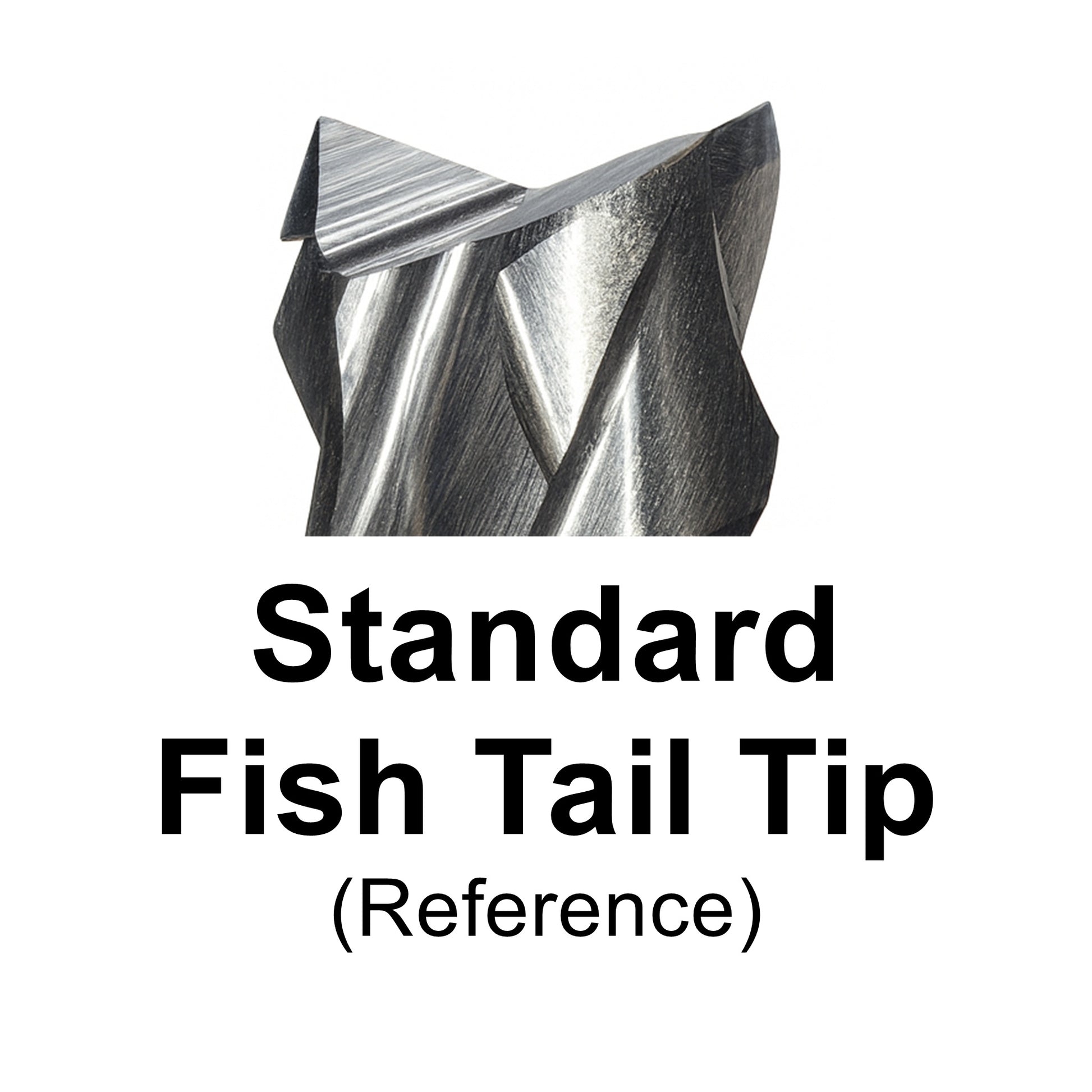

Diamond-Flute Geometry & Fish Tail Tip

Diamond-flute routers, also known as diamond-cut or diamond-pattern routers, feature numerous small, intersecting cutting edges rather than conventional continuous spiral flutes. This geometry is widely used for machining abrasive and layered materials such as FR4 circuit boards, G10 fiberglass laminates, and reinforced composites.

The fishtail tip provides cutting edges at the tool end for routing and entry into suitable sheet materials. Proper feeds, speeds, and workholding help control edge chipping, fiber breakout, and tool wear.

The up-cut configuration helps direct debris upward during machining. Actual edge quality depends on the workpiece material, tool condition, machine rigidity, and cutting parameters.

0.300" Cutting Length

R137 provides 0.300" (7.62mm) of cutting length, offering additional reach for routing suitable thicker PCB laminates and composite sheets.

Choose a cutting length appropriate for the material thickness and provide clearance beneath the workpiece when through-cutting. A longer cutting section can be more susceptible to deflection than a shorter tool of the same diameter, so use appropriate cutting loads and avoid excessive side pressure.

Material note: Diamond-flute describes the cutting geometry. This router is solid tungsten carbide, not a diamond-coated or PCD tool.

Typical Applications

  • PCB board outlines, slots, and internal cutouts
  • FR4 and G10 fiberglass laminate routing
  • Phenolic and epoxy laminate machining
  • Fiberglass-reinforced composite trimming
  • Carbon-fiber composite routing where uncoated carbide is suitable
  • Precision CNC profiling and prototype fabrication

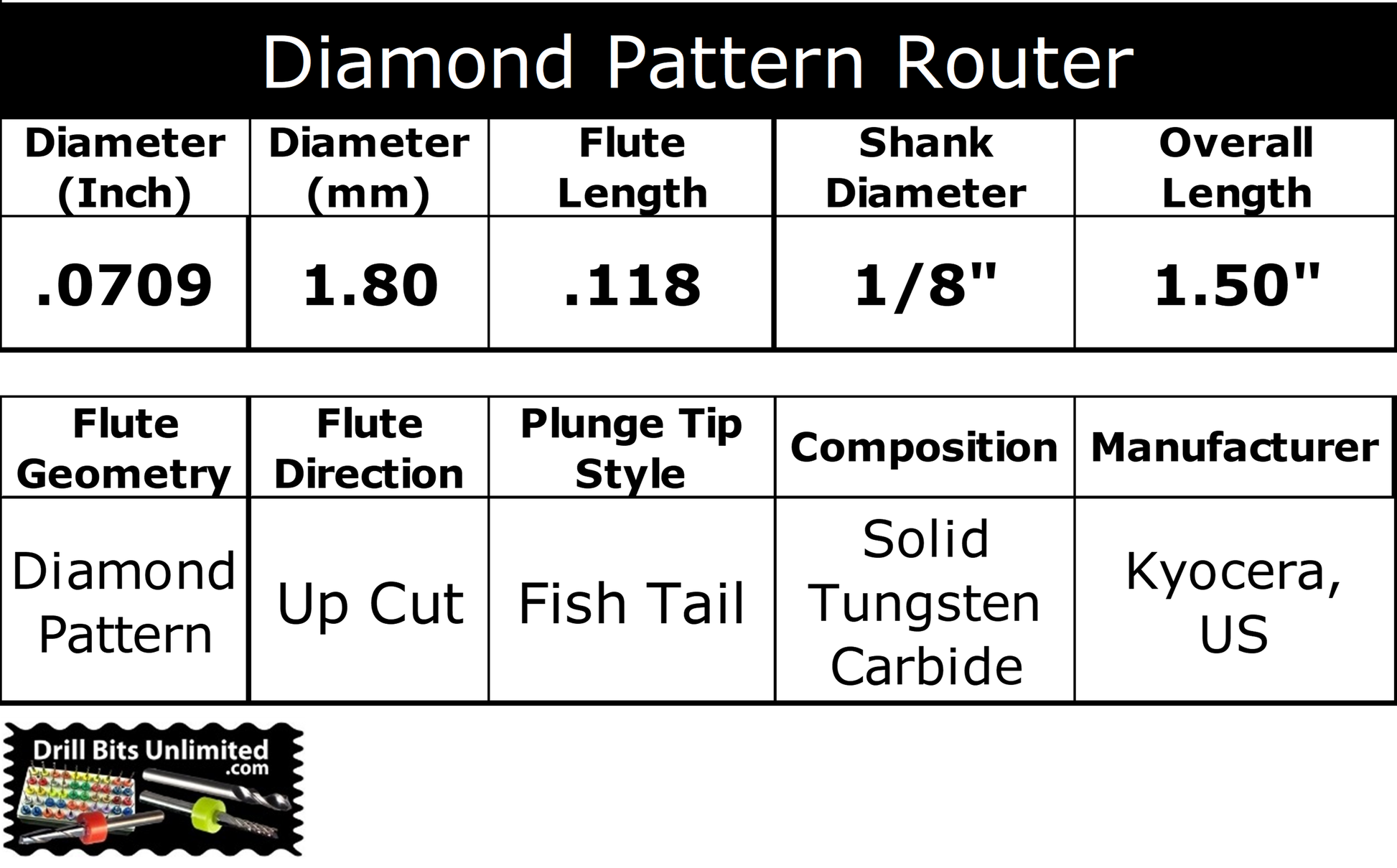

Technical Specifications

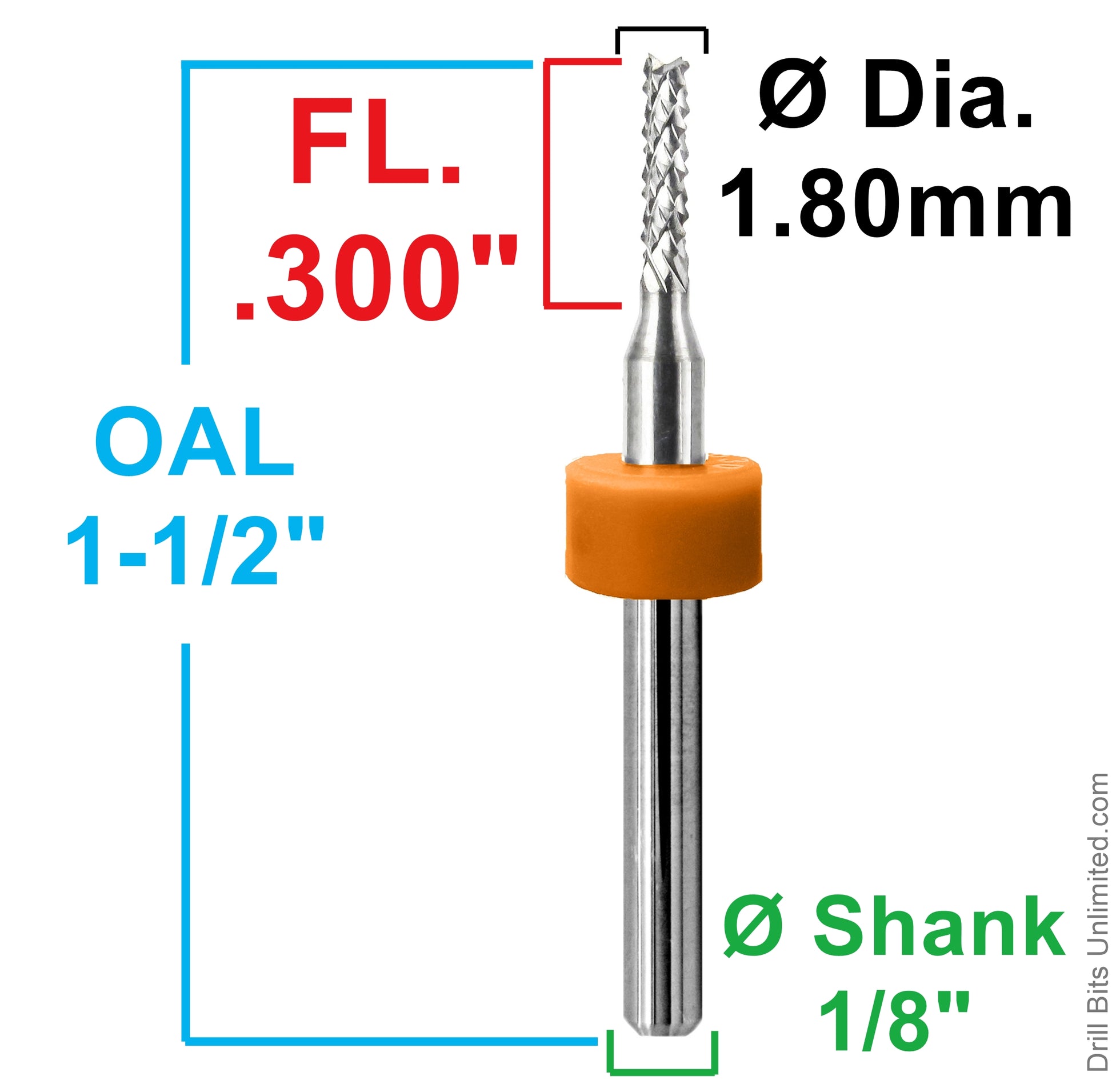

DBU SKU R137
Manufacturer Kyocera
Tool Type Diamond-Flute PCB Router
Cutting Diameter 0.0709" (1.80mm nominal)
Length of Cut (LOC) 0.300" (7.62mm)
Shank Diameter 1/8" (3.175mm)
Overall Length 1.500" (38.10mm)
Flute Geometry Diamond Flute / Diamond Cut
Cut Direction Up-Cut
Tip Style Fish Tail
Tool Material Solid Tungsten Carbide

Feeds & Speeds

Correct spindle speed, feed rate, cutting depth, and secure workholding are important when routing abrasive PCB laminates with solid carbide tools.

View Diamond-Flute Router Feed & Speed Chart for starting recommendations for FR4, G10, fiberglass, and related materials.

Recommended cutting conditions are starting points only. Adjust for machine rigidity, material, spindle capability, tool condition, and cutting depth. Use appropriate dust extraction when machining fiberglass or carbon fiber.

Related Router Bits & Guides

Shop Diamond-Flute PCB Router Bits
Explore additional cutting diameters, lengths of cut, and tip configurations.

Diamond-Flute Router Guide
Learn about diamond-cut geometry, fishtail and drill-point tips, and selecting routers for abrasive laminates.
