.004"–.2559" (0.10–6.50mm) 125-Size Metric Carbide Drill Bit Set | 1/8" Shank
.004"–.2559" (0.10–6.50mm) 125-Size Metric Carbide Drill Bit Set | 1/8" Shank
Couldn't load pickup availability
.004"–.2559" (0.10–6.50mm) 125-Size Metric Carbide Drill Bit Set
This 125-piece metric carbide drill bit set includes one drill each of 125 sizes from 0.10mm to 6.50mm, with inch equivalents from approximately .004" to .2559". It is a broad assortment for shops, labs, hobbyists, repair work, PCB drilling, model making, precision drilling, and small-hole applications where many metric drill sizes are useful to have on hand.

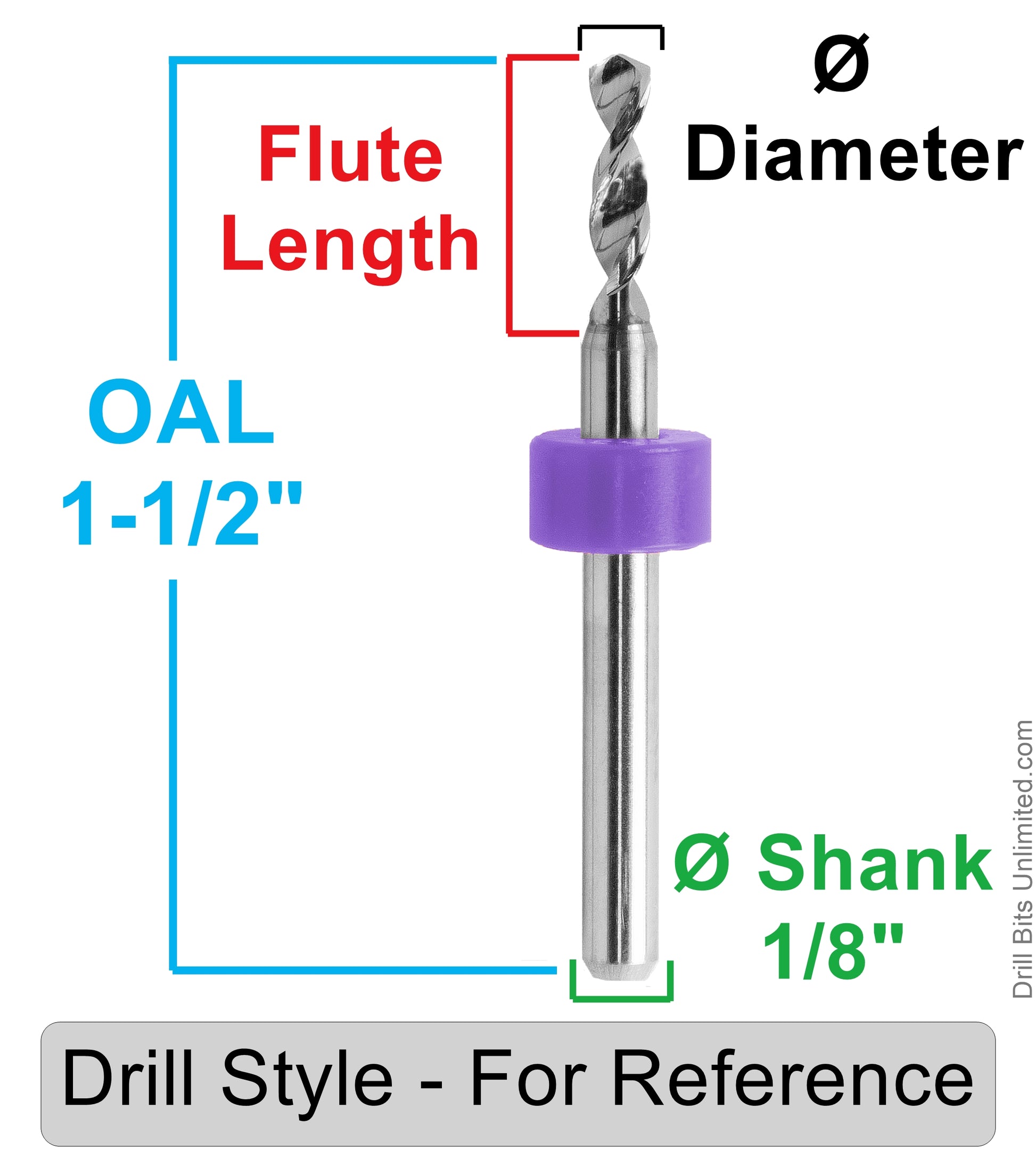

Each drill has a standard 1/8" shank and 1.50" overall length. These carbide drills should be used with good spindle alignment, minimal runout, and controlled feed pressure to help reduce breakage.
Brand / Seller: Drill Bits Unlimited
Set Type: 125 Size Metric Carbide Drill Bit Set
Available Conditions: Factory Resharpened or Lightly Used
Condition Options
- Factory Resharpened Drills: Professionally resharpened and inspected, offering performance comparable to new drills at a lower cost.
- Lightly Used Drills: Lower-cost option for hobby, prototype, repair, and light production drilling work.
Typical Applications
- PCB drilling and electronics work
- Precision CNC drilling
- Model making, hobby, and miniature work
- Jewelry, craft, and fine-detail drilling
- Repair shops, labs, and maintenance departments
- Small-hole drilling in plastics, composites, and non-ferrous materials
- Fine orifice, jet, and micro-hole work where a broad metric size range is helpful
Specifications
| Product Type | Metric Carbide Drill Bit Assortment |
| Available Conditions | Factory Resharpened, Lightly Used |
| Material | Solid Carbide |
| Included Drill Diameters | 0.10mm–6.50mm / approx. .004"–.2559" |
| Piece Count | 125 Pieces |
| Shank Diameter | 1/8" |
| Overall Length | 1.50" |
| Finish / Coating | Bright / Uncoated |
Included Sizes
One piece each of the following 125 sizes:
Comes in 3 Storage Boxes:
Box 1 of 3
| Metric Size | Inch Equivalent | Number / Fractional Equivalent |
|---|---|---|
| 0.10mm | .0040" | |
| 0.15mm | .0059" | #97 |
| 0.20mm | .0079" | #92 |
| 0.25mm | .0098" | #87 |
| 0.30mm | .0120" | #83 |
| 0.35mm | .0135" | #80 |
| 0.40mm | .0160" | #78 / approx. 1/64" |
| 0.45mm | .0177" | #77 |
| 0.50mm | .0197" | #76 |
| 0.55mm | .0217" | |
| 0.60mm | .0240" | #73 |
| 0.65mm | .0260" | #71 |
| 0.70mm | .0280" | #70 |
| 0.75mm | .0292" | #69 |
| 0.80mm | .0315" | 1/32" / #68 |
| 0.85mm | .0330" | #66 |
| 0.90mm | .0350" | #65 |
| 0.95mm | .0370" | #63 |
| 1.00mm | .0390" | #61 |
| 1.05mm | .0410" | #59 |
| 1.10mm | .0430" | #57 |
| 1.15mm | .0453" | |
| 1.20mm | .0472" | 3/64" |
| 1.25mm | .0492" | |
| 1.30mm | .0512" | |
| 1.35mm | .0531" | |
| 1.40mm | .0550" | #54 |
| 1.45mm | .0571" | |
| 1.50mm | .0591" | |
| 1.55mm | .0610" | |
| 1.60mm | .0625" | 1/16" |
| 1.65mm | .0650" | |
| 1.75mm | .0690" | |
| 1.80mm | .0709" | |
| 1.85mm | .0728" | #49 |
| 1.90mm | .0748" | |
| 1.95mm | .0768" | |
| 2.00mm | .0790" | 5/64" / #47 |
| 2.05mm | .0807" | #46 |
| 2.10mm | .0827" | |
| 2.15mm | .0846" | |
| 2.20mm | .0866" | |
| 2.25mm | .0890" | #43 |
| 2.30mm | .0906" | |
| 2.35mm | .0925" | |
| 2.40mm | .0945" | |
| 2.45mm | .0965" | |
| 2.50mm | .0980" | #40 |
| 2.55mm | .1004" | |
| 2.60mm | .1024" |
Box 2 of 3
| Metric Size | Inch Equivalent | Number / Fractional Equivalent |
|---|---|---|
| 2.65mm | .1040" | #37 |
| 2.70mm | .1060" | #36 |
| 2.75mm | .1083" | |
| 2.80mm | .1100" | #35 |
| 2.85mm | .1120" | |
| 2.90mm | .1140" | |
| 2.95mm | .1160" | #32 |
| 3.00mm | .1181" | |
| 3.05mm | .1200" | #31 |
| 3.10mm | .1220" | |
| 3.15mm | .1240" | |
| 3.20mm | .1260" | |
| 3.25mm | .1285" | #30 |
| 3.30mm | .1299" | |
| 3.35mm | .1319" | |
| 3.40mm | .1339" | |
| 3.45mm | .1358" | |
| 3.50mm | .1378" | |
| 3.55mm | .1398" | |
| 3.60mm | .1417" | |
| 3.65mm | .1440" | #27 |
| 3.70mm | .1457" | |
| 3.75mm | .1476" | |
| 3.80mm | .1496" | #25 |
| 3.85mm | .1520" | #24 |
| 3.90mm | .1540" | #23 |
| 3.95mm | .1555" | 5/32" |
| 4.00mm | .1570" | #22 |
| 4.05mm | .1590" | #21 |
| 4.10mm | .1614" | #20 |
| 4.15mm | .1634" | |
| 4.20mm | .1654" | |
| 4.25mm | .1673" | |
| 4.30mm | .1693" | |
| 4.35mm | .1713" | |
| 4.40mm | .1732" | #17 |
| 4.45mm | .1752" | |
| 4.50mm | .1770" | #16 |
| 4.55mm | .1791" | |
| 4.60mm | .1811" | |
| 4.65mm | .1831" | |
| 4.70mm | .1850" | #13 |
| 4.75mm | .1875" | 3/16" |
| 4.80mm | .1890" | #12 |
| 4.85mm | .1909" | #11 |
| 4.90mm | .1929" | |
| 4.95mm | .1949" | |
| 5.00mm | .1968" | |
| 5.05mm | .1990" | #8 |
| 5.10mm | .2010" | #7 |
Box 3 of 3
| Metric Size | Inch Equivalent | Number / Fractional Equivalent |
|---|---|---|
| 5.15mm | .2031" | 13/64" |
| 5.20mm | .2047" | |
| 5.25mm | .2067" | |
| 5.30mm | .2090" | #4 |
| 5.35mm | .2106" | |
| 5.40mm | .2130" | #3 |
| 5.45mm | .2146" | |
| 5.50mm | .2165" | |
| 5.55mm | .2185" | 7/32" |
| 5.60mm | .2205" | |
| 5.70mm | .2244" | |
| 5.75mm | .2264" | |
| 5.80mm | .2280" | |
| 5.85mm | .2302" | |
| 5.90mm | .2320" | |
| 5.95mm | .2344" | 15/64" |
| 6.00mm | .2362" | |
| 6.05mm | .2382" | |
| 6.10mm | .2400" | |
| 6.15mm | .2421" | |
| 6.25mm | .2460" | |
| 6.30mm | .2480" | |
| 6.35mm | .2500" | 1/4" |
| 6.40mm | .2520" | |
| 6.50mm | .2559" |
Note: Carbide drills are hard and wear-resistant, but brittle. Use steady alignment, minimal runout, and controlled feed pressure.
Image note: Product photo is representative. Drill collar colors and markings may vary.
