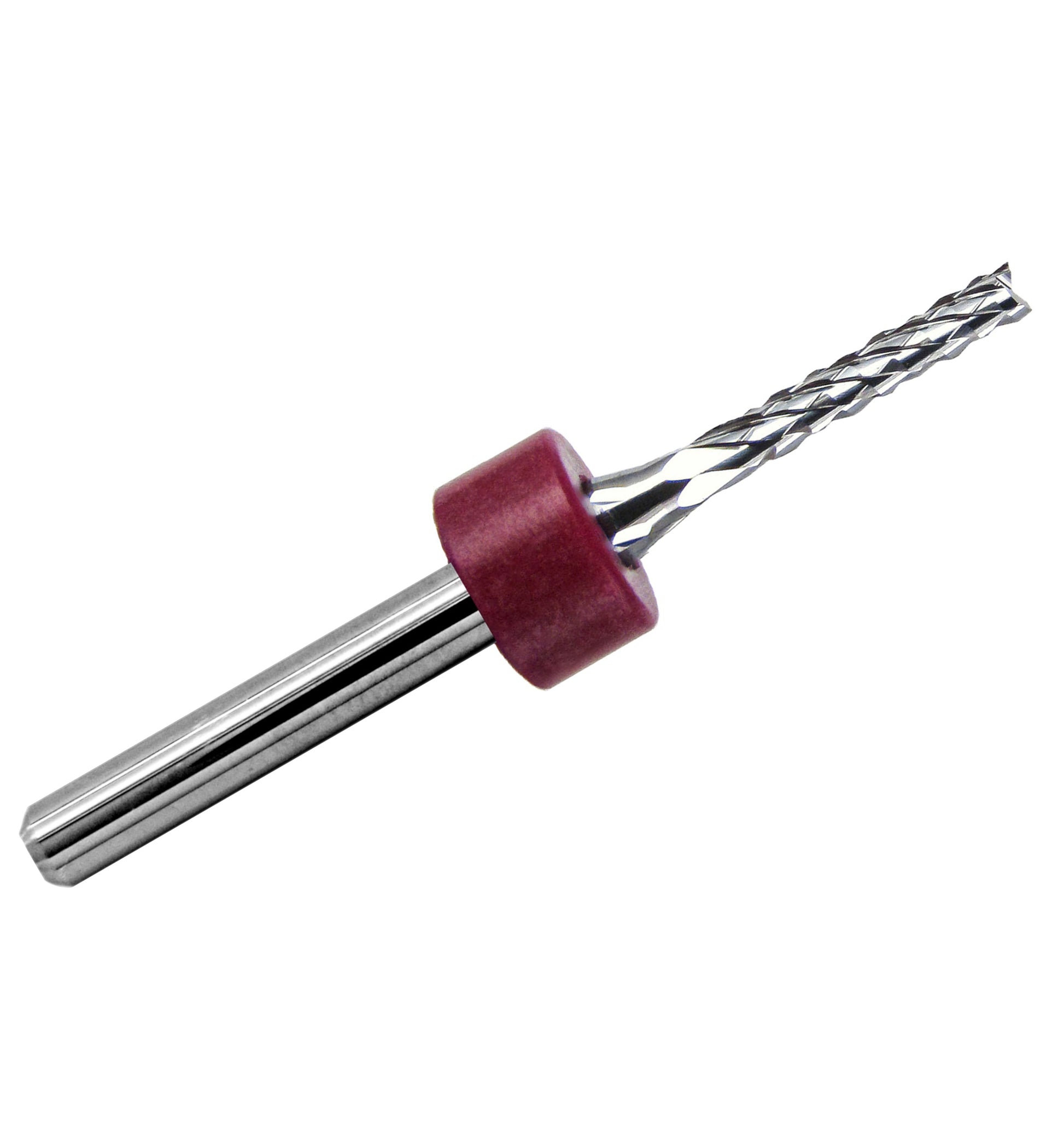

Kyocera 2.00mm Diamond-Flute PCB Router | .400" LOC | Fish Tail | Up-Cut

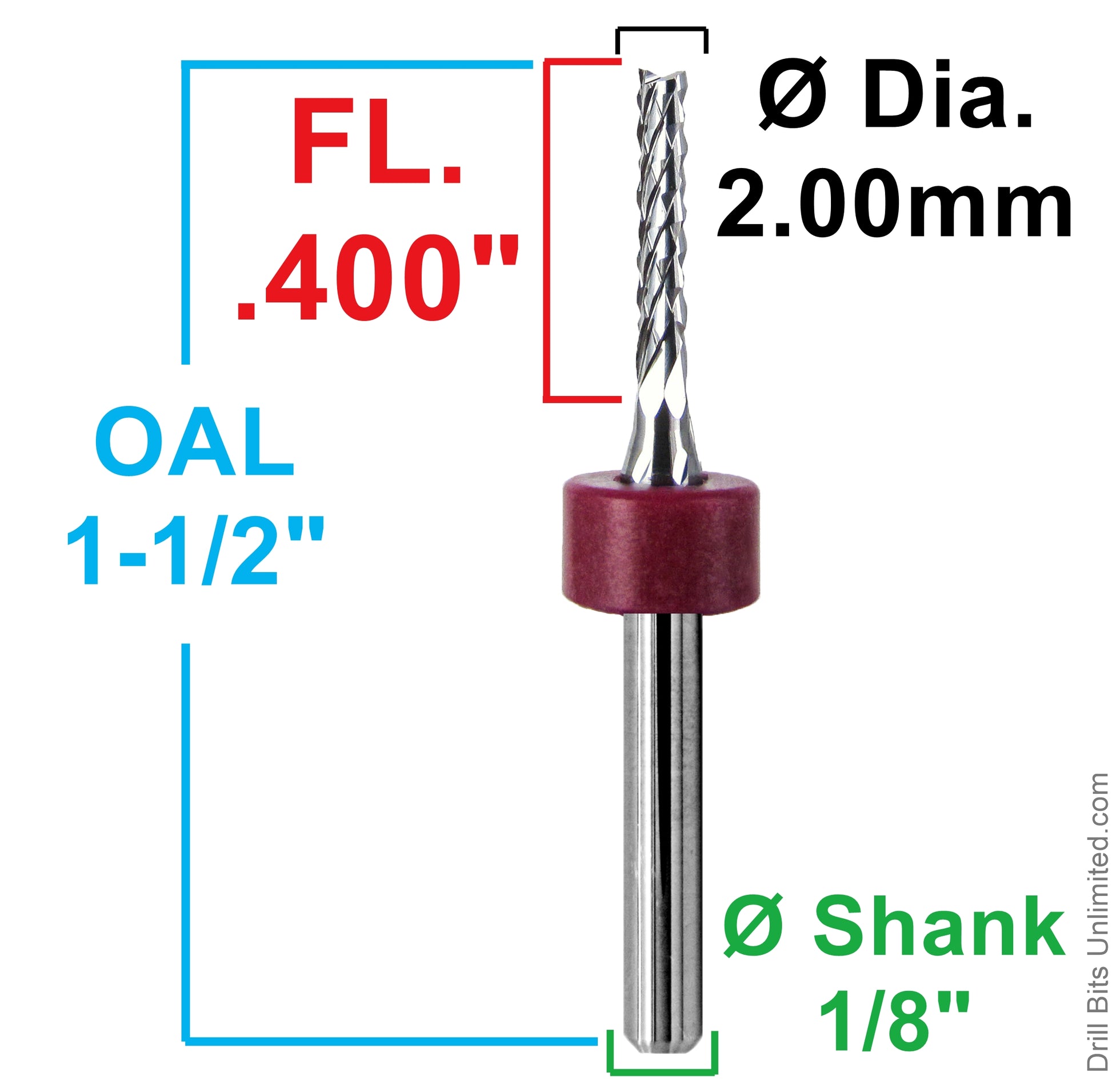

The R138 Kyocera solid carbide diamond-flute router features a 0.0787" (2.00mm nominal) cutting diameter, 0.400" (10.16mm) length of cut, 1.500" overall length, and standard 1/8" (3.175mm) shank. This precision router is designed for machining FR4/G10 printed circuit board laminates, fiberglass, phenolic materials, and other abrasive composites.

Its diamond-pattern cutting geometry uses numerous small, intersecting cutting edges for controlled material removal. The fishtail tip provides end-cutting capability, while the up-cut configuration helps direct chips and routing debris upward.

Key Features

  • 0.0787" (2.00mm) cutting diameter: Suitable for PCB board outlines, slots, profiles, and internal cutouts
  • 0.400" LOC: Extended 10.16mm cutting reach for suitable thicker laminates and composite panels
  • Diamond-flute geometry: Multiple intersecting cutting edges help control fraying, chipping, and fiber pull-out under appropriate cutting conditions
  • Fish tail tip: End-cutting geometry supports entry and through-routing in suitable sheet materials
  • Up-cut configuration: Helps direct routing debris upward during cutting
  • Solid tungsten carbide: Provides rigidity and resistance to abrasive wear
  • 1/8" shank: Fits compatible precision CNC spindle collets and tool holders

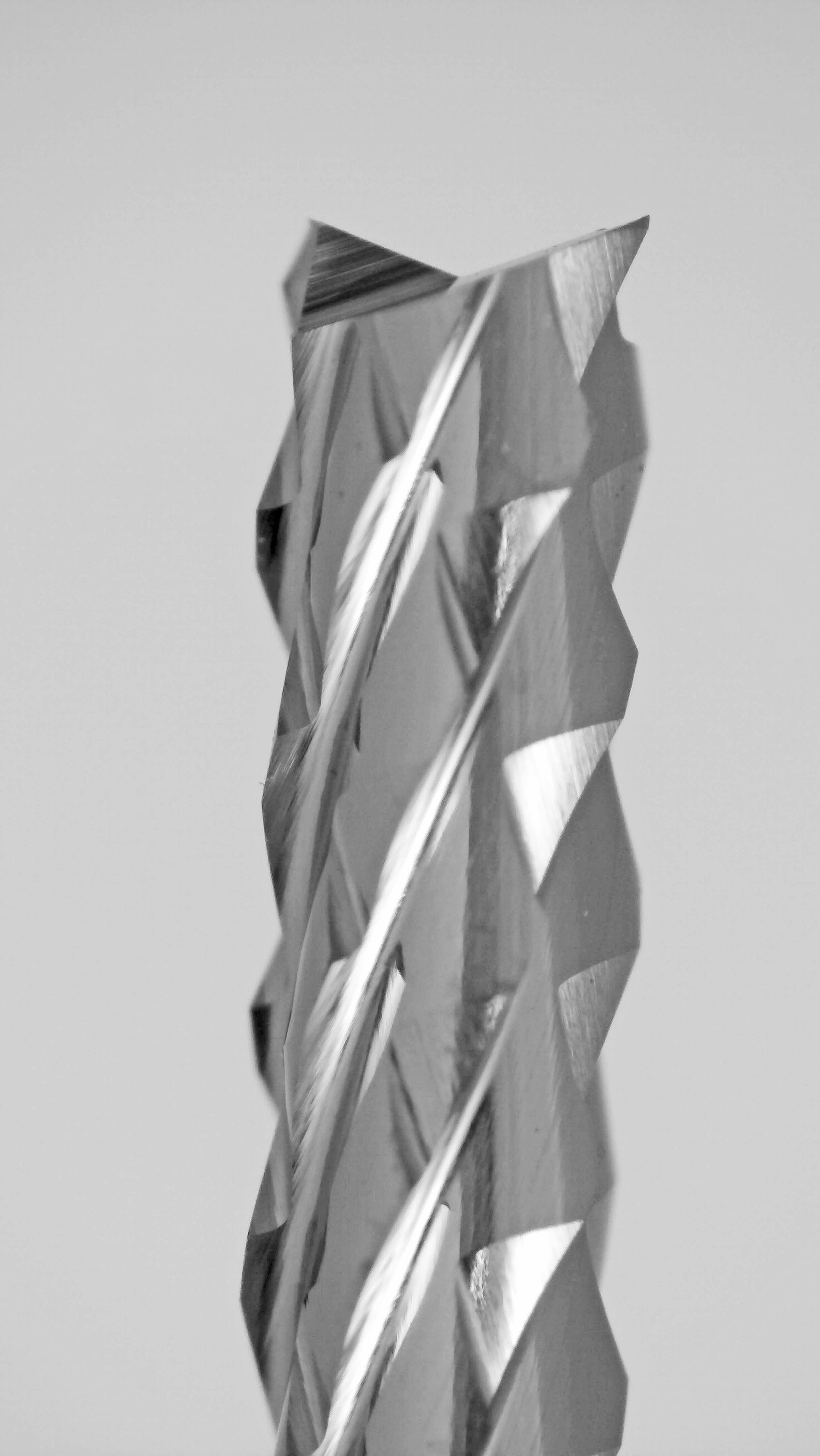

Diamond-Flute Geometry & Fish Tail Tip

Diamond-flute routers, also known as diamond-cut or diamond-pattern routers, feature numerous fine, intersecting cutting edges rather than conventional continuous spiral flutes. This cutting geometry is commonly used for routing abrasive and layered materials such as FR4 printed circuit boards, G10 fiberglass laminates, and reinforced composites.

The fishtail tip provides cutting edges at the end of the router, supporting entry and through-routing in suitable sheet materials. Proper cutting conditions and secure workholding help control edge chipping, fiber breakout, and tool wear.

The up-cut configuration helps evacuate routing debris upward. Actual edge quality depends on material, spindle speed, feed rate, tool condition, and workholding.

Extended 0.400" Cutting Length

R138 provides 0.400" (10.16mm) of cutting length, making it a useful option for thicker PCB laminates and composite sheets requiring additional cutting reach.

Its longer cutting section also requires careful attention to cutting loads, machine rigidity, and workholding. Use only the cutting depth needed for the workpiece and avoid excessive side pressure that could cause tool deflection or breakage.

Material note: Diamond-flute describes the cutting-edge geometry. This router is solid tungsten carbide, not diamond-coated or PCD tooling.

Typical Applications

  • PCB board outlines, profiles, slots, and cutouts
  • FR4 and G10 fiberglass laminate routing
  • Thicker fiberglass and epoxy laminate panels
  • Phenolic laminate machining
  • Fiberglass-reinforced composite trimming
  • Carbon-fiber composites where uncoated carbide tooling is appropriate
  • Precision CNC routing and prototype fabrication

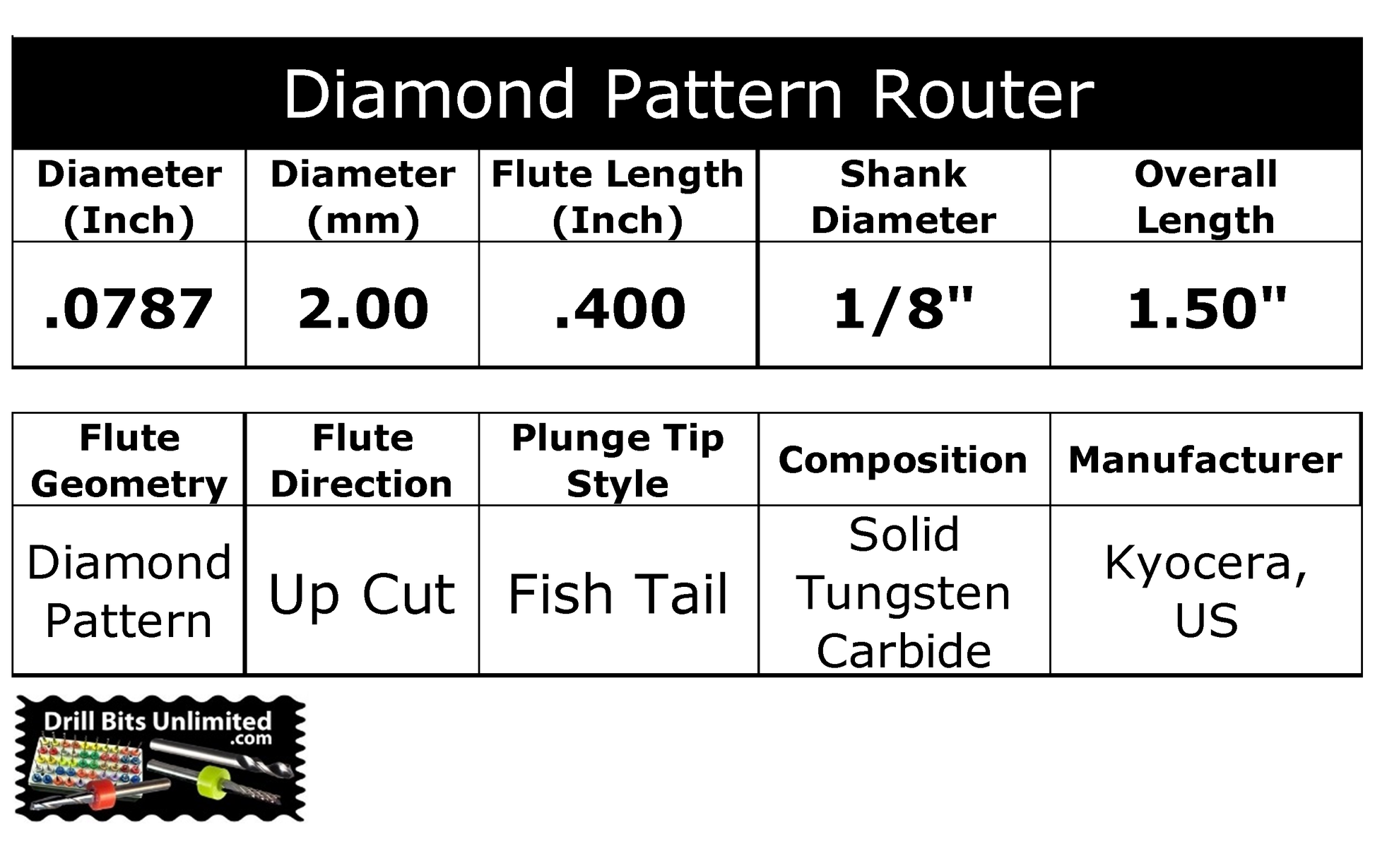

Technical Specifications

DBU SKU R138
Manufacturer Kyocera
Tool Type Diamond-Flute PCB Router
Cutting Diameter 0.0787" (2.00mm nominal)
Length of Cut (LOC) 0.400" (10.16mm)
Shank Diameter 1/8" (3.175mm)
Overall Length 1.500" (38.10mm)
Flute Geometry Diamond Flute / Diamond Cut / Diamond Pattern
Cut Direction Up-Cut
Tip Style Fish Tail
Tool Material Solid Tungsten Carbide
Coating Uncoated

Feeds & Speeds

Proper spindle speed, feed rate, cutting depth, and secure workholding are important when machining abrasive PCB laminates and composite materials.

View Carbide Router Feed & Speed Charts and select the Diamond-Flute Router Chart for starting cutting recommendations for FR4, G10, fiberglass, and related materials.

Recommended cutting conditions are starting points only. Adjust for the material, machine rigidity, spindle capability, tool condition, and cutting depth. Use appropriate dust extraction when machining fiberglass or carbon fiber.

Related Router Bits & Guides

Shop Diamond-Flute PCB Router Bits
Browse additional cutting diameters, lengths of cut, and tip configurations.

Diamond-Flute Router Guide
Learn about diamond-cut geometry, fishtail and drill-point tips, and selecting suitable routers for abrasive laminates.

Need several diamond-flute router sizes?

R138 is also included in our 10-Piece Diamond-Flute Router Variety Set (DCF-V1), featuring seven useful cutting diameters for PCB and composite routing.
