20° Carbide V-Bit Engraver 1/8" Shank for PCB Isolation & Fine Detail CNC Work VE20
20° Carbide V-Bit Engraver 1/8" Shank for PCB Isolation & Fine Detail CNC Work VE20
Couldn't load pickup availability

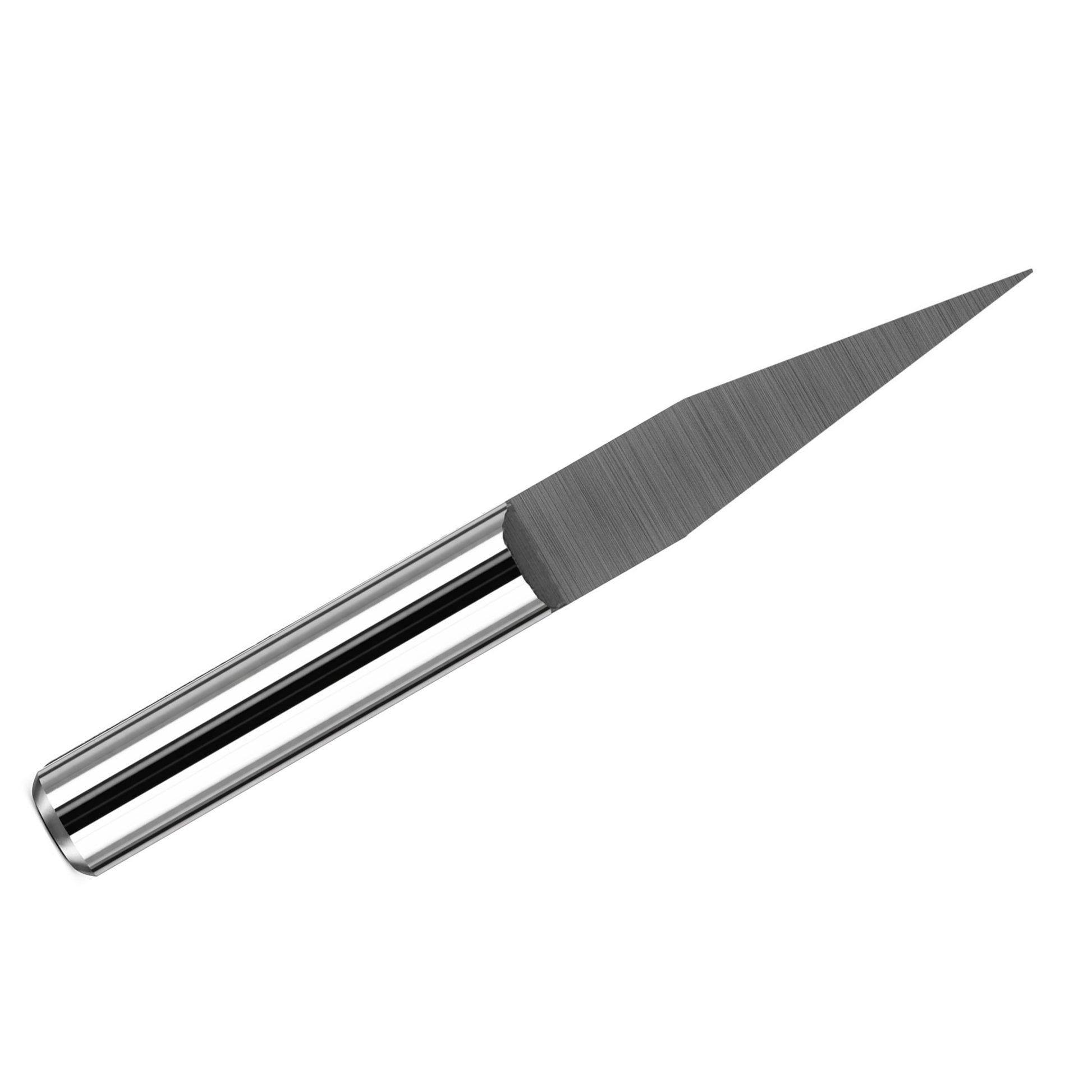

20° solid carbide V-bit CNC engraver designed for fine detail work, precision engraving, and PCB circuit isolation.
This narrow-angle V-bit provides an excellent balance between ultra-fine detail and slightly increased cutting strength compared to lower angles. The 20° geometry allows for precise engraving with controlled material removal, making it ideal for circuit trace isolation, fine lettering, and intricate designs.
Why choose a 20° V-bit?
A 20° tip angle offers very fine engraving capability while providing slightly more durability than a 15° tool. It is a great choice when you need high detail but want a bit more edge strength for longer tool life and more consistent performance across varied materials.
Manufactured from solid carbide, this engraver delivers excellent wear resistance and long tool life when used in materials such as PCB substrates, plastics, acrylics, and wood.
Typical Applications
- PCB circuit isolation (conductor definition)
- Fine engraving and detailed lettering
- Precision work in plastics and acrylics
- Wood engraving (fine detail)
- Light engraving in aluminum and brass (with proper feeds and speeds)
Benefits
- 20° tip angle for fine detail with improved durability
- Stronger cutting edge than ultra-sharp micro angles
- Solid carbide construction for long tool life and wear resistance
- Excellent balance of precision and edge strength
- 1/8" shank fits most CNC routers and engraving machines

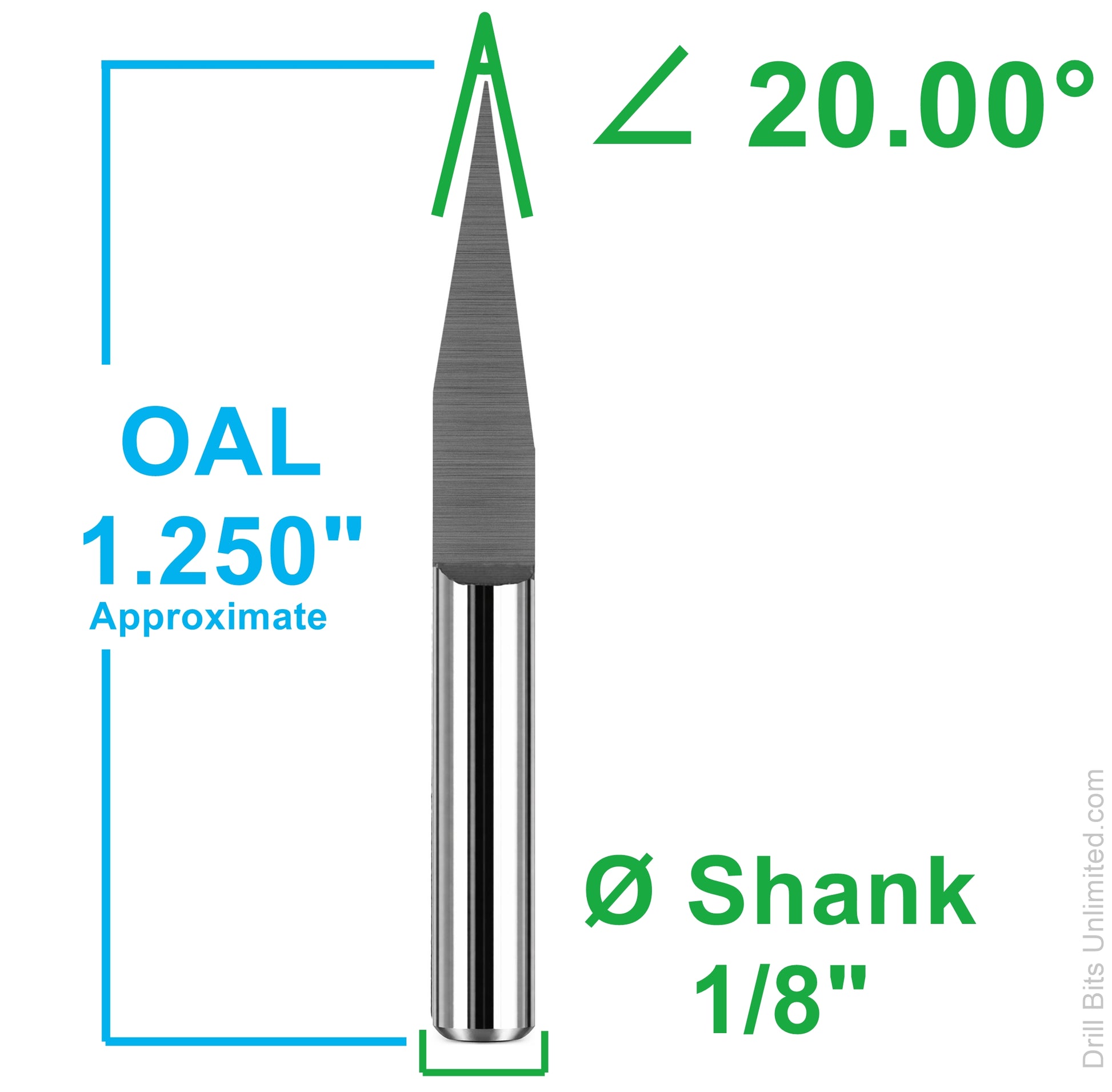

Specifications
| Tool Type | V-Bit CNC Engraver |
| Tip Angle | 20° |
| Material | Solid Carbide |
| Finish | Uncoated (Bright) |
| Shank Diameter | 1/8" (3.175 mm) |
| Overall Length (OAL) | 1.25" (Approximate) |
| Primary Use | PCB Isolation, Fine Detail Engraving |
| Materials | Plastics, Acrylics, Wood, PCB Laminate, Non-Ferrous Metals (Light Duty) |
