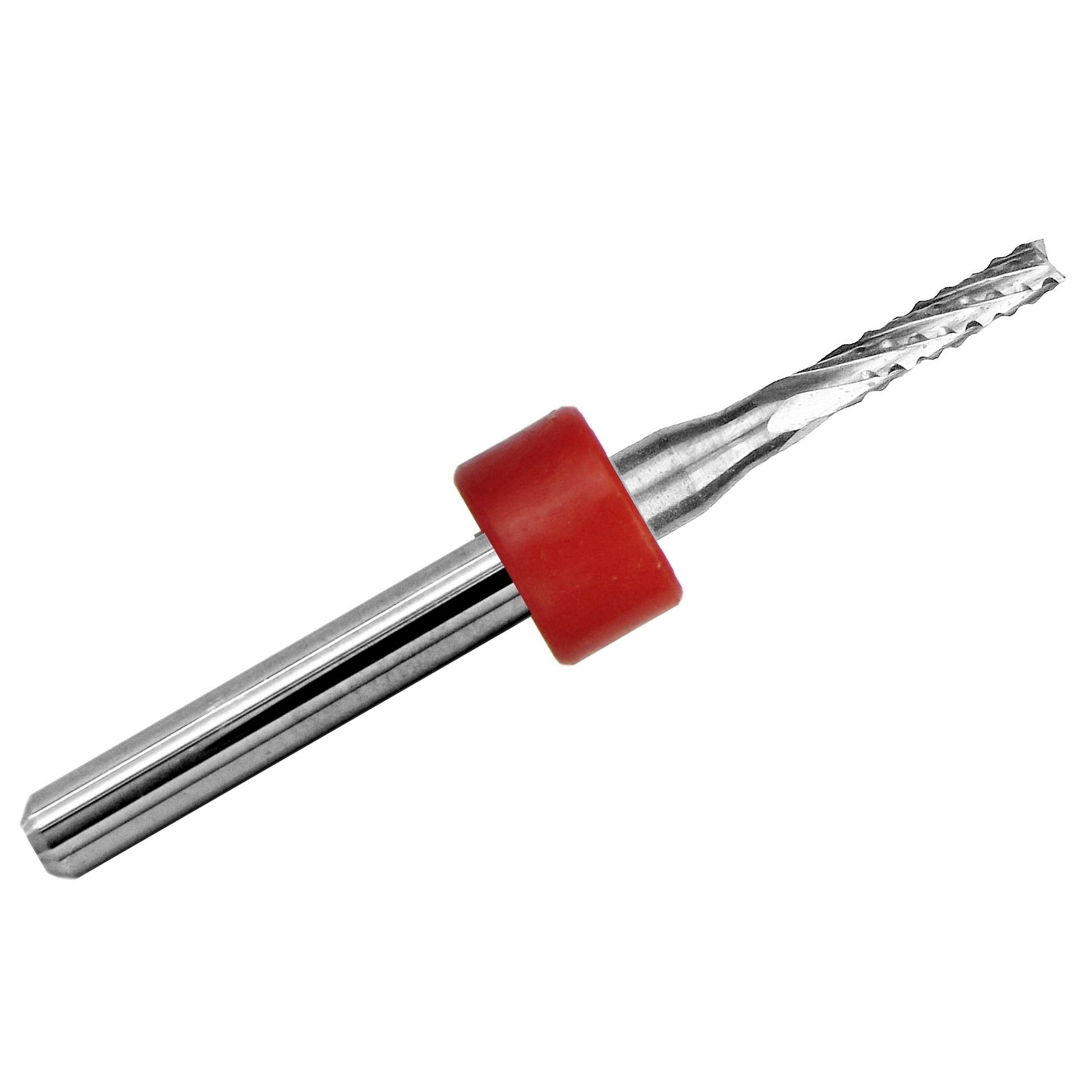

0.0787" (2.00mm) Kyocera Chip Breaker PCB Router, .425" LOC, Fish Tail, Up-Cut, 1/8" Shank | R165

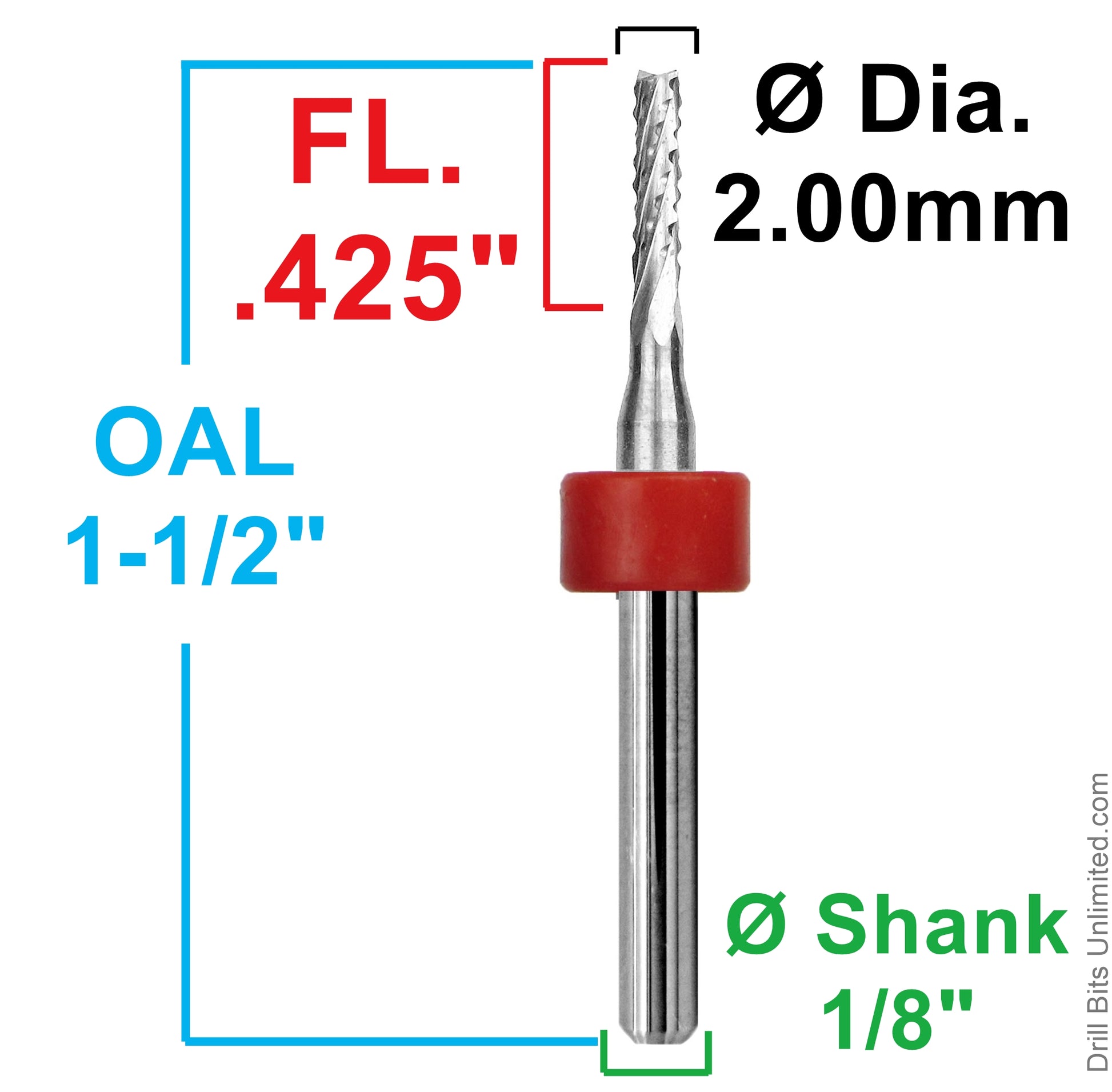

This Kyocera 2.00mm (.0787") chip breaker carbide PCB router features an extended .425" (10.80mm) length of cut, fish-tail tip, up-cut spiral, 1/8" shank, and 1.50" overall length. Made from solid tungsten carbide, it is designed for precision routing of FR-4, G10, fiberglass, phenolic laminates, and other rigid composite materials.

The spiral chip breaker geometry features interrupted cutting edges that break chips into smaller fragments. Combined with the up-cut spiral, this helps promote efficient chip evacuation and reduce debris accumulation during machining.

Chip Breaker Geometry and Fish-Tail Tip

• Spiral chip breaker: Helps control chip formation and reduce clogging during routing.
• Up-cut spiral: Directs chips upward and away from the cutting zone.

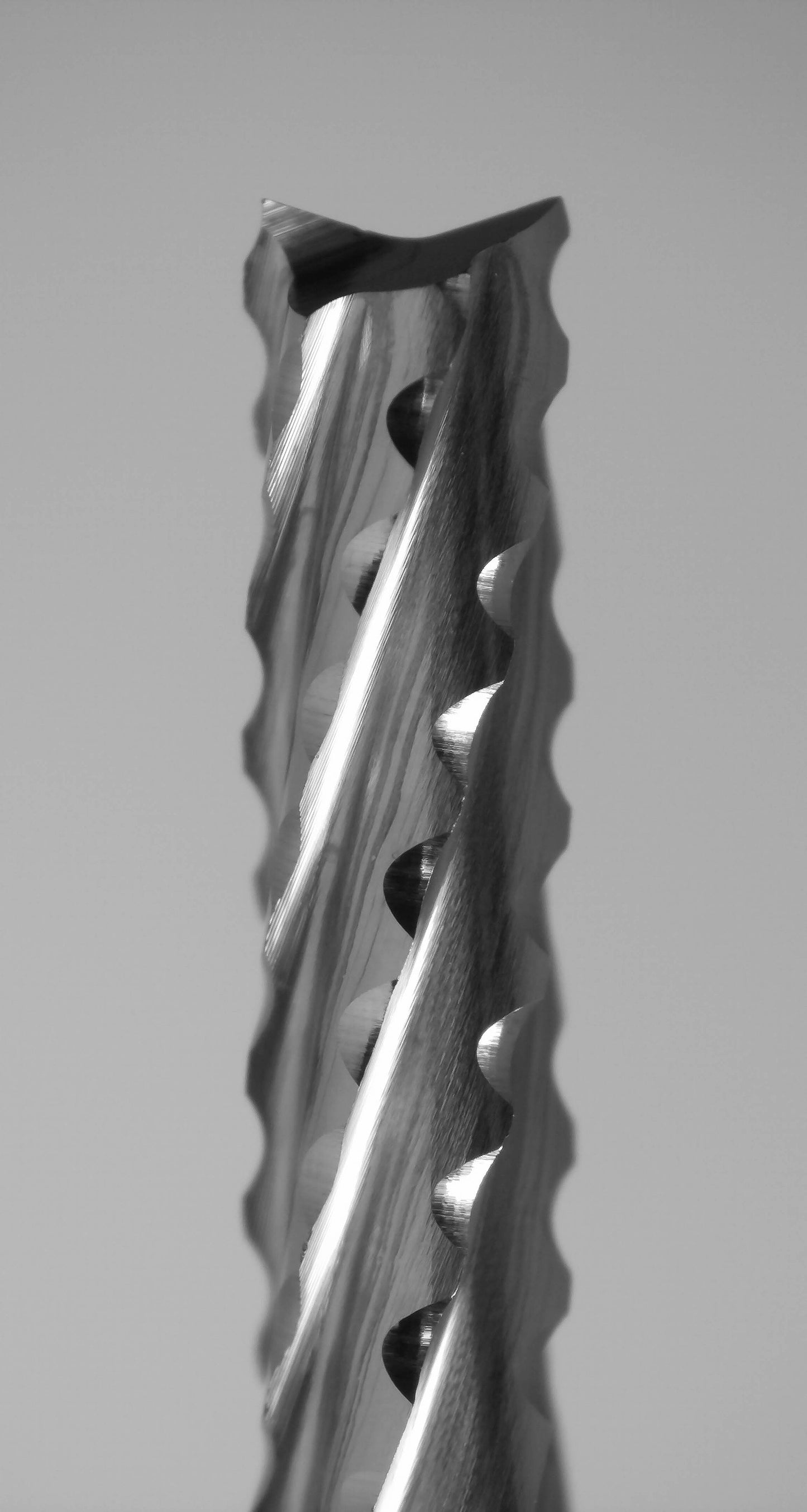

• Fish-tail tip: Provides end-cutting geometry for PCB profiling and controlled through-cutting, helping minimize exit-side breakout with proper workpiece support.
• Extended .425" LOC: Provides 10.80mm of cutting length for deeper profiles, slots, and routing thicker composite materials.
• Solid carbide: Provides rigidity and wear resistance when machining abrasive laminates.

The fish-tail configuration is useful for PCB outline routing, depaneling, and through-cutting operations where edge quality matters. Use suitable backing material, rigid workholding, and controlled cutting engagement to minimize laminate damage.

Need a shorter cutting length? Our R166 Kyocera 2.00mm Fish-Tail Router offers the same diameter with a shorter .315" LOC.

Not sure which router geometry is best for your application? Compare Chip Breaker vs. Diamond Flute PCB Routers →

Typical Applications

• PCB outline routing and depaneling
• FR-4 and G10 fiberglass laminates
• Phenolic laminate cutting
• Precision slots and internal PCB contours
• Routing thicker rigid fiberglass and composite sheets
• Selected carbon fiber composite routing applications

Carbon fiber and highly abrasive materials: Extended machining of abrasive composites can accelerate wear on uncoated carbide. For demanding production applications, consider a suitable diamond-coated router.

Explore Diamond-Coated Routers →

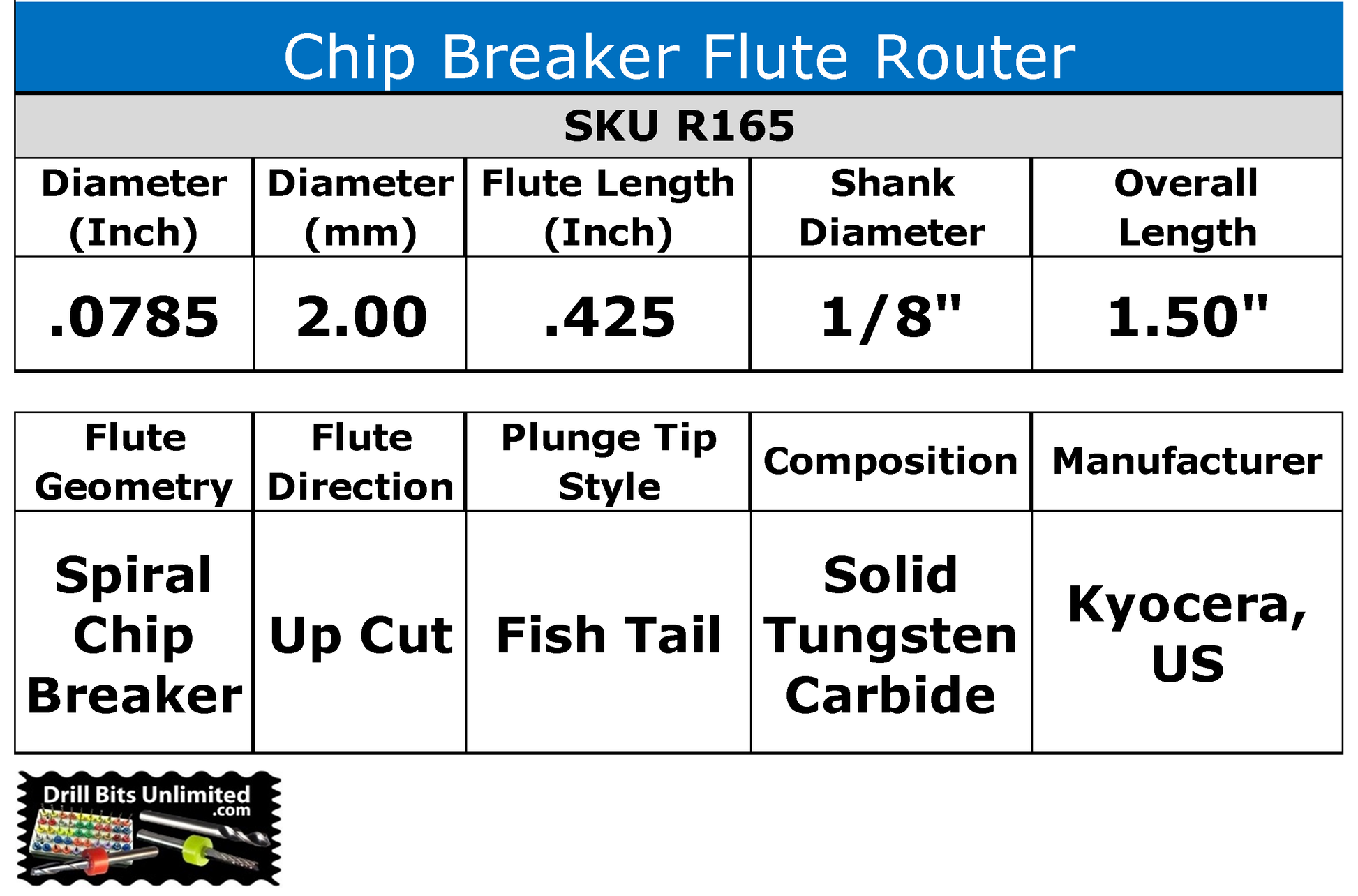

Specifications

Feeds, Speeds and Tool Handling

See our Chip Breaker Router Feed & Speed Chart → for general machining guidance.

Adjust cutting parameters for the extended flute length, material, spindle runout, cutting engagement, and workholding. Avoid aggressive plunging and excessive lateral loading.

Sold individually. Price is per router bit.
