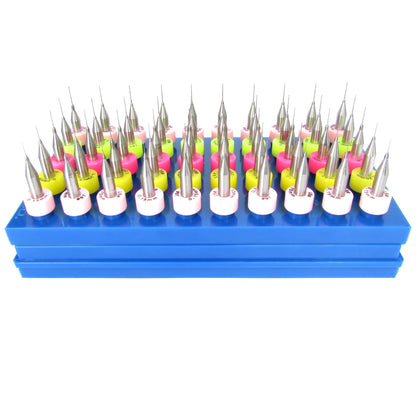

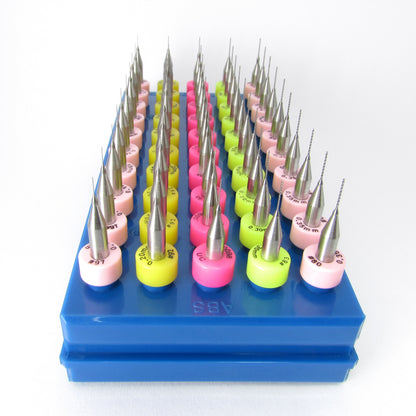

50-Piece Carbide Micro Drill Set – 5 Selected Micro Sizes
This 50-piece solid carbide micro drill set includes 10 drills each of 5 selected precision sizes, ranging from .0059" through .0135". These very small carbide drills are useful for PCB drilling, electronics work, fine-detail drilling, CNC machining, model making, precision repair work, and other small-hole drilling applications.
The SA-50 set is a selected-size assortment, not a full incremental range. It provides ten drills of each included size, making it useful when you need multiple replacements of the same very small diameters.
Use the option selector to choose between Lightly Used Drills and Factory Resharpened Drills.
Lightly Used Drills: Previously used solid carbide drills offered as an economical option. Cosmetic appearance and evidence of prior use may vary.
Factory Resharpened Drills: Professionally resharpened solid carbide drills with cutting edges restored to like-new condition.
Best For
- PCB drilling and electronics prototyping
- Very small-hole drilling
- Fine-detail CNC work
- Model making and precision repair
- Plastic, composite, and suitable non-ferrous material drilling
- Applications where multiple drills of the same tiny sizes are needed
Set Summary
| Set Type | Selected-Size Solid Carbide Micro Drill Set |
|---|---|
| Total Pieces | 50 drills |
| Number of Sizes | 5 selected sizes |
| Quantity Per Size | 10 drills each |
| Diameter Range | .0059" through .0135" |

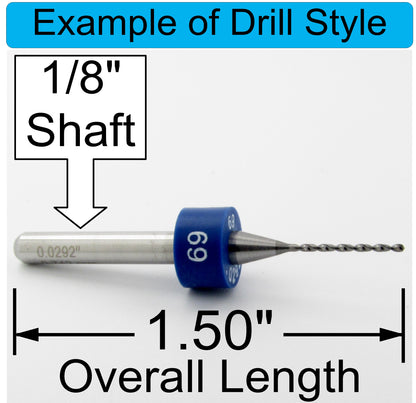

| Shank Diameter | 1/8" / 3.175 mm |
| Overall Length | Approximately 1.50" |
| Material | Solid Carbide |
| Depth-Stop Rings | Included where shown |
| Available Conditions | Lightly Used or Factory Resharpened |
| SKU | SA-50 |

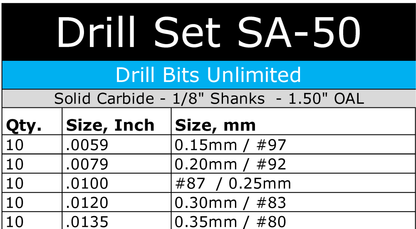

Included Sizes – 10 Drills Each
| Decimal Size | Metric / Number Reference | Quantity |
|---|---|---|
| .0059" | 0.15 mm / #97 | 10 |
| .0079" | 0.20 mm / #92 | 10 |
| .0100" | 0.25 mm / #87 | 10 |
| .0120" | 0.30 mm / #83 | 10 |
| .0135" | 0.35 mm / #80 | 10 |
Flute lengths for new drills are shown in the product images when available. Resharpened or used drills may vary.
Benefits
- 50 total drills with 10 drills per included size
- Very small micro drill sizes from .0059" through .0135"
- Useful for repeat work where extra drills of the same sizes are needed
- Standard 1/8" shanks fit many PCB drill holders, CNC collets, and precision drilling setups
- Choice of economical lightly used drills or factory-resharpened drills
Important Use Note
Solid carbide drills are rigid and wear resistant, but they are also brittle. Use a stable holder, low-runout spindle, drill press, mill, CNC machine, micro drill fixture, pin vise, or other controlled setup. Keep the drill aligned with the work and avoid side pressure, bending, or forcing the tool.
The exact drill style, flute length, point geometry, manufacturer, ring color, and cosmetic appearance may vary across the assortment. The included diameters and quantities are shown in the size chart above.
👉 View Carbide Drill Bit Feed & Speed Starting Guide
Browse our individual carbide drill bit sizes →
View all carbide drill variety sets →
