.0100"–.0430" Carbide Micro Drill Set, 50 Pc, 25 Sizes, 2 Each, 1/8" Shank | D6

.0100"–.0430" Carbide Micro Drill Set, 50 Pc, 25 Sizes, 2 Each, 1/8" Shank | D6

$44.95 USD
$44.95 USD
Sale Sold out
Shipping calculated at checkout.

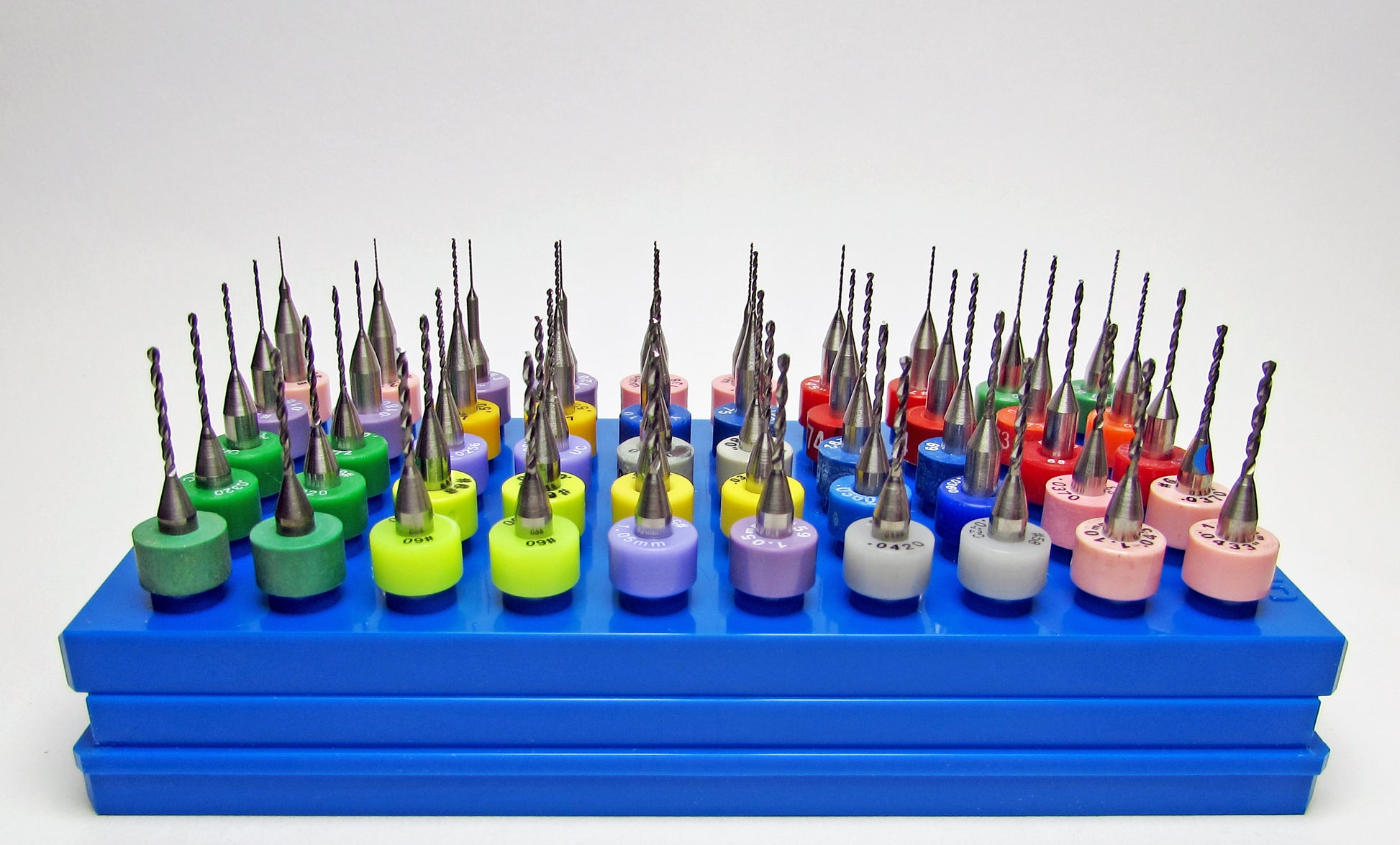

50-Piece Solid Carbide Micro Drill Bit Set – .0100" to .0430"

This 50-piece solid carbide micro drill bit set includes 2 drills each of 25 precision sizes ranging from .0100" through .0430". It provides a useful assortment of closely spaced numbered, metric, decimal-inch, and fractional drill sizes for PCB drilling, electronics work, CNC machining, prototyping, model making, carburetor jet work, and other precision small-hole drilling applications.

Use the option selector to choose between Lightly Used Drills and Factory-Resharpened Drills.

  • Lightly Used Drills: Previously used solid carbide drills showing limited wear and offered as an economical tooling option.
  • Factory-Resharpened Drills: Professionally resharpened drills with cutting edges restored to like-new cutting condition.

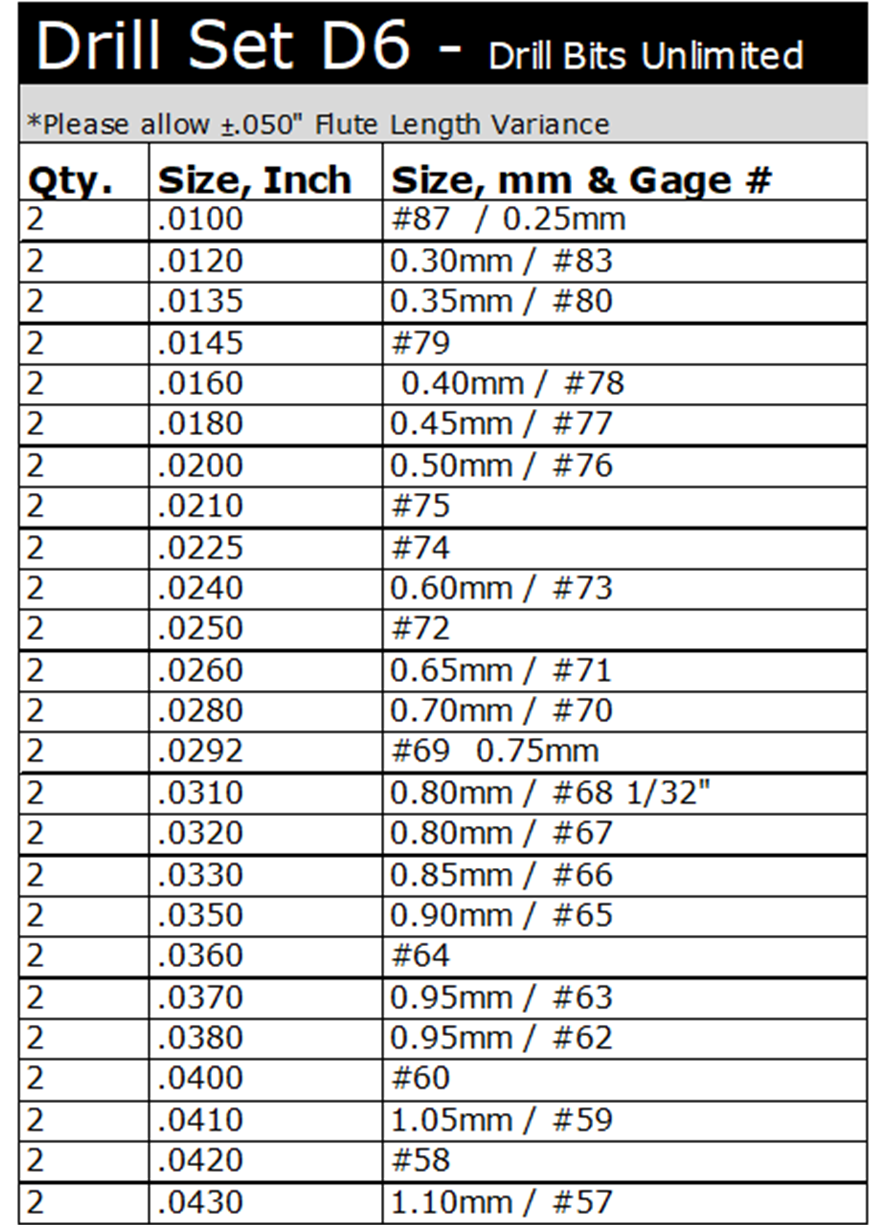

Included Sizes – 50 Pieces Total

Includes 2 drills each of the following 25 sizes:

Quantity Drill Size
2 .0100" — 0.25 mm / #87
2 .0120" — 0.30 mm / #83
2 .0135" — 0.35 mm / #80
2 .0145" — #79
2 .0160" — 0.40 mm / #78
2 .0180" — 0.45 mm / #77
2 .0200" — 0.50 mm / #76
2 .0210" — #75
2 .0225" — #74
2 .0240" — 0.60 mm / #73
2 .0250" — #72
2 .0260" — 0.65 mm / #71
2 .0280" — 0.70 mm / #70
2 .0292" — 0.75 mm / #69
2 .0310" — 0.80 mm / #68 / approximately 1/32"
2 .0320" — 0.80 mm / #67
2 .0330" — 0.85 mm / #66
2 .0350" — 0.90 mm / #65
2 .0360" — #64
2 .0370" — 0.95 mm / #63
2 .0380" — 0.95 mm / #62
2 .0400" — #60
2 .0410" — 1.05 mm / #59
2 .0420" — #58
2 .0430" — 1.10 mm / #57

Key Specifications

  • Total quantity: 50 drills
  • Number of sizes: 25
  • Quantity per size: 2 drills
  • Diameter range: .0100" to .0430"
  • Material: Solid carbide

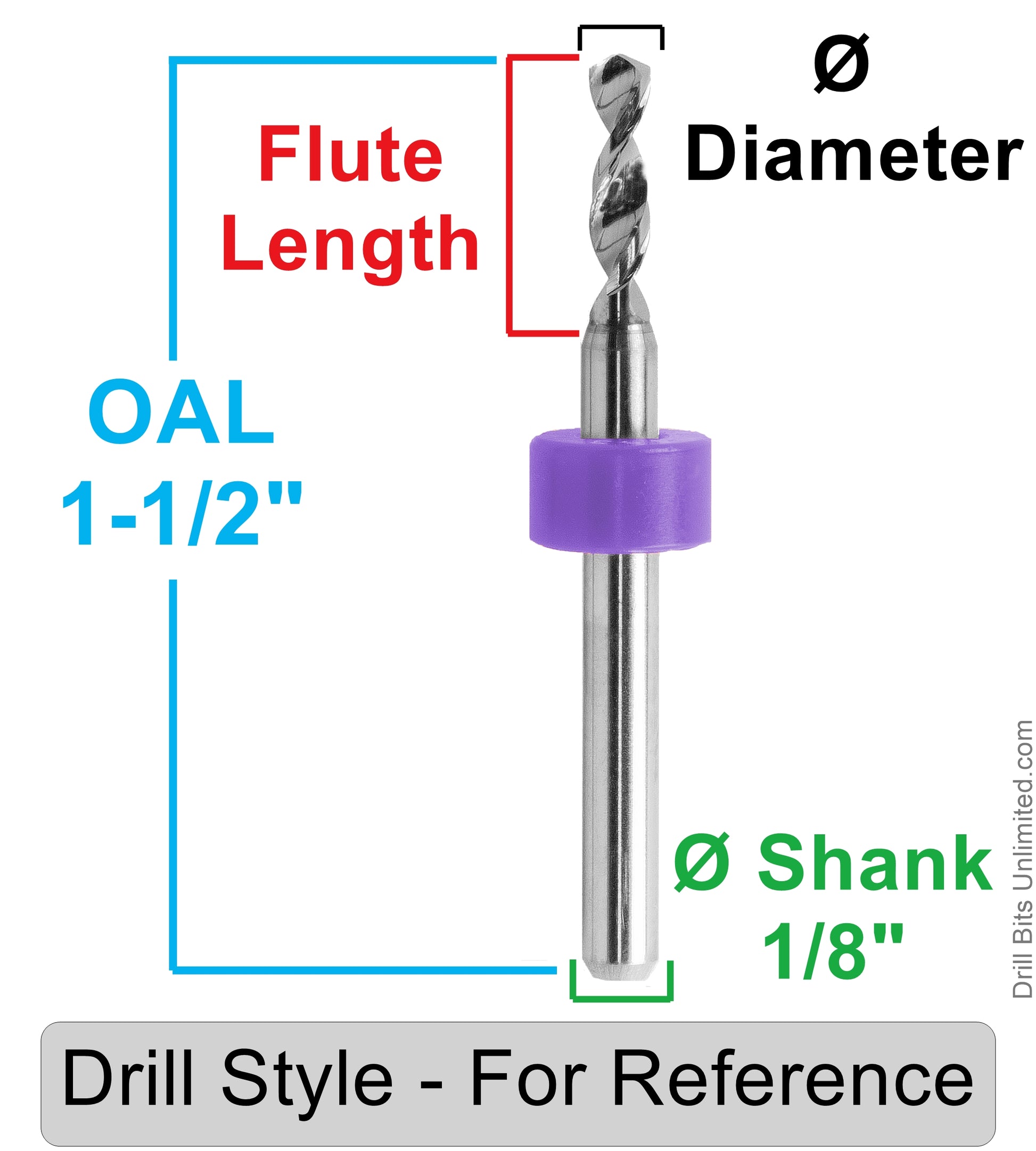

  • Shank diameter: 1/8" (3.175 mm)
  • Overall length: Approximately 1.50"
  • Condition options: Lightly Used or Factory Resharpened
  • Internal set number: D6

Common Uses

  • PCB and circuit-board drilling
  • Electronics prototyping and repair
  • Precision CNC drilling
  • Model making and hobby machining
  • Carburetor jet sizing and precision-orifice work
  • Small-hole drilling in plastics, composites, brass, aluminum, and other suitable materials

Benefits

  • Twenty-five closely spaced micro sizes in one organized assortment
  • Two drills of each size provide a useful replacement or backup
  • Includes numbered, metric, decimal-inch, and fractional size references
  • Standard 1/8" shanks fit many PCB drill holders, CNC collets, and precision setups
  • Choice of economical lightly used drills or factory-resharpened drills

Please allow approximately ±.050" flute-length variation. Because these drills are lightly used or factory resharpened, flute lengths, point geometry, ring colors, manufacturers, and cosmetic appearance may vary. The listed cutting diameters and quantities define the included assortment.

Important Use Note

Solid carbide drills are rigid and wear resistant, but they are also brittle. Use a stable, low-runout holder such as a CNC spindle, drill press, mill, micro-drill fixture, or other controlled setup. Keep the drill aligned with the work and avoid side pressure, bending, or forcing the tool.

👉 View Carbide Drill Bit Feed & Speed Starting Guide

Need individual carbide drill sizes instead?
Browse our individual carbide drill bit sizes →
Looking for other drill variety sets?
View all carbide drill variety sets →
