Carburetor Jet Drill Set #75–#51 – 25 Pc, .0210"–.0670", Solid Carbide

Carburetor Jet Drill Set – 25 Piece #75–#51

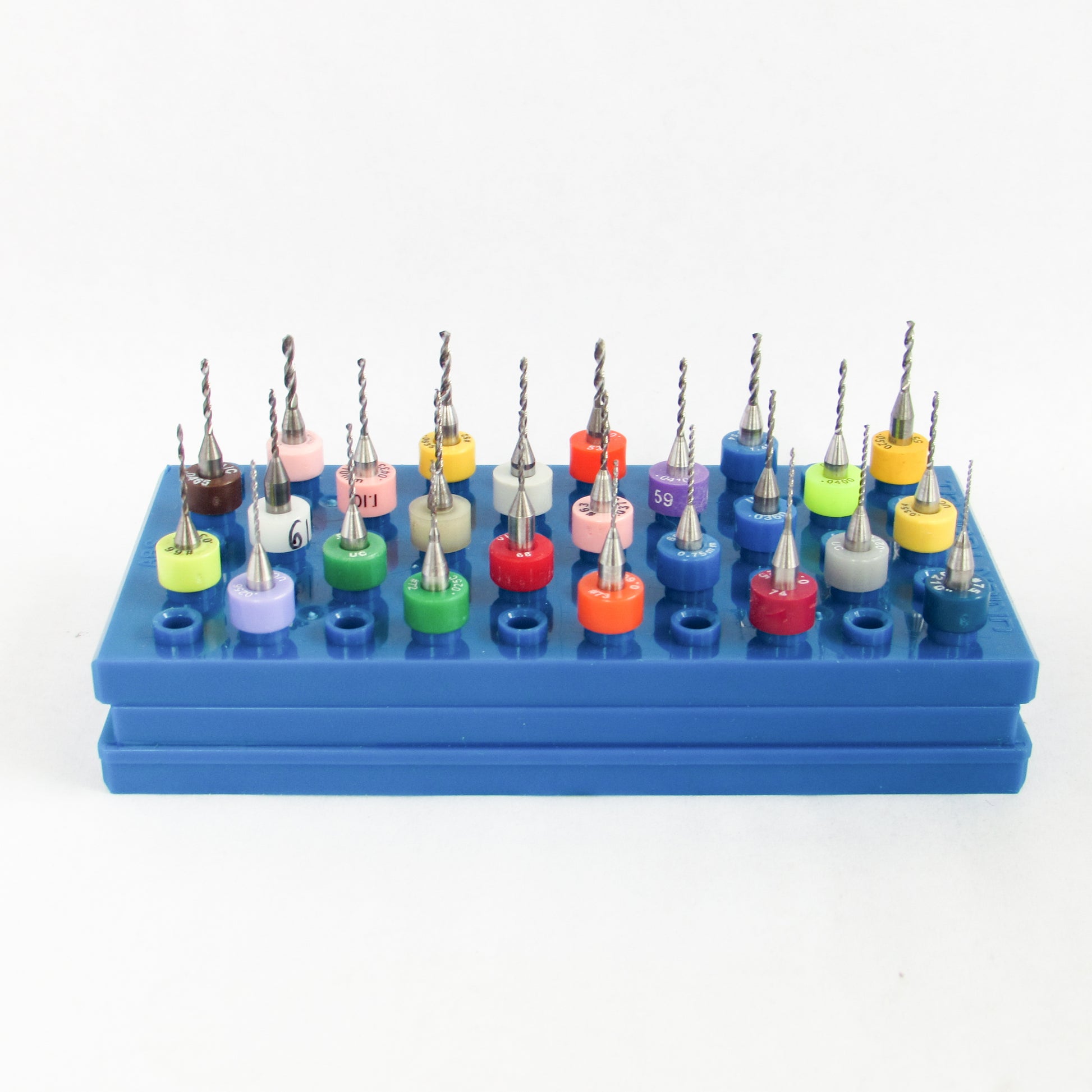

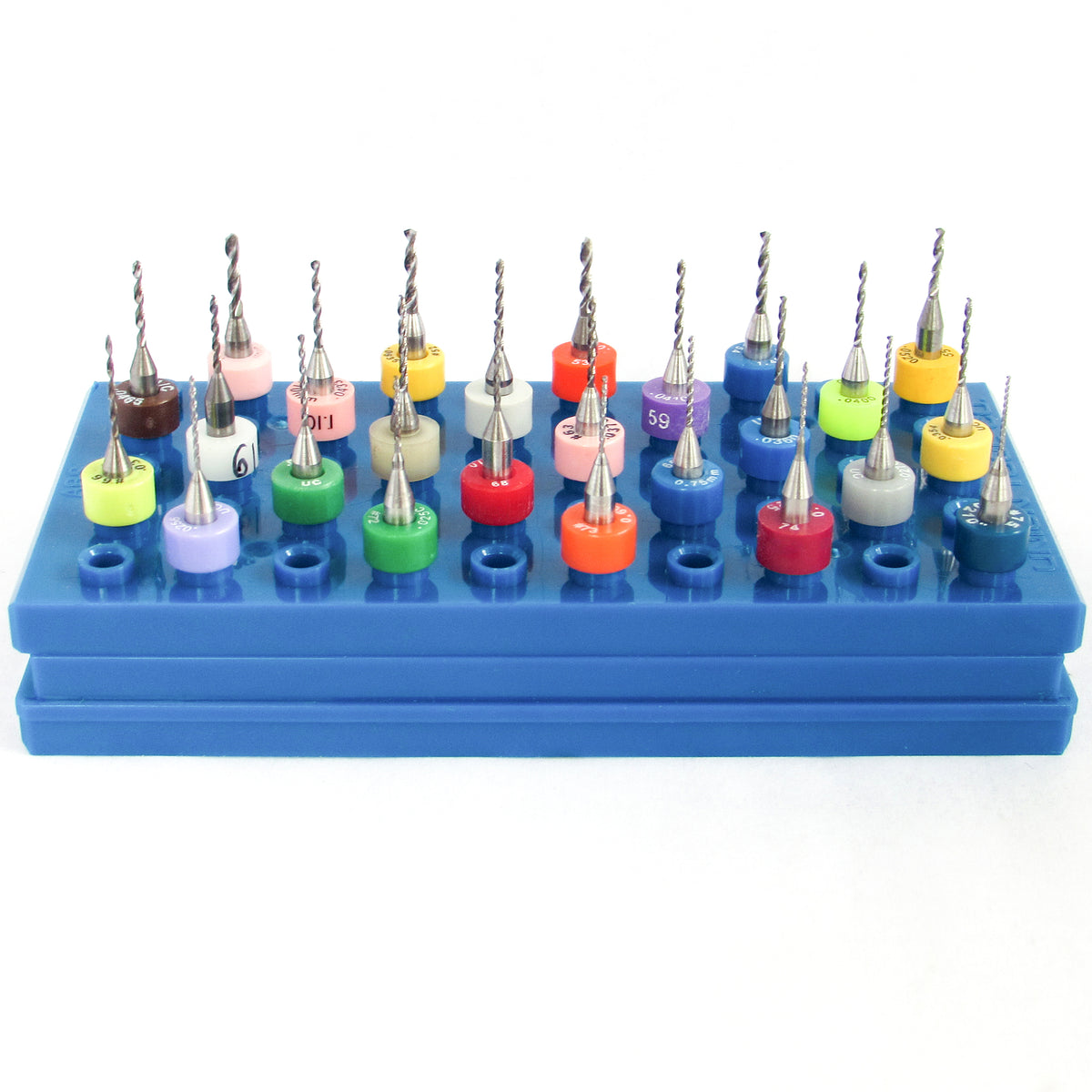

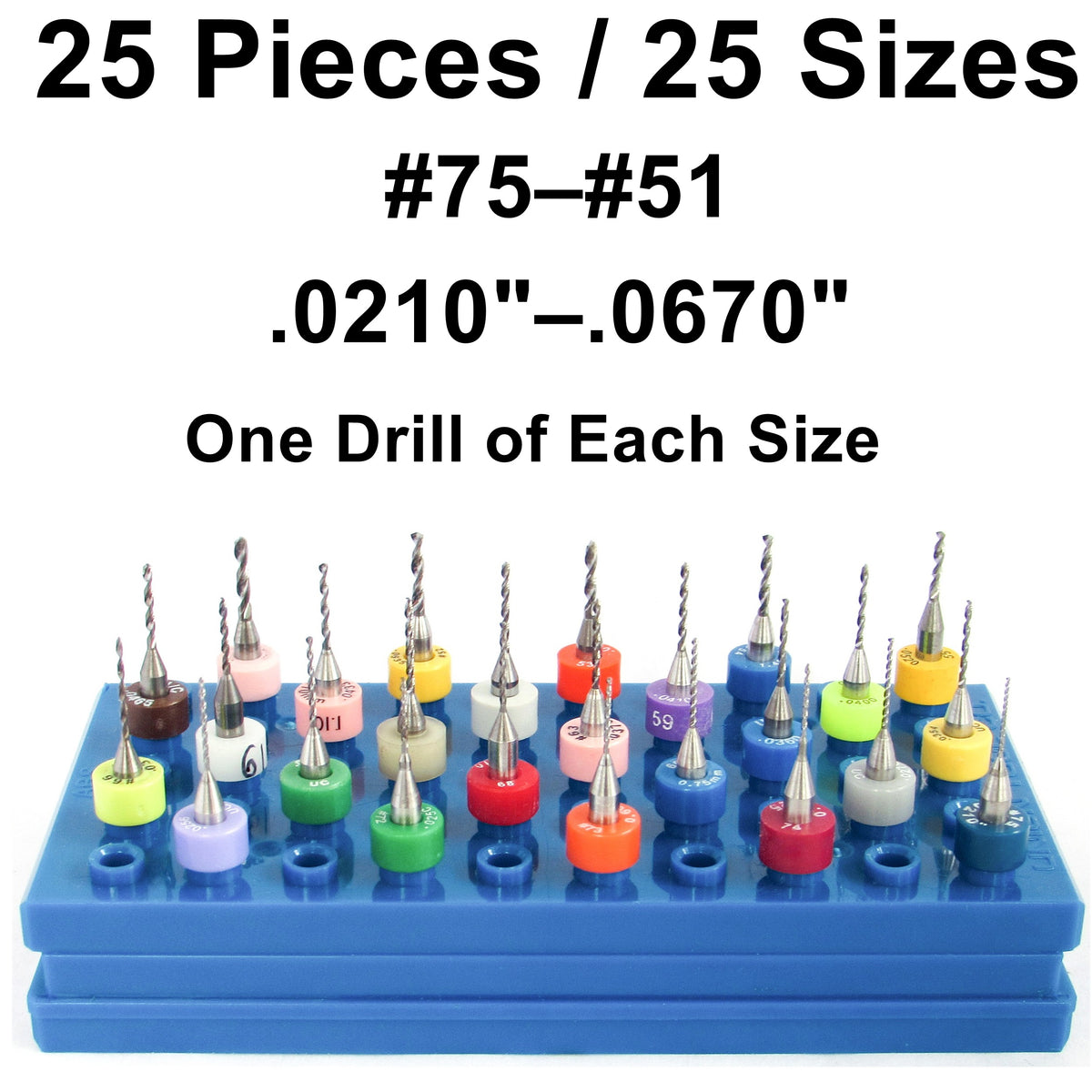

This 25-piece factory resharpened solid carbide numbered drill set includes one drill each from #75 through #51, covering .0210" through .0670".

It is designed for carburetor jet checking, cleaning, matching, and careful resizing where a continuous numbered-drill range is useful.

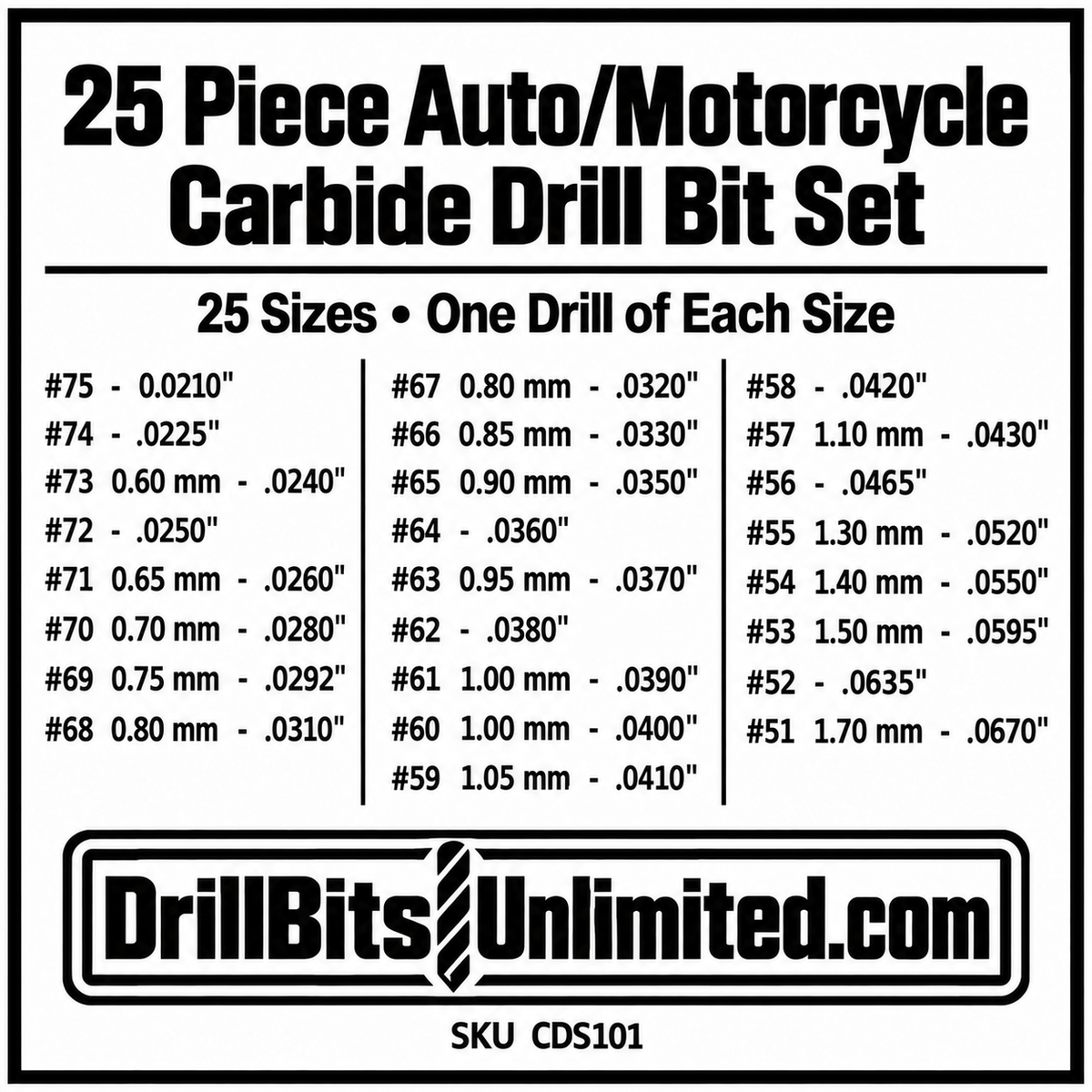

Included Sizes – 25 Pieces Total

Includes one drill each of these numbered sizes:

• #75 — .0210"
• #74 — .0225"
• #73 — .0240"
• #72 — .0250"
• #71 — .0260"
• #70 — .0280"
• #69 — .0292"
• #68 — .0310"
• #67 — .0320"
• #66 — .0330"
• #65 — .0350"
• #64 — .0360"
• #63 — .0370"
• #62 — .0380"
• #61 — .0390"
• #60 — .0400"
• #59 — .0410"
• #58 — .0420"
• #57 — .0430"
• #56 — .0465"
• #55 — .0520"
• #54 — .0550"
• #53 — .0595"
• #52 — .0635"
• #51 — .0670"

Specifications

• 25 drills total
• 25 numbered drill sizes
• One drill per size
• Size range: #75 through #51
• Diameter range: .0210" through .0670"
• Factory resharpened solid carbide

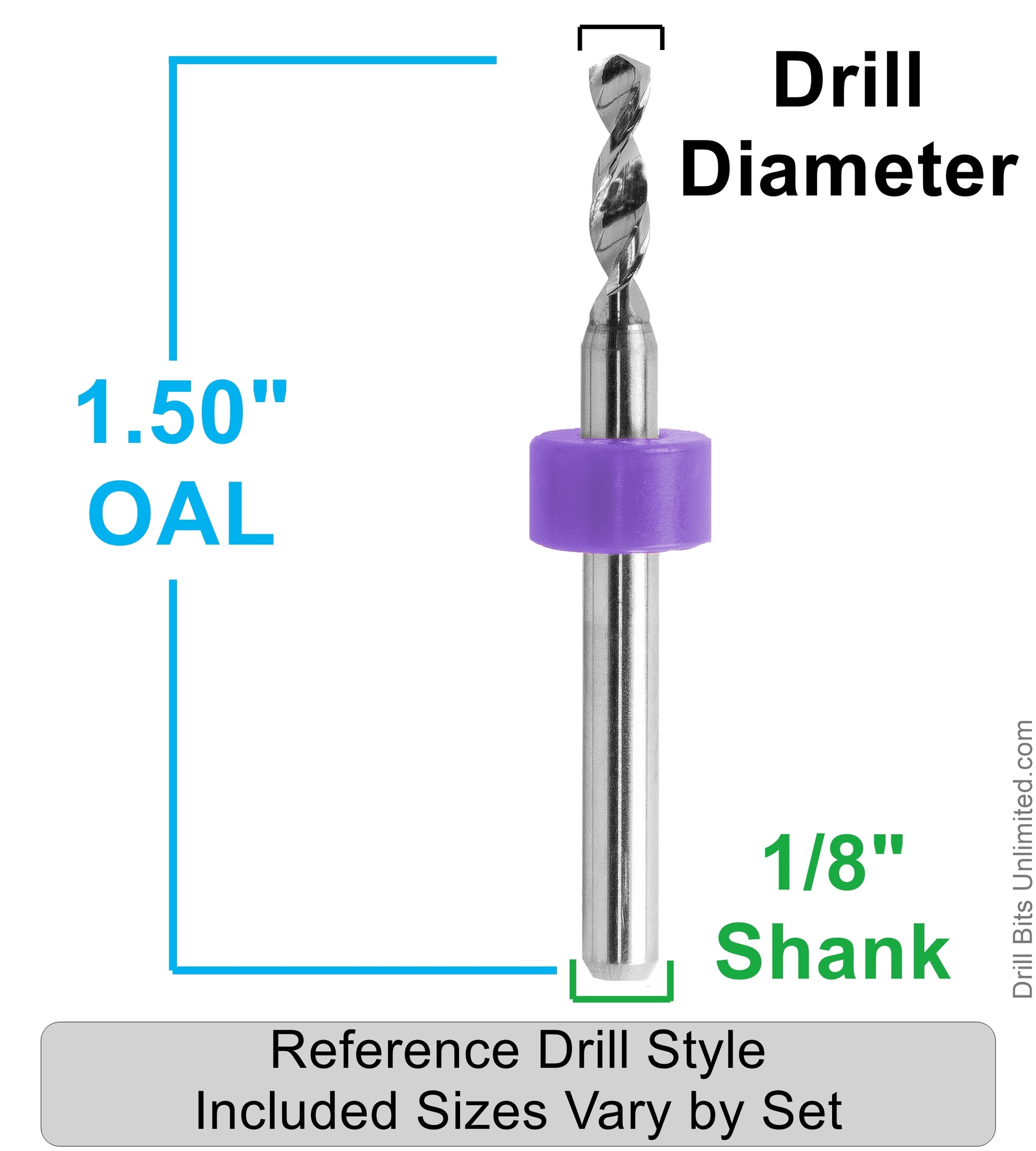

• Standard 1/8" (3.175 mm) shank
• Short micro-drill design

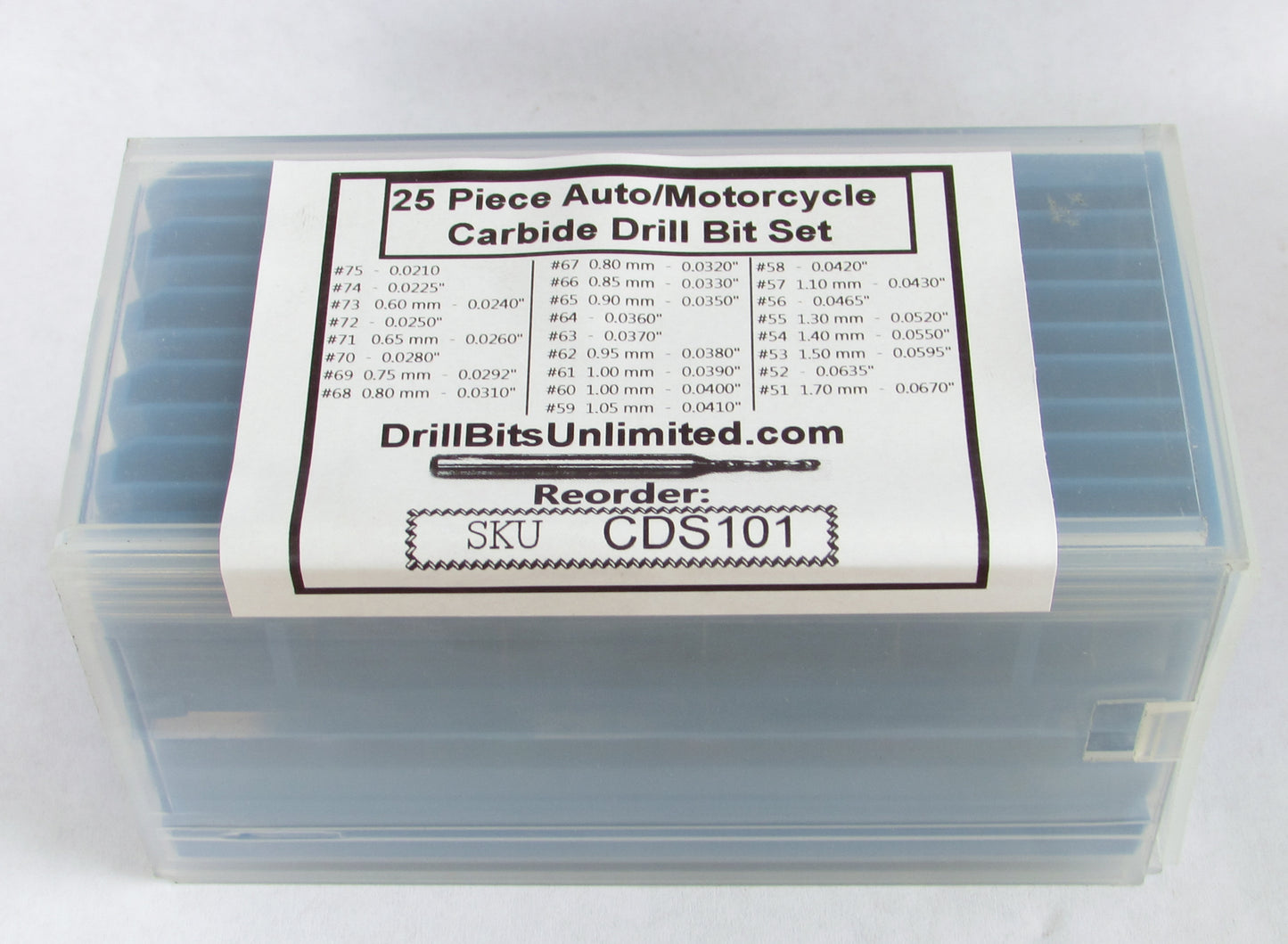

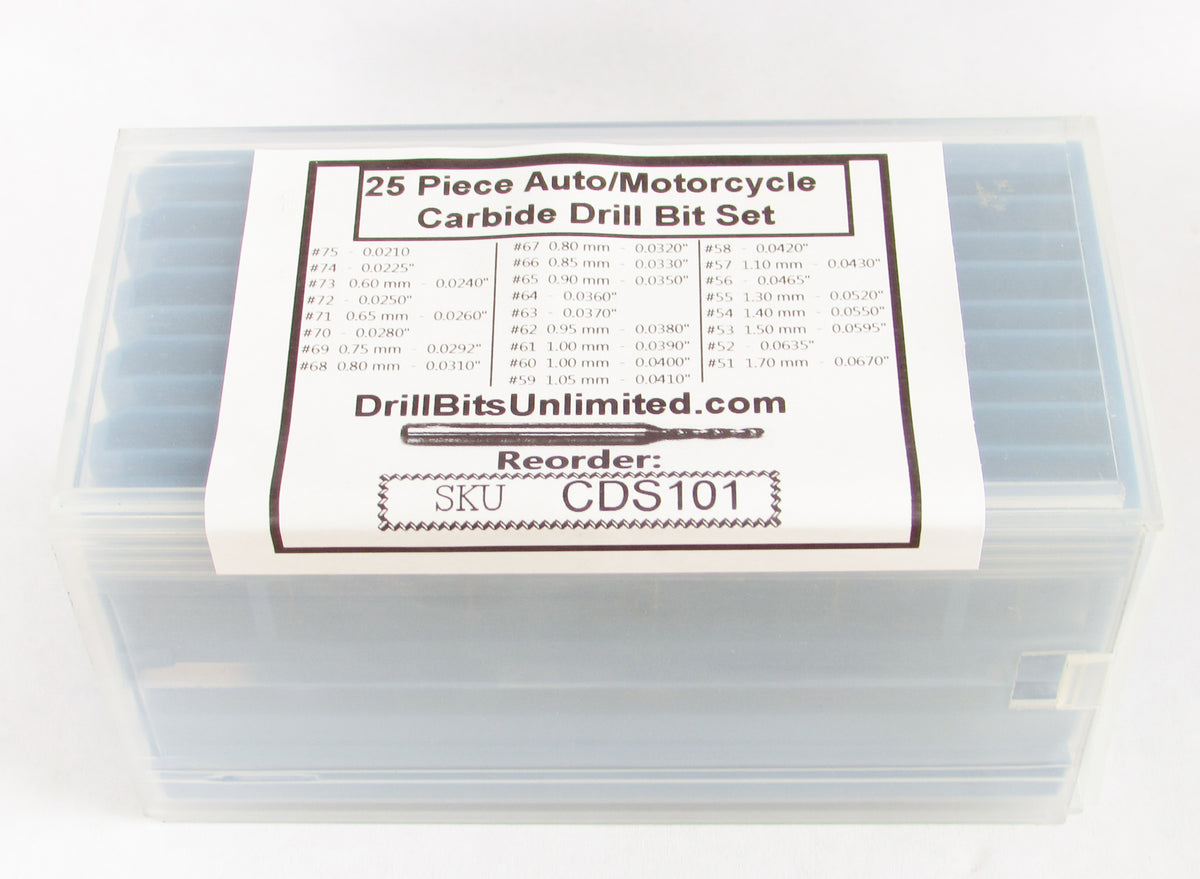

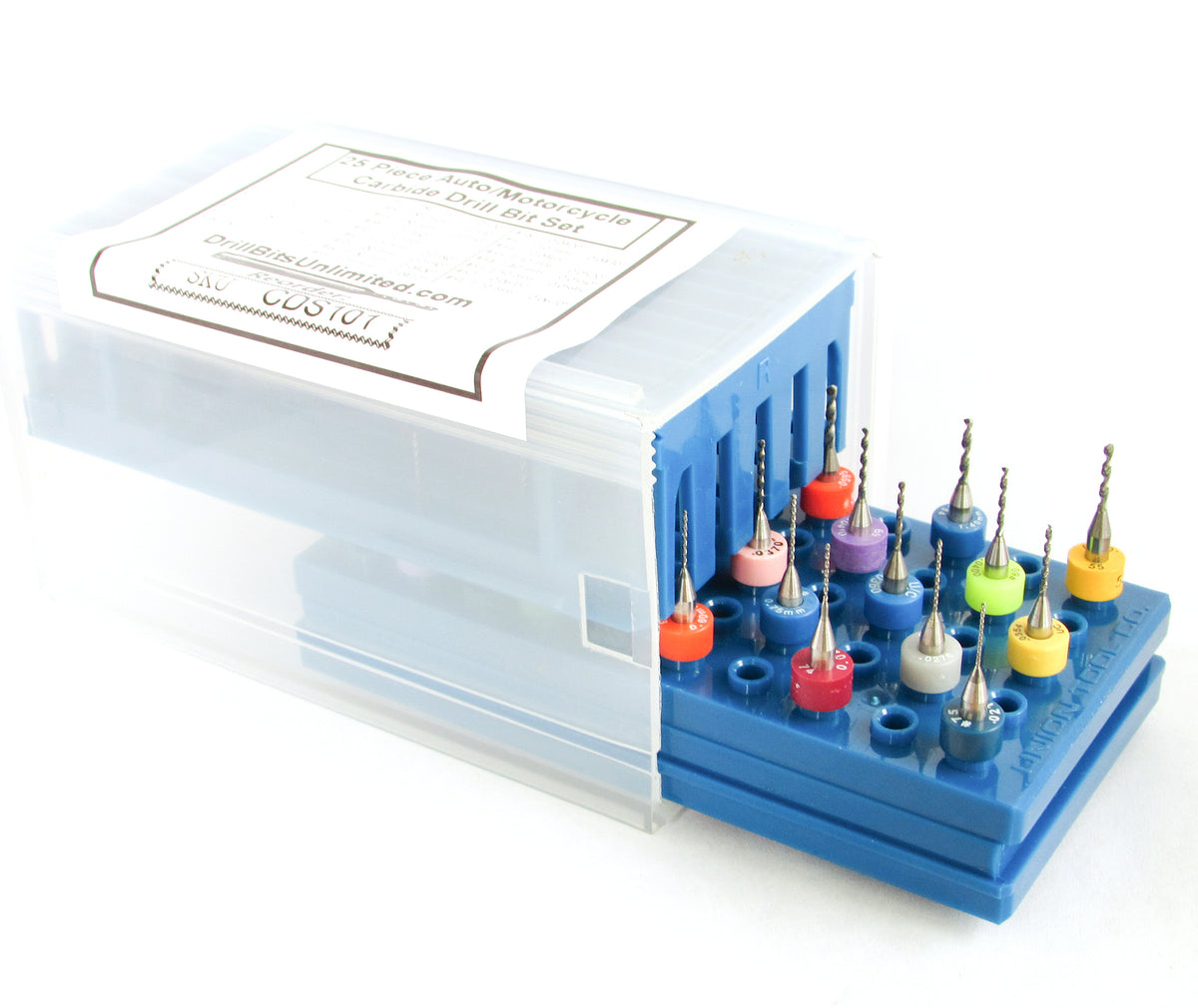

• Protective indexed plastic storage case included

Common Uses

• Carburetor jet checking and sizing
• Cleaning restricted or partially blocked jet openings
• Matching existing jet orifice diameters
• Careful brass carburetor jet resizing
• Main and pilot jet work
• Small-engine carburetors
• Motorcycle, scooter, ATV, kart, go-kart, and RC applications
• Other small fuel-metering and precision-hole applications

Factory Resharpened Solid Carbide

These are factory resharpened solid carbide drills. They are not new drills. Factory resharpening provides a practical lower-cost way to obtain a broad range of professional-style carbide micro drill sizes.

The full 1/8" shanks provide substantially greater rigidity than lightweight wire-style hobby drill assortments.

Use note: Solid carbide is extremely hard and wear resistant, but it is also brittle. Use a pin vise, drill press, milling machine, CNC machine, micro-drill fixture, or other controlled holder that keeps the drill straight. Avoid side pressure, bending, forcing the drill, or using the drill like a reamer.

Important Carburetor Jet Information

Carburetor jet numbers do not always correspond directly to the physical bore diameter, and numbering systems can vary by manufacturer and jet series. Verify the actual diameter required before modifying a jet.

Drilling a jet is a permanent modification. When enlarging an existing opening, increase the diameter gradually. Fuel flow can also be affected by the shape, length, entry, exit, and finish of the metering passage, not only its diameter.

Frequently Asked Questions

Are these new drills?
No. These are factory resharpened solid carbide drills.

Are these numbered drill sizes?
Yes. This set includes every numbered size from #75 through #51.

How many drills are included?
25 drills total — one drill of each size.

Does this set include backup drills?
No. This set contains one drill of each size. If you want duplicate backup drills, the D7 #80–#56 set includes two drills per size.

Can these be used for carburetor jets?
Yes, when the required jet orifice diameter falls within the included #75–#51 (.0210"–.0670") range.

Are these solid carbide or carbide tipped?
These are solid carbide micro drills, not carbide-tipped drills.

Can these be used by hand?
Yes, carefully in a pin vise or other controlled holder. Keep the drill straight and avoid side loading.
