0.35mm–0.80mm Keihin Pilot & Slow Jet Drill Set, 10 Pc Solid Carbide | CDS-K10

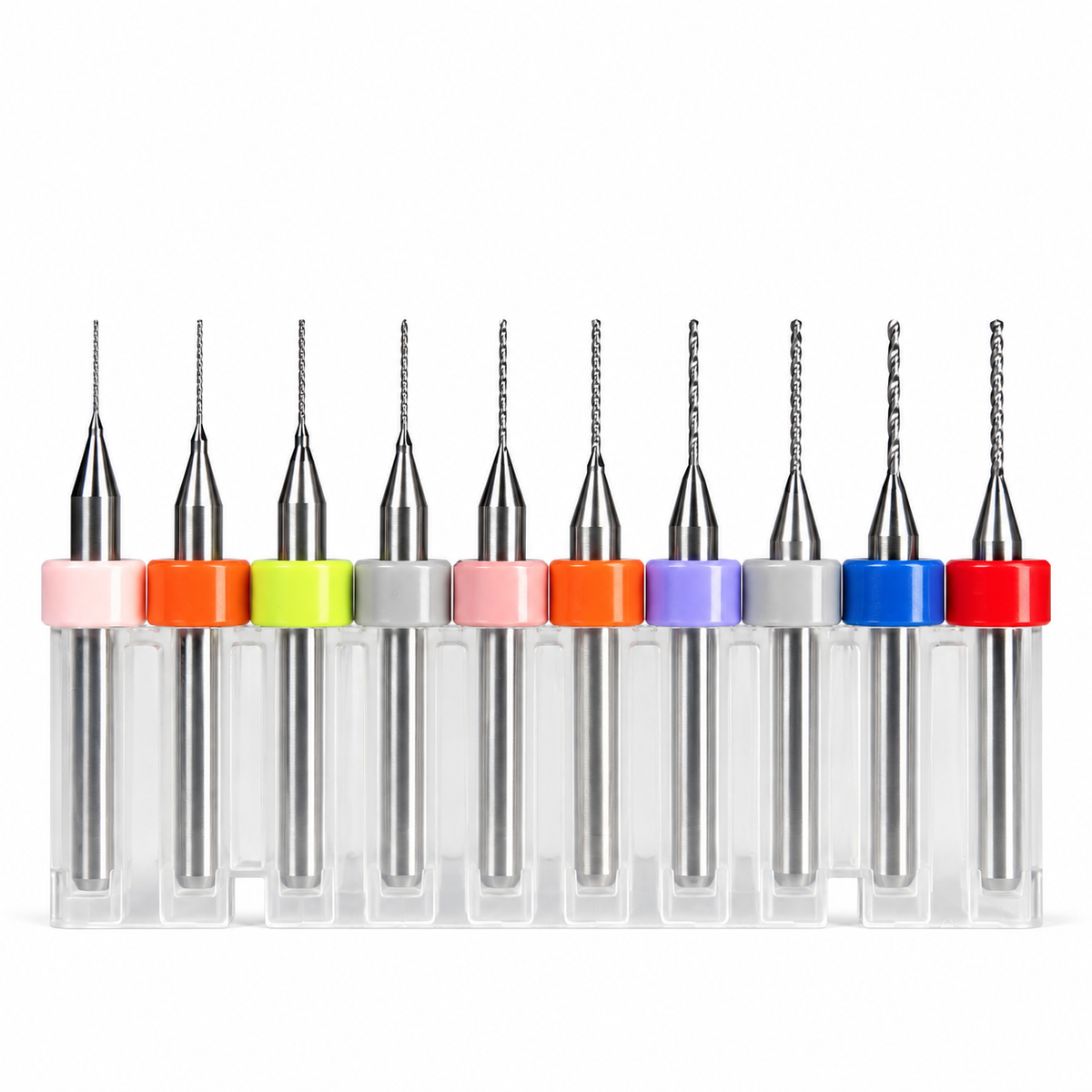

10 Pc Keihin Pilot & Slow Jet Drill Set – 0.35mm to 0.80mm

This 10-piece factory resharpened solid carbide micro drill set is selected specifically for small Keihin pilot and slow jet work, with one drill each from 0.35 mm through 0.80 mm in 0.05 mm increments.

A compact choice for checking, matching, cleaning, and careful resizing of Keihin-style small jet orifices when the required diameter is known.

Included Sizes – 10 Pieces Total

Includes one drill each of the following metric sizes:

• 0.35 mm — approx. .0138"
• 0.40 mm — approx. .0157"
• 0.45 mm — approx. .0177"
• 0.50 mm — approx. .0197"
• 0.55 mm — approx. .0217"
• 0.60 mm — approx. .0236"
• 0.65 mm — approx. .0256"
• 0.70 mm — approx. .0276"
• 0.75 mm — approx. .0295"
• 0.80 mm — approx. .0315"

Specifications

• 10 drills total — one of each listed size
• Factory resharpened solid carbide
• Metric cutting diameters from 0.35 mm through 0.80 mm
• Standard 1/8" (3.175 mm) shank
• Approximately 1.50" overall length

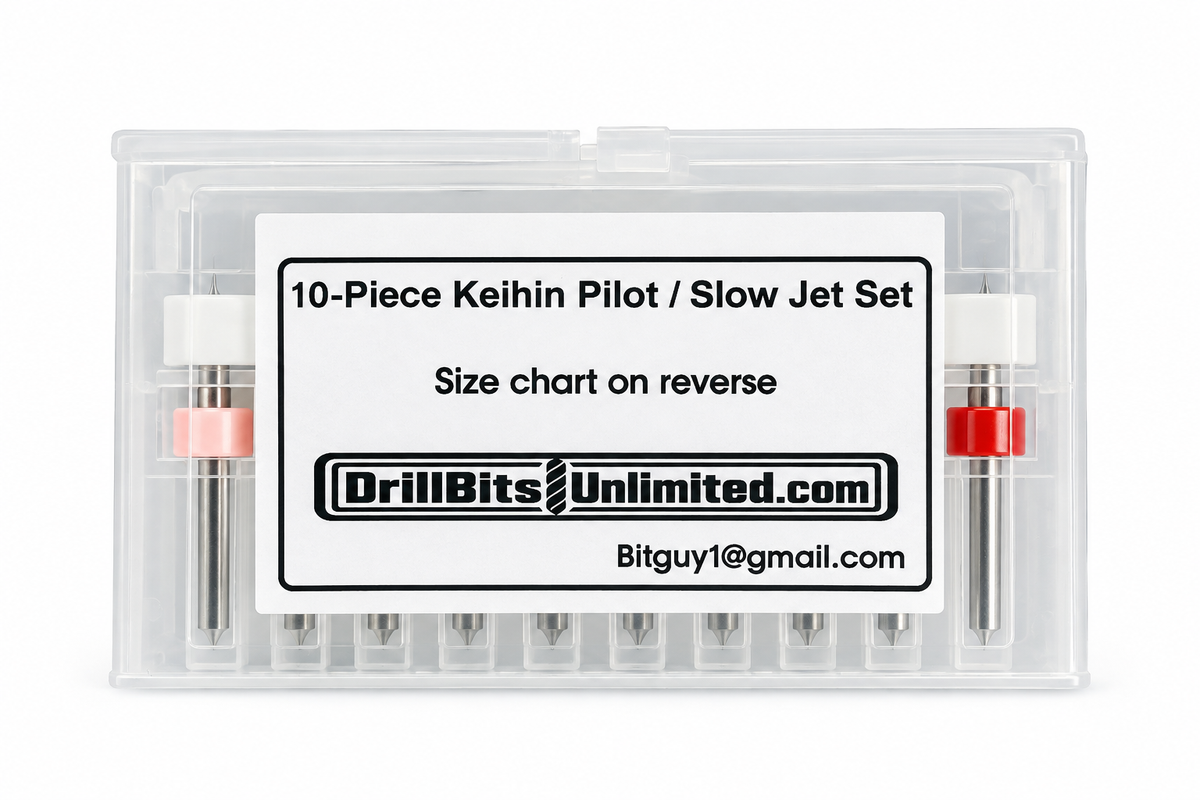

• Indexed plastic storage case included

Common Uses

• Keihin pilot jet work
• Keihin slow jet work
• Checking and matching small jet orifice sizes
• Careful cleaning of small brass carburetor jets
• Controlled jet resizing when the required bore diameter is known
• Motorcycle, ATV, scooter, dirt bike, kart, go-kart, and small-engine carburetor work

Factory Resharpened Solid Carbide

These are professional-grade solid carbide micro drills that have been factory resharpened, providing a cost-effective alternative to new carbide drills.

The full 1/8" shanks provide substantially greater rigidity than lightweight wire-style hobby drill assortments.

These are not new drills. They are factory resharpened tools that have been prepared for continued precision use.

Important Use Information

Solid carbide is extremely hard and wear resistant, but it is also brittle. Use a pin vise, drill press, milling machine, micro-drill fixture, or other controlled holder that keeps the drill straight.

Avoid side pressure, bending, or forcing the drill. These tools are intended for careful precision work rather than flexible hand drilling.

Important Keihin Jet Note

Keihin jet numbering varies by jet type and series, and not every Keihin jet size is included in this set.

Verify the actual jet type and required bore diameter before drilling.

Drilling a jet is a permanent modification. Increase the opening gradually. Fuel flow can also be affected by the shape, length, entry, exit, and finish of the metering passage, not only its diameter.

Frequently Asked Questions

Are these new drills?
No. They are factory resharpened solid carbide drills.

What sizes are included?
One drill each in 0.35, 0.40, 0.45, 0.50, 0.55, 0.60, 0.65, 0.70, 0.75, and 0.80 mm.

Does this set include every Keihin pilot or slow jet size?
No. Keihin uses additional intermediate sizes in some jet series. This set is a selected-size assortment covering ten common metric reference sizes.

Can these be used by hand?
Yes, carefully in a pin vise or other controlled holder. Because solid carbide is brittle, keep the drill straight and avoid side loading.

Will this set work with every Keihin carburetor?
Not necessarily. Keihin carburetors use multiple jet types and size ranges. Confirm the jet type and required diameter before purchasing or modifying a jet.
