10 Pc Titanium Coated Diamond Flute Carbide Router Bit Set, Fish Tail, 1/8" Shank | RSET-100
10 Pc Titanium Coated Diamond Flute Carbide Router Bit Set, Fish Tail, 1/8" Shank | RSET-100
Buy more and Save!
| Minimum Qty | Discount |
|---|---|
| 10 + | 5% off |
| 25 + | 8% off |
| 50 + | 12% off |
| 100 + | 14% off |
Couldn't load pickup availability

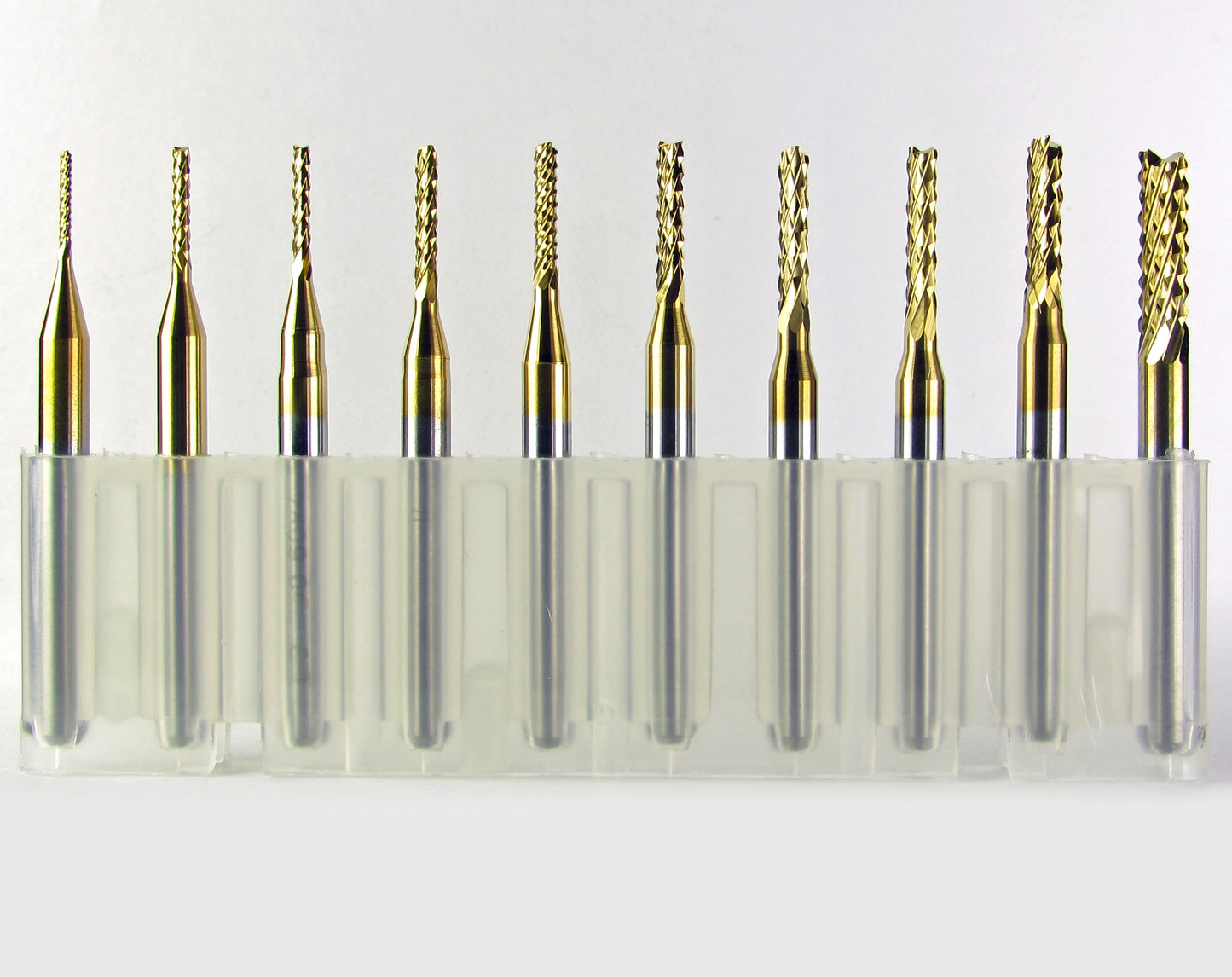

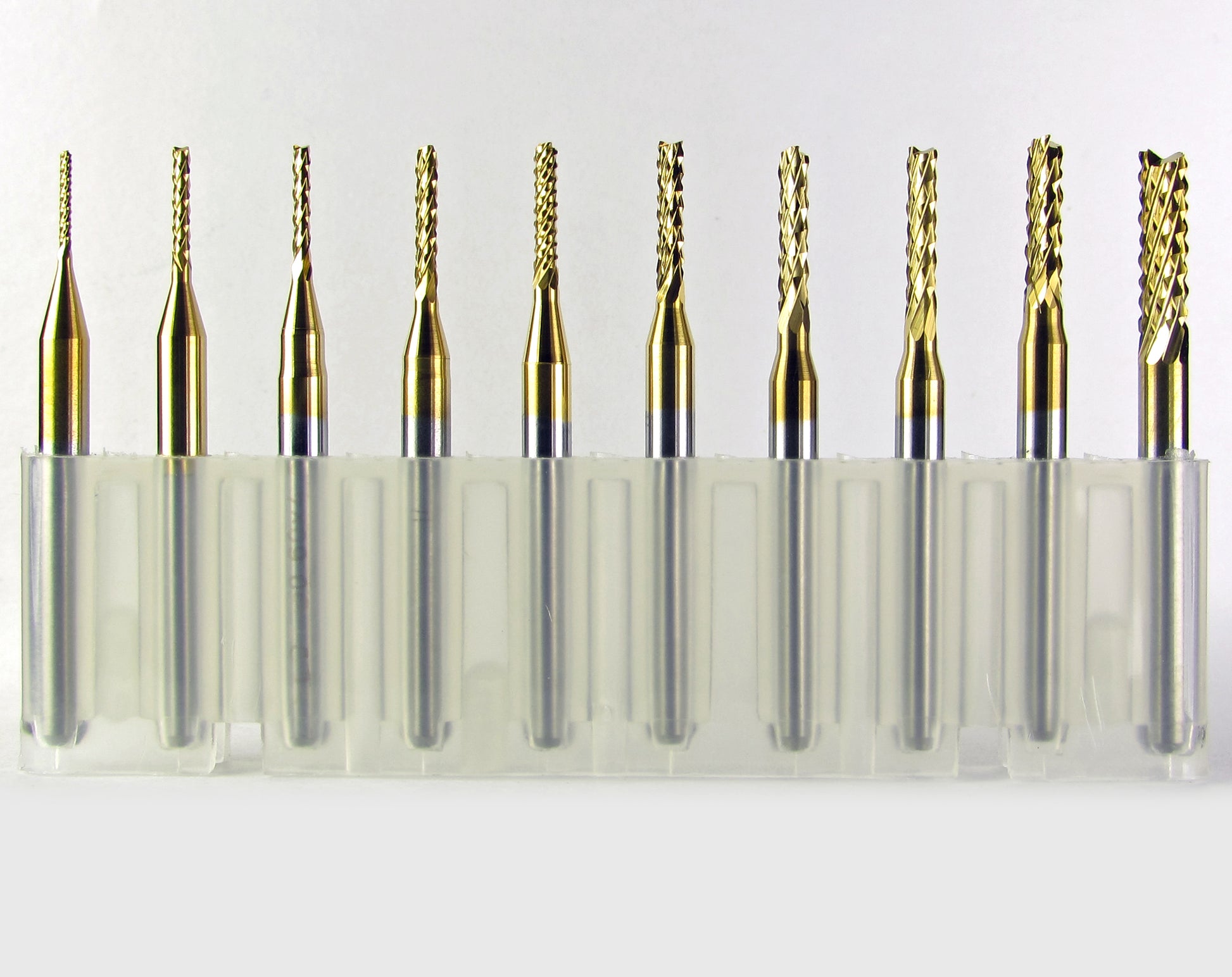

This 10-piece titanium coated diamond flute carbide router bit set includes one piece each of ten assorted cutting diameters, ranging from 0.0315" (1/32" / 0.80mm) through 0.1250" (1/8"). Each router bit features diamond pattern flute geometry, a fish tail tip, solid carbide construction, and a standard 1/8" shank.

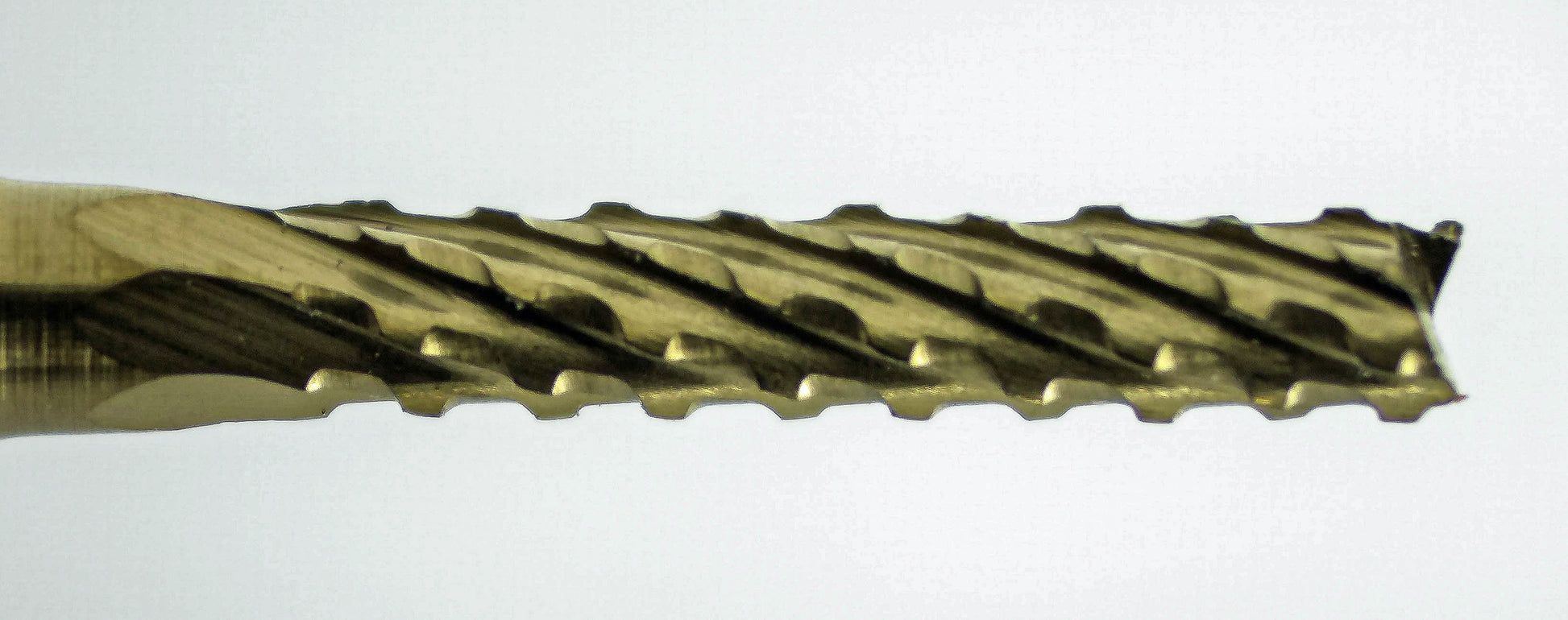

The diamond pattern flute geometry is well suited for routing abrasive and layered materials such as FR-4, G-10, fiberglass, carbon fiber, phenolic, and similar composite sheet materials. The fine multi-edge cutting pattern helps distribute cutting forces and can help reduce chipping, delamination, and edge damage in brittle or layered workpieces.
The fish tail tip is useful for controlled entry into brittle or layered materials, helping reduce chipping and delamination at the surface. The titanium coating helps reduce friction and improve wear resistance compared with uncoated tools in suitable applications.
This set is a practical choice for users who need multiple small router diameters for PCB routing, composite trimming, fiberglass cutting, laminate profiling, prototyping, and general CNC routing work where several sizes may be needed.
👉 View Diamond Flute Router Feed & Speed Chart

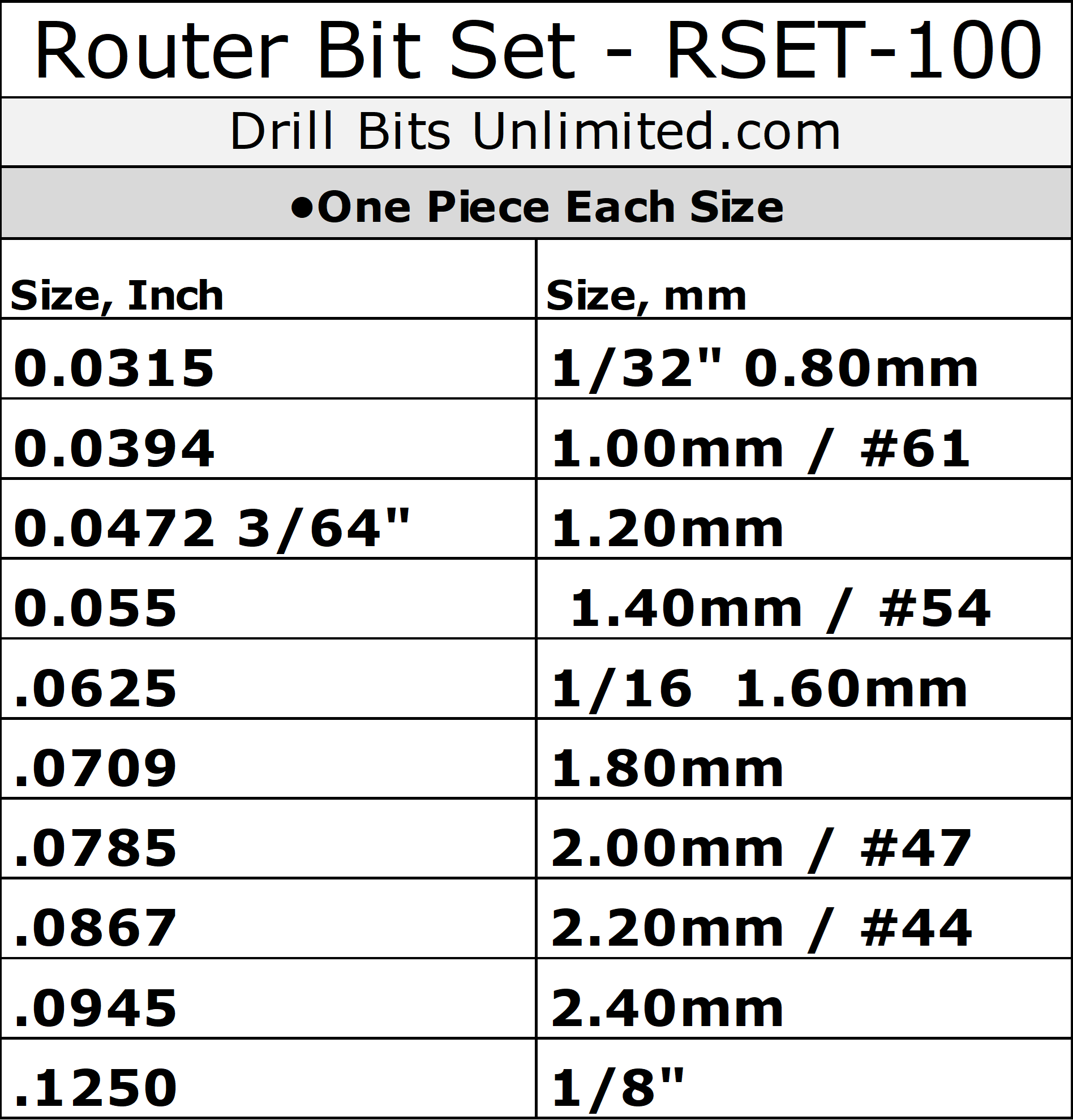

Set Includes
| Quantity | Diameter | Metric / Alternate Size |
|---|---|---|
| 1 pc | 0.0315" / 1/32" | 0.80mm |
| 1 pc | 0.0394" | 1.00mm / #61 |
| 1 pc | 0.0472" / 3/64" | 1.20mm |
| 1 pc | 0.055" | 1.40mm / #54 |
| 1 pc | 0.0625" / 1/16" | 1.60mm |
| 1 pc | 0.0709" | 1.80mm |
| 1 pc | 0.0785" | 2.00mm / #47 |
| 1 pc | 0.0867" | 2.20mm / #44 |
| 1 pc | 0.0945" | 2.40mm |
| 1 pc | 0.1250" / 1/8" | 3.175mm |
Typical Applications
- PCB routing and depaneling
- FR-4 and G-10 contour cutting
- Fiberglass and phenolic laminate routing
- Carbon fiber sheet profiling
- Composite trimming and edge finishing
- Prototyping and CNC work requiring multiple router diameters
Benefits
- Assorted 10-piece set gives multiple useful router diameters in one listing
- Diamond flute / diamond pattern geometry is well suited for abrasive composite materials
- Fish tail tip supports controlled entry and helps reduce surface chipping and delamination
- Titanium coating helps reduce friction and improve wear resistance in suitable routing applications
- Solid carbide construction provides rigidity and cutting precision
- 1/8" shank fits many CNC routers, spindles, and precision collet setups
Specifications
| SKU | RSET-100 |
|---|---|
| Tool Type | Carbide Router Bit Set |
| Set Quantity | 10 Pieces |
| Included Sizes | 0.0315", 0.0394", 0.0472", 0.055", 0.0625", 0.0709", 0.0785", 0.0867", 0.0945", 0.1250" |
| Flute Geometry | Diamond Flute / Diamond Pattern |
| Tip Style | Fish Tail |
| Length of Cut | Varies by diameter |
| Overall Length | 1.50" |
| Shank Diameter | 1/8" |
| Material | Solid Carbide |
| Coating | Titanium Coated / TiN |

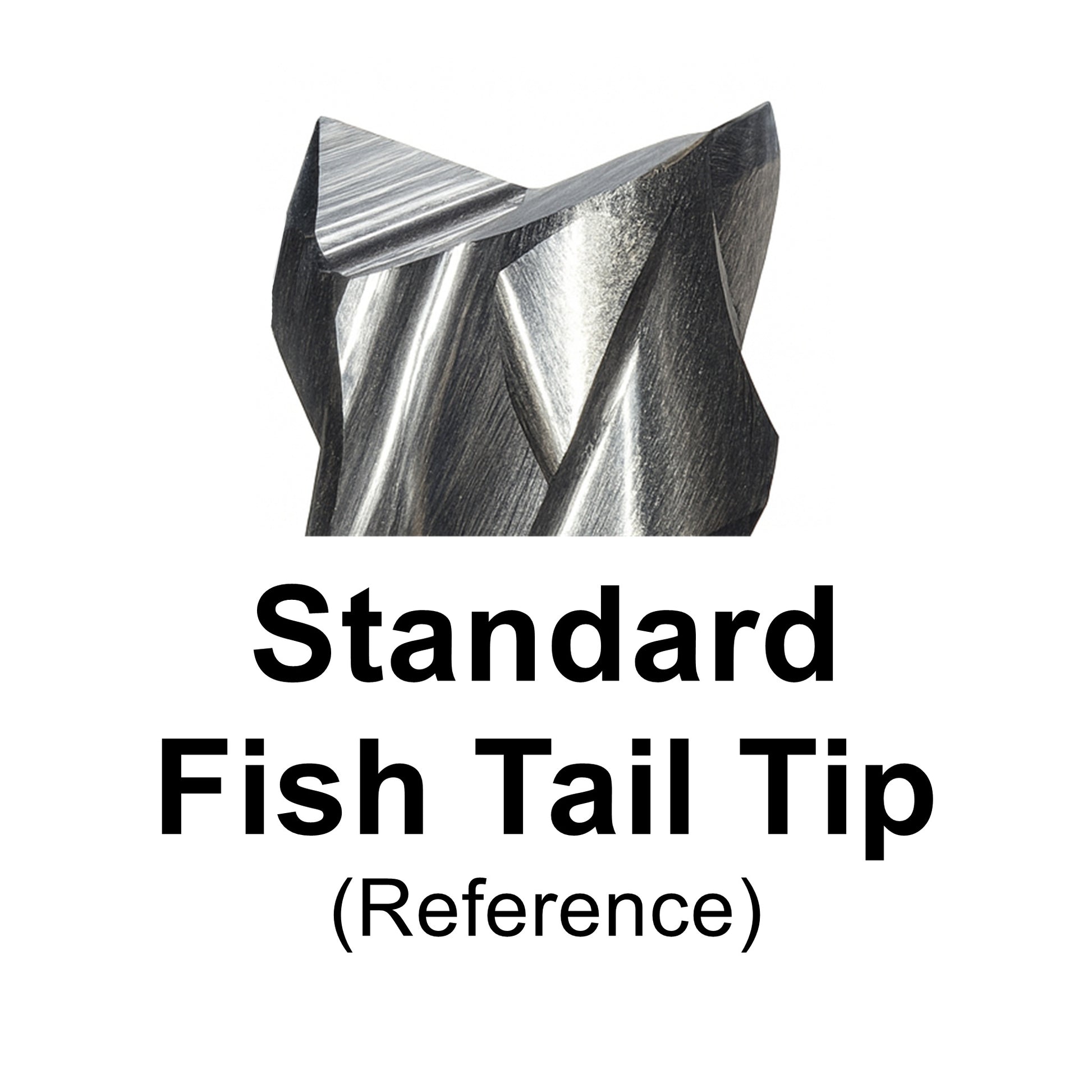

Tip style: Fish Tail — controlled entry into brittle or layered materials, helping reduce chipping and delamination at the surface.
Shop individual diamond flute router bits here: diamond flute routers →
About Diamond-Cut Routers:
Learn why diamond-cut routers excel at machining composites →
