0.0354" (0.90mm) x .150" LOC Diamond Flute Carbide Router, Fish Tail Tip, 1/8" Shank | R108

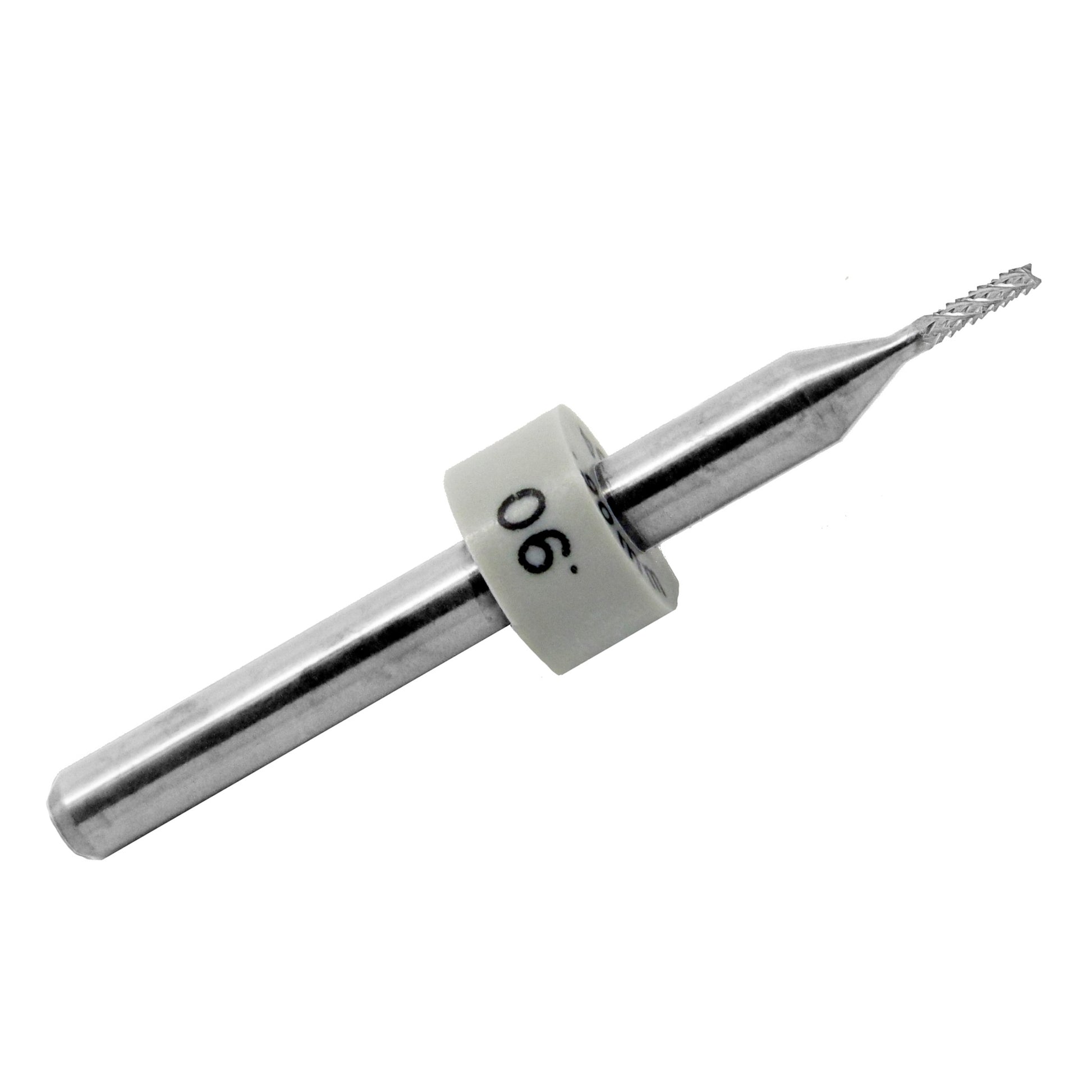

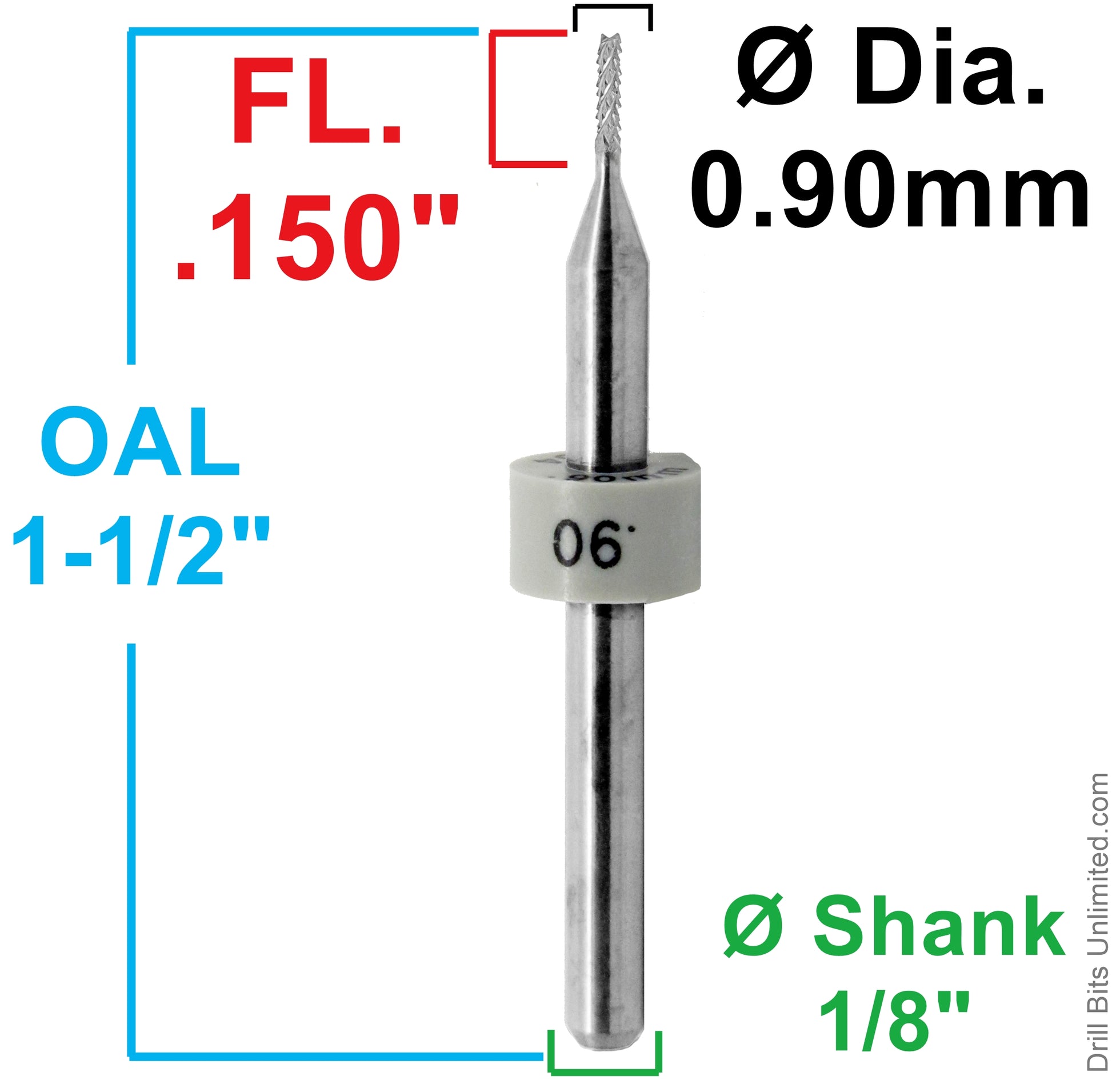

This Kyocera diamond pattern carbide router features a 0.0354" (0.90mm) cutting diameter, .150" LOC, 1-1/2" overall length, and a 1/8" shank, making it ideal for precision routing in abrasive composite materials.

The diamond pattern geometry uses a fine, multi-edge cutting structure that is gentler on brittle and fracture-prone materials, helping reduce chipping, delamination, and edge damage.

This router is optimized for FR-4, G10, fiberglass, phenolic laminates, carbon fiber, and other abrasive composites, where maintaining clean edges and dimensional accuracy is critical.

For extended tool life in highly abrasive materials, consider upgrading to our diamond-coated (PCD) routers →

The up-cut design improves chip evacuation and helps produce cleaner bottom-edge cut quality.

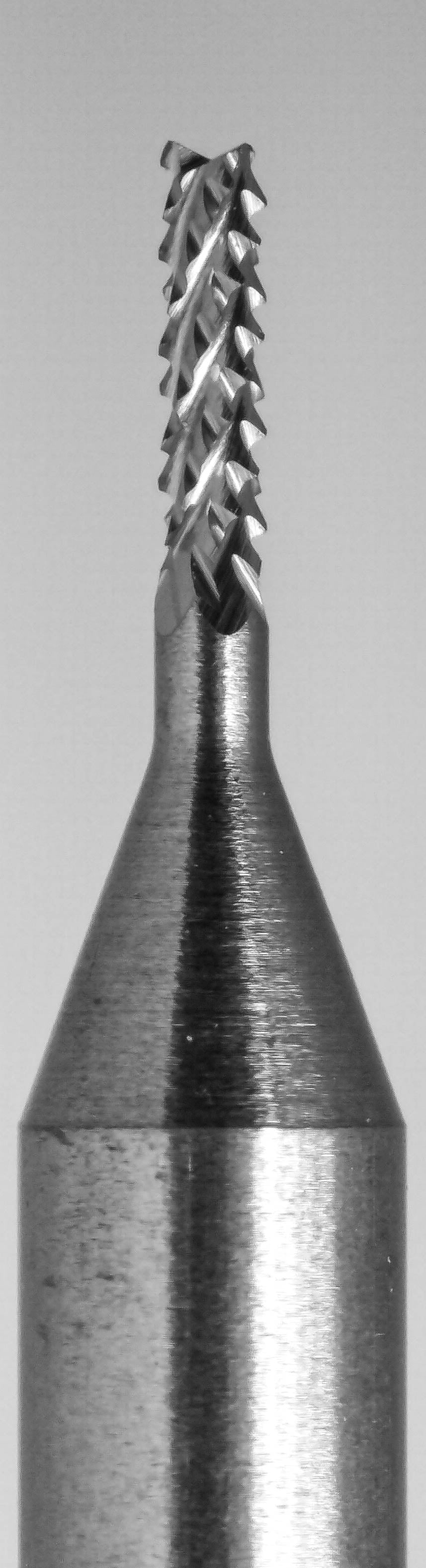

This tool features a fish tail tip, ideal for controlled entry into brittle or layered materials, helping minimize chipping and surface delamination.

👉 View Diamond Flute Router Feed & Speed Chart

Typical Applications

• PCB routing (FR-4, G10)
• Fiberglass and phenolic laminate cutting
• Carbon fiber routing
• Abrasive composite machining
• Fine detail routing and shallow passes

Benefits

• Diamond pattern geometry reduces chipping and delamination
• Up-cut design improves chip evacuation and bottom-edge finish
• Fish tail tip provides clean, controlled entry into brittle materials
• Short .150" LOC offers increased rigidity and precision
• Solid carbide construction ensures durability in abrasive materials

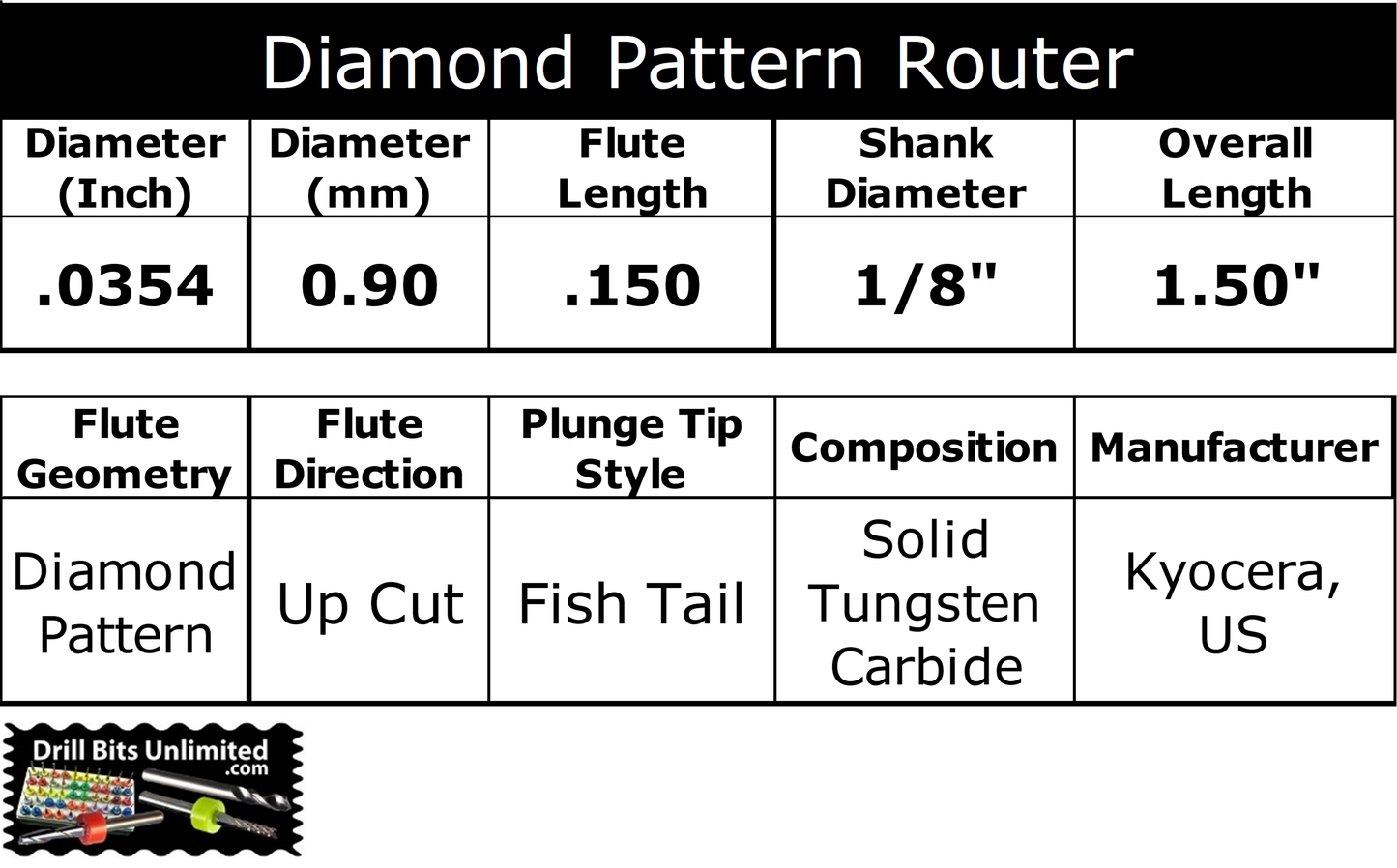

Specifications

Tip style: Fish Tail — gentle entry to reduce delamination in brittle or layered materials.
