0.0500" (1.27mm) × .250" LOC Diamond Flute PCB Router, Drill Point, 1/8" Shank | R123

0.0500" (1.27mm) × .250" LOC Diamond Flute PCB Router, Drill Point, 1/8" Shank | R123

Regular price $4.49 USD
Regular price Sale price $4.49 USD
Sale Sold out
Sold individually — price is per bit
Shipping calculated at checkout.
Quantity

Buy more and Save!

Minimum Qty Discount
10 + 5% off
25 + 7% off
50 + 9% off
100 + 10% off

0.0500" (1.27mm) Diamond-Flute PCB Router | .250" LOC | Drill Point | Up-Cut

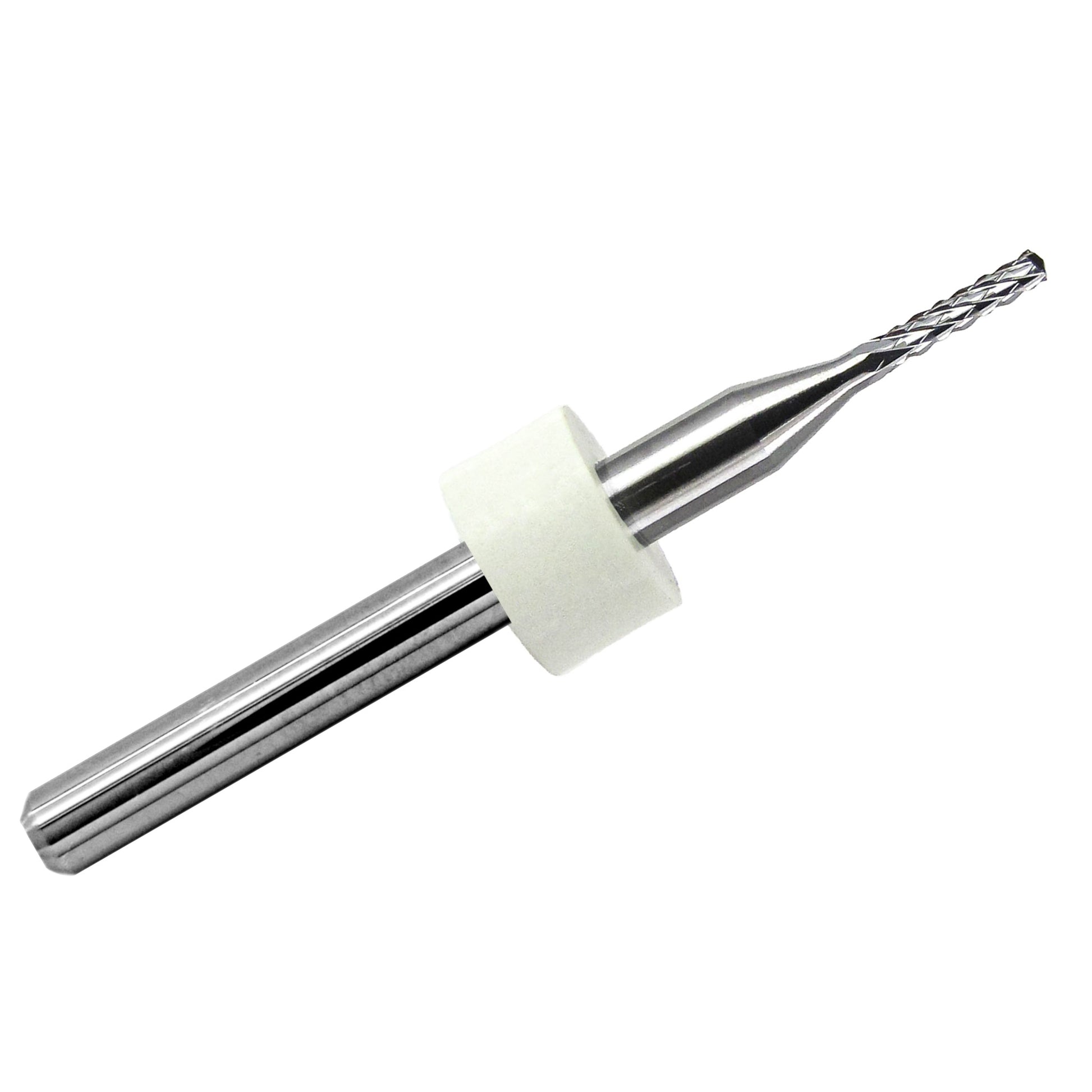

The R123 solid carbide diamond-flute router features a 0.0500" (1.27mm) cutting diameter, 0.250" (6.35mm) length of cut, and standard 1/8" (3.175mm) shank. Designed for precision routing of FR4/G10 printed circuit board laminates, fiberglass, phenolic materials, and other abrasive composites.

Its diamond-pattern cutting geometry features numerous intersecting cutting edges for controlled material removal. The drill-point tip supports direct plunge entry under suitable cutting conditions, making this router useful for PCB profiling, slots, internal cutouts, and detailed contours.

Key Features

  • 0.0500" (1.27mm) cutting diameter: Narrow cutting width for PCB outlines, slots, and precision profiling
  • 0.250" (6.35mm) LOC: Cutting reach for suitable PCB laminates and composite sheets
  • Diamond-flute geometry: Multiple intersecting cutting edges help control chipping, fraying, and fiber pull-out under appropriate machining conditions
  • Drill-point tip: Facilitates direct plunge entry when starting internal cutouts and slots in suitable materials
  • Up-cut configuration: Assists upward removal of routing chips and debris
  • Solid tungsten carbide: Provides rigidity and resistance to abrasive wear
  • 1/8" shank: Fits compatible precision CNC spindle collets and tool holders

Diamond-Flute Geometry & Drill-Point Tip

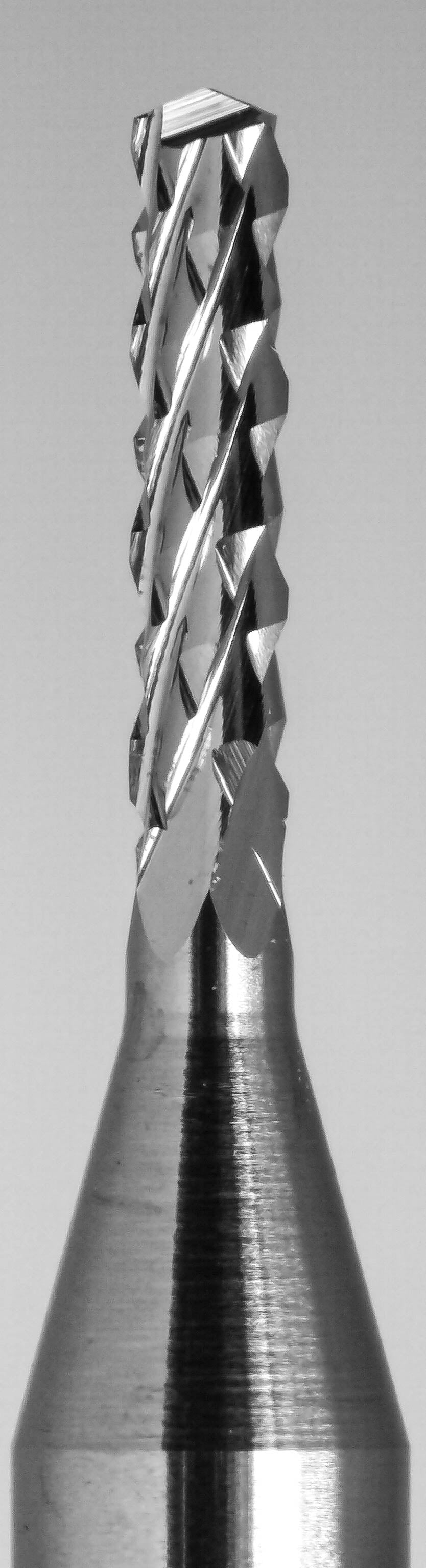

Diamond-flute routers, also called diamond-cut or diamond-pattern routers, have numerous small, intersecting cutting edges rather than conventional continuous spiral flutes. This geometry is commonly used for machining fiberglass-reinforced and layered materials where controlling edge damage is important.

The drill-point tip is designed to facilitate entry into suitable workpieces when starting slots and internal contours. Its performance depends on material, spindle speed, feed rate, machine rigidity, and secure workholding. It should not be assumed to withstand unlimited or aggressive plunge cutting.

The 0.250" cutting length provides 6.35mm of cutting reach. Select a flute length suitable for the workpiece thickness, and provide clearance beneath the material when through-cutting.

Important: Diamond-flute refers to the cutting-edge geometry. This is a solid carbide router, not a diamond-coated or PCD cutting tool.

Typical Applications

  • PCB board outlines, slots, and internal cutouts
  • FR4 and G10 fiberglass laminate routing
  • Phenolic and epoxy laminate cutting
  • Fiberglass-reinforced plastic and composite trimming
  • Carbon-fiber composites where uncoated carbide tooling is suitable
  • Precision CNC profiling, prototyping, and small-part fabrication

Technical Specifications

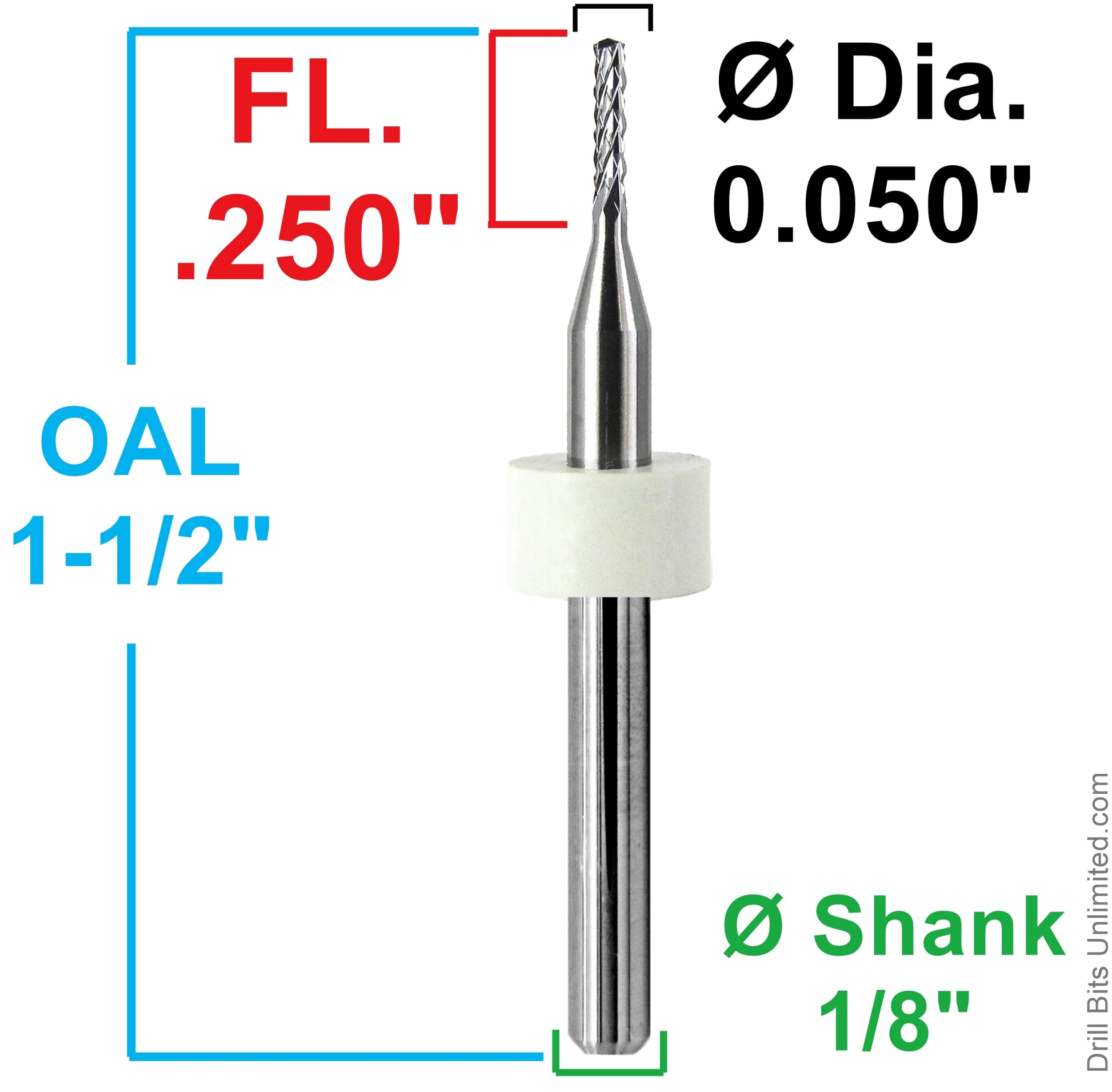

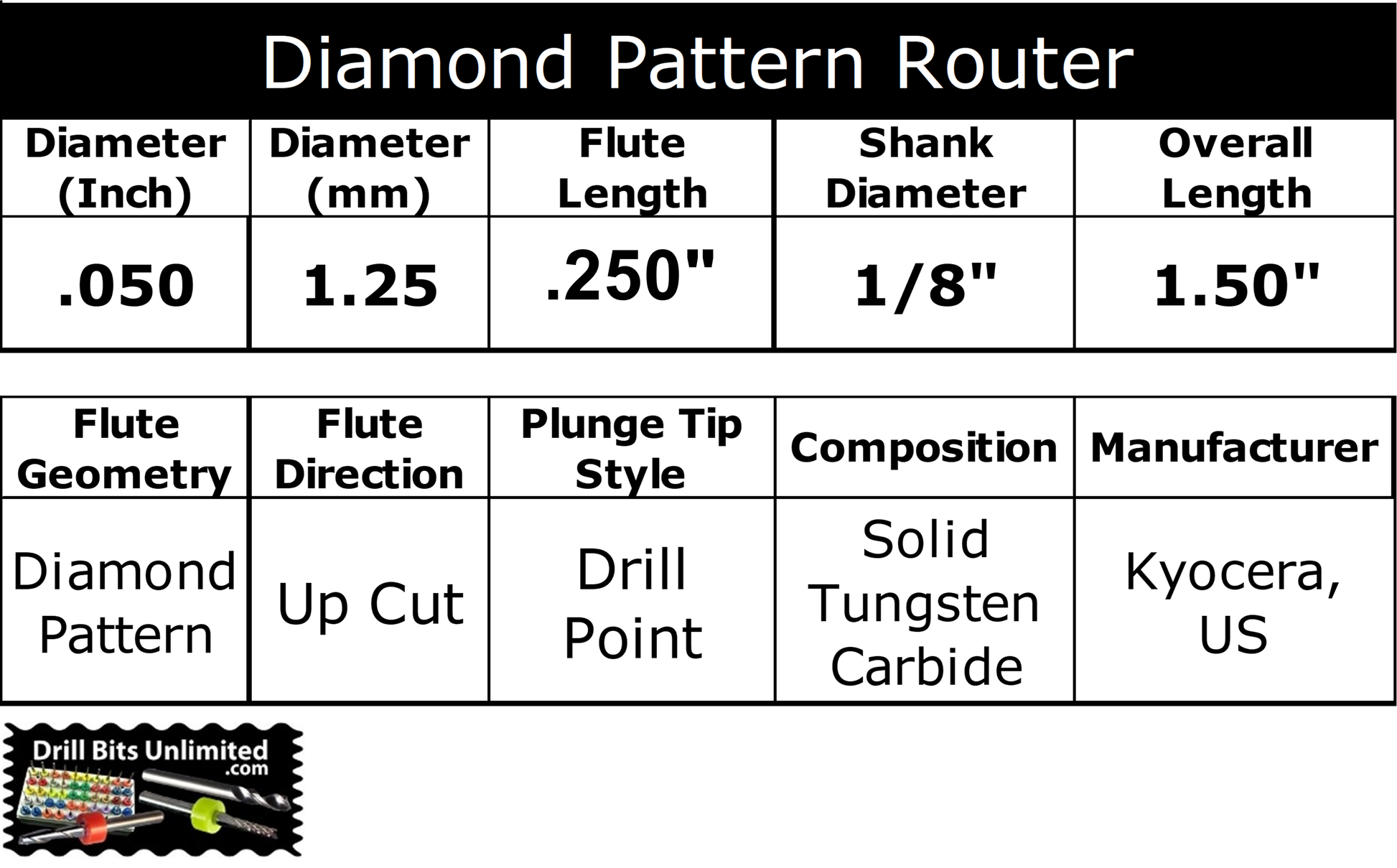

DBU SKU R123
Tool Type Diamond-Flute PCB Router
Cutting Diameter 0.0500" (1.27mm)
Length of Cut (LOC) 0.250" (6.35mm)
Shank Diameter 1/8" (3.175mm)
Overall Length 1.500" (38.10mm)
Flute Geometry Diamond Flute / Diamond Cut
Cut Direction Up-Cut
Tip Style Drill Point
Tool Material Solid Tungsten Carbide

Feeds & Speeds

Proper spindle speed, feed rate, cutting depth, secure workholding, and machine rigidity are important when routing PCB laminates and abrasive composite materials.

View Diamond-Flute Router Feed & Speed Chart for starting cutting recommendations for FR4, G10, fiberglass, and other PCB laminates.

Recommended settings are starting points only. Adjust for material, spindle capability, machine rigidity, tool condition, and depth of cut. Test on scrap material, avoid excessive cutting loads, and use appropriate dust extraction when machining fiberglass or carbon fiber.

Related Router Bits & Guides

Shop Diamond-Flute PCB Router Bits
Browse additional cutting diameters, flute lengths, and tip configurations.

Diamond-Flute Router Guide
Learn about diamond-pattern cutting geometry and selecting the appropriate router for PCB laminates and composites.

Prefer a fishtail tip? Our R122A Diamond-Flute Router has the same 0.0500" diameter and 0.250" LOC, but uses a fishtail tip instead of R123's drill-point tip.
