0.050" x .250" LOC Diamond Flute PCB Router, Fish Tail Tip, 1/8" Shank | R122A

0.050" x .250" LOC Diamond Flute PCB Router, Fish Tail Tip, 1/8" Shank | R122A

Regular price $4.49 USD
Regular price Sale price $4.49 USD
Sale Sold out
Sold individually — price is per bit
Shipping calculated at checkout.
Quantity

Buy more and Save!

Minimum Qty Discount
10 + 5% off
25 + 7% off
50 + 9% off
100 + 10% off

0.0500" (1.27mm) Diamond-Flute PCB Router | .250" LOC | Fish Tail | Up-Cut

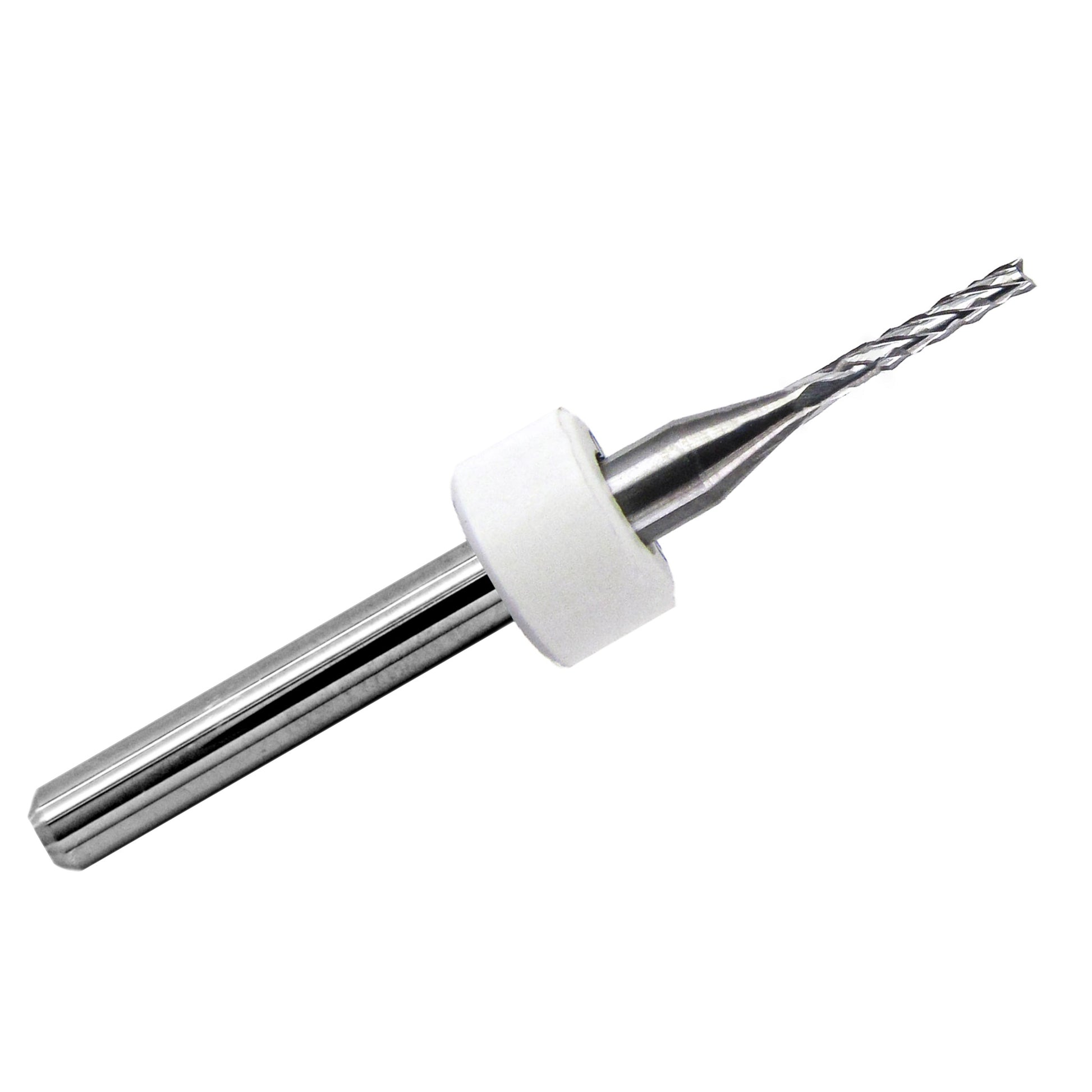

The R122A solid carbide diamond-flute router features a 0.0500" (1.27mm) cutting diameter, 0.250" (6.35mm) length of cut, and standard 1/8" (3.175mm) shank. Designed for precision routing of FR4/G10 circuit board laminates, fiberglass, phenolics, and other abrasive composite materials.

Its diamond-pattern cutting geometry features numerous small, intersecting cutting edges for controlled material removal. The fishtail tip provides end-cutting capability for suitable sheet materials, making this router useful for PCB profiling, outlines, slots, and through-cutting operations.

Key Features

  • 0.0500" (1.27mm) cutting diameter: Precise cutting width for PCB profiles, slots, and contours
  • 0.250" (6.35mm) LOC: Suitable cutting reach for PCB laminates and composite sheets within the available flute length
  • Diamond-flute geometry: Fine, intersecting cutting edges help control chipping, fraying, and fiber pull-out under suitable conditions
  • Fish tail tip: End-cutting geometry supports plunge entry and through-routing in appropriate sheet materials
  • Up-cut configuration: Helps move routing chips and debris upward during machining
  • Solid tungsten carbide: Provides rigidity and resistance to abrasive wear
  • 1/8" shank: Fits compatible precision CNC spindle collets and tool holders

Diamond-Flute Geometry & Fish Tail Tip

Diamond-flute routers, also called diamond-cut or diamond-pattern routers, have numerous small, intersecting cutting edges rather than conventional continuous spiral flutes. This geometry is commonly used for machining abrasive, brittle, and layered materials where limiting edge damage is important.

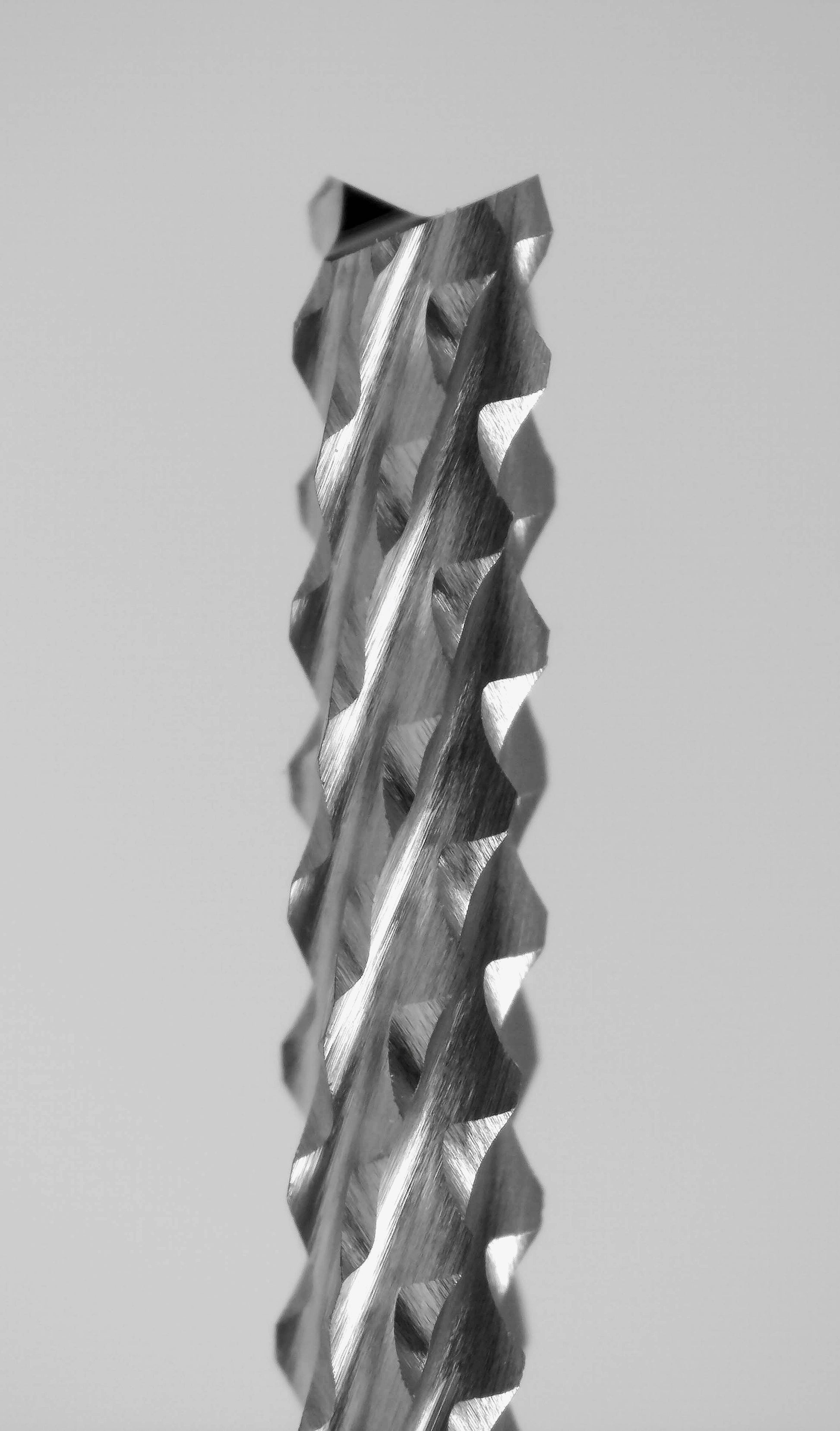

The fishtail tip features cutting edges at the tool end. Under appropriate machining conditions, it can help control edge damage during PCB profiling and through-cutting in fiberglass-reinforced laminates.

The 0.250" cutting length provides 6.35mm of cutting reach. For through-cutting, select a cutting length appropriate for the workpiece thickness and provide sufficient clearance beneath the material.

Important: Diamond-flute refers to the cutting geometry. This router is solid tungsten carbide, not diamond-coated or PCD tooling.

Typical Applications

  • PCB board outlines, slots, and cutouts
  • FR4 and G10 fiberglass laminate routing
  • Phenolic and epoxy laminate cutting
  • Fiberglass-reinforced composite trimming
  • Carbon-fiber composites where standard carbide tooling is suitable
  • Precision CNC routing, prototyping, and small-part fabrication

Technical Specifications

DBU SKU R122A
Tool Type Diamond-Flute PCB Router

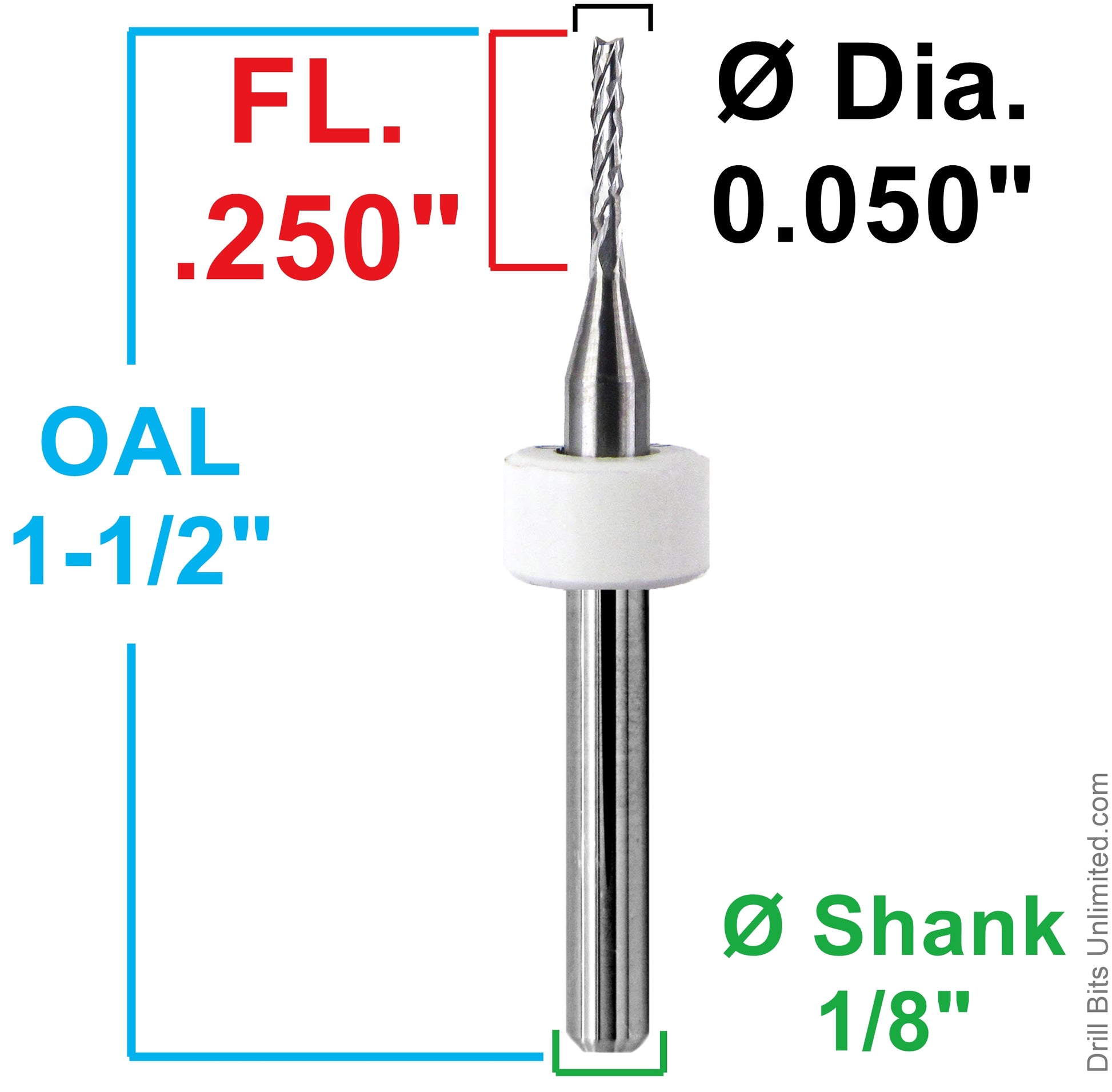

Cutting Diameter 0.0500" (1.27mm)
Length of Cut (LOC) 0.250" (6.35mm)
Shank Diameter 1/8" (3.175mm)
Overall Length 1.500" (38.10mm)
Flute Geometry Diamond Flute / Diamond Cut
Cut Direction Up-Cut
Tip Style Fish Tail
Material Solid Tungsten Carbide

Feeds & Speeds

Spindle speed, feed rate, cutting depth, secure workholding, and machine rigidity are important when machining fiberglass-reinforced and other abrasive laminates with small-diameter carbide routers.

View Diamond-Flute Router Feed & Speed Chart for starting cutting recommendations for FR4, G10, fiberglass, and PCB materials.

Cutting recommendations are starting points only. Actual settings depend on the material, machine rigidity, spindle capability, workholding, tool condition, and depth of cut. Test on scrap material and use appropriate dust extraction when machining fiberglass or carbon fiber.

Related Router Bits & Guides

Shop Diamond-Flute PCB Router Bits
Browse additional cutting diameters, flute lengths, and tip configurations.

Diamond-Flute Router Guide
Learn about diamond-pattern geometry and choosing between fishtail and drill-point tips.

Need a drill-point tip instead? Our R123 Diamond-Flute Router has the same 0.0500" diameter and 0.250" LOC, with a drill-point tip for an alternative plunge-entry geometry.
