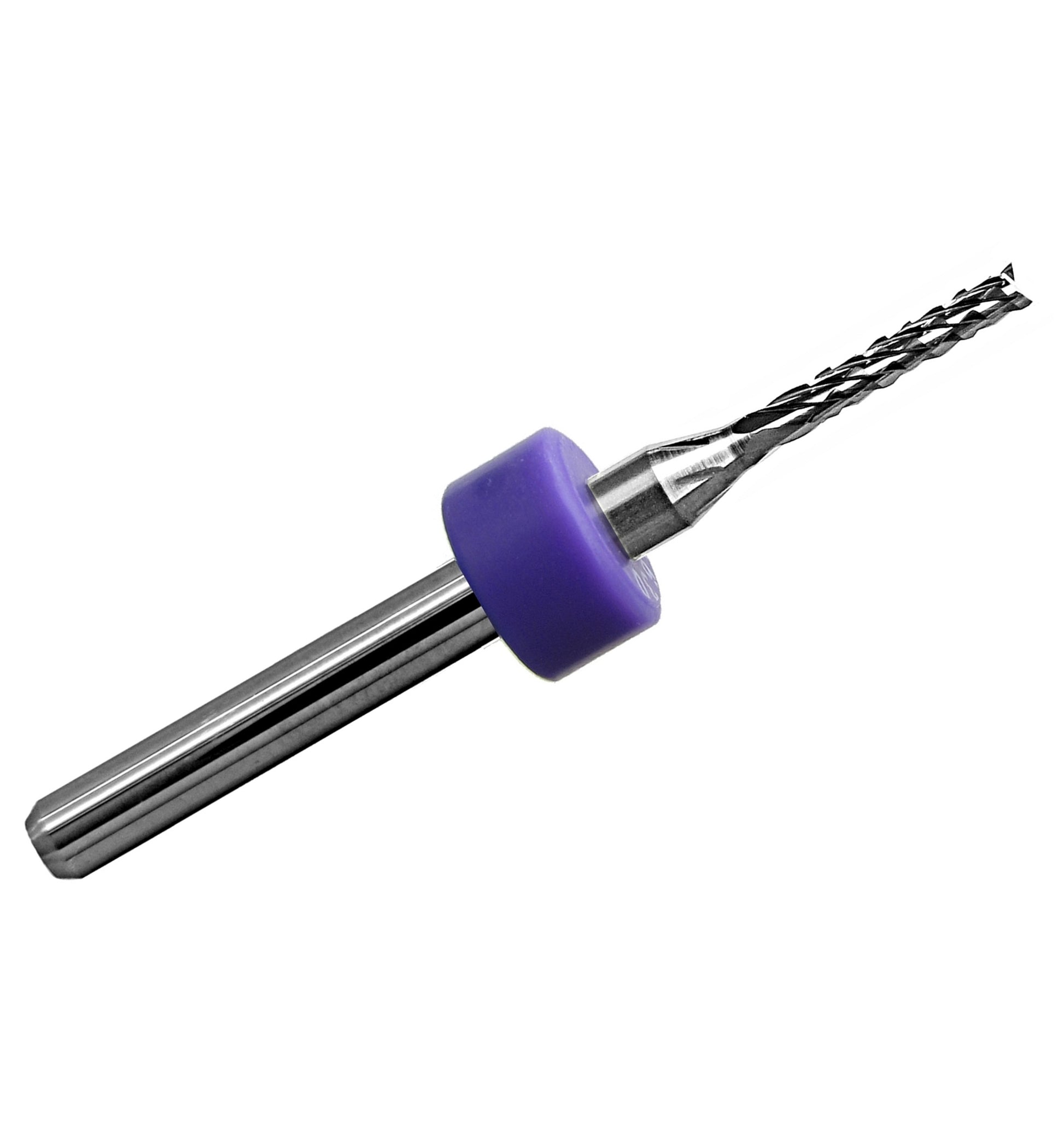

0.0625" (1/16") x .315" LOC Diamond Flute Carbide Router, Fish Tail Tip, 1/8" Shank | R132

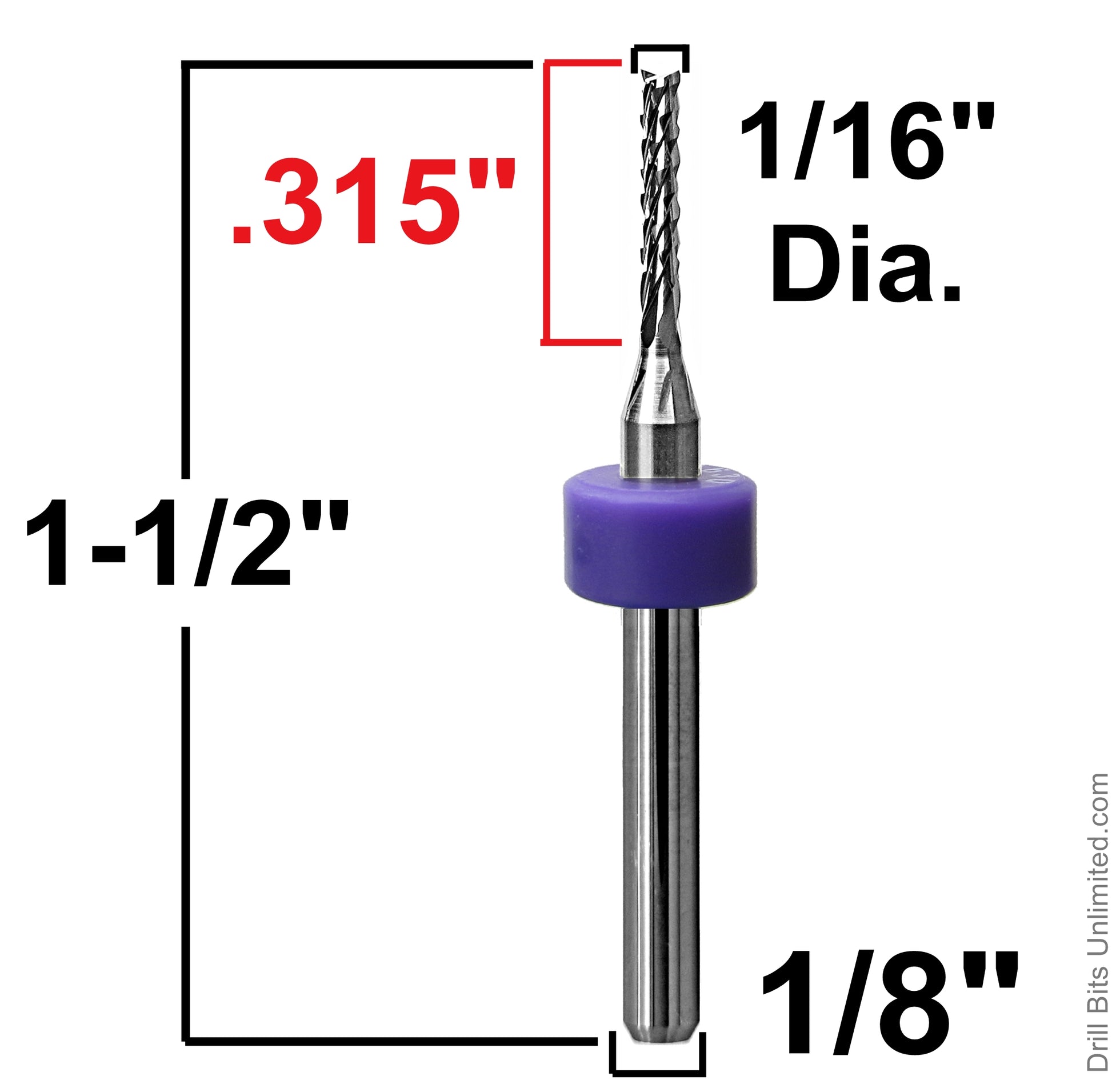

This 1/16" (0.0625") diamond flute carbide router features a .315" length of cut, 1-1/2" overall length, and a 1/8" shank, making it ideal for deeper routing applications requiring stability and control.

The diamond flute geometry uses a fine, multi-edge cutting structure that is gentler on brittle and layered materials, helping reduce chipping and edge damage while maintaining consistent cutting performance.

Optimized for PCB materials (FR-4, G10), fiberglass, phenolic laminates, carbon fiber, and other abrasive composites, this tool delivers clean edges and reliable results in demanding CNC environments.

For extended tool life in highly abrasive materials, explore our diamond-coated (PCD) routers →

The up-cut design improves chip evacuation and enhances bottom-edge cut quality, making it ideal for through-cuts and deeper routing operations.

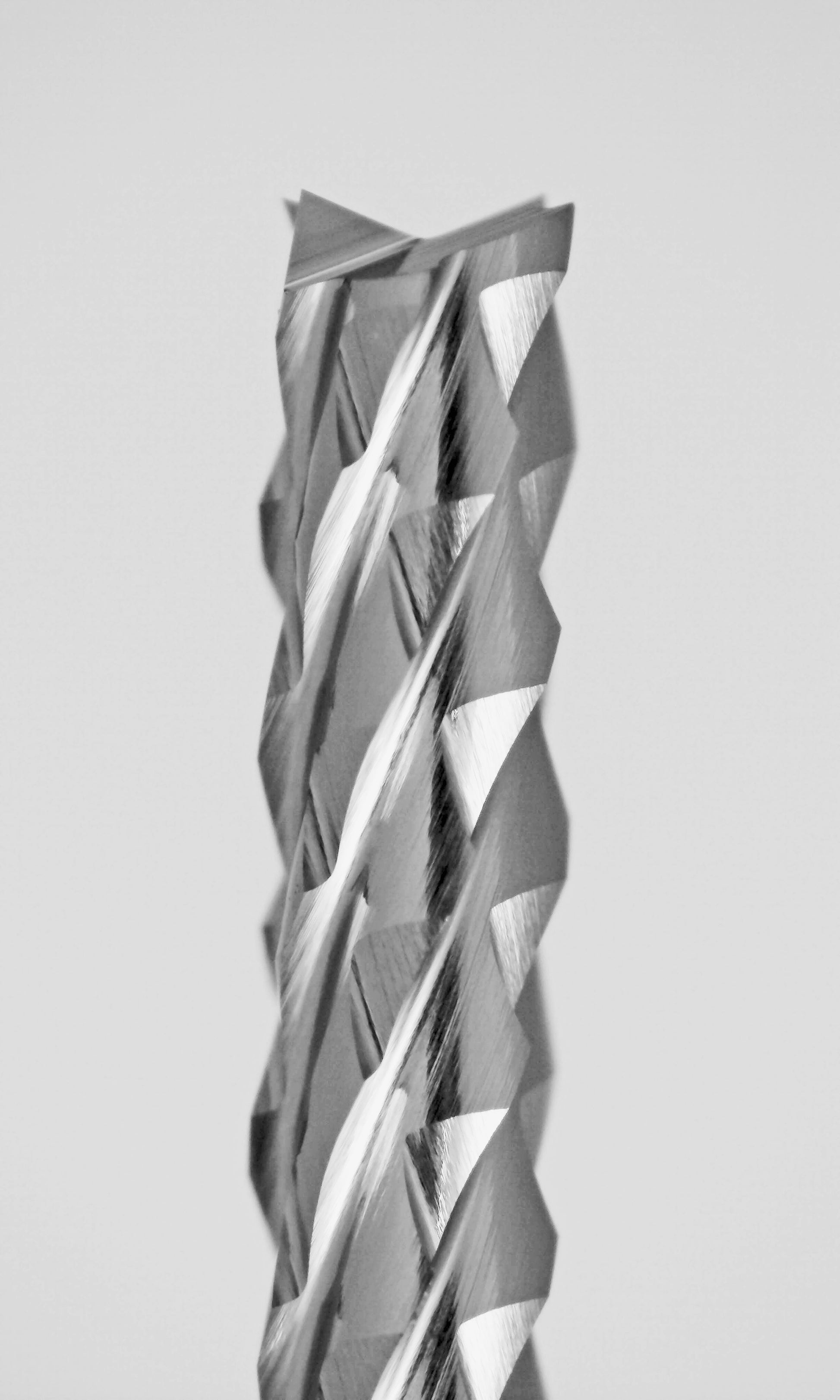

This tool features a fish tail tip, designed for smooth entry and reduced delamination, making it ideal for brittle and layered materials.

The extended .315" LOC provides greater cutting depth capability while maintaining precision and control.

👉 View Diamond Flute Router Feed & Speed Chart

Typical Applications

• PCB routing (1/16" tool size)
• Fiberglass and laminate cutting
• Carbon fiber machining
• Abrasive composite routing
• Deeper CNC routing operations

Benefits

• Diamond flute geometry reduces chipping and edge damage
• Fish tail tip minimizes delamination at entry
• Up-cut design improves chip evacuation and bottom-edge finish
• Extended LOC allows deeper cuts in a single pass
• Solid carbide construction ensures long tool life

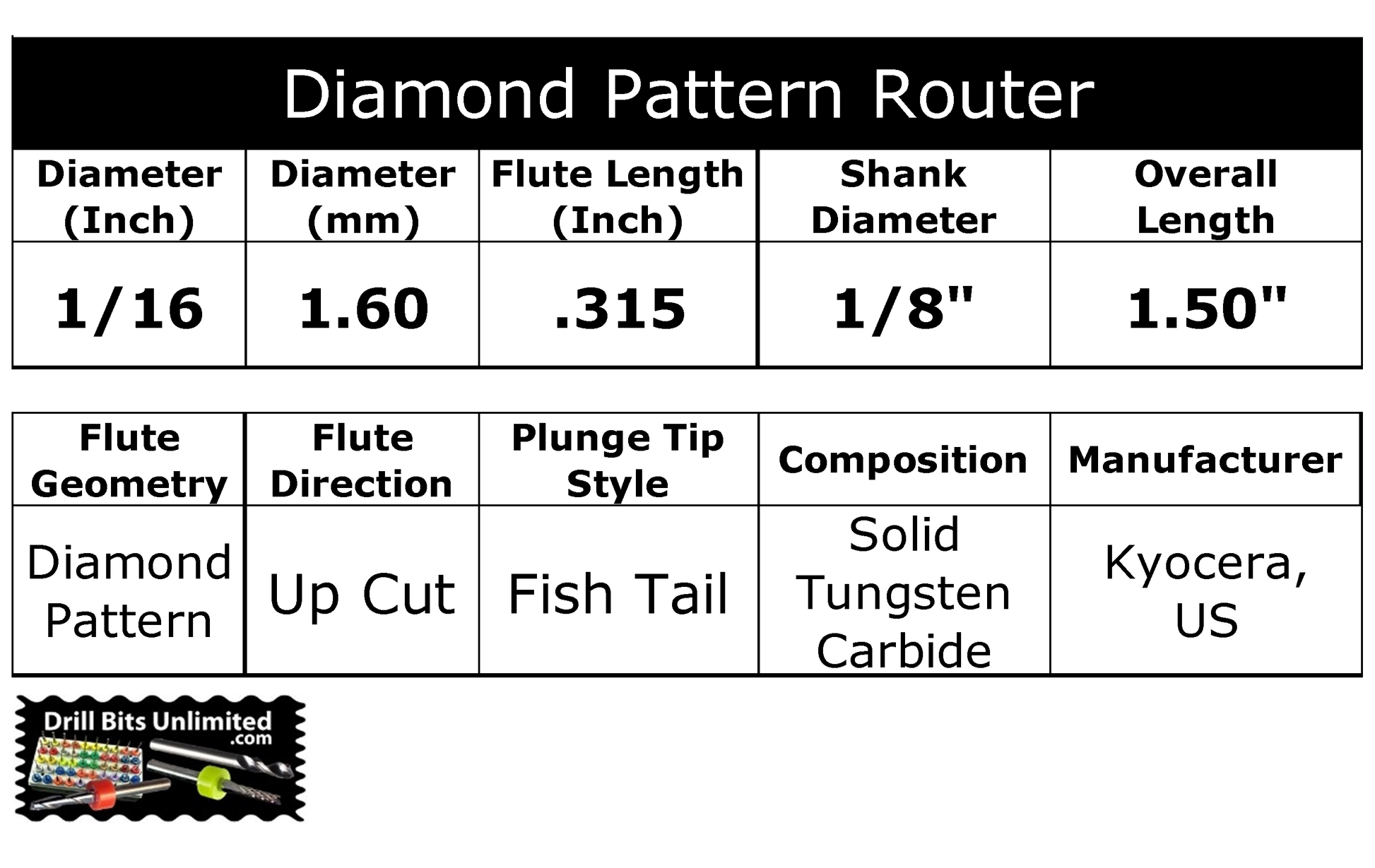

Specifications

Tip style: Fish Tail — gentle entry to reduce delamination in brittle or layered materials.
