0.1250" (1/8") × .472" LOC Diamond Flute PCB Router, Fish Tail, 1/8" Shank | R145

0.1250" (1/8") × .472" LOC Diamond Flute PCB Router, Fish Tail, 1/8" Shank | R145

Regular price $4.99 USD
Regular price Sale price $4.99 USD
Sale Sold out
Sold individually — price is per bit
Shipping calculated at checkout.
Quantity

Buy more and Save!

Minimum Qty Discount
10 + 5% off
25 + 7% off
50 + 9% off
100 + 10% off

Kyocera 1/8" Diamond-Flute PCB Router | .472" LOC | Fish Tail | Up-Cut

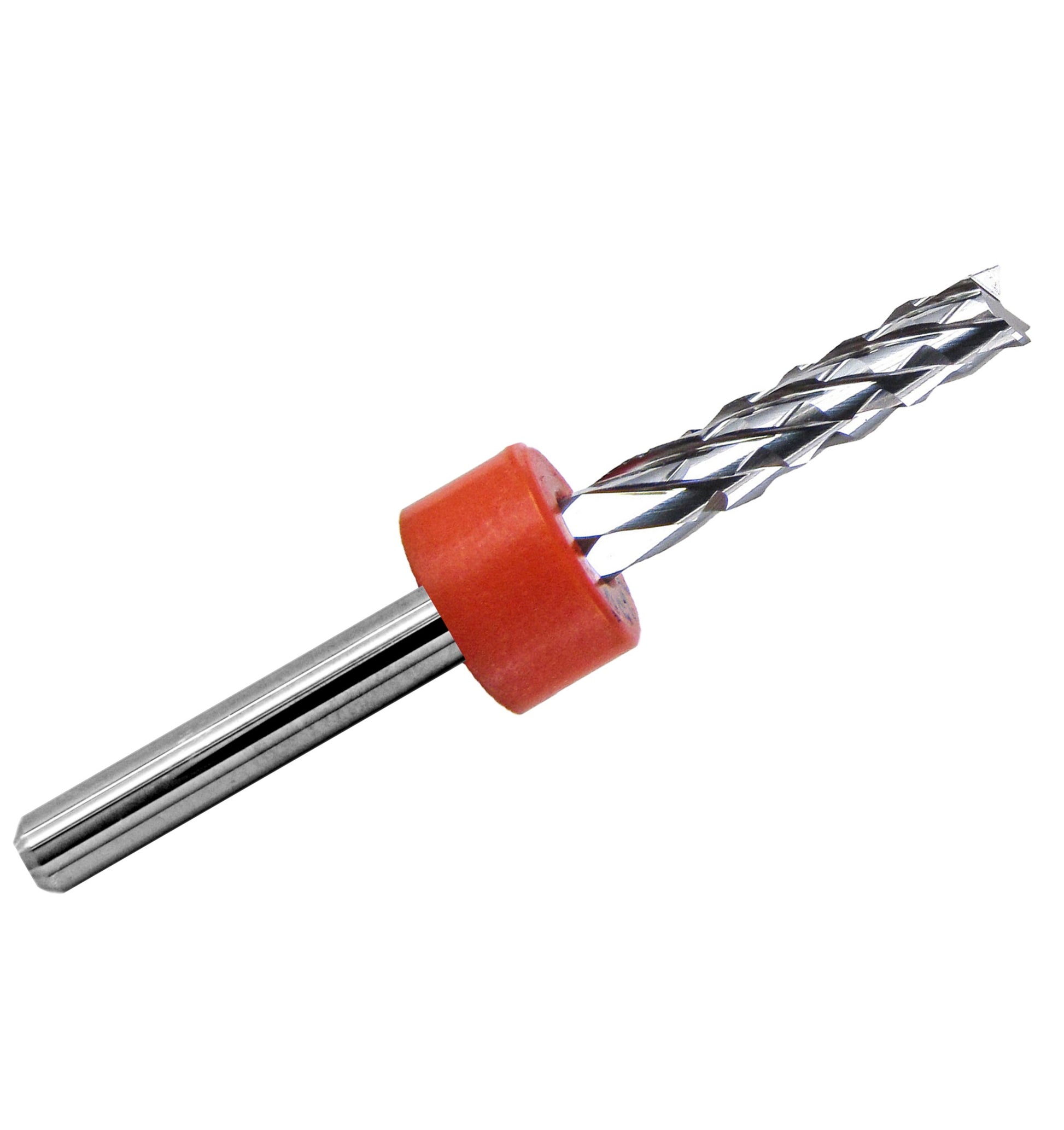

The R145 Kyocera solid carbide diamond-flute router features a 0.1250" (1/8", 3.175mm) cutting diameter, 0.472" (12mm nominal) length of cut, 1.500" overall length, and 1/8" shank. Designed for precision CNC routing, this tool is suitable for FR4 and G10 circuit board laminates, fiberglass, carbon fiber, phenolic materials, and other abrasive composites.

Its diamond-pattern cutting geometry features numerous small, intersecting cutting edges for controlled material removal. The fishtail tip provides end-cutting capability for suitable sheet materials, while the up-cut configuration helps move routing debris upward during cutting.

Key Features

  • 0.1250" (1/8") cutting diameter: Common fractional size for PCB outlines, slots, contours, and composite cutouts
  • 0.472" LOC: Approximately 12mm of cutting reach for suitable thicker laminates and composite panels
  • Diamond-flute geometry: Intersecting cutting edges help control fiber pull-out, fraying, and edge chipping under appropriate cutting conditions
  • Fish Tail tip: End-cutting profile suited to sheet-material entry and through-routing when properly applied
  • Up-cut configuration: Helps carry chips and routing debris upward
  • Solid tungsten carbide: Provides rigidity and resistance to abrasive wear
  • 1/8" shank: Fits compatible precision CNC spindle collets and tool holders

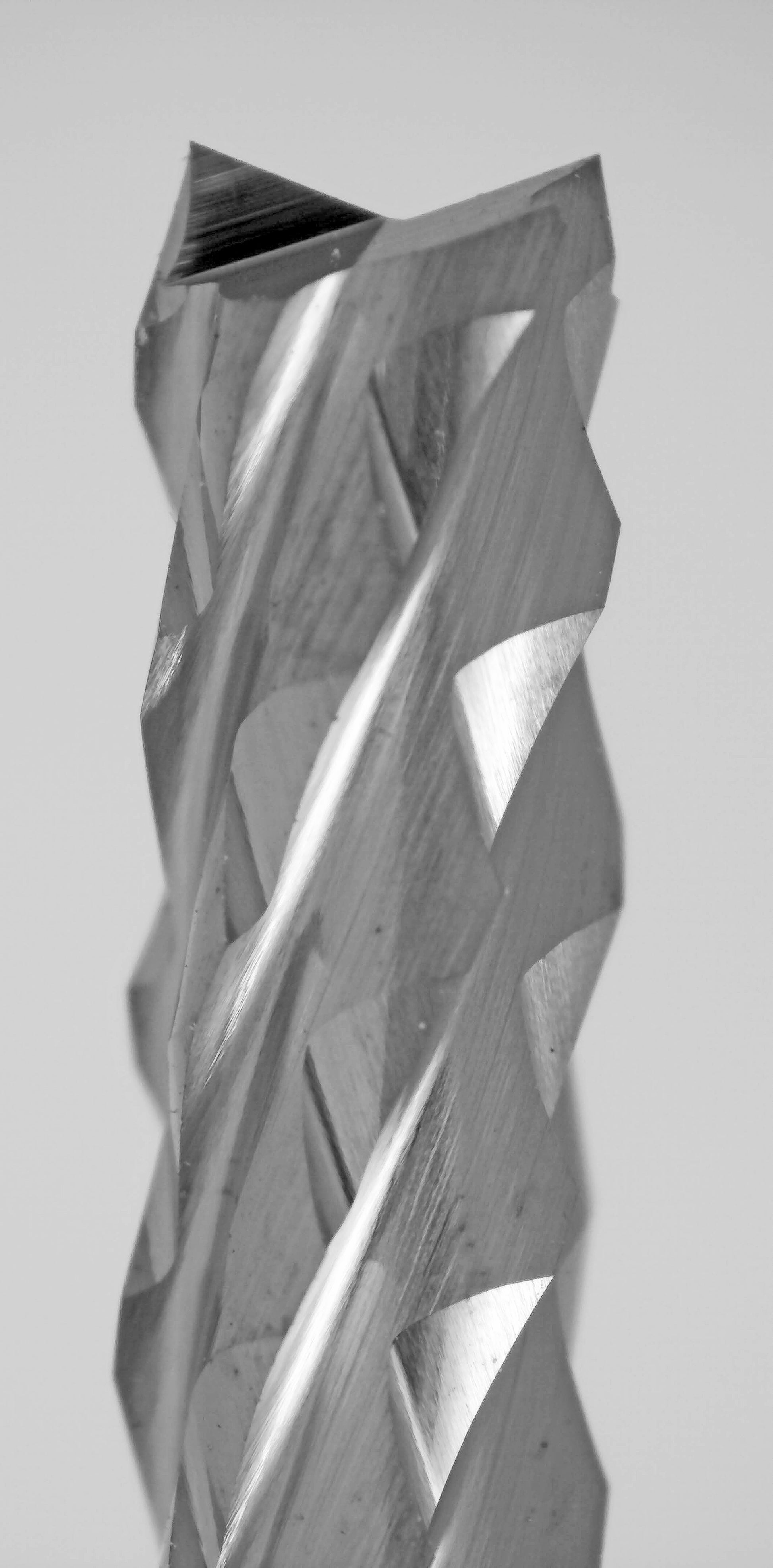

Diamond-Flute Geometry & Fish Tail Tip

Diamond-flute routers, also called diamond-cut or diamond-pattern routers, have numerous intersecting cutting edges rather than conventional continuous spiral flutes. This geometry is commonly used for routing abrasive and layered materials such as FR4 printed circuit boards, G10 fiberglass laminates, and carbon-fiber-reinforced composites.

The fishtail tip provides cutting edges at the end of the router. It is useful for routing board outlines, slots, and cutouts where controlling edge breakout and surface damage is important. Actual cutting results depend on material properties, feeds and speeds, tool condition, and workholding.

The up-cut configuration helps evacuate routing debris upward. Effective dust extraction is especially important when machining fiberglass and carbon-fiber composites.

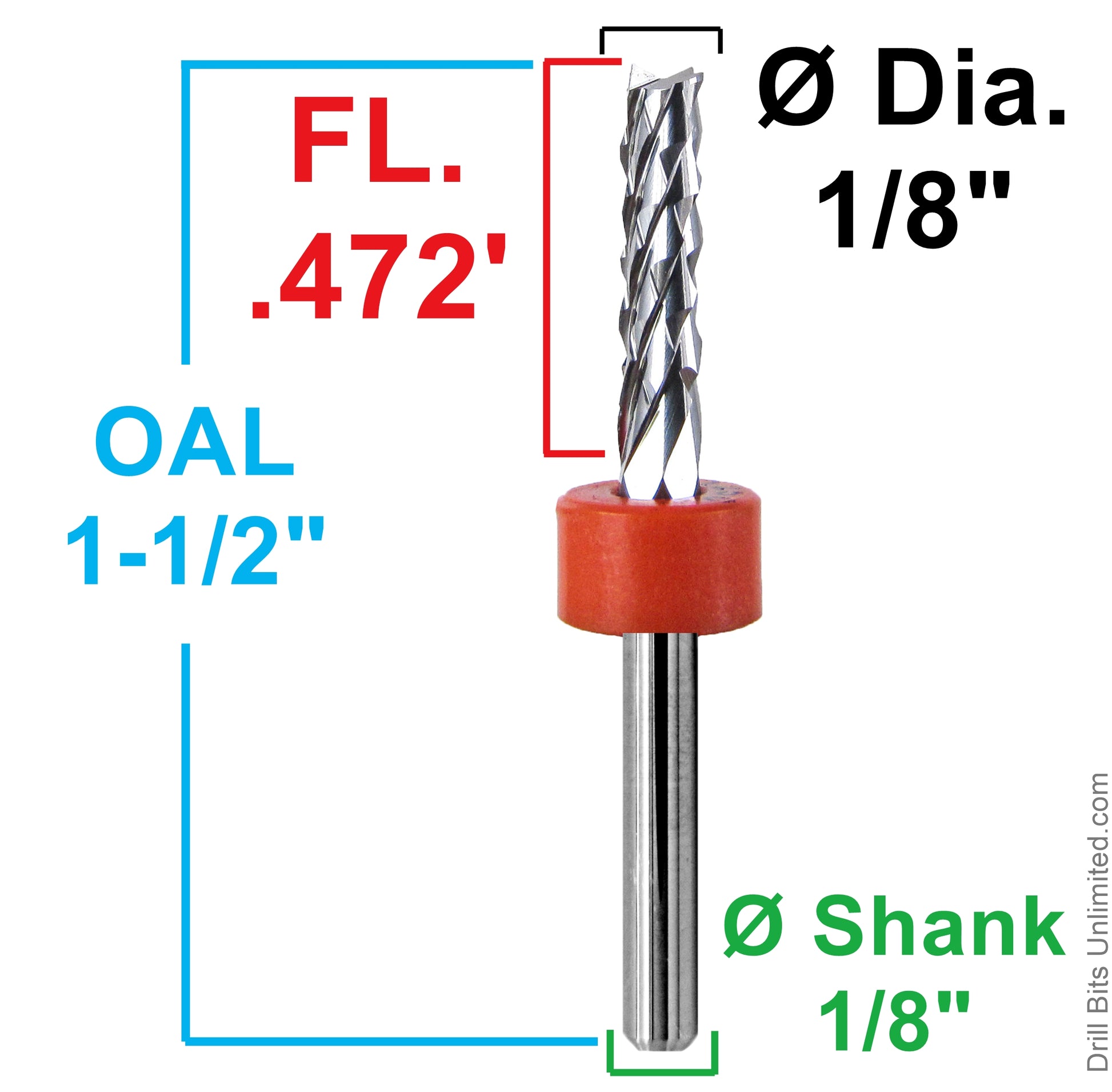

0.472" Cutting Length

R145 provides 0.472" (12mm nominal) of cutting length, offering reach for thicker PCB laminates, fiberglass panels, and composite sheets.

Choose a cutting length appropriate for the workpiece thickness and provide clearance beneath the material when through-cutting. Use appropriate cutting depths and avoid excessive side loading to limit tool deflection and premature breakage.

Material note: Diamond-flute describes the cutting-edge geometry. R145 is uncoated solid carbide, not diamond-coated or PCD tooling.

Typical Applications

  • PCB board outlines, depaneling, slots, and cutouts
  • FR4 and G10 fiberglass laminate routing
  • Carbon-fiber sheet and CFRP composite profiling
  • Fiberglass-reinforced composite trimming
  • Phenolic and epoxy laminate machining
  • Precision CNC routing and prototype fabrication

Technical Specifications

DBU SKU R145
Manufacturer Kyocera
Kyocera Catalog Reference 4100.1250.472 (configuration match)
Tool Type Diamond-Flute PCB Router
Cutting Diameter 0.1250" (1/8", 3.175mm)
Length of Cut (LOC) 0.472" (12mm nominal)
Shank Diameter 1/8" (3.175mm)
Overall Length 1.500" (38.10mm)
Flute Geometry Diamond Flute / Diamond Cut
Cut Direction Up-Cut / Updraft
Tip Style Fish Tail
Tool Material Solid Tungsten Carbide
Coating Uncoated

Feeds & Speeds

Proper spindle speed, feed rate, cutting depth, and secure workholding are important when routing abrasive fiberglass and composite laminates.

View Diamond-Flute Router Feed & Speed Chart for starting cutting recommendations for FR4, G10, fiberglass, and related composite materials.

Cutting recommendations are starting points only. Adjust for the material, spindle capability, machine rigidity, tool condition, and cutting depth. Use appropriate dust extraction when machining fiberglass or carbon fiber.

Related Router Bits & Guides

Shop Diamond-Flute PCB Router Bits
Compare additional diameters, cutting lengths, and plunge-tip styles.

Diamond-Flute Router Guide
Learn about diamond-pattern geometry and choosing between fishtail and drill-point tips.

Need several diamond-flute router sizes?

R145 is included in our 10-Piece Diamond-Flute Router Variety Set (DCF-V1), featuring seven cutting diameters for PCB, fiberglass, and composite routing.
