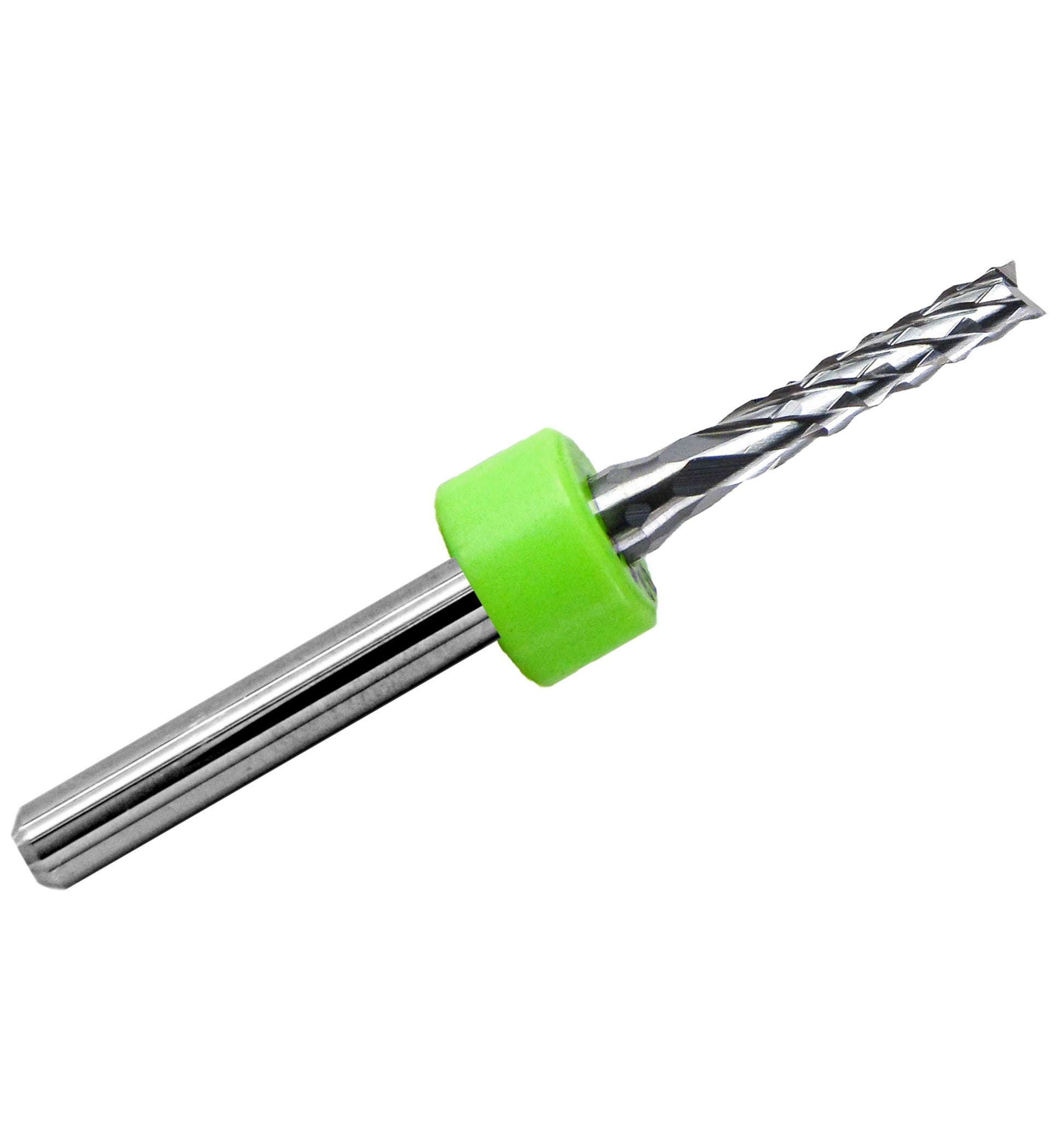

Kyocera 2.40mm Diamond-Flute PCB Router | 3/32" Nominal | .394" LOC | Fish Tail | Up-Cut

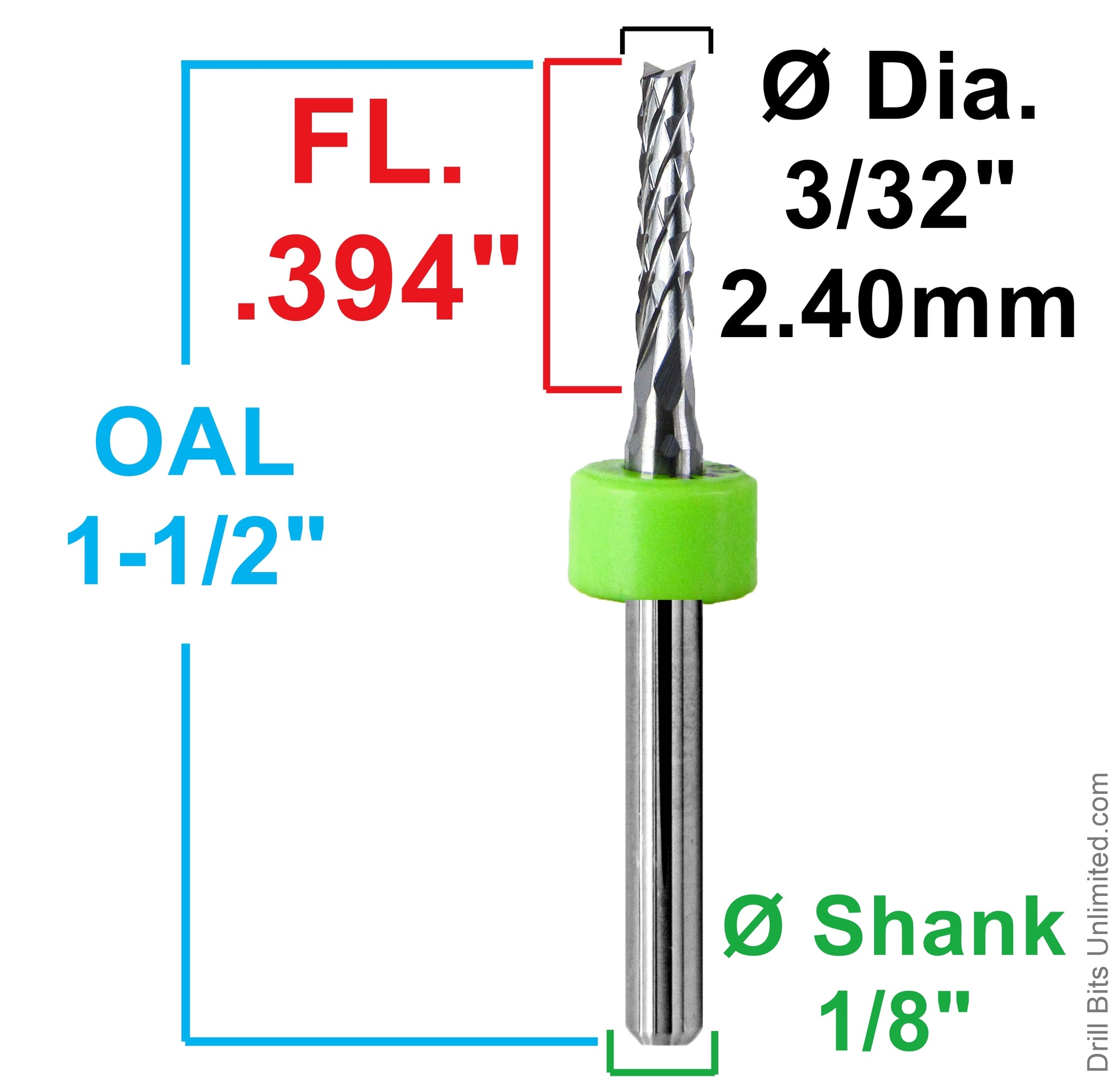

The R139 Kyocera solid carbide diamond-flute router features a 0.0945" (2.40mm / nominal 3/32") cutting diameter, 0.394" (10.00mm nominal) length of cut, 1.500" overall length, and standard 1/8" (3.175mm) shank. This precision router is designed for machining FR4/G10 printed circuit board laminates, fiberglass, phenolic materials, and other abrasive composites.

Its diamond-pattern cutting geometry uses numerous small, intersecting cutting edges for controlled material removal. The fishtail tip provides end-cutting capability for suitable sheet materials, while the up-cut configuration helps direct chips and routing debris upward during cutting.

Key Features

  • 0.0945" (2.40mm / nominal 3/32") diameter: Useful cutting width for PCB profiles, board outlines, slots, and internal cutouts
  • 0.394" (10.00mm nominal) LOC: Extended cutting reach for suitable thicker laminates and composite sheets
  • Diamond-flute geometry: Multiple intersecting cutting edges help control fiber pull-out, edge fraying, and chipping under appropriate machining conditions
  • Fish tail tip: End-cutting geometry supports entry and through-routing in suitable sheet materials
  • Up-cut configuration: Helps direct cutting debris upward during routing
  • Solid tungsten carbide: Provides rigidity and resistance to abrasive wear
  • 1/8" shank: Fits compatible precision CNC spindle collets and tool holders

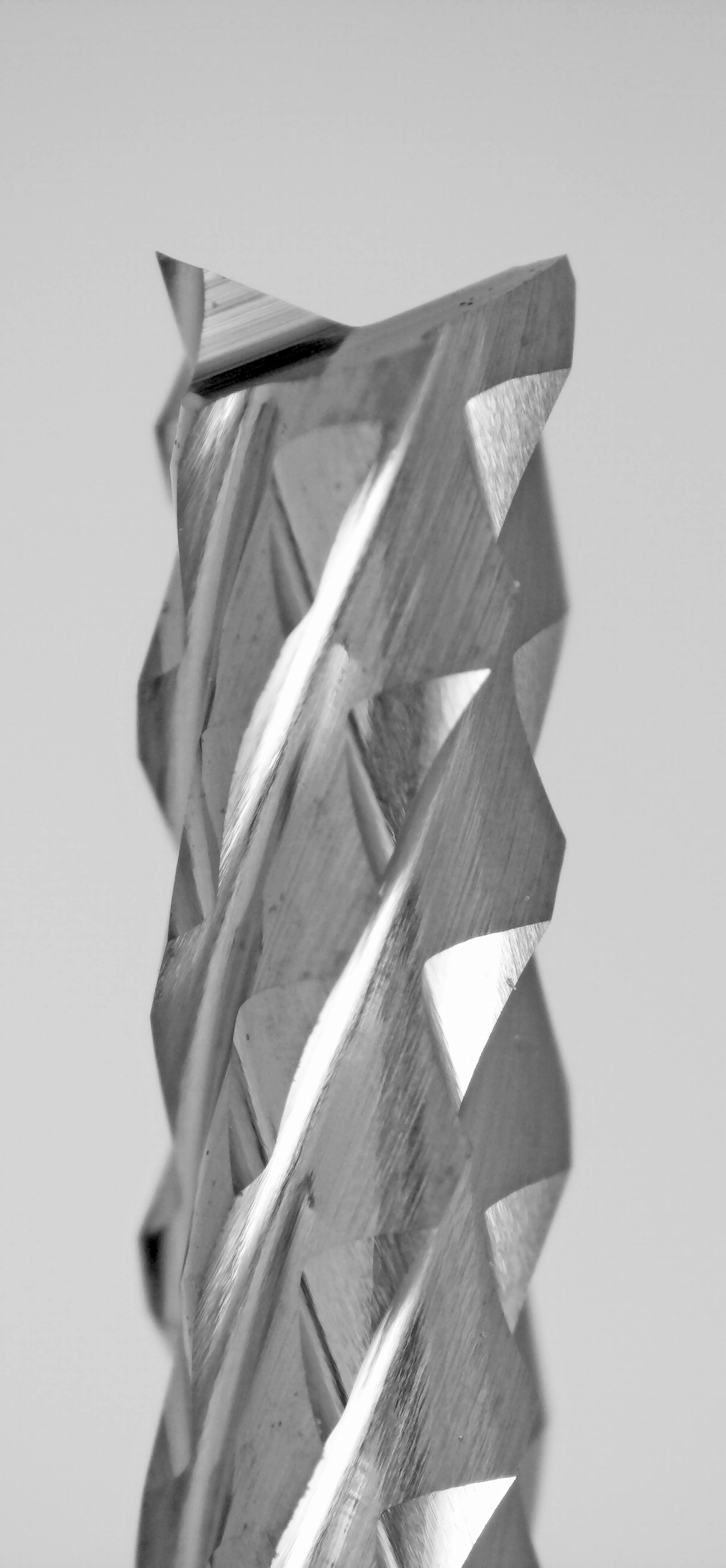

Diamond-Flute Geometry & Fish Tail Tip

Diamond-flute routers, also known as diamond-cut or diamond-pattern routers, use numerous fine, intersecting cutting edges instead of conventional continuous spiral flutes. This geometry is commonly used for routing abrasive and layered materials such as FR4 printed circuit boards, G10 fiberglass laminates, and reinforced composites.

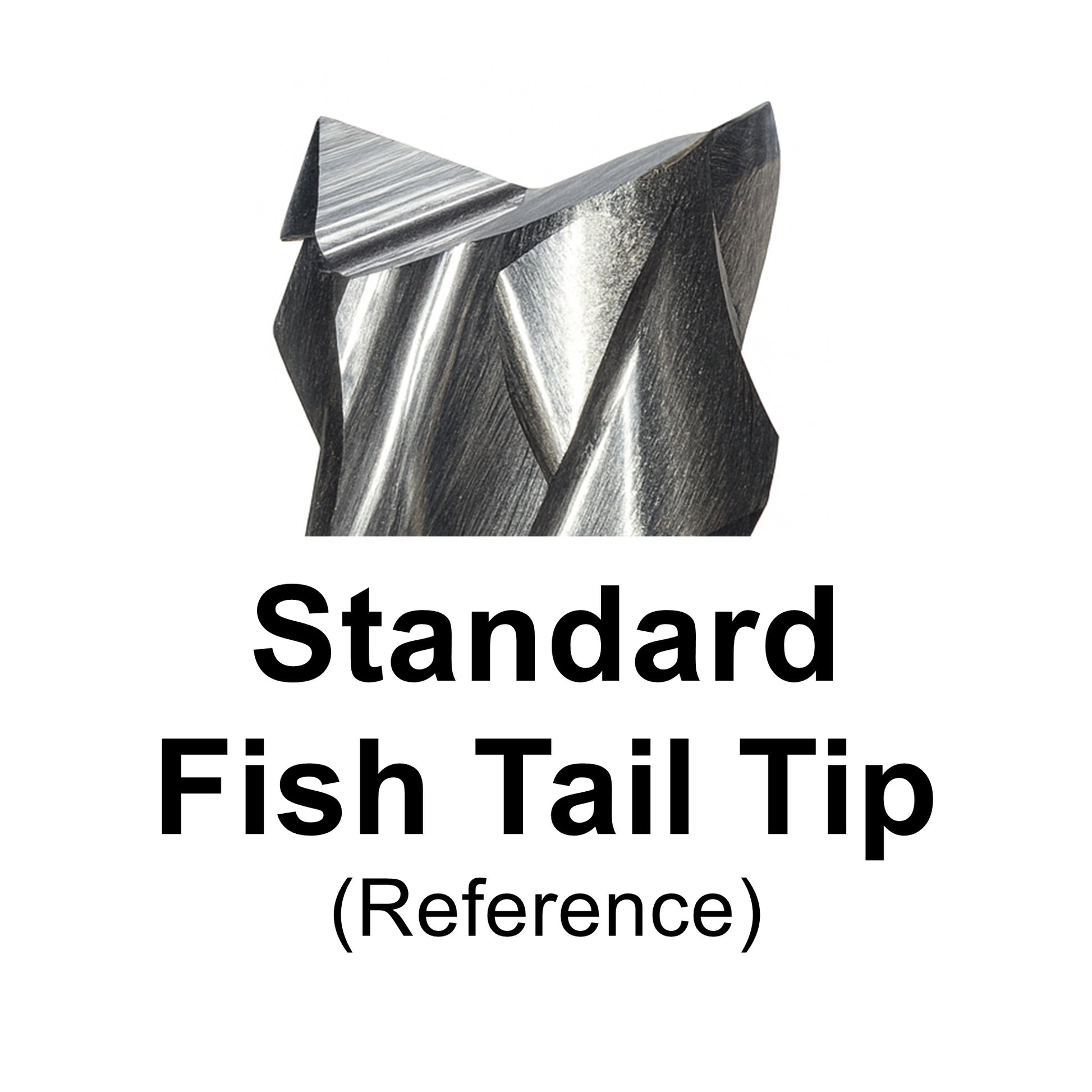

The fishtail tip provides cutting edges at the end of the router, supporting entry and through-routing in suitable sheet materials. With appropriate cutting conditions and secure workholding, it can help control edge chipping and material breakout.

The up-cut configuration helps evacuate chips and routing debris upward. Actual edge quality depends on the material, spindle speed, feed rate, tool condition, and workholding.

Extended .394" Cutting Length

R139 provides 0.394" (10.00mm nominal) of cutting length, offering additional reach for routing suitable thicker fiberglass laminates and composite panels.

Select a cutting length appropriate for the workpiece thickness and provide sufficient clearance beneath the material when through-cutting. Use appropriate cutting loads and avoid excessive side pressure to help limit tool deflection.

Material note: Diamond-flute describes the cutting-edge geometry. This router is solid tungsten carbide, not diamond-coated or PCD tooling.

Typical Applications

  • PCB board outlines, profiles, slots, and cutouts
  • FR4 and G10 fiberglass laminate routing
  • Thicker fiberglass and epoxy laminate panels
  • Phenolic laminate machining
  • Fiberglass-reinforced composite trimming
  • Carbon-fiber composites where uncoated carbide tooling is appropriate
  • Precision CNC routing and prototype fabrication

Technical Specifications

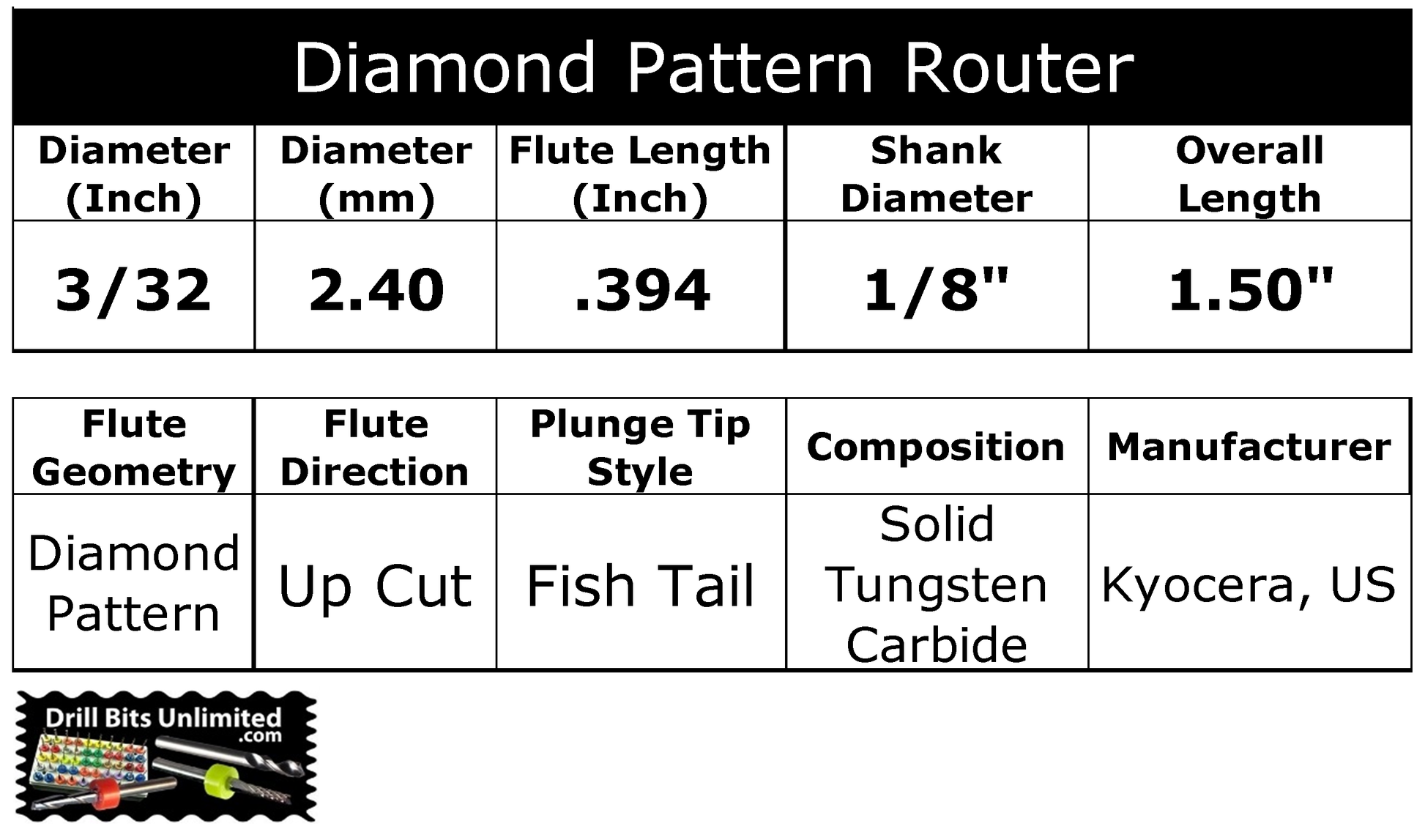

DBU SKU R139
Manufacturer Kyocera
Kyocera Catalog Reference 4100.0945.394 (ringed configuration)
Tool Type Diamond-Flute PCB Router
Cutting Diameter 0.0945" (2.40mm / nominal 3/32")
Length of Cut (LOC) 0.394" (10.00mm nominal)
Shank Diameter 1/8" (3.175mm)
Overall Length 1.500" (38.10mm)
Flute Geometry Diamond Flute / Diamond Cut / Cross Cut
Cut Direction Up-Cut / Updraft
Tip Style Fish Tail
Tool Material Solid Tungsten Carbide
Coating Uncoated

Feeds & Speeds

Correct spindle speed, feed rate, cutting depth, and secure workholding are important when routing abrasive PCB laminates with carbide tools.

View Diamond-Flute Router Feed & Speed Chart for starting cutting recommendations for FR4, G10, fiberglass, and related PCB materials.

Recommended cutting parameters are starting points only. Adjust for material, machine rigidity, spindle capability, tool condition, workholding, and cutting depth. Use appropriate dust extraction when machining fiberglass or carbon fiber.

Related Router Bits & Guides

Shop Diamond-Flute PCB Router Bits
Explore additional cutting diameters, lengths of cut, and tip configurations.

Diamond-Flute Router Guide
Learn about diamond-cut geometry, fishtail and drill-point tips, and choosing routers for PCB laminates and composites.

Need several diamond-flute router sizes?

R139 is included in our 10-Piece Diamond-Flute Router Variety Set (DCF-V1), featuring seven cutting diameters for PCB and composite routing.
