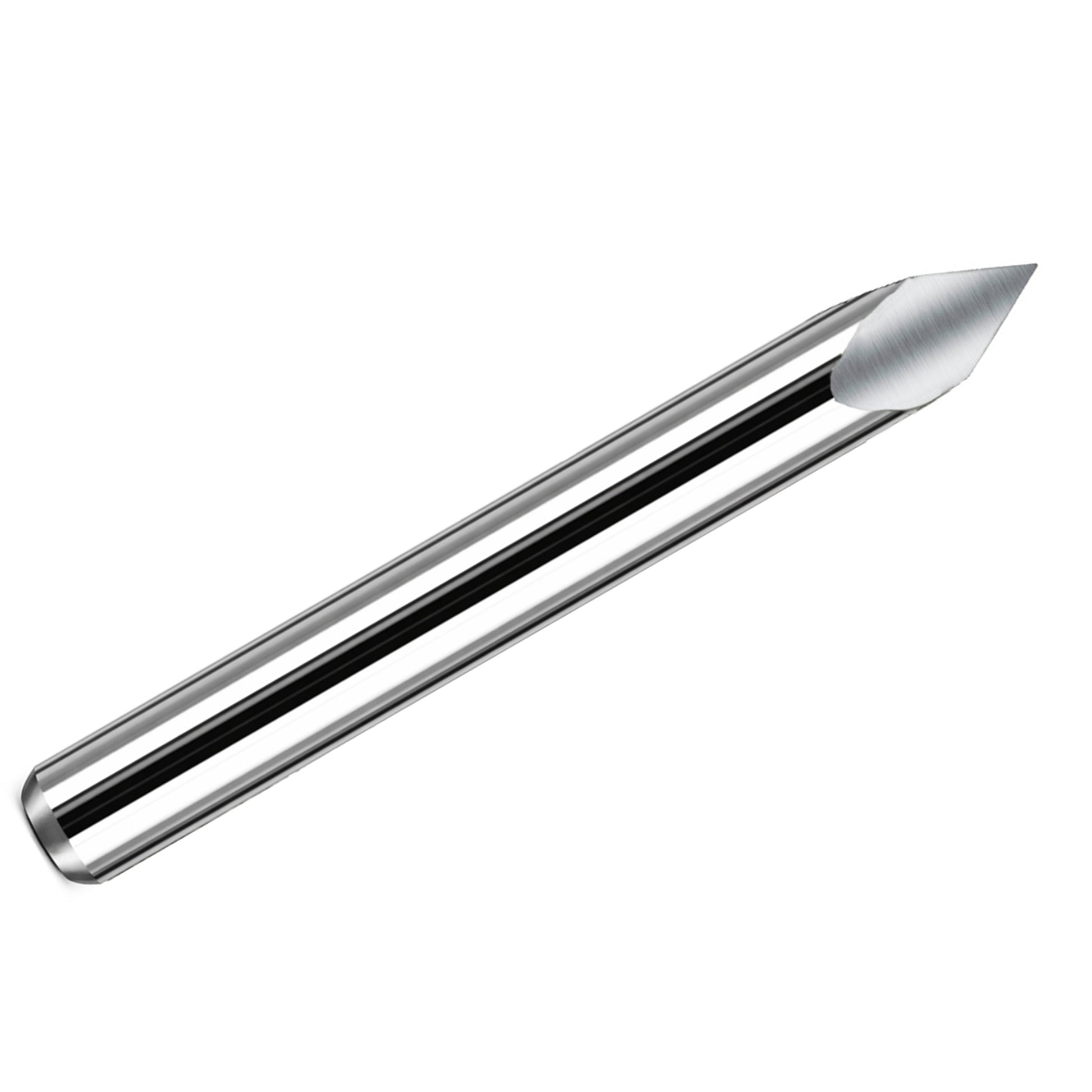

60° Carbide Pyramid Engraver – 3-Edge CNC Bit for PCB Isolation, Engraving & Chamfering, 1/8" Shank | PE60

60° solid carbide 3-edge pyramid engraver for CNC engraving, PCB isolation milling, lettering, and light chamfering.

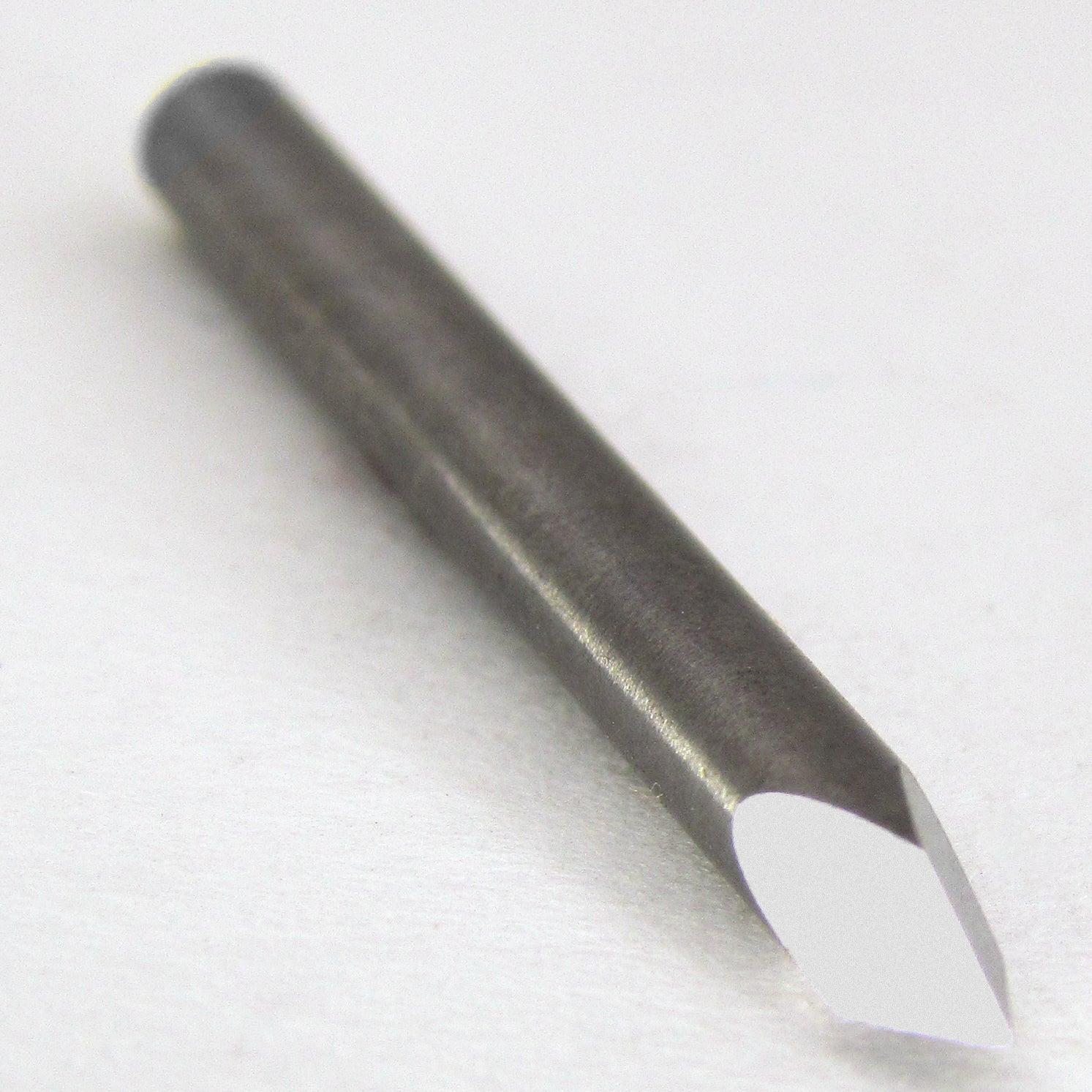

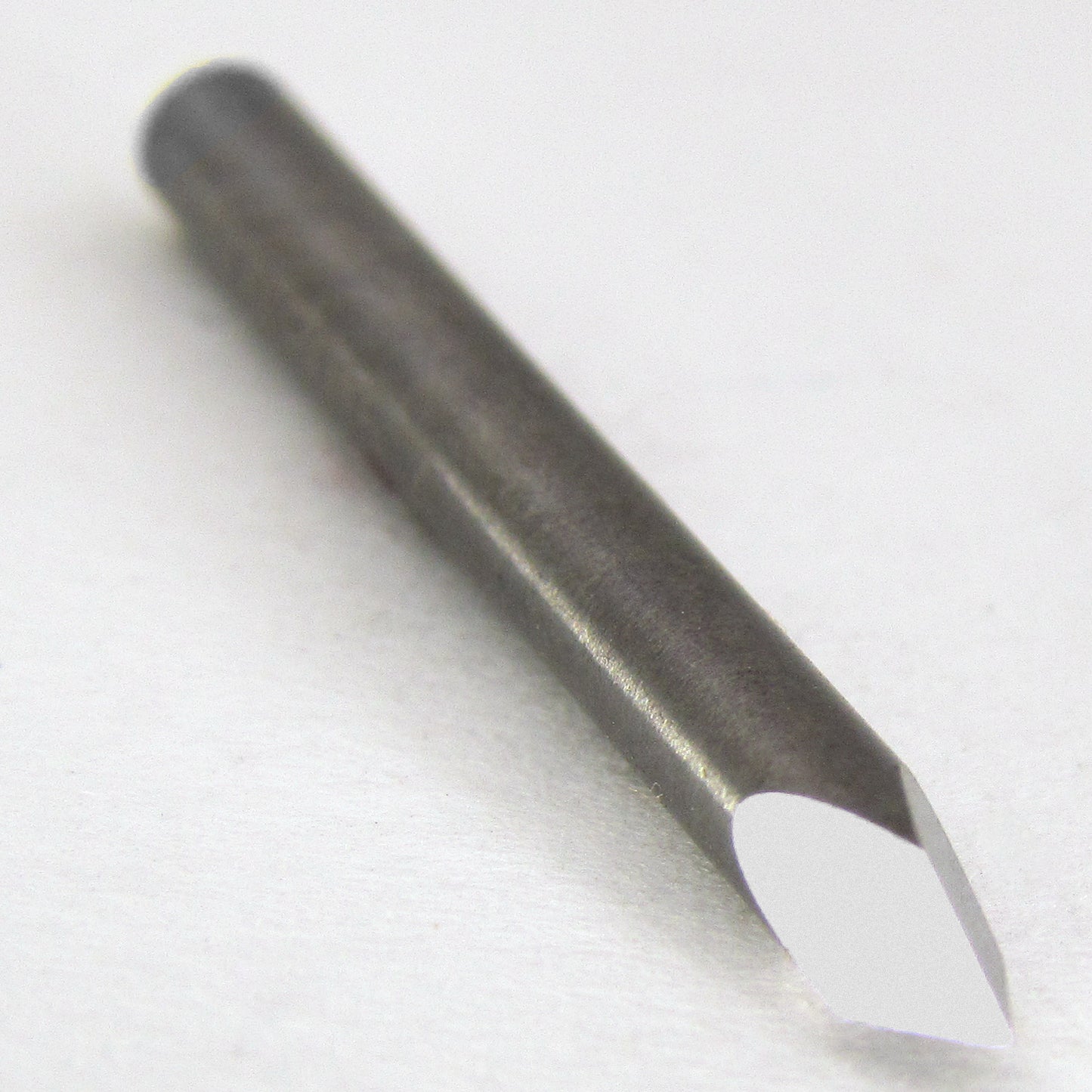

This precision-ground engraving tool features three cutting faces that form a reinforced pyramid-style point. The 3-edge geometry is designed to distribute cutting action across three faces, providing a durable alternative to delicate conventional pointed engraving tools while producing clean, consistent engraving lines.

Why choose a 60° pyramid engraver?
The 60° included angle provides a practical balance of cutting-point durability and engraving width. It produces bold, clearly visible engraving lines and is well suited for general-purpose engraving, sign making, technical marking, light edge beveling, and PCB trace isolation.

For PCB work, the wider 60° geometry is particularly useful when a clearly defined isolation channel is desired. For especially fine traces, tightly spaced pads, micro lettering, or narrow detail work, consider the 30° PE30 Pyramid Engraver.

Typical Applications

• General CNC engraving
• PCB trace isolation milling
• Technical engraving and component marking
• Chamfering and light edge beveling
• Sign making and lettering
• Plastics and acrylic engraving
• Wood engraving and carving
• Light engraving in aluminum, brass, and other non-ferrous metals

Benefits

• 3-edge pyramid geometry with a reinforced cutting point
• Designed for improved point durability
• 60° angle provides versatile engraving-line widths
• Produces clean, clearly defined engraving grooves
• Suitable for PCB isolation milling and technical engraving
• Multi-purpose design for engraving and light chamfering
• Solid carbide construction for wear resistance

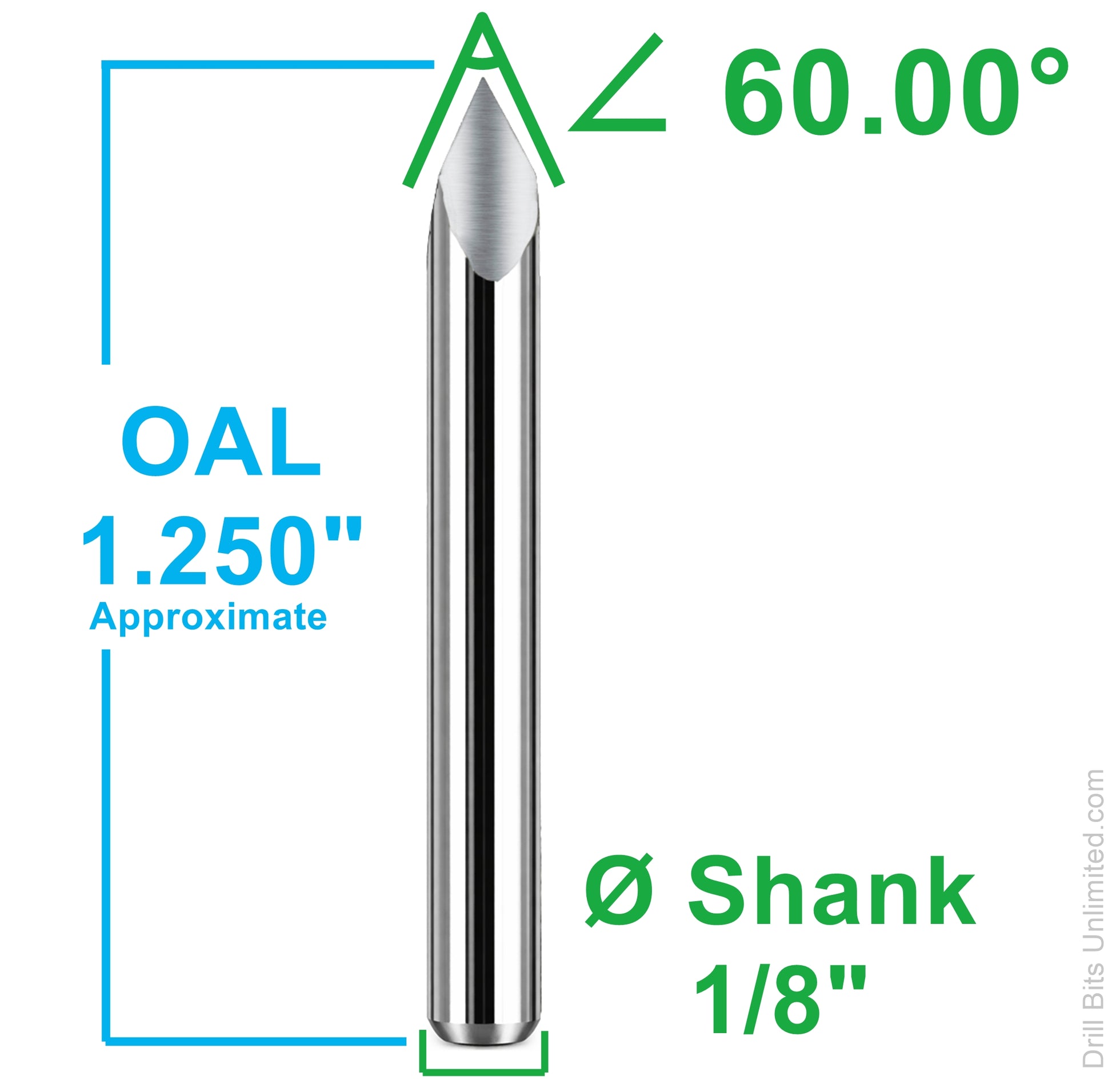

• 1/8" shank fits many CNC routers, engraving machines, and desktop CNC systems

PCB Isolation Milling

This 60° pyramid engraver can be used to remove a narrow channel of copper around PCB traces and pads. The finished isolation width depends on the cutting depth, actual tip geometry, spindle runout, and board flatness.

For best results, begin with a shallow test cut and adjust the engraving depth or effective tool diameter in your CAM software. Accurate Z-height control, secure board mounting, and surface probing or height mapping are recommended when available.

Note: This engraver is intended for copper trace isolation. Separate PCB drills and routing tools should be used for component holes, slots, and cutting the board outline.
